105932-0272 ZEXEL 9 420 610 961 BOSCH GOVERNOR 9420610961 1059320272




Information governor

BOSCH 9 420 610 961 9420610961
ZEXEL 105932-0272 1059320272
105932-0272 GOVERNOR
Rating:
32
Buy GOVERNOR 105932-0272 zexel genuine, new aftermarket engine parts with delivery

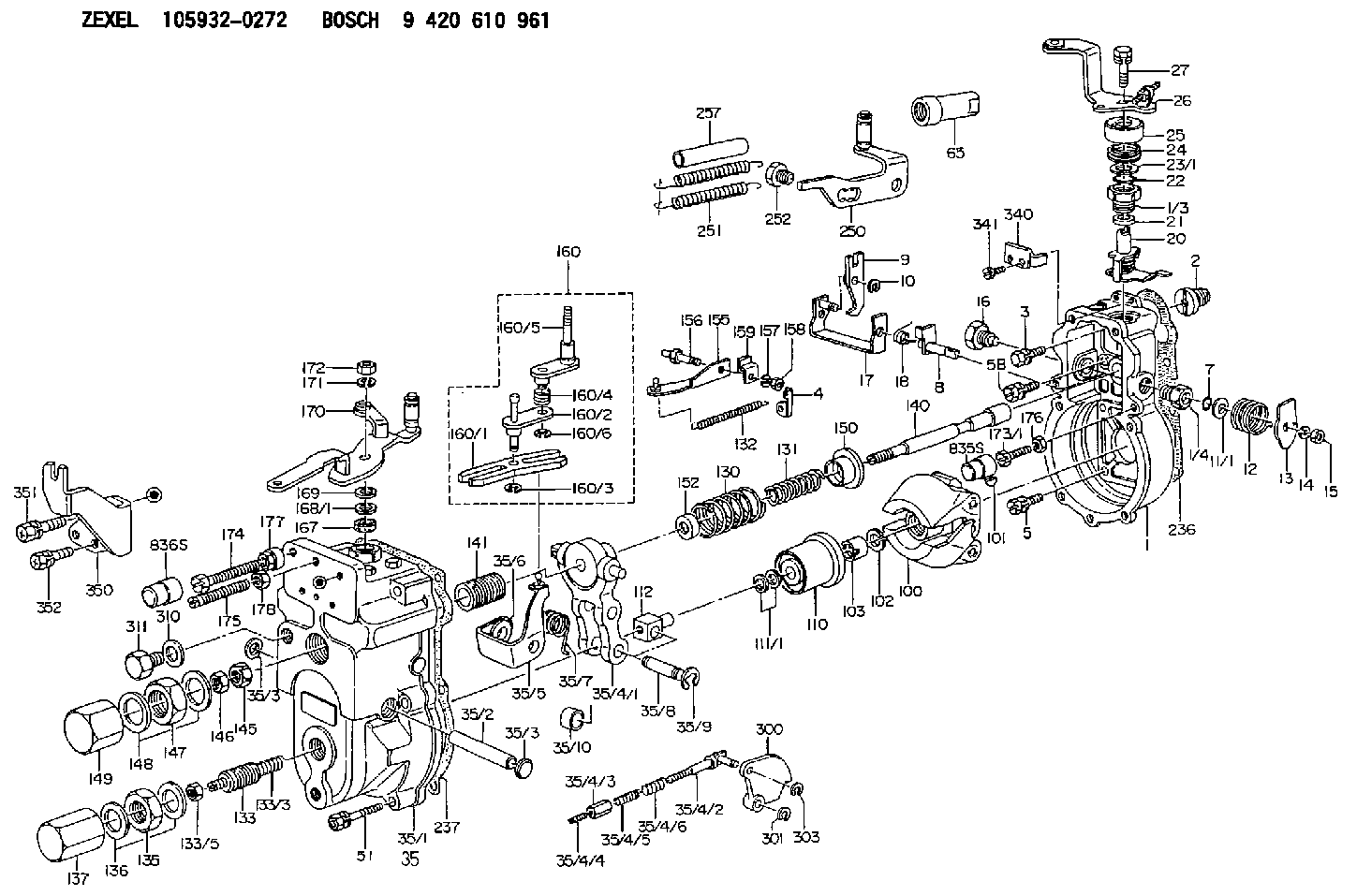

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-7820 GOVERNOR HOUSING
1/3. [1] 154321-0400 BUSHING
1/4. [1] 154321-0400 BUSHING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0801 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 029631-0030 O-RING &9.8W2.3
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-2301 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
11/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
11/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
11/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
11/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
11/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-0100 CONTROL LEVER
14. [1] 014110-8440 LOCKING WASHER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-0000 CAPSULE
17. [1] 159202-2420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-7820 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING &9.8W2.3
23/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
23/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
23/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
23/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
23/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
23/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
24. [1] 159215-2900 COILED SPRING
25. [1] 154322-0100 CAP
26. [1] 159291-1020 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159250-9920 GOVERNOR COVER
35/1. [1] 159201-2410 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-4320 TENSIONING LEVER
35/4/1. [1] 159253-4220 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0000 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-5320 GUIDE LEVER
35/6. [2] 159235-5000 BUSHING
35/7. [1] 159215-0201 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-1801 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-8920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0100 TERMINAL STUD
130. [1] 159210-9300 GOVERNOR SPRING
131. [1] 159211-6100 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159219-2320 HEADLESS SCREW
133/3. [1] 159219-2700 COILED SPRING
133/5. [1] 013020-6040 UNION NUT M6P1H5
135. [1] 159248-0600 UNION NUT
136. [2] 026520-2440 GASKET D23.9&20.2T1
137. [1] 159248-0700 CAP
140. [1] 159205-1801 LEVER SHAFT
141. [1] 159234-5200 GUIDE SLEEVE
145. [1] 159233-5000 UNION NUT
146. [1] 023020-8040 UNION NUT M8P1H5
147. [1] 139222-0200 UNION NUT
148. [2] 026522-2740 GASKET D26.9&22.2T1
149. [1] 159237-5000 CAP
150. [1] 159235-5300 SLOTTED WASHER
152. [1] 159235-6700 SLOTTED WASHER
155. [1] 159204-0320 STRAP
156. [1] 159237-0300 BLEEDER SCREW
157. [1] 014110-5440 LOCKING WASHER
158. [1] 159233-5620 UNION NUT
159. [1] 159242-0800 PLATE
160. [1] 159252-0521 LEVER GROUP
160/1. [1] 159202-1400 CONTROL LEVER
160/2. [1] 159202-1520 CONTROL LEVER
160/3. [1] 016010-0610 LOCKING WASHER
160/4. [1] 159215-1300 COILED SPRING
160/5. [1] 159205-1721 LEVER SHAFT
160/6. [1] 016010-0810 LOCKING WASHER
167. [1] 029621-0080 PACKING RING
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159267-9521 CONTROL LEVER
171. [1] 014110-8440 LOCKING WASHER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-8000 BLEEDER SCREW
175. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
236. [1] 154390-1300 GASKET
237. [1] 154390-1100 GASKET
250. [1] 159221-8920 BRACKET
251. [2] 154338-3200 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
257. [2] 154156-0500 TUBE
300. [1] 159286-6700 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
310. [1] 026516-2040 GASKET D19.9&16.2T1
311. [1] 159237-0100 CAPSULE
340. [1] 159221-9000 PLATE
341. [2] 020104-1040 BLEEDER SCREW
350. [1] 159222-7300 BRACKET
351. [1] 020118-1640 BLEEDER SCREW
352. [2] 020106-1240 BLEEDER SCREW M6P1.0L12

Include in #1:

101603-2132 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105932-0272
105932-0273
9 420 610 961

GOVERNOR
* K




Information:

Highly Recommended
The following equipment is highly recommended:
The Fluke 741B Multimeter is desired. 163-0096 Diagnostic and Calibration Tool
Ladder Viewer Diagnostic Software, YERA0162
The 4C-4029 Adjusting Tool Alternate Recommendations
The Milliampere Loop Simulator and TesterRTD Simulator and Tester Omega CL308Thermocouple Simulator and Tester Omega CL477The Simulator and Tester Omega CL26 for RTD and ThermocoupleThe Fluke 87 9U-7330 Digital Multimeter The Caterpillar Multimeter is also acceptable. 6V-7070 Digital Multimeter The attachments for the Fluke multimeter are in the following list:
Thermocouple Module 80TK is for reading thermocouples.
Immersion Probe 80PK2A can be used with self-sealing adapters.
8T-5200 Signal Generator/Counter is for checking the calibration of the speed switch and for simulating engine speed for the PLC.General Diagnostic Tools For the 3600
Reference: Engine News October 1990"Engine Commissioning and Diagnostic Tooling Kit".The following tools are used for measuring the pressures of the engine. The tools are also use for measuring the temperatures of the engine.
1U-5470 Engine Pressure Group
6V-9130 Temperature Adapter The following list contains the self-sealing adapters that are used for the installation of test ports in piping systems. The sizes of the adapters and the quantities of the adapters depend on the number of test ports that are needed.
5P-2725 Probe Seal Adapter
5P-3591 Probe Adapter
4C-4545 Probe Adapter Group
1U-8865 Infrared Thermometer
139-2788 Crimping Tool A Carrier-Oehler Calibration Pump is used in order to calibrate the setup for the alarms. The pump is also used in order to calibrate the shutdown setup.Contact information for the calibration pump:Carrier-Oehler Company
P.O. Box 40
16965 S. Vincennes
South Holland, Illinois USA 60473
ph: (708) 339-8200, fax: (708) 339-9830

Have questions with 105932-0272?





Group cross 105932-0272 ZEXEL

105932-0270


GOVERNOR
105932-0271


GOVERNOR
105932-0272

105932-0273
9 420 610 961

GOVERNOR
105932-0273


GOVERNOR
105932-0274

105932-0275
9 420 610 962

GOVERNOR
105932-0275
9 420 610 963
NP-EP/RLD275-1550A4CFL

GOVERNOR
