Information governor
BOSCH
9 420 611 057
9420611057
ZEXEL
105932-0125
1059320125
MITSUBISHI
ME740653
me740653

Rating:

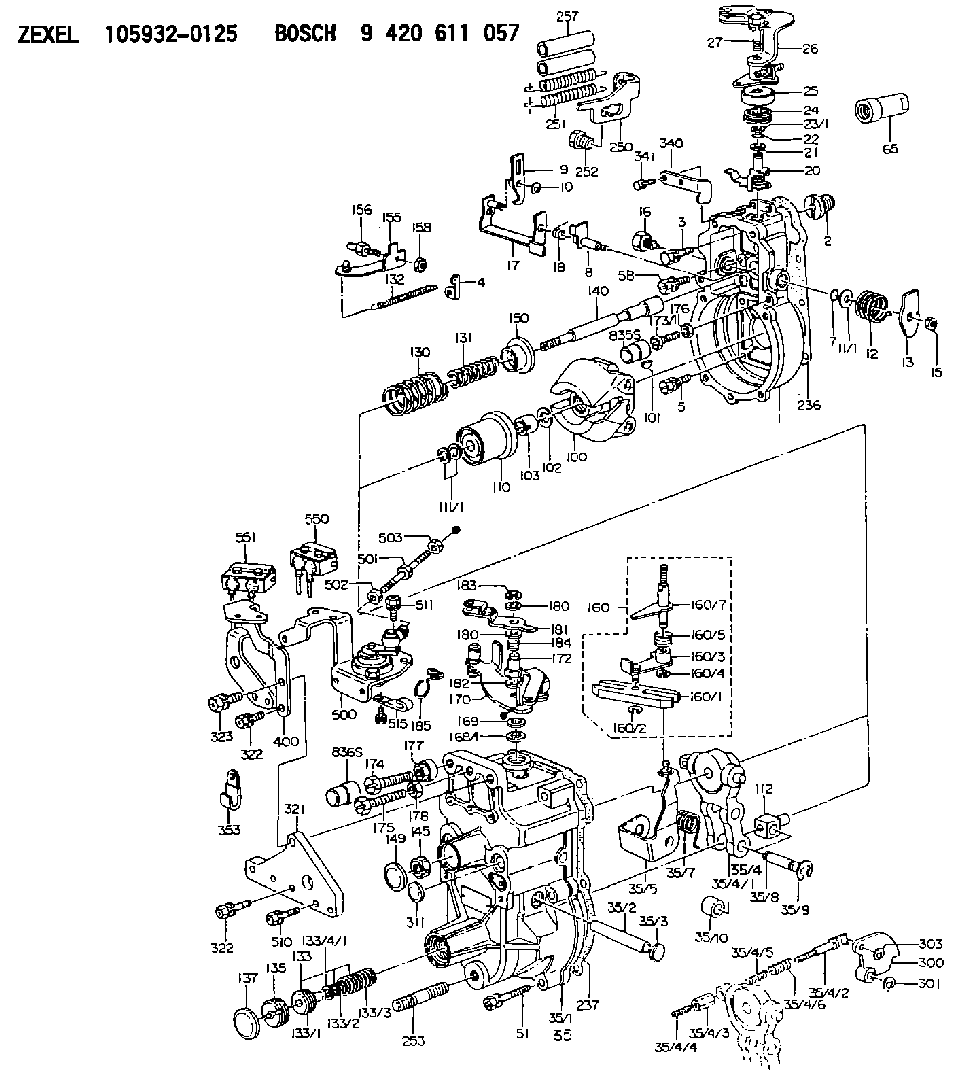

Scheme ###:
1. | [1] | 159200-5820 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0201 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 016530-1010 | O-RING |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-5101 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-5320 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-0220 | CONTROL LEVER |
21. | [1] | 159242-0600 | BUSHING |
22. | [1] | 016530-1010 | O-RING |
23/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
23/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
23/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
23/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
23/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
23/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
23/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
23/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
23/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
24. | [1] | 159215-2000 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159249-6020 | CONTROL LEVER |
27. | [1] | 020006-3040 | BLEEDER SCREW |
35. | [1] | 159251-8620 | GOVERNOR COVER |
35/1. | [1] | 159201-3422 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-2220 | TENSIONING LEVER |
35/4/1. | [1] | 159203-1720 | TENSIONING LEVER |
35/4/1. | [1] | 159203-1720 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-6120 | GUIDE LEVER |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154050-1720 | STOPPING DEVICE |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-3200 | GOVERNOR SPRING |
131. | [1] | 159211-1300 | GOVERNOR SPRING |
132. | [1] | 159214-0000 | COILED SPRING |
133. | [1] | 159212-5320 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-5000 | COILED SPRING |
133/3. | [1] | 159212-5300 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-5120 | STRAP |
156. | [1] | 159233-0520 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
160. | [1] | 159252-0821 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-2120 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-2301 | COILED SPRING |
160/7. | [1] | 159205-2222 | LEVER SHAFT |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159267-4520 | CONTROL LEVER |
172. | [1] | 159231-4400 | UNION NUT |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-8000 | BLEEDER SCREW |
175. | [1] | 154012-4300 | BLEEDER SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-3000 | UNION NUT |
178. | [1] | 154011-2600 | UNION NUT |
180. | [2] | 154371-0000 | PLAIN WASHER |
180. | [2] | 154371-0000 | PLAIN WASHER |
181. | [1] | 159267-1620 | CONTROL LEVER |
182. | [1] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
183. | [1] | 016010-0740 | LOCKING WASHER |
184. | [1] | 159215-4600 | COILED SPRING |
185. | [1] | 159220-1300 | CLAMPING BAND |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159229-2520 | BRACKET |
251. | [2] | 159243-9900 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
253. | [1] | 139010-1000 | STUD |
257. | [2] | 154156-0500 | TUBE |
300. | [1] | 159286-6000 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
321. | [1] | 159227-8700 | SPACER BUSHING |
322. | [3] | 020106-2540 | BLEEDER SCREW M6P1L25 |
322. | [3] | 020106-2540 | BLEEDER SCREW M6P1L25 |
323. | [1] | 020118-3240 | BLEEDER SCREW |
340. | [1] | 159228-6400 | BRACKET |
341. | [2] | 020104-1040 | BLEEDER SCREW |
353. | [2] | 154614-4620 | CLAMPING BAND |
400. | [1] | 159221-8020 | BRACKET |
500. | [1] | 154602-0520 | LOAD SENSOR ASSY |
501. | [1] | 154604-7200 | STRAP |
502. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
503. | [1] | 029200-5130 | UNION NUT |
510. | [2] | 020106-2040 | BLEEDER SCREW M6P1L20 |
511. | [1] | 020106-1040 | BLEEDER SCREW M6P1L12 |
515. | [1] | 154614-4620 | CLAMPING BAND |
550. | [1] | 153146-1321 | MICROSWITCH |
551. | [1] | 153146-2720 | MICROSWITCH |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Indicator Lamps
The MECP indicator lamps provide the following status information:
"SUMMARY SHUTDOWN"
"SUMMARY ALARM"
"PLC FAILURE"
"ENGINE PRELUBE"The lamps activate when the "HORN SILENCE/LAMP TEST" switch is placed in the LAMP TEST.
Illustration 5 g00562727
"SUMMARY SHUTDOWN" Indicator Lamp
The "SUMMARY SHUTDOWN" lamp displays the status of the engine protection shutdown system.A red "SUMMARY SHUTDOWN" lamp indicates that a engine protection shutdown has occurred. The exact shutdown is annunciated on the PC window. A flashing "SUMMARY SHUTDOWN" lamp indicates an shutdown that is not acknowledged. A solid "SUMMARY SHUTDOWN" lamp indicates that the shutdown has been acknowledged.The cause of the shutdown is provided by the display screen. To acknowledge the indicator, turn the "HORN SILENCE/LAMP TEST" switch to the "HORN SILENCE" position. Correct the condition before restarting the engine. The control panel must be reset before the engine can be restarted. To reset the control panel, turn the "OFF/RESET, LOCAL, and REMOTE" switch to the "OFF/RESET" position. The air shutoff is activated for any shutdown. The air shutoff must also be reset before the engine can be restarted. If an overspeed shutdown occurs, the Engine Speed Switch must also be reset.Note: When a shutdown occurs the air damper closes. This secures the intake air. The air damper must be reset in order to start the engine. "SUMMARY ALARM" Indicator Lamp
The "SUMMARY ALARM" lamp provides a summary of the active MMS alarms. A red "SUMMARY ALARM" lamp indicates an alarm condition. Specific information on the alarm is provided on the PC window. A flashing "SUMMARY ALARM" lamp indicates an alarm that has not been acknowledged. A solid "SUMMARY ALARM" lamp indicates that the alarm has been acknowledged. The lamp will remain illuminated until the alarm condition is resolved."PLC FAILURE" Indicator Lamp
The "PLC FAILURE" lamp provides status of the PLC timer.The programmable logic control regularly sends a signal to a timer. If the timer fails to receive the signal, the yellow "PLC FAILURE" lamp illuminates. This indicates that the programmable logic control may not be providing full protection for the engine. Running the engine during abnormal conditions may cause engine damage.In the event of a PLC failure, the redundant relay logic shutdown system will provide minimum protection. The PLC failure should be corrected as soon as possible. While the "PLC FAILURE" lamp is illuminated the PC display may not be correct. Use the backup gauges for accurate information. If the programmable logic control is inoperative, the redundant shutdown system will provide minimum protection.PLC failure may be caused by the mode. Loss of the 24 Volt DC power may also cause a PLC failure. The system must be in the run mode.The "PLC FAILURE" lamp is illuminated and the "SUMMARY ALARM" lamp is flashing. Wait for five seconds. Count the number of flashes. The number of flashes corresponds to the slot that contains a faulty module."ENGINE PRELUBE" Indicator Lamp
The "ENGINE PRELUBE" lamp provides the status of engine lubrication.A green "ENGINE PRELUBE" lamp indicates that the engine is prelubed and that the engine is ready to start. Place the "PRELUBE-RUN-START"
The MECP indicator lamps provide the following status information:
"SUMMARY SHUTDOWN"
"SUMMARY ALARM"
"PLC FAILURE"
"ENGINE PRELUBE"The lamps activate when the "HORN SILENCE/LAMP TEST" switch is placed in the LAMP TEST.
Illustration 5 g00562727
"SUMMARY SHUTDOWN" Indicator Lamp
The "SUMMARY SHUTDOWN" lamp displays the status of the engine protection shutdown system.A red "SUMMARY SHUTDOWN" lamp indicates that a engine protection shutdown has occurred. The exact shutdown is annunciated on the PC window. A flashing "SUMMARY SHUTDOWN" lamp indicates an shutdown that is not acknowledged. A solid "SUMMARY SHUTDOWN" lamp indicates that the shutdown has been acknowledged.The cause of the shutdown is provided by the display screen. To acknowledge the indicator, turn the "HORN SILENCE/LAMP TEST" switch to the "HORN SILENCE" position. Correct the condition before restarting the engine. The control panel must be reset before the engine can be restarted. To reset the control panel, turn the "OFF/RESET, LOCAL, and REMOTE" switch to the "OFF/RESET" position. The air shutoff is activated for any shutdown. The air shutoff must also be reset before the engine can be restarted. If an overspeed shutdown occurs, the Engine Speed Switch must also be reset.Note: When a shutdown occurs the air damper closes. This secures the intake air. The air damper must be reset in order to start the engine. "SUMMARY ALARM" Indicator Lamp
The "SUMMARY ALARM" lamp provides a summary of the active MMS alarms. A red "SUMMARY ALARM" lamp indicates an alarm condition. Specific information on the alarm is provided on the PC window. A flashing "SUMMARY ALARM" lamp indicates an alarm that has not been acknowledged. A solid "SUMMARY ALARM" lamp indicates that the alarm has been acknowledged. The lamp will remain illuminated until the alarm condition is resolved."PLC FAILURE" Indicator Lamp
The "PLC FAILURE" lamp provides status of the PLC timer.The programmable logic control regularly sends a signal to a timer. If the timer fails to receive the signal, the yellow "PLC FAILURE" lamp illuminates. This indicates that the programmable logic control may not be providing full protection for the engine. Running the engine during abnormal conditions may cause engine damage.In the event of a PLC failure, the redundant relay logic shutdown system will provide minimum protection. The PLC failure should be corrected as soon as possible. While the "PLC FAILURE" lamp is illuminated the PC display may not be correct. Use the backup gauges for accurate information. If the programmable logic control is inoperative, the redundant shutdown system will provide minimum protection.PLC failure may be caused by the mode. Loss of the 24 Volt DC power may also cause a PLC failure. The system must be in the run mode.The "PLC FAILURE" lamp is illuminated and the "SUMMARY ALARM" lamp is flashing. Wait for five seconds. Count the number of flashes. The number of flashes corresponds to the slot that contains a faulty module."ENGINE PRELUBE" Indicator Lamp
The "ENGINE PRELUBE" lamp provides the status of engine lubrication.A green "ENGINE PRELUBE" lamp indicates that the engine is prelubed and that the engine is ready to start. Place the "PRELUBE-RUN-START"
