105931-9982 ZEXEL 9 420 612 701 BOSCH GOVERNOR 9420612701 1059319982

Information governor

BOSCH 9 420 612 701 9420612701

ZEXEL 105931-9982 1059319982

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-9982 zexel genuine, new aftermarket engine parts with delivery

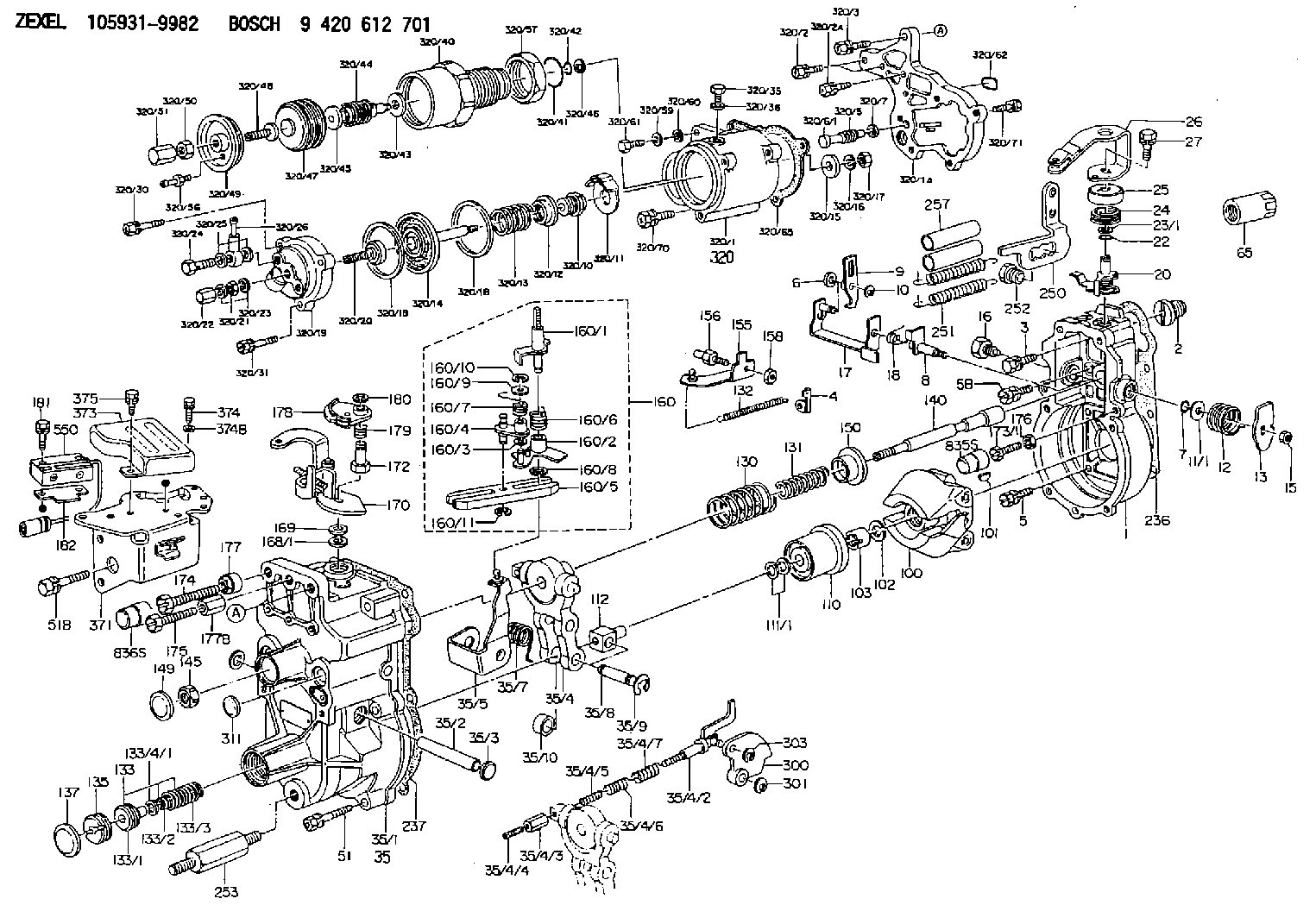

Scheme ###:

1.	[1]	159200-4720	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-1600	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	159242-0600	BUSHING
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5601	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159291-0420	CONTROL LEVER
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	139410-1300	SHIM D20.8&10.2T0.3
23/1.	[0]	139410-1700	SHIM D20.8&10.2T0.2
23/1.	[0]	139410-1800	SHIM D20.8&10.2T0.4
23/1.	[0]	139410-2800	SHIM D20.8&10.2T0.6
23/1.	[0]	139410-3700	SHIM D20.8&10.2T0.9
24.	[1]	159215-4200	COILED SPRING
25.	[1]	159235-6500	CAP
26.	[1]	159290-9820	CONTROL LEVER
27.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
35.	[1]	159250-1320	GOVERNOR COVER
35/1.	[1]	159201-7020	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2720	TENSIONING LEVER
35/4/2.	[1]	159204-6022	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/4/7.	[1]	159216-0700	COILED SPRING
35/5.	[1]	159203-6120	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[6]	020106-3840	BLEEDER SCREW
51B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-1000	GOVERNOR SPRING
131.	[1]	159211-1100	GOVERNOR SPRING
132.	[1]	159214-0300	COILED SPRING
133.	[1]	159212-3520	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-3500	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5920	STRAP
156.	[1]	159233-6020	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-2221	LEVER GROUP
160/1.	[1]	159205-3711	LEVER SHAFT
160/2.	[1]	159202-4810	CONTROL LEVER
160/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
160/4.	[1]	159202-4520	CONTROL LEVER
160/5.	[1]	159202-2200	CONTROL LEVER
160/6.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159215-3900	COILED SPRING
160/8.	[1]	016010-0810	LOCKING WASHER
160/9.	[1]	014020-6140	PLAIN WASHER
160/10.	[1]	016010-0610	LOCKING WASHER
160/11.	[1]	016010-0810	LOCKING WASHER
168/1.	[0]	139410-1200	SHIM D26&10.2T0.3
168/1.	[0]	139410-1900	SHIM D26&10.2T0.2
168/1.	[0]	139410-2000	SHIM D26&10.2T0.4
168/1.	[0]	139410-2400	SHIM D26&10.2T0.35
168/1.	[0]	139410-2500	SHIM D26&10.2T0.25
168/1.	[0]	139410-2900	SHIM D26&10.2T0.6
169.	[1]	139410-2100	SHIM
170.	[1]	159264-3420	CONTROL LEVER
172.	[1]	159235-6100	UNION NUT
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
174B.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154012-4700	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
177B.	[1]	154011-3500	UNION NUT
178.	[1]	159265-9400	CONTROL LEVER
179.	[1]	159215-5000	COILED SPRING
180.	[1]	016010-0640	LOCKING WASHER
181.	[2]	020104-2540	BLEEDER SCREW
182.	[1]	159220-1400	PLATE
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	159243-4800	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	159248-0401	BLEEDER SCREW
257.	[2]	154156-0500	TUBE
300.	[1]	159285-4500	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154420-5720	COMPENSATOR,MANIFOLD-PRES
320/1.	[1]	154413-5421	DIAPHRAGM HOUSING
320/1A.	[1]	154413-5501	SPACER BUSHING
320/2.	[2]	020106-2240	BLEEDER SCREW
320/2A.	[1]	020106-2540	BLEEDER SCREW M6P1L25
320/3.	[1]	020118-3240	BLEEDER SCREW
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/7.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/10.	[1]	154415-1200	BUSHING
320/11.	[1]	146711-0000	PLATE
320/12.	[1]	154415-1300	UNION NUT
320/13.	[1]	154402-3400	COILED SPRING
320/14.	[1]	154413-3820	DIAPHRAGM
320/15.	[1]	154406-5500	SLOTTED WASHER
320/16.	[1]	014110-6440	LOCKING WASHER
320/17.	[1]	013030-6010	UNION NUT
320/18.	[2]	154413-2600	GASKET
320/18.	[2]	154413-2600	GASKET
320/19.	[1]	154404-5000	COVER
320/20.	[1]	154415-1800	FLAT-HEAD SCREW
320/21.	[1]	013030-6040	UNION NUT M6P1H3.6
320/22.	[1]	154035-1600	CAP NUT
320/23.	[2]	139506-0300	GASKET
320/24.	[1]	029731-0180	EYE BOLT
320/25.	[2]	139510-0200	GASKET
320/26.	[1]	154412-7920	JOINT CONNECTION
320/30.	[1]	020106-3040	BLEEDER SCREW
320/31.	[2]	029010-6540	BLEEDER SCREW
320/35.	[1]	029111-2090	CAPSULE
320/36.	[1]	139512-0000	GASKET D17.2&12.2T1.0
320/40.	[1]	154413-5321	DIAPHRAGM HOUSING
320/41.	[1]	016500-2400	O-RING
320/42.	[1]	016500-0810	O-RING
320/43.	[1]	029311-6020	SHIM
320/44.	[1]	155423-9800	COILED SPRING
320/45.	[1]	154413-5100	STOP PIN
320/46.	[1]	016010-0640	LOCKING WASHER
320/47.	[1]	155403-3021	BELLOWS
320/48.	[1]	155423-1500	SCREW PLUG
320/49.	[1]	155423-2000	COVER
320/50.	[1]	029240-6010	UNION NUT M6P1.0H5*
320/51.	[1]	154035-1600	CAP NUT
320/56.	[1]	139805-0000	JOINT CONNECTION
320/57.	[1]	154413-4500	UNION NUT
320/59.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
320/60.	[1]	139505-0000	PLAIN WASHER
320/61.	[1]	010006-1670	BLEEDER SCREW M6P1L16 7T
320/62.	[1]	159226-4500	SPACER RING
320/65.	[1]	154390-3900	GASKET
320/70.	[2]	020106-2040	BLEEDER SCREW M6P1L20
320/71.	[3]	020106-2240	BLEEDER SCREW
371.	[1]	159220-1520	BRACKET
373.	[1]	159228-0120	COVER
374.	[2]	020105-0840	BLEEDER SCREW M5P0.5L8
374B.	[2]	014020-5140	PLAIN WASHER D10&5.5T0.8
375.	[1]	020146-1240	BLEEDER SCREW M6P1.0L12
550.	[1]	153169-4522	MICROSWITCH

Include in #1:

101481-0212 as GOVERNOR

101481-0213

101481-0220

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-9982

9 420 612 701
NP-EP/RLD300-1500A1FYL

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

Introduction
Do not perform any procedure that is outlined in the Special Instruction until the entire instruction has been read and understood.Check Valve Torque
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.Dispose of all fluids according to local regulations and mandates.
The check valves that are located within the fuel pressure regulator group are sensitive to assembly torque. In order to eliminate the risk of valve distortion, torque the check valves to 28 3 N m (21 2 lb ft). Refer to Table 1 for the check valve part numbers that required the torque that is listed above.
Table 1
Part Number Description
327-0376 Check Valve Gp
327-4448 Check Valve Gp
281-2725 Check Valve Gp
282-1915 Check Valve Gp
228-7381 Check Valve Gp
327-8044 Check Valve Gp
