105931-9961 ZEXEL 9 420 611 556 BOSCH GOVERNOR 9420611556 1059319961 me741933

Information governor

BOSCH 9 420 611 556 9420611556

ZEXEL 105931-9961 1059319961

MITSUBISHI ME741933 me741933

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-9961 zexel genuine, new aftermarket engine parts with delivery

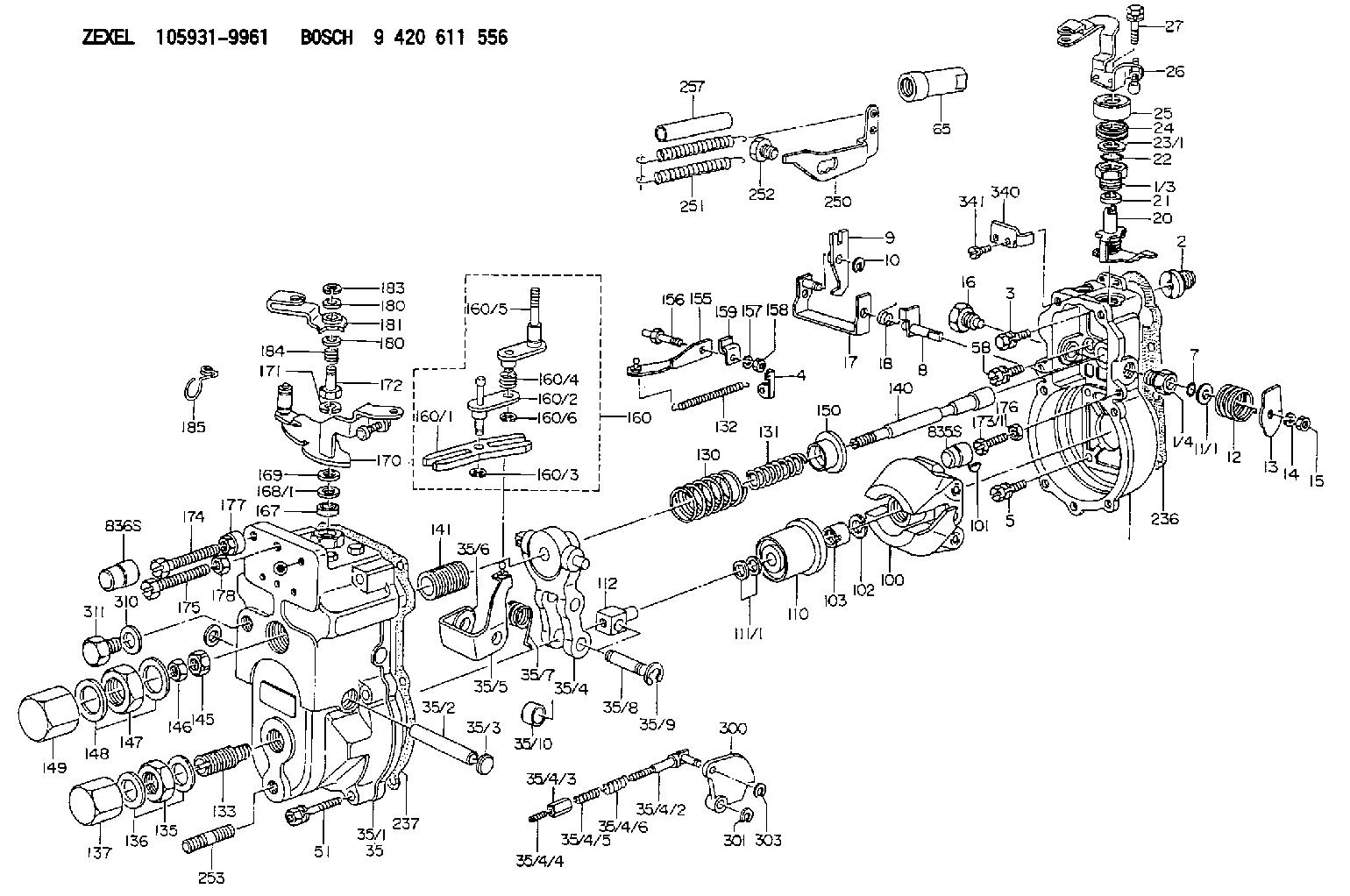

Scheme ###:

1.	[1]	159200-2520	GOVERNOR HOUSING
1/3.	[1]	154321-0400	BUSHING
1/4.	[1]	154321-0400	BUSHING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0801	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	029631-0030	O-RING &9.8W2.3
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-2301	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
11/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
11/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
11/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
11/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
11/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-0100	CONTROL LEVER
14.	[1]	014110-8440	LOCKING WASHER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-0000	CAPSULE
17.	[1]	159202-2420	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-7820	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	016530-1010	O-RING
23/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
23/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
23/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
23/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
23/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
23/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
24.	[1]	159215-2900	COILED SPRING
25.	[1]	154322-0100	CAP
26.	[1]	159290-9720	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159255-3420	GOVERNOR COVER
35/1.	[1]	159301-7520	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0220	TENSIONING LEVER
35/4/1.	[1]	159203-0420	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0000	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-0201	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-1801	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154101-0920	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0100	TERMINAL STUD
130.	[1]	159210-4400	GOVERNOR SPRING
131.	[1]	159211-2900	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-4020	HEADLESS SCREW
135.	[1]	139220-0200	UNION NUT
136.	[2]	026520-2440	GASKET D23.9&20.2T1
137.	[1]	159248-0700	CAP
140.	[1]	159205-1801	LEVER SHAFT
141.	[1]	159234-5200	GUIDE SLEEVE
145.	[1]	159233-5000	UNION NUT
146.	[1]	023020-8040	UNION NUT M8P1H5
147.	[1]	139222-0200	UNION NUT
148.	[2]	026522-2740	GASKET D26.9&22.2T1
149.	[1]	159237-5000	CAP
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-0320	STRAP
156.	[1]	159237-0300	BLEEDER SCREW
157.	[1]	014110-5440	LOCKING WASHER
158.	[1]	159233-5620	UNION NUT
159.	[1]	159242-0800	PLATE
160.	[1]	159252-0521	LEVER GROUP
160/1.	[1]	159202-1400	CONTROL LEVER
160/2.	[1]	159202-1520	CONTROL LEVER
160/3.	[1]	016010-0610	LOCKING WASHER
160/4.	[1]	159215-1300	COILED SPRING
160/5.	[1]	159205-1721	LEVER SHAFT
160/6.	[1]	016010-0810	LOCKING WASHER
167.	[1]	029621-0080	PACKING RING
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159263-9820	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	159233-6600	UNION NUT
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8000	BLEEDER SCREW
175.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
180.	[2]	139310-0500	PLAIN WASHER
180.	[2]	139310-0500	PLAIN WASHER
181.	[1]	159264-1520	CONTROL LEVER
183.	[1]	016010-0940	LOCKING WASHER
184.	[1]	159215-4800	COILED SPRING
185.	[1]	159229-7500	CLAMPING BAND
236.	[1]	154390-0000	GASKET
237.	[1]	154390-1100	GASKET
250.	[1]	159225-5420	BRACKET
251.	[2]	159243-4600	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	139010-1000	STUD
257.	[2]	154156-0500	TUBE
300.	[1]	159280-3900	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
310.	[1]	026516-2040	GASKET D19.9&16.2T1
311.	[1]	159237-0100	CAPSULE
340.	[1]	159228-2300	PLATE
341.	[2]	020104-1040	BLEEDER SCREW

Include in #1:

101607-6610 as GOVERNOR

101607-6611

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-9961

9 420 611 556
NP-EP/RLD275-1550A1CFL

ME741933 MITSUBISHI

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

PARTS NEEDED
Qty
Part Number Description
6 5577633 INJECTOR GP
1 5638152 FILTER-LUBE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Upon failure of an injector or multiple injectors, replace the entire set of fuel injectors with six 5577633 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9579, Unit Injector - Remove, and Unit Injector - Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 6.7-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
