105931-9851 ZEXEL 9 420 613 089 BOSCH GOVERNOR 9420613089 1059319851 8971053500




Information governor

BOSCH 9 420 613 089 9420613089
ZEXEL 105931-9851 1059319851
ISUZU 8971053500 8971053500
105931-9851 GOVERNOR
Rating:
28
Buy GOVERNOR 105931-9851 zexel genuine, new aftermarket engine parts with delivery

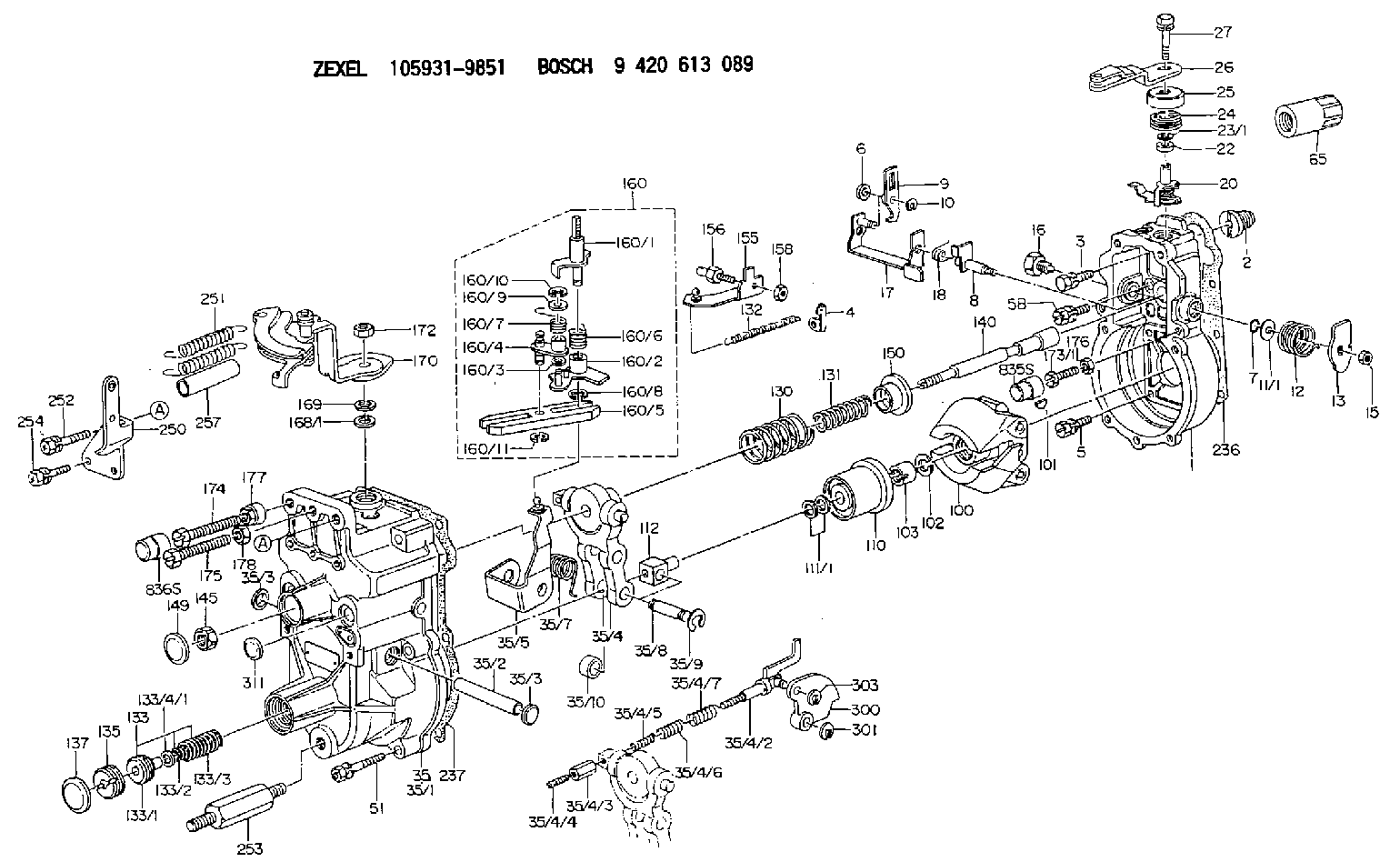

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-7120 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-1600 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
6. [1] 159242-0600 BUSHING
7. [1] 139710-0200 O-RING
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-5601 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-5500 CAPSULE
17. [1] 159202-5320 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-7120 CONTROL LEVER
22. [1] 139610-0700 PACKING RING
23/1. [0] 139410-3800 SHIM D22&10.2T0.2
23/1. [0] 139410-3900 SHIM D22&10.2T0.3
23/1. [0] 139410-4000 SHIM D22&10.2T0.4
23/1. [0] 139410-4100 SHIM D22&10.2T0.6
23/1. [0] 139410-4200 SHIM D22&10.2T0.8
24. [1] 159215-4200 COILED SPRING
25. [1] 159235-6500 CAP
26. [1] 159290-3021 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159250-3820 GOVERNOR COVER
35/1. [1] 159201-8320 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-2720 TENSIONING LEVER
35/4/2. [1] 159204-6022 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/4/7. [1] 159216-0700 COILED SPRING
35/5. [1] 159203-6120 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-2900 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 155404-5700 CAP
100. [1] 154101-0420 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-1800 GOVERNOR SPRING
131. [1] 159211-3700 GOVERNOR SPRING
132. [1] 159214-0200 COILED SPRING
133. [1] 159212-8220 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-5000 COILED SPRING
133/3. [1] 159212-5700 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-5920 STRAP
156. [1] 159233-6020 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT M5P0.8H4
160. [1] 159252-2221 LEVER GROUP
160/1. [1] 159205-3711 LEVER SHAFT
160/2. [1] 159202-4810 CONTROL LEVER
160/3. [1] 029310-6030 SHIM D11.5&6.2T0.2
160/4. [1] 159202-4520 CONTROL LEVER
160/5. [1] 159202-2200 CONTROL LEVER
160/6. [1] 159215-2301 COILED SPRING
160/7. [1] 159215-3900 COILED SPRING
160/8. [1] 016010-0810 LOCKING WASHER
160/9. [1] 014020-6140 PLAIN WASHER
160/10. [1] 016010-0610 LOCKING WASHER
160/11. [1] 016010-0810 LOCKING WASHER
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 159238-4300 SHIM
170. [1] 159263-4421 CONTROL LEVER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
174B. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
175. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-2800 UNION NUT
236. [1] 154390-0000 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159229-7320 BRACKET
251. [2] 154317-8800 COILED SPRING
252. [1] 020118-1640 BLEEDER SCREW
253. [1] 159248-0401 BLEEDER SCREW
254. [2] 020106-1240 BLEEDER SCREW M6P1.0L12
257. [2] 154156-0900 TUBE
300. [1] 159285-2500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE

Include in #1:

101401-4451 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105931-9851
105931-9852
9 420 613 089
8971053500  ISUZU
GOVERNOR
* K
105931-9851
105931-9852
9 420 613 089
8971022811  ISUZU
GOVERNOR
A * K




Information:


AFFECTED PRODUCT
Model Identification Number
C9 LFE00178-00180, 182, 193-194, 196, 2025, 2372-2375, 2585-2588, 2594-2595, 2710, 2714-2716, 2718-2722, 2725-2727, 2729, 2731-2741, 2743-2747, 2765-2784, 2831, 2833-2836, 2838-2839, 2841-2843, 2847-2852, 2855, 2857-2858, 2862, 2879, 2881-2886, 2888, 2890-2892, 2894-2896, 2898-2907, 2909, 2914, 2916-2918, 2920-2921, 2923-2924, 2926, 2928, 2931, 2934, 2937, 2986, 2988-2993, 2995-3043, 3045-3065, 3101-3106, 3110-3111, 3113, 3116, 3118, 3120, 3122, 3125, 3127-3129, 3132-3133, 3138, 3149-3168, 3204-3242, 3250, 3258-3343, 3345-3386, 3582-3584, 3590-3604, 3681-3730, 3732-3735, 3738-3739, 3741-3742, 3744-3749, 3791, 3793-3794, 3812-3831, 3866-3880, 3882-3897, 3899-3919, 3950-4020, 4026-4083, 4085-4118, 4121-4122, 4124-4151, 4153-4240, 4242, 4253-4278, 4281-4316, 4383-4384, 4387-4390, 4392-4395, 4398-4492, 4495-4497
PARTS NEEDED
Qty
Part Number Description
1 5734235 INJECTOR GP
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
****Parts Stock ****
Remove all 387-9435 Fuel Injectors from dealer parts stock. Refer to the Parts Disposition.
****Affected Product****
Replace the failed 387-9435 Fuel Injector with a 573-4235 Fuel Injector. Refer to the Disassembly and Assembly, RENR7460, "Unit Injector - Remove", and "Unit Injector - Install", for rework instructions.
SERVICE CLAIM ALLOWANCES
****Parts Stock****
Submit one claim for all parts removed from dealer parts stock.
****Affected Product****
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-6000 hrs,
0-192 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 3.0-hour job
PARTS DISPOSITION
****Parts Stock****
Hold all 387-9435 Fuel Injectors for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
****Affected Product****
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Have questions with 105931-9851?





Group cross 105931-9851 ZEXEL

Isuzu

105931-9850

105931-9851

8971022810
GOVERNOR
105931-9851

105931-9852
9 420 613 089
8971053500
GOVERNOR
105931-9851

105931-9852
9 420 613 089
8971022811
GOVERNOR
105931-9852

105931-9853
9 420 613 090
8971022812
GOVERNOR
105931-9853
F 019 Z2F 182
NP-EP/RLD275-1750A2FFL
8971022813
GOVERNOR
