105931-9810 ZEXEL 9 420 612 699 BOSCH GOVERNOR 9420612699 1059319810 1157707150

Information governor

BOSCH 9 420 612 699 9420612699

ZEXEL 105931-9810 1059319810

ISUZU 1157707150 1157707150

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-9810 zexel genuine, new aftermarket engine parts with delivery

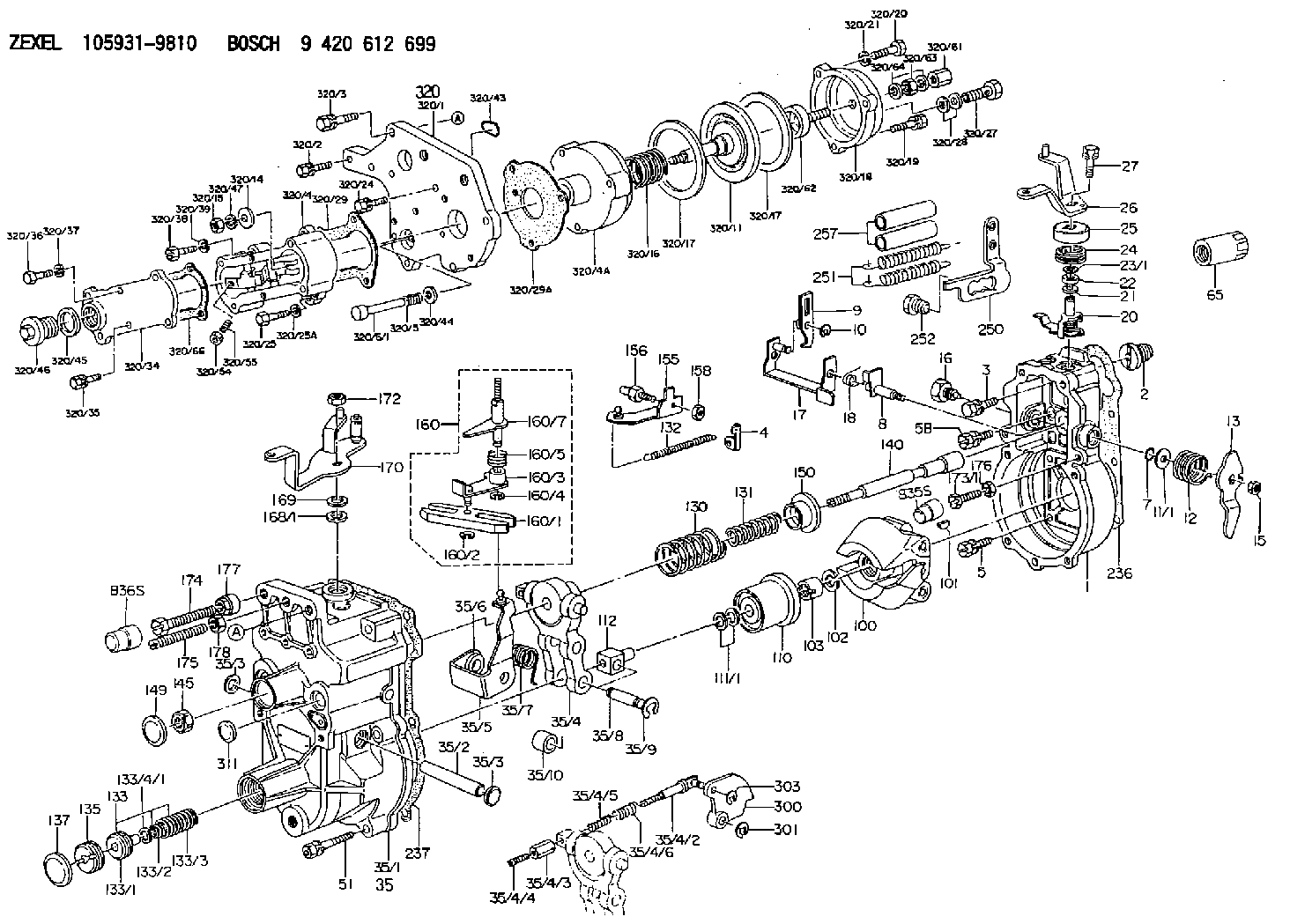

Scheme ###:

1.	[1]	159200-7920	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	139710-0200	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159290-7500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	029311-0210	SHIM D14&10.1T1
22.	[1]	139610-0700	PACKING RING
23/1.	[0]	139411-0700	SHIM D22&11T0.7
23/1.	[0]	153305-0100	SHIM D22&11T0.5
23/1.	[0]	153305-0200	SHIM D22&11T0.4
23/1.	[0]	153305-0300	SHIM D22&11T0.3
23/1.	[0]	153305-0400	SHIM D22&11T0.25
23/1.	[0]	153305-0500	SHIM D22&11T1.0
23/1.	[0]	153305-0600	SHIM D22&11T1.1
23/1.	[0]	153305-0700	SHIM D22&11T2.0
23/1.	[0]	153305-1300	SHIM D22&11T0.951
23/1.	[0]	153305-1400	SHIM D22&11T0.95
24.	[1]	159215-3400	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159290-8020	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-0220	GOVERNOR COVER
35/1.	[1]	159201-8420	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2320	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-5300	GOVERNOR SPRING
130.	[1]	159210-5300	GOVERNOR SPRING
131.	[1]	159211-0600	GOVERNOR SPRING
132.	[1]	159214-0100	COILED SPRING
133.	[1]	159212-3520	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-3500	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159265-6920	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
173B.	[1]	155615-3200	BLEEDER SCREW M6P1.0L40
173C.	[1]	155615-3300	BLEEDER SCREW M6P1.0L42
173D.	[1]	155615-3400	BLEEDER SCREW M6P1.0L44
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
174B.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	154317-8700	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-1800	TUBE
300.	[1]	159285-0900	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154420-1421	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154413-7300	SPACER BUSHING
320/2.	[3]	020106-2040	BLEEDER SCREW M6P1L20
320/3.	[1]	020118-3040	BLEEDER SCREW
320/4.	[1]	154413-7420	DIAPHRAGM HOUSING
320/4A.	[1]	154413-7820	DIAPHRAGM HOUSING
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	154413-8320	STOP PIN L108.5
320/6/1.	[1]	154413-8420	STOP PIN L109.5
320/6/1.	[1]	154413-8520	STOP PIN L110.5
320/6/1.	[1]	154413-8620	STOP PIN L111.5
320/6/1.	[1]	154413-8720	STOP PIN L112.5
320/6/1.	[1]	154413-8820	STOP PIN L113.5
320/6/1.	[1]	154413-8920	STOP PIN L114.5
320/6/1.	[1]	154413-9020	STOP PIN L115.5
320/6/1.	[1]	154413-9120	STOP PIN L116.5
320/6/1.	[1]	154413-9220	STOP PIN L117.5
320/6/1.	[1]	154413-9320	STOP PIN L118.5
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/11.	[1]	154413-9520	DIAPHRAGM
320/14.	[1]	154413-9700	SLOTTED WASHER
320/15.	[1]	013030-6010	UNION NUT
320/16.	[1]	154411-7100	COILED SPRING
320/17.	[2]	154413-2600	GASKET
320/17.	[2]	154413-2600	GASKET
320/18.	[1]	154404-5000	COVER
320/19.	[2]	020106-2240	BLEEDER SCREW
320/20.	[1]	139006-7000	BLEEDER SCREW
320/21.	[1]	014110-6440	LOCKING WASHER
320/24.	[5]	020106-2240	BLEEDER SCREW
320/25.	[1]	010006-6040	BLEEDER SCREW
320/25A.	[1]	014110-6440	LOCKING WASHER
320/27.	[1]	029731-0180	EYE BOLT
320/28.	[2]	139510-0200	GASKET
320/29.	[1]	154413-9800	GASKET
320/29A.	[1]	154413-9900	GASKET
320/34.	[1]	154415-0000	COVER
320/35.	[4]	010065-1240	BLEEDER SCREW M5P0.8L12
320/36.	[1]	020565-1240	BLEEDER SCREW
320/37.	[5]	014110-5440	LOCKING WASHER
320/38.	[1]	139006-7000	BLEEDER SCREW
320/39.	[1]	014110-6440	LOCKING WASHER
320/43.	[1]	159226-4500	SPACER RING
320/44.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/45.	[1]	029331-8040	GASKET
320/46.	[1]	154415-0101	FLAT-HEAD SCREW
320/47.	[1]	014110-6440	LOCKING WASHER
320/54.	[1]	013030-6040	UNION NUT M6P1H3.6
320/55.	[1]	154404-4800	FLAT-HEAD SCREW
320/61.	[1]	154035-1600	CAP NUT
320/62.	[1]	154404-4400	FLAT-HEAD SCREW
320/63.	[1]	013030-6040	UNION NUT M6P1H3.6
320/64.	[2]	139506-0300	GASKET
320/66.	[1]	154415-0200	GASKET

Include in #1:

101603-8250 as GOVERNOR

101603-8251

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-9810
105931-9811

9 420 612 699

1157707150 ISUZU

GOVERNOR
* K
