105931-9741 ZEXEL 9 420 613 644 BOSCH GOVERNOR 9420613644 1059319741 me731599

Information governor

BOSCH 9 420 613 644 9420613644

ZEXEL 105931-9741 1059319741

MITSUBISHI ME731599 me731599

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-9741 zexel genuine, new aftermarket engine parts with delivery

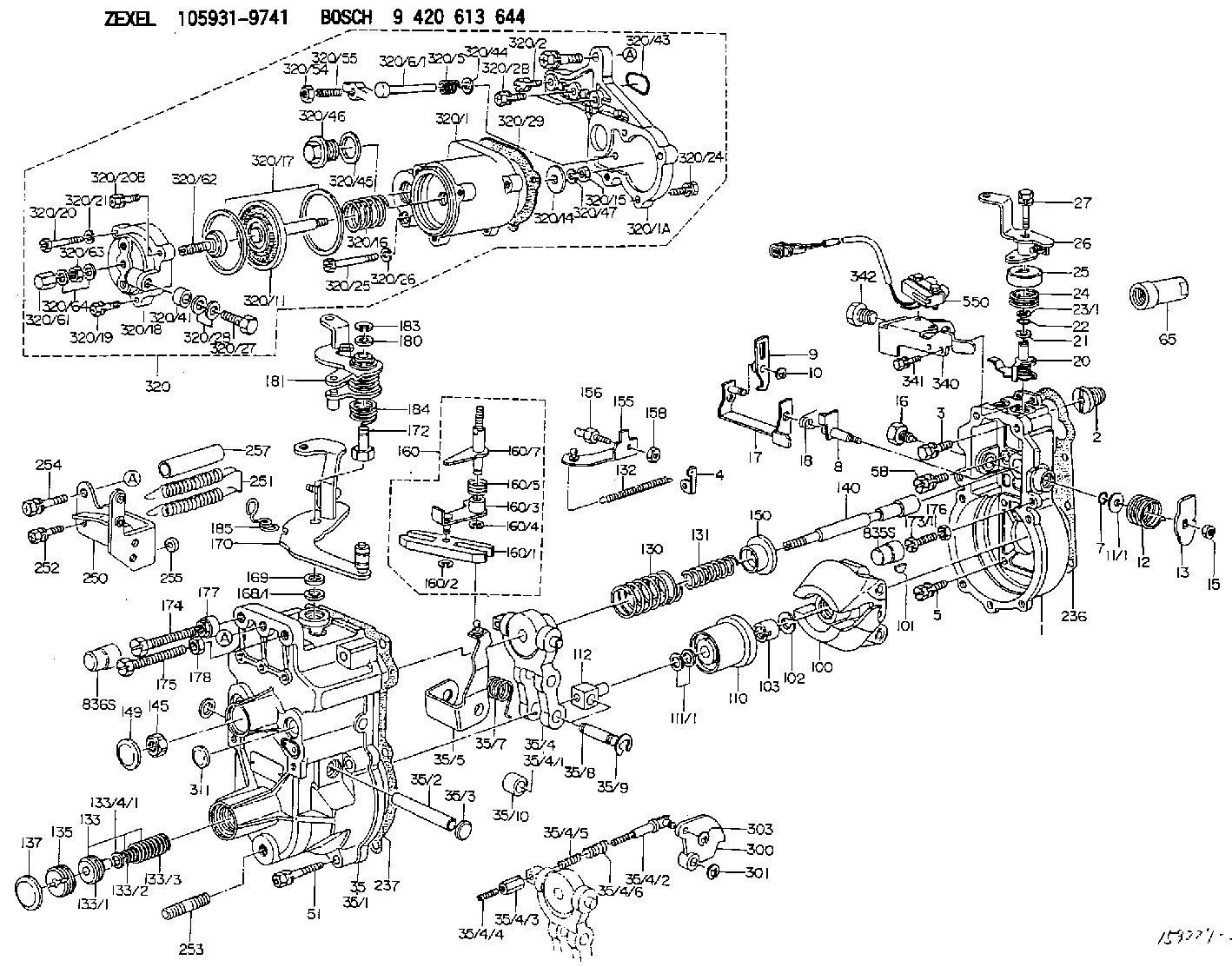

Scheme ###:

1.	[1]	159200-4220	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-1600	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	016530-1010	O-RING
23/1.	[0]	029311-0220	SHIM D18&10.3T0.2
23/1.	[0]	029311-0230	SHIM D18&10.3T0.5
23/1.	[0]	029311-0430	SHIM D18&10.3T0.30
23/1.	[0]	029311-0440	SHIM D18&10.3T0.40
23/1.	[0]	029311-0450	SHIM D18&10.3T0.25
23/1.	[0]	029311-0460	SHIM D18&10.3T0.35
23/1.	[0]	139410-3300	SHIM D18&10.3T0.6
23/1.	[0]	139410-3400	SHIM D18&10.3T0.8
23/1.	[0]	139410-3500	SHIM D18&10.3T0.9
24.	[1]	159215-2000	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159249-7120	CONTROL LEVER
27.	[1]	020006-4040	BLEEDER SCREW
35.	[1]	159251-8720	GOVERNOR COVER
35/1.	[1]	159201-7020	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2220	TENSIONING LEVER
35/4/1.	[1]	159203-1720	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-6120	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-3700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-3200	GOVERNOR SPRING
131.	[1]	159211-3400	GOVERNOR SPRING
132.	[1]	159214-0100	COILED SPRING
133.	[1]	159212-5320	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5000	COILED SPRING
133/3.	[1]	159212-5300	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159266-2220	CONTROL LEVER
172.	[1]	159231-7900	LEVER SHAFT
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-9200	BLEEDER SCREW
175.	[1]	154010-3100	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-3000	UNION NUT
178.	[1]	154011-2800	UNION NUT
180.	[0]	029310-8040	SHIM D13.5&8T0.2
181.	[1]	159266-9020	CONTROL LEVER
183.	[1]	016010-0740	LOCKING WASHER
184.	[1]	159215-6801	COILED SPRING
185.	[1]	159229-7500	CLAMPING BAND
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-1620	BRACKET
251.	[2]	154332-7700	COILED SPRING
253.	[1]	139010-1000	STUD
254.	[1]	020118-3040	BLEEDER SCREW
255.	[1]	159227-5600	BUSHING
257.	[2]	154156-1800	TUBE
300.	[1]	159284-5200	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154420-3420	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154408-9620	DIAPHRAGM HOUSING
320/1A.	[1]	154418-3900	SPACER BUSHING
320/2.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/2B.	[2]	020106-2540	BLEEDER SCREW M6P1L25
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/11.	[1]	154400-8521	DIAPHRAGM
320/14.	[1]	154406-5500	SLOTTED WASHER
320/15.	[1]	013030-6010	UNION NUT
320/16.	[1]	154403-6700	COILED SPRING
320/17.	[2]	154413-2600	GASKET
320/18.	[1]	154404-5100	COVER
320/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/20.	[1]	139006-7000	BLEEDER SCREW
320/20B.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/21.	[1]	014110-6440	LOCKING WASHER
320/24.	[3]	020106-2240	BLEEDER SCREW
320/25.	[1]	139006-1300	BLEEDER SCREW M6P1L76
320/26.	[1]	029320-6010	LOCKING WASHER
320/27.	[1]	154412-7500	EYE BOLT
320/28.	[3]	026510-1340	GASKET D13.4&10.2T1
320/29.	[1]	154413-2800	GASKET
320/41.	[1]	154412-7400	BUSHING
320/43.	[1]	159226-4500	SPACER RING
320/44.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/45.	[1]	029331-8040	GASKET
320/46.	[1]	154406-5800	FLAT-HEAD SCREW
320/47.	[1]	014110-6440	LOCKING WASHER
320/54.	[1]	013030-6040	UNION NUT M6P1H3.6
320/55.	[1]	154404-4800	FLAT-HEAD SCREW
320/61.	[1]	154035-1600	CAP NUT
320/62.	[1]	154404-4400	FLAT-HEAD SCREW
320/63.	[1]	013030-6040	UNION NUT M6P1H3.6
320/64.	[2]	026506-1040	GASKET D9.9&6.2T1
340.	[1]	159228-1700	BRACKET
341.	[2]	020104-1040	BLEEDER SCREW
342.	[1]	159248-0200	BLEEDER SCREW
550.	[1]	153169-5020	MICROSWITCH

Include in #1:

101607-6353 as GOVERNOR

101607-6490

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-9741

9 420 613 644
NP-EP/RLD275-1550A1FXL

ME731599 MITSUBISHI

GOVERNOR
K

Information:

25Oct2017
U-580
A-415
D-489
O-486
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR REMOVING CERTAIN FUEL INJECTORS FROM DEALER STOCK
7750 PI70684
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Jan2018
PROBLEM
The existing fuel injector can over fuel. If the existing fuel injector fails it can result in engine damage.
ACTION REQUIRED
Remove all injectors with the following part numbers, and within the serial number range from dealer parts stock. Injectors will be packaged between August 9, 2017 and October 13, 2017.
Injectors with a package date prior to August 9, 2017, or after October 13, 2017 do not need to be checked. Date code is below the part number, D##M##Y##, the day is after the D, month is after the M, and Year is the first two numbers after the Y.
Part number and Serial number
457-5312 8C00599034E3 and 8C00599039C0
427-6227 8C005990458F
Remove all injectors with the following part numbers, and within the serial number range from dealer parts stock. Injectors will be packaged between August 9, 2017 and October 13, 2017.
Injectors with a package date prior to August 9, 2017, or after October 13, 2017 do not need to be checked. Date code is below the part number, D##M##Y##, the day is after the D, month is after the M, and Year is the first two numbers after the Y.
Part Number and Serial number
392-0211 2066755 through 2068587, inclusive
392-0205 2066755 through 2068587, inclusive
392-0219 2066755 through 2068587, inclusive
392-0217 2066755 through 2068587, inclusive
392-0202 2066755 through 2068587, inclusive
392-0223 2066755 through 2068587, inclusive
392-0216 2066755 through 2068587, inclusive
392-0221 2066755 through 2068587, inclusive
392-0225 2066755 through 2068587, inclusive
392-0214 2066755 through 2068587, inclusive
392-0206 2066755 through 2068587, inclusive
Remove all injectors with the following part numbers, and within the serial number range from dealer parts stock. Injectors will be packaged between August 9, 2017 and October 20, 2017.
Injectors with a package date prior to August 9, 2017, or after October 20, 2017 do not need to be checked. Date code is below the part number, D##M##Y##, the day is after the D, month is after the M, and Year is the first two numbers after the Y.
Part Number and Serial number
111-3718 865395 through 868934, inclusive
4P-9075 865395 through 868934, inclusive
4P-9076 865395
