Information governor
BOSCH
F 019 Z1F 007
f019z1f007
ZEXEL
105931-9480
1059319480
ISUZU
8970811830
8970811830

Rating:
Scheme ###:

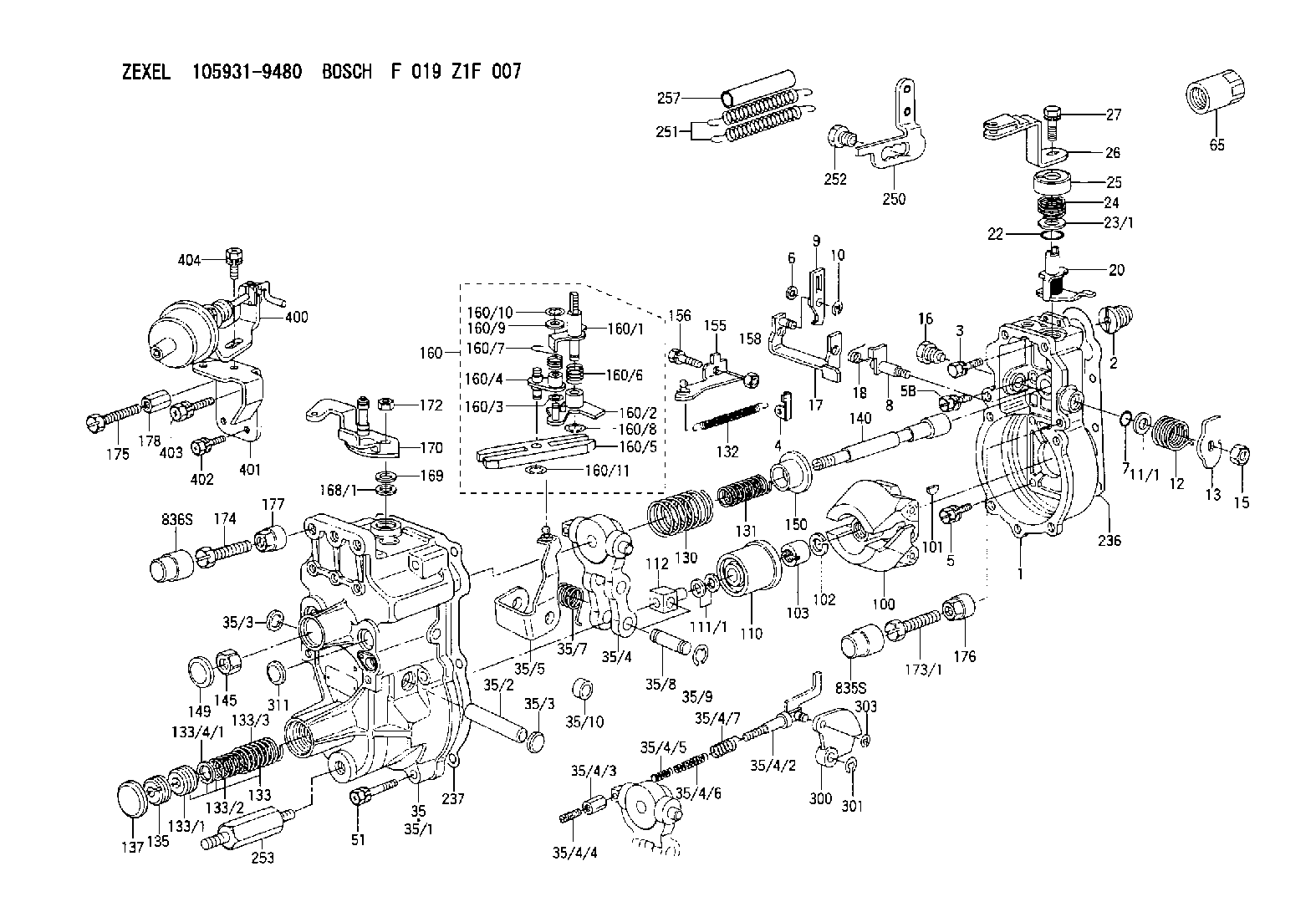

1. | [1] | 159200-7120 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-1600 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
6. | [1] | 159242-0600 | BUSHING |
7. | [1] | 139710-0200 | O-RING |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-5601 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-5320 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-7120 | CONTROL LEVER |
22. | [1] | 139610-0700 | PACKING RING |
23/1. | [0] | 139411-0700 | SHIM D22&11T0.7 |
23/1. | [0] | 153305-0100 | SHIM D22&11T0.5 |
23/1. | [0] | 153305-0200 | SHIM D22&11T0.4 |
23/1. | [0] | 153305-0300 | SHIM D22&11T0.3 |
23/1. | [0] | 153305-0400 | SHIM D22&11T0.25 |
23/1. | [0] | 153305-0500 | SHIM D22&11T1.0 |
23/1. | [0] | 153305-0600 | SHIM D22&11T1.1 |
23/1. | [0] | 153305-0700 | SHIM D22&11T2.0 |
23/1. | [0] | 153305-1300 | SHIM D22&11T0.951 |
23/1. | [0] | 153305-1400 | SHIM D22&11T0.95 |
24. | [1] | 159215-2000 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159290-2920 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159250-3820 | GOVERNOR COVER |
35/1. | [1] | 159201-8320 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-2720 | TENSIONING LEVER |
35/4/2. | [1] | 159204-6022 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/4/7. | [1] | 159216-0700 | COILED SPRING |
35/5. | [1] | 159203-6120 | GUIDE LEVER |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 155404-5700 | CAP |
100. | [1] | 154101-0420 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-1400 | GOVERNOR SPRING |
131. | [1] | 159211-1100 | GOVERNOR SPRING |
132. | [1] | 159214-0200 | COILED SPRING |
133. | [1] | 159212-3320 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-3300 | COILED SPRING |
133/3. | [1] | 159212-3400 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-5920 | STRAP |
156. | [1] | 159233-6020 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
160. | [1] | 159252-2221 | LEVER GROUP |
160/1. | [1] | 159205-3711 | LEVER SHAFT |
160/2. | [1] | 159202-4810 | CONTROL LEVER |
160/3. | [1] | 029310-6030 | SHIM D11.5&6.2T0.2 |
160/4. | [1] | 159202-4520 | CONTROL LEVER |
160/5. | [1] | 159202-2200 | CONTROL LEVER |
160/6. | [1] | 159215-2301 | COILED SPRING |
160/7. | [1] | 159215-3900 | COILED SPRING |
160/8. | [1] | 016010-0810 | LOCKING WASHER |
160/9. | [1] | 014020-6140 | PLAIN WASHER |
160/10. | [1] | 016010-0610 | LOCKING WASHER |
160/11. | [1] | 016010-0810 | LOCKING WASHER |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159263-3121 | CONTROL LEVER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-8100 | BLEEDER SCREW M8P1.25L65 |
174B. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
175. | [1] | 154012-4700 | BLEEDER SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-3500 | UNION NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159228-4920 | BRACKET |
251. | [2] | 154317-9900 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
253. | [1] | 159248-0401 | BLEEDER SCREW |
257. | [2] | 154156-0500 | TUBE |
300. | [1] | 159283-2000 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
400. | [1] | 159229-6820 | ADJUSTING DEVICE |
401. | [1] | 159229-6921 | BRACKET |
402. | [2] | 020146-1240 | BLEEDER SCREW M6P1.0L12 |
403. | [1] | 020118-1640 | BLEEDER SCREW |
404. | [2] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
835S. | [1] | 154062-1900 | CAP D12L24 |
836S. | [1] | 154062-1700 | CAP D20L32 |
