105931-9471 ZEXEL 9 420 613 932 BOSCH GOVERNOR 9420613932 1059319471 8970788771

Information governor

BOSCH 9 420 613 932 9420613932

ZEXEL 105931-9471 1059319471

ISUZU 8970788771 8970788771

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-9471 zexel genuine, new aftermarket engine parts with delivery

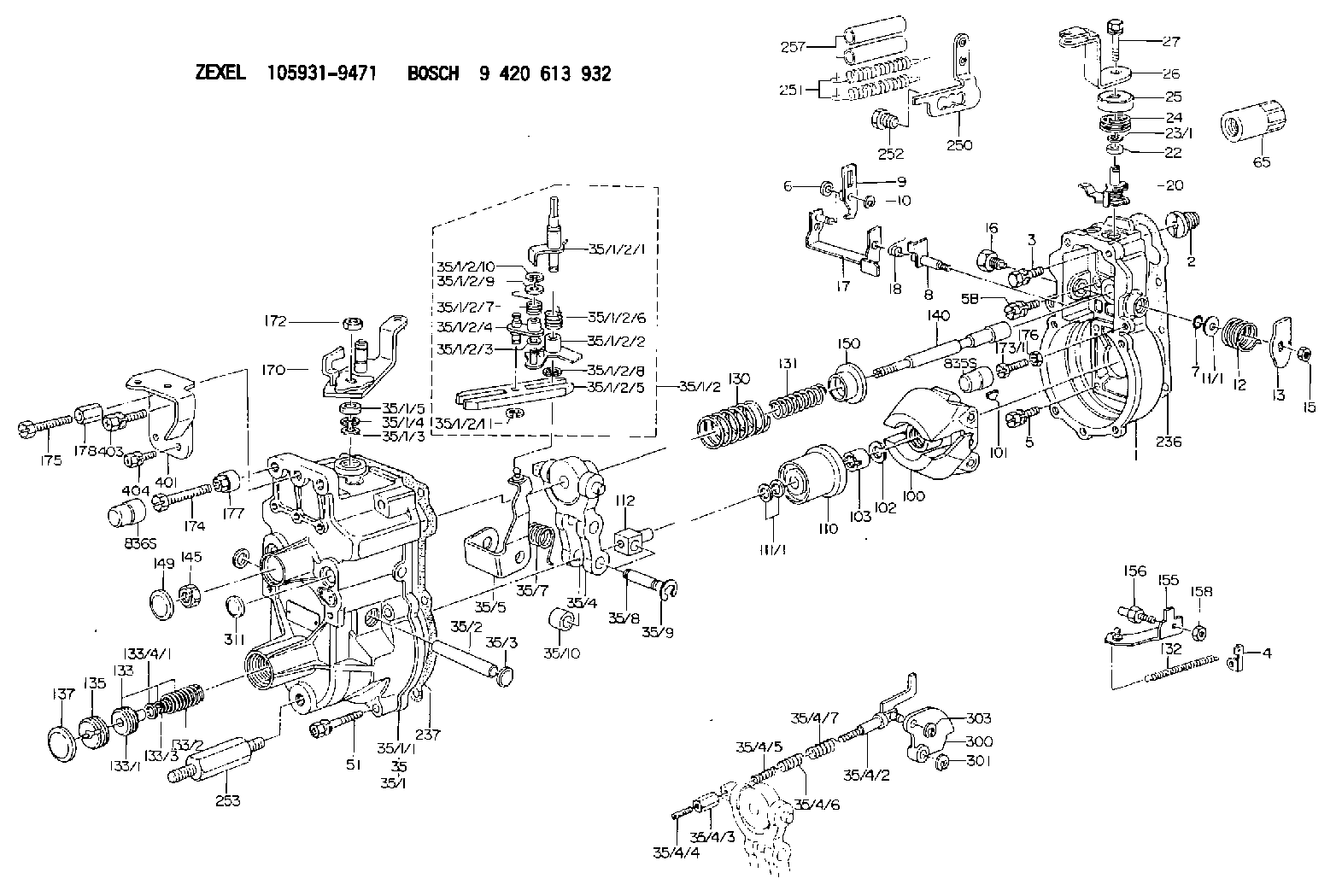

Scheme ###:

1.	[1]	159200-7120	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-1600	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	159242-0600	BUSHING
7.	[1]	139710-0200	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5601	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5320	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159291-0420	CONTROL LEVER
22.	[1]	139610-0700	PACKING RING
23/1.	[0]	139411-0700	SHIM D22&11T0.7
23/1.	[0]	153305-0100	SHIM D22&11T0.5
23/1.	[0]	153305-0200	SHIM D22&11T0.4
23/1.	[0]	153305-0300	SHIM D22&11T0.3
23/1.	[0]	153305-0400	SHIM D22&11T0.25
23/1.	[0]	153305-0500	SHIM D22&11T1.0
23/1.	[0]	153305-0600	SHIM D22&11T1.1
23/1.	[0]	153305-0700	SHIM D22&11T2.0
23/1.	[0]	153305-1300	SHIM D22&11T0.951
23/1.	[0]	153305-1400	SHIM D22&11T0.95
24.	[1]	159215-2000	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159290-2920	CONTROL LEVER
27.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
35.	[1]	159250-3920	GOVERNOR COVER
35/1.	[1]	159301-0520	GOVERNOR COVER
35/1/1.	[1]	159301-0620	GOVERNOR COVER
35/1/2.	[1]	159252-2820	LEVER GROUP
35/1/2/1.	[1]	159205-4520	LEVER SHAFT
35/1/2/2.	[1]	159202-4810	CONTROL LEVER
35/1/2/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
35/1/2/4.	[1]	159202-4520	CONTROL LEVER
35/1/2/5.	[1]	159202-2200	CONTROL LEVER
35/1/2/6.	[1]	159215-2301	COILED SPRING
35/1/2/7.	[1]	159215-3900	COILED SPRING
35/1/2/8.	[1]	016010-0810	LOCKING WASHER
35/1/2/9.	[1]	014020-6140	PLAIN WASHER
35/1/2/10.	[1]	016010-0610	LOCKING WASHER
35/1/2/11.	[1]	016010-0810	LOCKING WASHER
35/1/3.	[1]	139411-0600	SHIM
35/1/4.	[1]	159238-3000	LOCKING WASHER
35/1/5.	[1]	139610-0800	PACKING RING
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2720	TENSIONING LEVER
35/4/2.	[1]	159204-6022	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/4/7.	[1]	159216-0700	COILED SPRING
35/5.	[1]	159203-6120	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
100.	[1]	154101-0420	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-1000	GOVERNOR SPRING
131.	[1]	159211-3000	GOVERNOR SPRING
132.	[1]	159214-0200	COILED SPRING
133.	[1]	159212-3320	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-3400	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5920	STRAP
156.	[1]	159233-6020	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
170.	[1]	159263-7021	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
174B.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154012-4700	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-3500	UNION NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	154317-9900	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	159248-0401	BLEEDER SCREW
257.	[2]	154156-0500	TUBE
300.	[1]	159282-4400	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
401.	[1]	159229-6921	BRACKET
403.	[1]	020118-1640	BLEEDER SCREW
404.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12

Include in #1:

101491-0558 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-9471

9 420 613 932

8970788771 ISUZU

GOVERNOR
* K

Information:

Start By:a. remove rocker arm assemblies and push rods 1. Remove injector hold down bolt (1).
Do not pry on the injector hold down bracket. Damage to the injector could occur. The injector has a notch in it on the side opposite the rack. This notch is used for prying the injector loose. Also, do not move the fuel injector rack without the injector spring slightly compressed. Damage to the injector could occur.
2. Use Tool (A) to loosen the fuel injector; then rotate the fuel injector to disengage the injector rack from the fuel control linkage. Remove the fuel injector. Be sure both O-ring seals (2) are on the fuel injector. The following steps are for the installation of the unit fuel injectors.3. Check the condition of O-ring seals (2). If the seals are damaged, use new parts for replacement. Install the O-ring seals on in the fuel injector.4. Lubricate the O-ring seals on the fuel injector with clean engine oil.5. Position the fuel injector in the cylinder head assembly; then rotate it to engage the injector rack with the fuel control linkage. Push down on the top of the fuel injector so the O-ring seals slide into the bore in the cylinder head assembly. Be sure the fuel injector is seated properly before installing bolt (1) that holds it in position. Do not use bolt (1) to pull the fuel injector down into the cylinder head assembly.6. Install bolt (1), and tighten it.7. After installation of the rocker arm assemblies and push rods, Check and/or adjust the following: Injector Synchronization, Fuel Setting, Fuel Timing, Valve Lash. See the 3114 & 3116 Diesel Truck Engines Systems Operation Testing & Adjusting module, Form No. SENR6437 to check and/or adjust the above items.End By:a. install rocker arm assemblies and push rods
