Information governor
BOSCH
9 420 613 931
9420613931
ZEXEL
105931-9091
1059319091
ISUZU
1157706371
1157706371

Rating:

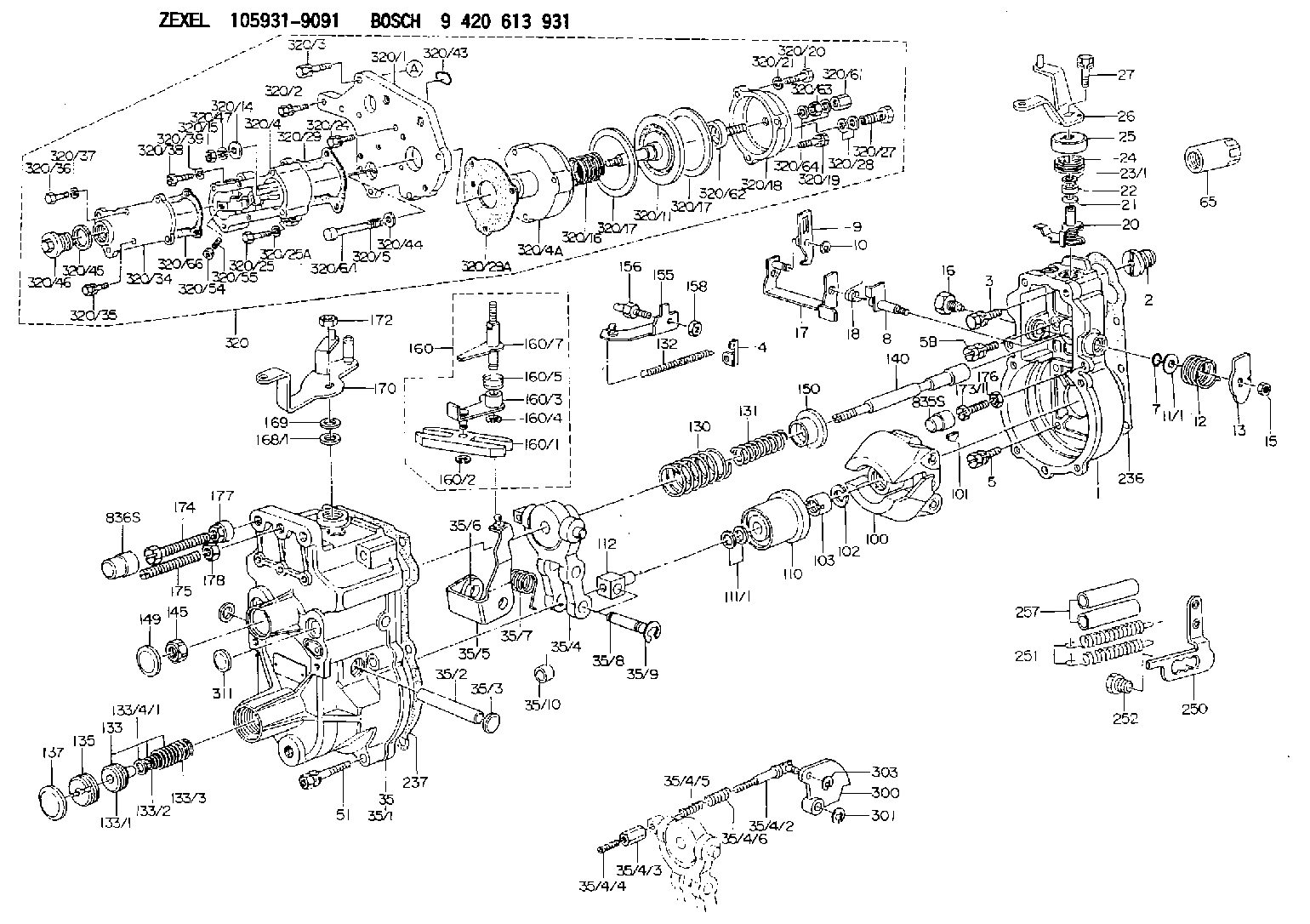

Scheme ###:
1. | [1] | 159200-7920 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0201 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 139710-0200 | O-RING |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-5101 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159290-7500 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-5220 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-0220 | CONTROL LEVER |
21. | [1] | 029311-0210 | SHIM D14&10.1T1 |
22. | [1] | 139610-0700 | PACKING RING |
23/1. | [0] | 139411-0700 | SHIM D22&11T0.7 |
23/1. | [0] | 153305-0100 | SHIM D22&11T0.5 |
23/1. | [0] | 153305-0200 | SHIM D22&11T0.4 |
23/1. | [0] | 153305-0300 | SHIM D22&11T0.3 |
23/1. | [0] | 153305-0400 | SHIM D22&11T0.25 |
23/1. | [0] | 153305-0500 | SHIM D22&11T1.0 |
23/1. | [0] | 153305-0600 | SHIM D22&11T1.1 |
23/1. | [0] | 153305-0700 | SHIM D22&11T2.0 |
23/1. | [0] | 153305-1300 | SHIM D22&11T0.951 |
23/1. | [0] | 153305-1400 | SHIM D22&11T0.95 |
24. | [1] | 159215-3400 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159290-3521 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159250-0220 | GOVERNOR COVER |
35/1. | [1] | 159201-8420 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-2320 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-5320 | GUIDE LEVER |
35/6. | [2] | 159235-5000 | BUSHING |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 155404-5700 | CAP |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-6300 | GOVERNOR SPRING |
131. | [1] | 159211-0400 | GOVERNOR SPRING |
132. | [1] | 159214-0100 | COILED SPRING |
133. | [1] | 159212-3520 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-3300 | COILED SPRING |
133/3. | [1] | 159212-3500 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-5120 | STRAP |
156. | [1] | 159233-0520 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
160. | [1] | 159252-0821 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-2120 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-2301 | COILED SPRING |
160/7. | [1] | 159205-2222 | LEVER SHAFT |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159263-8420 | CONTROL LEVER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
173B. | [1] | 155615-3200 | BLEEDER SCREW M6P1.0L40 |
173C. | [1] | 155615-3300 | BLEEDER SCREW M6P1.0L42 |
173D. | [1] | 155615-3400 | BLEEDER SCREW M6P1.0L44 |
174. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
174B. | [1] | 154010-8100 | BLEEDER SCREW M8P1.25L65 |
175. | [1] | 154010-0100 | FLAT-HEAD SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-0100 | HEXAGON NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159228-4920 | BRACKET |
251. | [2] | 154317-8700 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
257. | [2] | 154156-1800 | TUBE |
300. | [1] | 159283-7700 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
320. | [1] | 154420-1421 | MANIFOLD-PRESSURE COMP. |
320/1. | [1] | 154413-7300 | SPACER BUSHING |
320/2. | [3] | 020106-2040 | BLEEDER SCREW M6P1L20 |
320/3. | [1] | 020118-3040 | BLEEDER SCREW |
320/4. | [1] | 154413-7420 | DIAPHRAGM HOUSING |
320/4A. | [1] | 154413-7820 | DIAPHRAGM HOUSING |
320/5. | [1] | 159275-1400 | COILED SPRING |
320/6/1. | [1] | 154413-8320 | STOP PIN L108.5 |
320/6/1. | [1] | 154413-8420 | STOP PIN L109.5 |
320/6/1. | [1] | 154413-8520 | STOP PIN L110.5 |
320/6/1. | [1] | 154413-8620 | STOP PIN L111.5 |
320/6/1. | [1] | 154413-8720 | STOP PIN L112.5 |
320/6/1. | [1] | 154413-8820 | STOP PIN L113.5 |
320/6/1. | [1] | 154413-8920 | STOP PIN L114.5 |
320/6/1. | [1] | 154413-9020 | STOP PIN L115.5 |
320/6/1. | [1] | 154413-9120 | STOP PIN L116.5 |
320/6/1. | [1] | 154413-9220 | STOP PIN L117.5 |
320/6/1. | [1] | 154413-9320 | STOP PIN L118.5 |
320/6/1. | [1] | 159274-1120 | STOP PIN L119.5 |
320/11. | [1] | 154413-9520 | DIAPHRAGM |
320/14. | [1] | 154413-9700 | SLOTTED WASHER |
320/15. | [1] | 013030-6010 | UNION NUT |
320/16. | [1] | 154411-7100 | COILED SPRING |
320/17. | [2] | 154413-2600 | GASKET |
320/17. | [2] | 154413-2600 | GASKET |
320/18. | [1] | 154404-5000 | COVER |
320/19. | [2] | 020106-2240 | BLEEDER SCREW |
320/20. | [1] | 139006-7000 | BLEEDER SCREW |
320/21. | [1] | 014110-6440 | LOCKING WASHER |
320/24. | [5] | 020106-2240 | BLEEDER SCREW |
320/25. | [1] | 010006-6040 | BLEEDER SCREW |
320/25A. | [1] | 014110-6440 | LOCKING WASHER |
320/27. | [1] | 029731-0180 | EYE BOLT |
320/28. | [2] | 139510-0200 | GASKET |
320/29. | [1] | 154413-9800 | GASKET |
320/29A. | [1] | 154413-9900 | GASKET |
320/34. | [1] | 154415-0000 | COVER |
320/35. | [4] | 010065-1240 | BLEEDER SCREW M5P0.8L12 |
320/36. | [1] | 020565-1240 | BLEEDER SCREW |
320/37. | [5] | 014110-5440 | LOCKING WASHER |
320/38. | [1] | 139006-7000 | BLEEDER SCREW |
320/39. | [1] | 014110-6440 | LOCKING WASHER |
320/43. | [1] | 159226-4500 | SPACER RING |
320/44. | [1] | 014010-5140 | PLAIN WASHER D12&5.5T0.8 |
320/45. | [1] | 029331-8040 | GASKET |
320/46. | [1] | 154415-0101 | FLAT-HEAD SCREW |
320/47. | [1] | 014110-6440 | LOCKING WASHER |
320/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/55. | [1] | 154404-4800 | FLAT-HEAD SCREW |
320/61. | [1] | 154035-1600 | CAP NUT |
320/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
320/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/64. | [2] | 139506-0300 | GASKET |
320/66. | [1] | 154415-0200 | GASKET |
