105931-8802 ZEXEL 9 420 613 060 BOSCH GOVERNOR 9420613060 1059318802 1157705982

Information governor

BOSCH 9 420 613 060 9420613060

ZEXEL 105931-8802 1059318802

ISUZU 1157705982 1157705982

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-8802 zexel genuine, new aftermarket engine parts with delivery

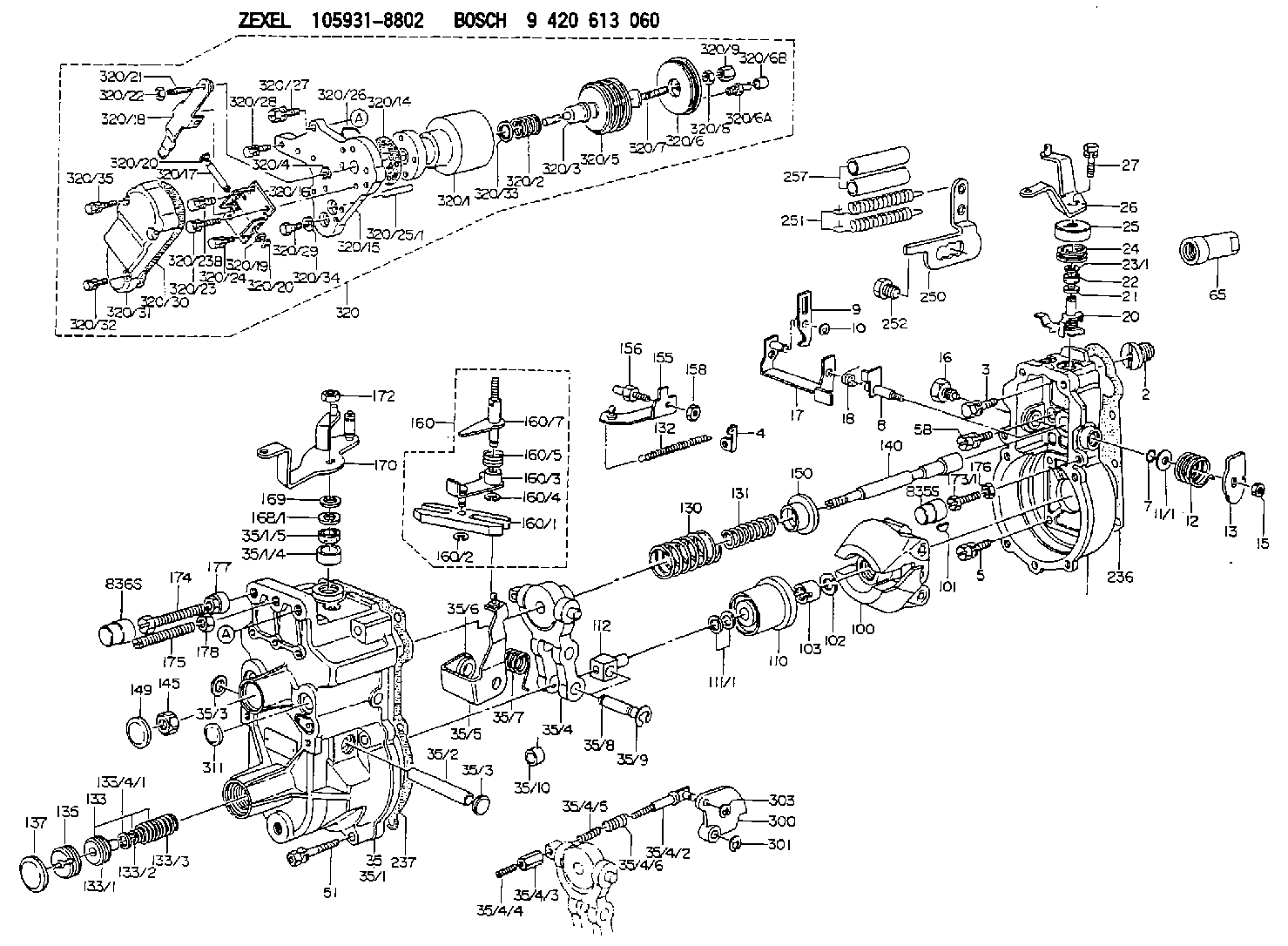

Scheme ###:

1.	[1]	159200-5020	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	139710-0200	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	029311-0210	SHIM D14&10.1T1
22.	[1]	139610-0700	PACKING RING
23/1.	[0]	139411-0700	SHIM D22&11T0.7
23/1.	[0]	153305-0100	SHIM D22&11T0.5
23/1.	[0]	153305-0200	SHIM D22&11T0.4
23/1.	[0]	153305-0300	SHIM D22&11T0.3
23/1.	[0]	153305-0400	SHIM D22&11T0.25
23/1.	[0]	153305-0500	SHIM D22&11T1.0
23/1.	[0]	153305-0600	SHIM D22&11T1.1
23/1.	[0]	153305-0700	SHIM D22&11T2.0
23/1.	[0]	153305-1300	SHIM D22&11T0.951
23/1.	[0]	153305-1400	SHIM D22&11T0.95
24.	[1]	159215-3400	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159290-3521	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-7020	GOVERNOR COVER
35/1.	[1]	159301-3220	GOVERNOR COVER
35/1/4.	[1]	159230-0902	BUSHING
35/1/5.	[1]	139610-0600	PACKING RING
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2320	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-5500	GOVERNOR SPRING
131.	[1]	159211-0600	GOVERNOR SPRING
132.	[1]	159214-0100	COILED SPRING
133.	[1]	159212-4720	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-4700	COILED SPRING
133/3.	[1]	159212-4600	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159263-8420	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	154317-8700	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-1800	TUBE
300.	[1]	159284-3300	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	155424-6420	ANEROID CAPSULE
320/1.	[1]	155424-6520	DIAPHRAGM HOUSING
320/2.	[1]	155423-7100	COILED SPRING
320/3.	[1]	155423-0300	STOP PIN
320/4.	[1]	016020-1220	LOCKING WASHER
320/5.	[1]	155403-3021	BELLOWS
320/6.	[1]	155423-2000	COVER
320/6A.	[1]	139805-0000	JOINT CONNECTION
320/6B.	[1]	155424-0300	CAP
320/7.	[1]	155423-1500	SCREW PLUG
320/8.	[1]	029240-6010	UNION NUT M6P1.0H5*
320/9.	[1]	154035-1600	CAP NUT
320/14.	[1]	154390-2700	GASKET
320/15.	[1]	155423-0700	SPACER BUSHING
320/16.	[1]	155423-0800	PLATE
320/17.	[1]	155423-0900	LEVER SHAFT
320/18.	[1]	155423-1000	CONTROL LEVER
320/19.	[2]	029310-4060	SHIM
320/20.	[2]	016010-0440	LOCKING WASHER
320/20.	[2]	016010-0440	LOCKING WASHER
320/21.	[1]	155423-1100	FLAT-HEAD SCREW
320/22.	[1]	013020-6010	UNION NUT
320/23.	[2]	020105-2540	BLEEDER SCREW
320/23B.	[2]	020105-2040	BLEEDER SCREW M5P0.8L20
320/24.	[2]	020105-0840	BLEEDER SCREW M5P0.5L8
320/25/1.	[1]	155423-1200	STOP PIN L102
320/25/1.	[1]	155424-4900	STOP PIN L95
320/25/1.	[1]	155424-5000	STOP PIN L96
320/25/1B.	[1]	155423-1300	STOP PIN L102.5
320/25/1C.	[1]	155423-1400	STOP PIN L103
320/25/1D.	[1]	155423-7600	STOP PIN L103.5
320/25/1E.	[1]	155423-7700	STOP PIN L104
320/25/1F.	[1]	155423-8700	STOP PIN L97
320/25/1G.	[1]	155423-8800	STOP PIN L98
320/25/1H.	[1]	155423-8900	STOP PIN L99
320/25/1I.	[1]	155423-9000	STOP PIN L100
320/25/1J.	[1]	155423-9100	STOP PIN L101
320/26.	[1]	159226-4500	SPACER RING
320/27.	[1]	020118-2540	BLEEDER SCREW
320/28.	[3]	020106-1840	BLEEDER SCREW M6P1L18
320/29.	[1]	139006-1800	BLEEDER SCREW
320/30.	[1]	154390-2800	GASKET
320/31.	[1]	155423-0500	COVER
320/32.	[2]	020105-1240	BLEEDER SCREW M5P0.8L12
320/33.	[1]	029311-2060	SHIM D22&12.5T0.5
320/34.	[1]	026506-1040	GASKET D9.9&6.2T1
320/35.	[2]	020105-2540	BLEEDER SCREW

Include in #1:

101603-7862 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-8802

9 420 613 060
NP-EP/RLD240-1500A1FBL

1157705982 ISUZU

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

1. Loosen two bolts (2) and two nuts (3). Remove bolt (1), and remove fan drive belts (4).2. Remove the nuts and bolts that hold the fan drive in place. Remove fan drive (5). The following steps are for installation of the fan drive.3. Put fan drive (5) in position on the timing gear cover.4. Install bolts (2) and nuts (3) loosely. Make a replacement of the belts as a set only.5. Install fan belts (4). Install bolt (1). Make an adjustment to the belt tension with tool (A). Measure the belt farthest away from the engine. Tighten new belts to a gauge indication of 120 5. After the engine is operated at high idle for a minimum of 30 minutes, make another adjustment to the belt tension. The correct tension for used belts is a gauge indication of 90 10.6. Tighten bolts (2) and nuts (3) that hold the fan drive in place.Disassemble Fan Drive
Start By:a. remove fan drive This is a typical later model fan drive. 1. Remove two bolts (2) that hold the fan adapter to the pulley.2. Remove fan adapter (1) from the pulley 3. Remove bolts (3) and washer (4). Remove seal (5). 4. Remove pulley (8) from bracket (6).5. Remove bearing (10) and spacer (9) from the pulley. Remove spacer (7), seal (11) and bearing (12) from the pulley.Assemble Fan Drive
1. Install bearing (12) in the rear of pulley (8). 2. Install lip-type seal (11) with tooling (A). The lip of the seal must be away from the bearing. Put 5P960 Multipurpose Grease on the lip of the seal.3. Install spacer (7) so the end with the taper is toward the inside of pulley (8).4. Install spacer (9) and bearing (4) in the front of the pulley. 5. Put seal (5) on the front of the pulley. Install the pulley on bracket (6). 6. Install washer (4) and bolts (3) that hold the pulley in position.7. Install the fan drive adapter on the pulley.8. Fill the fan drive with 5P960 Multipurpose Grease.End By:a. install fan drive
