105931-8740 ZEXEL 9 420 613 057 BOSCH GOVERNOR 9420613057 1059318740 1157705860

Information governor

BOSCH 9 420 613 057 9420613057

ZEXEL 105931-8740 1059318740

ISUZU 1157705860 1157705860

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-8740 zexel genuine, new aftermarket engine parts with delivery

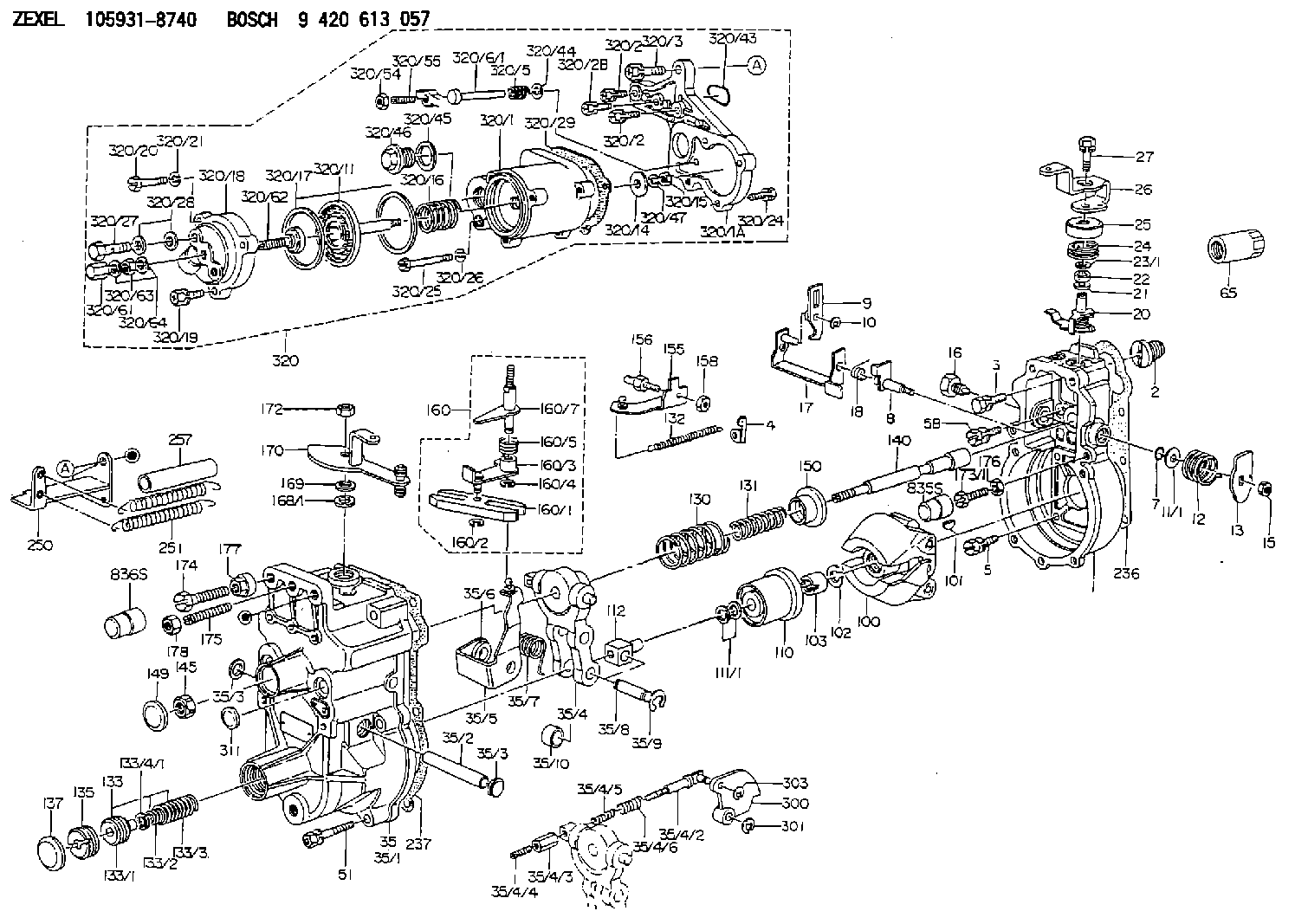

Scheme ###:

1.	[1]	159200-5020	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	139710-0200	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	029311-0210	SHIM D14&10.1T1
22.	[1]	139610-0700	PACKING RING
23/1.	[0]	139411-0700	SHIM D22&11T0.7
23/1.	[0]	153305-0100	SHIM D22&11T0.5
23/1.	[0]	153305-0200	SHIM D22&11T0.4
23/1.	[0]	153305-0300	SHIM D22&11T0.3
23/1.	[0]	153305-0400	SHIM D22&11T0.25
23/1.	[0]	153305-0500	SHIM D22&11T1.0
23/1.	[0]	153305-0600	SHIM D22&11T1.1
23/1.	[0]	153305-0700	SHIM D22&11T2.0
23/1.	[0]	153305-1300	SHIM D22&11T0.951
23/1.	[0]	153305-1400	SHIM D22&11T0.95
24.	[1]	159215-3400	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159249-2600	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-0220	GOVERNOR COVER
35/1.	[1]	159201-8420	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2320	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-3200	GOVERNOR SPRING
131.	[1]	159211-2200	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-6620	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5500	COILED SPRING
133/3.	[1]	159212-5200	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159265-4820	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
174B.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159226-9820	BRACKET
251.	[2]	159243-1200	COILED SPRING
257.	[2]	154156-0500	TUBE
300.	[1]	159282-3600	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154419-6020	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154408-9620	DIAPHRAGM HOUSING
320/1A.	[1]	154418-3900	SPACER BUSHING
320/2.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/2.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/2B.	[2]	020106-2540	BLEEDER SCREW M6P1L25
320/3.	[1]	020118-3040	BLEEDER SCREW
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/11.	[1]	154400-8521	DIAPHRAGM
320/14.	[1]	154406-5500	SLOTTED WASHER
320/15.	[1]	013030-6010	UNION NUT
320/16.	[1]	154402-0100	COILED SPRING
320/17.	[2]	154413-2600	GASKET
320/18.	[1]	154404-5000	COVER
320/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/20.	[2]	139006-7000	BLEEDER SCREW
320/21.	[2]	014110-6440	LOCKING WASHER
320/24.	[3]	020106-2240	BLEEDER SCREW
320/25.	[1]	139006-1300	BLEEDER SCREW M6P1L76
320/26.	[1]	029320-6010	LOCKING WASHER
320/27.	[1]	029731-0180	EYE BOLT
320/28.	[2]	139510-0200	GASKET
320/29.	[1]	154413-2800	GASKET
320/43.	[1]	159226-4500	SPACER RING
320/44.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/45.	[1]	139518-0000	GASKET
320/46.	[1]	154406-5800	FLAT-HEAD SCREW
320/47.	[1]	014110-6440	LOCKING WASHER
320/54.	[1]	013030-6040	UNION NUT M6P1H3.6
320/55.	[1]	154404-4800	FLAT-HEAD SCREW
320/61.	[1]	154035-1600	CAP NUT
320/62.	[1]	154404-4400	FLAT-HEAD SCREW
320/63.	[1]	013030-6040	UNION NUT M6P1H3.6
320/64.	[2]	139506-0300	GASKET

Include in #1:

101603-7810 as GOVERNOR

101603-7811

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-8740

9 420 613 057
NP-EP/RLD275-1470A1FXL

1157705860 ISUZU

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

1. Remove cylinder head bolts (1) and (2).
When lifting cylinder head, care must be taken to keep cylinder head level to prevent damage to the two cylinder head-to-spacer block dowels.
2. Lift the cylinder head off the spacer block. The approximate weight of the cylinder head is 236 Kg (520 Lbs.). The following steps are for the installation of the cylinder head.3. Thoroughly clean cylinder head and spacer block surfaces.4. Position the head gasket and the cylinder head onto the dowels in the spacer block. Lower the cylinder head onto the spacer block.5. Put engine oil on the threads of bolts (1) and (2), then install bolts. Tighten bolts (1) and (2) as follows:
Cylinder Head Tightening Sequencea. Tighten bolts 1 thru 26 in number sequence shown to a torque of 150 15 N m (110 11 lb.ft.).b. Tighten bolts 1 thru 26 in number sequence shown to a torque of 275 15 N m (200 11 lb.ft.).c. Retorque bolts 1 thru 26 in number sequence shown to 275 15 N m (200 11 lb.ft.).d. Tighten bolts 27 thru 33 in number sequence shown, to a torque of 34 7 N m (25 5 lb.ft.).End By:a. install valve cover baseb. install (ECU) fuel injectorsc. install rocker arm assemblies and push rodsd. adjust all the valve rocker arm clearances.e. install water outlet manifoldf. install exhaust manifold
