105931-8473 ZEXEL F 019 Z3E 304 BOSCH GOVERNOR f019z3e304 1059318473

Information governor

BOSCH F 019 Z3E 304 f019z3e304

ZEXEL 105931-8473 1059318473

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-8473 zexel genuine, new aftermarket engine parts with delivery

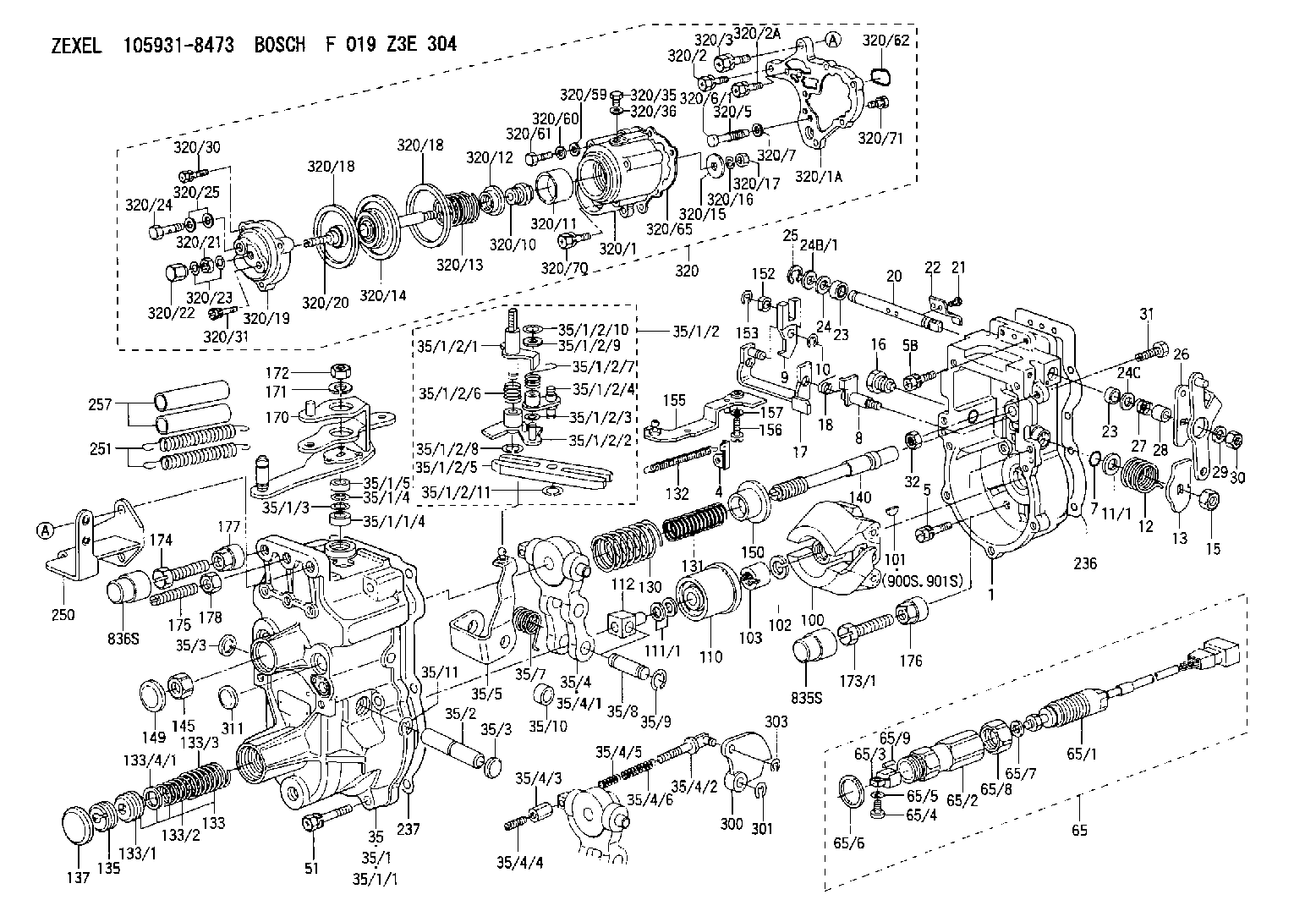

Scheme ###:

1.	[1]	159200-7620	GOVERNOR HOUSING
4.	[1]	159232-0201	PLATE
5.	[8]	139006-4100	BLEEDER SCREW
5B.	[2]	139006-6000	BLEEDER SCREW
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-2301	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	155004-5100	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159290-4000	CONTROL LEVER
23.	[2]	139608-0400	PACKING RING
23.	[2]	139608-0400	PACKING RING
24.	[1]	139308-1900	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	139308-1900	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159290-7421	CONTROL LEVER
27.	[1]	159215-5300	COILED SPRING
28.	[1]	159230-3400	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159250-6420	GOVERNOR COVER
35/1.	[1]	159301-2620	GOVERNOR COVER
35/1/1.	[1]	159301-2520	GOVERNOR COVER
35/1/1/4.	[1]	159230-2800	BUSHING
35/1/2.	[1]	159252-3320	LEVER GROUP
35/1/2/1.	[1]	159205-5420	LEVER SHAFT
35/1/2/2.	[1]	159202-4810	CONTROL LEVER
35/1/2/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
35/1/2/4.	[1]	159202-4520	CONTROL LEVER
35/1/2/5.	[1]	159202-2200	CONTROL LEVER
35/1/2/6.	[1]	159215-2301	COILED SPRING
35/1/2/7.	[1]	159215-3900	COILED SPRING
35/1/2/8.	[1]	016010-0810	LOCKING WASHER
35/1/2/9.	[1]	014020-6140	PLAIN WASHER
35/1/2/10.	[1]	016010-0610	LOCKING WASHER
35/1/2/10.	[1]	016010-0610	LOCKING WASHER
35/1/2/11.	[1]	016010-0810	LOCKING WASHER
35/1/3.	[1]	139411-0600	SHIM
35/1/4.	[1]	159238-3000	LOCKING WASHER
35/1/5.	[1]	029621-0080	PACKING RING
35/2.	[1]	159205-5500	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2220	TENSIONING LEVER
35/4/1.	[1]	159203-1720	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-6420	GUIDE LEVER
35/7.	[1]	159215-5400	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-4100	BUSHING
35/11.	[1]	016010-1010	LOCKING WASHER
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154610-4620	RACK SENSOR ASSY
65/1.	[1]	479742-2120	RACK SENSOR
65/2.	[1]	154614-4800	JOINT CONNECTION
65/3.	[1]	154614-5300	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	026524-3040	GASKET
65/7.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-3200	GOVERNOR SPRING
131.	[1]	159211-1600	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-7120	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5500	COILED SPRING
133/3.	[1]	159212-3400	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
152.	[1]	159235-5200	BUSHING
153.	[1]	016010-0540	LOCKING WASHER
155.	[1]	159204-6820	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
157.	[1]	029320-5020	LOCKING WASHER
170.	[1]	159265-3421	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	159238-4000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159220-6221	BRACKET
251.	[2]	154332-4600	COILED SPRING
257.	[2]	154156-2300	TUBE
300.	[1]	159283-4700	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154419-9120	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154413-6420	DIAPHRAGM HOUSING
320/1A.	[1]	154413-6500	SPACER BUSHING
320/2.	[1]	020106-2240	BLEEDER SCREW
320/2A.	[2]	020106-2540	BLEEDER SCREW M6P1L25
320/3.	[1]	020118-3040	BLEEDER SCREW
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/7.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/10.	[1]	154413-3600	BUSHING
320/11.	[1]	146711-0000	PLATE
320/12.	[1]	146716-0000	UNION NUT
320/13.	[1]	154403-3800	COILED SPRING
320/14.	[1]	154415-4320	DIAPHRAGM
320/15.	[1]	154406-5500	SLOTTED WASHER
320/16.	[1]	014110-6440	LOCKING WASHER
320/17.	[1]	013030-6040	UNION NUT M6P1H3.6
320/18.	[2]	154413-2600	GASKET
320/18.	[2]	154413-2600	GASKET
320/19.	[1]	154404-5000	COVER
320/20.	[1]	154413-4000	FLAT-HEAD SCREW
320/21.	[1]	013030-6040	UNION NUT M6P1H3.6
320/22.	[1]	154035-1600	CAP NUT
320/23.	[2]	139506-0300	GASKET
320/24.	[1]	029731-0180	EYE BOLT
320/25.	[2]	139510-0200	GASKET
320/30.	[1]	020106-3040	BLEEDER SCREW
320/31.	[2]	029010-6540	BLEEDER SCREW
320/35.	[1]	029111-2090	CAPSULE
320/36.	[1]	139512-0000	GASKET D17.2&12.2T1.0
320/59.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
320/60.	[1]	139505-0000	PLAIN WASHER
320/61.	[1]	010006-1670	BLEEDER SCREW M6P1L16 7T
320/62.	[1]	159226-4500	SPACER RING
320/65.	[1]	154390-1900	GASKET
320/70.	[2]	020106-2040	BLEEDER SCREW M6P1L20
320/71.	[3]	020106-2240	BLEEDER SCREW
835S.	[1]	154062-1900	CAP D12L24
836S.	[1]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

107692-1053 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-8473

F 019 Z3E 304
NP-EP/RLD275-1470A1GXL

GOVERNOR
K 14JJ MECHANICAL GOVERNOR GOV

Information:

(1) Bore in connecting rod for piston pin bearing ... 55.436 0.013 mm (2.1825 .0005 in) The connecting rod must be heated for installation of piston pin bearing. Do not use a torch.(2) Distance rod may be heated to 175 to 260° C (347 to 500° F) to install the piston pin bearing ... 85.0 mm (3.35 in)(3) Bore in bearing for piston pin (new) ... 50.830 0.008 mm (2.0012 .0003 in.) Diameter of piston pin (new) ... 50.795 0.005 mm (1.9998 .0002 in)Thoroughly lubricate piston pin with clean engine oil prior to inserting into piston group and rod assembly. Maximum permissible clearance between bearing and piston pin (worn) ... 0.25 mm (.010 in)(4) Bearing joint must be assembled at either location on
