105931-7281 ZEXEL 9 420 613 604 BOSCH GOVERNOR 9420613604 1059317281 me738886




Information governor

BOSCH 9 420 613 604 9420613604
ZEXEL 105931-7281 1059317281
MITSUBISHI ME738886 me738886
105931-7281 GOVERNOR
Rating:
63
Buy GOVERNOR 105931-7281 zexel genuine, new aftermarket engine parts with delivery

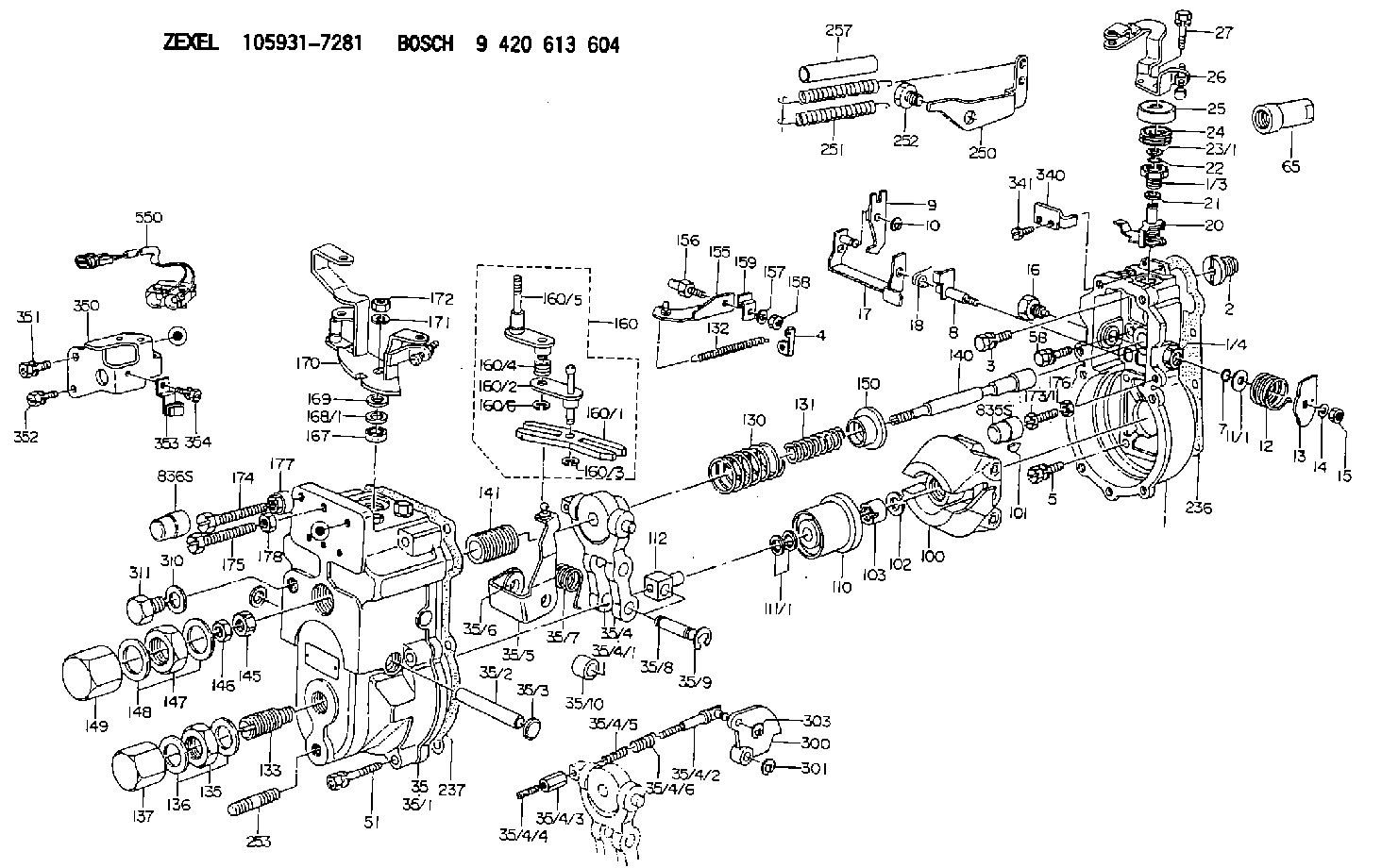

Scheme ###:

1. [1] 159200-2520 GOVERNOR HOUSING
1/3. [1] 154321-0400 BUSHING
1/4. [1] 154321-0400 BUSHING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0801 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 029631-0030 O-RING &9.8W2.3
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-2301 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
11/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
11/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
11/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
11/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
11/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-0100 CONTROL LEVER
14. [1] 014110-8440 LOCKING WASHER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-0000 CAPSULE
17. [1] 159202-2420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-7820 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 016530-1010 O-RING
23/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
23/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
23/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
23/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
23/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
23/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
24. [1] 159215-2900 COILED SPRING
25. [1] 154322-0100 CAP
26. [1] 159290-0420 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159255-3420 GOVERNOR COVER
35/1. [1] 159301-7520 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-0220 TENSIONING LEVER
35/4/1. [1] 159203-0420 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0000 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-5320 GUIDE LEVER
35/6. [2] 159235-5000 BUSHING
35/7. [1] 159215-0201 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-1801 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154101-0920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0100 TERMINAL STUD
130. [1] 159210-4400 GOVERNOR SPRING
131. [1] 159211-2900 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159212-4020 HEADLESS SCREW
135. [1] 139220-0200 UNION NUT
136. [2] 026520-2440 GASKET D23.9&20.2T1
137. [1] 159248-0700 CAP
140. [1] 159205-1801 LEVER SHAFT
141. [1] 159234-5200 GUIDE SLEEVE
145. [1] 159233-5000 UNION NUT
146. [1] 023020-8040 UNION NUT M8P1H5
147. [1] 139222-0200 UNION NUT
148. [2] 026522-2740 GASKET D26.9&22.2T1
149. [1] 159237-5000 CAP
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-0320 STRAP
156. [1] 159237-0300 BLEEDER SCREW
157. [1] 014110-5440 LOCKING WASHER
158. [1] 159233-5620 UNION NUT
159. [1] 159242-0800 PLATE
160. [1] 159252-0521 LEVER GROUP
160/1. [1] 159202-1400 CONTROL LEVER
160/2. [1] 159202-1520 CONTROL LEVER
160/3. [1] 016010-0610 LOCKING WASHER
160/4. [1] 159215-1300 COILED SPRING
160/5. [1] 159205-1721 LEVER SHAFT
160/6. [1] 016010-0810 LOCKING WASHER
167. [1] 029621-0080 PACKING RING
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159263-6920 CONTROL LEVER
171. [1] 014110-8440 LOCKING WASHER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-8000 BLEEDER SCREW
175. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
236. [1] 154390-0000 GASKET
237. [1] 154390-1100 GASKET
250. [1] 159225-5420 BRACKET
251. [2] 159243-4600 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
253. [1] 139010-1000 STUD
257. [2] 154156-0500 TUBE
300. [1] 159280-2500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
310. [1] 026516-2040 GASKET D19.9&16.2T1
311. [1] 159237-0100 CAPSULE
340. [1] 159228-2300 PLATE
341. [2] 020104-1040 BLEEDER SCREW
350. [1] 159228-1300 BRACKET
351. [1] 020118-1440 BLEEDER SCREW
352. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
353. [1] 159245-8620 PLATE
354. [1] 020106-0840 BLEEDER SCREW
550. [1] 153169-4620 MICROSWITCH
835S. [1] 154062-1900 CAP D12L24
836S. [1] 154062-1700 CAP D20L32

Include in #1:

101607-1180 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105931-7281
9 420 613 604
NP-EP/RLD275-1550A1CFL
ME738886  MITSUBISHI
GOVERNOR
* K




Information:

North America Only
When a problem arises concerning the sale, operation or service of your engine, it will normally be handled by the dealer in your area. The service facility nearest you can be located twenty-four hours a day by calling the phone number below. In U.S. and Canada: 1 (800) 447-4986.Your satisfaction is a primary concern to Caterpillar and its dealers. If you have a problem that has not been handled to your complete satisfaction, we suggest the steps that follow. Step OneDiscuss your problem with a member of management from the dealership. Step TwoWhen it appears that your problem cannot be readily resolved at the dealer level without additional assistance, use the above telephone numbers and ask to talk to a Field Service Coordinator. Regular Monday through Friday business hours are from 8:00 a.m. to 4:30 p.m. Central Standard Time (CST). Step ThreeIf you are still not satisfied, present the engine matter in writing to.Caterpillar Inc.
Manager, Customer Service, Engine Division
Mossville Bldg. A
P.O. Box 600
Peoria, Illinois 61552-0600
When contacting the Manager, Customer Service, please keep in mind that ultimately your problem will likely be resolved at the dealership, using their facilities, equipment, and personnel. Therefore, it is suggested that you follow the above steps in sequence when experiencing a problem.Outside North America
If a problem arises outside North America, and cannot be resolved at the dealer level, contact the appropriate Caterpillar subsidiary office. Central/South America (except Brazil)Caterpillar Americas Co.
100 NE Adams Street
Peoria, Illinois 61629 U.S.A.
Phone: 309-675-5876
Fax: 309-675-5384
BrazilCaterpillar Americas Co.
Edificio Brasil Interpart
Rua Guararapes, 2064 5.0 andar, cj.2
04561-004 - Sao Paulo-SP-Brazil
01.000-Sao Paulo-SP-Brazil
Phone: 011-536-3388
Fax: 011-505-1647
Far East (except Japan and Australia)Caterpillar Far East Limited
28th Floor, Sun Hung Kai Centre
30 Harbour Road
G.P.O. Box 3069
Wanchai, Hong Kong
Cable Address: CATFAREAST HKG
Telex No.: HX73305 CFEL
Phone: 5-8326333
Australia and New ZealandCaterpillar of Australia Ltd.
1 Caterpillar Drive
Private Mail Bag 4
Tullamarine, Victoria 3043
Australia
Telex: AA30240
Cable: CATERPILLAR MELB
Phone: (03) 339-9333
Fax: (03) 335-3366
JapanCaterpillar Mitsubishi Ltd.
3700, Tana, Sagamihara-shi
Kanagawa-ken, 229
Japan
Telex No.: 2872-261CM HAJ
Cable Address: CATERBISHICO SAGAMIHARA
Phone: Sagamihara (0427) 62-1121
Fax: (0427) 62-8542
Europe, Africa, and Middle EastCaterpillar Overseas S.A./Power Systems
YA50 76, Route de Frontenex
P.O. Box 456
1211 Geneva 6
Switzerland
Cable Address: CATOVERSEA
Telex No.: 413323
Phone: (022) 849-4444
Telecopier: (022) 849-4984
Fax: (022) 849-4544

Have questions with 105931-7281?





Group cross 105931-7281 ZEXEL

Mitsubishi


ME727164
GOVERNOR
9 420 613 603
ME727222
GOVERNOR

ME727165
GOVERNOR

ME727166
GOVERNOR

ME727167
GOVERNOR

Isuzu


8970269680
GOVERNOR
F 019 Z9E 091
NP-EP/RLD275-1750A2FFL

GOVERNOR

Isuzu


8970274590
GOVERNOR
F 019 Z9E 092
NP-EP/RLD275-1750A2FFL

GOVERNOR






Mitsubishi


ME727632
GOVERNOR
105931-7281
9 420 613 604
NP-EP/RLD275-1550A1CFL
ME738886
GOVERNOR
