Information governor
BOSCH
F 019 Z1E 502
f019z1e502
ZEXEL
105931-5710
1059315710
MITSUBISHI
ME726242
me726242

Rating:
Scheme ###:

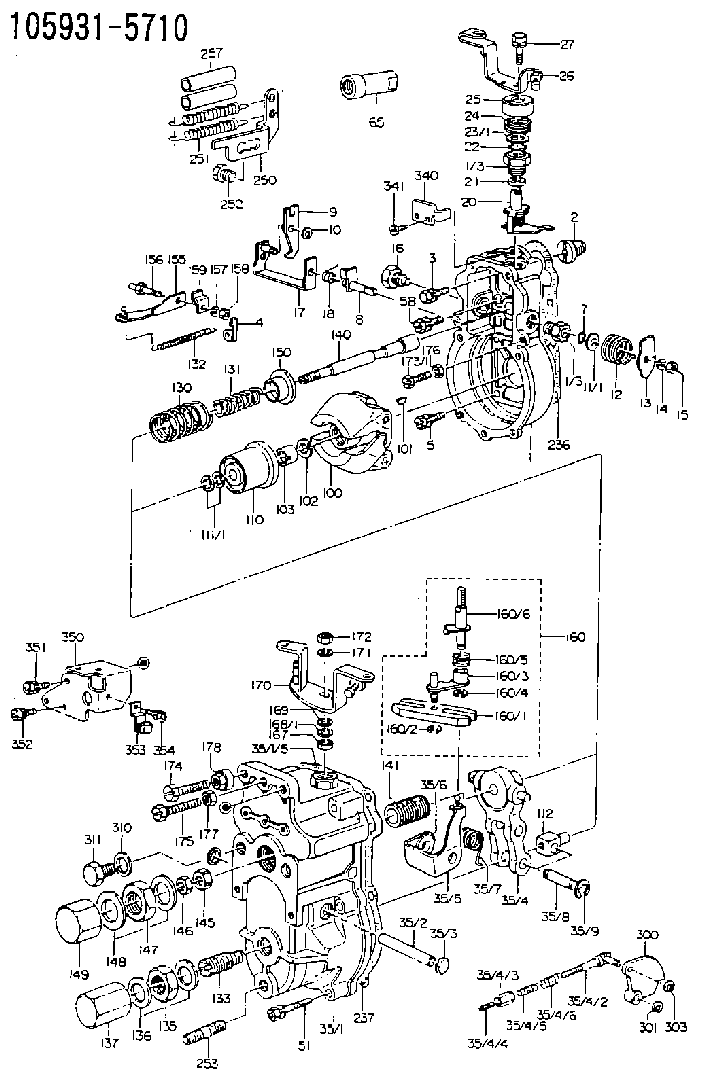

1. | [1] | 159200-2320 | GOVERNOR HOUSING |
1/3. | [2] | 154321-2600 | BUSHING |
1/3. | [2] | 154321-2600 | BUSHING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0201 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 029631-0030 | O-RING &9.8W2.3 |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-0400 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
11/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
11/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
11/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
11/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
11/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159242-0100 | CONTROL LEVER |
14. | [1] | 014110-8440 | LOCKING WASHER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-0000 | CAPSULE |
17. | [1] | 159202-0320 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-0220 | CONTROL LEVER |
21. | [1] | 159242-0600 | BUSHING |
22. | [1] | 016530-1010 | O-RING |
23/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
23/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
23/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
23/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
23/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
23/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
24. | [1] | 159215-2900 | COILED SPRING |
25. | [1] | 154322-0100 | CAP |
26. | [1] | 159249-1920 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159251-1120 | GOVERNOR COVER |
35/1. | [1] | 159201-1420 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-0120 | TENSIONING LEVER |
35/4/1. | [1] | 159203-0120 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0000 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-5020 | GUIDE LEVER |
35/6. | [2] | 159235-5000 | BUSHING |
35/7. | [1] | 159215-0201 | COILED SPRING |
35/8. | [1] | 159231-0800 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154050-1720 | STOPPING DEVICE |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-1020 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0100 | TERMINAL STUD |
130. | [1] | 159210-3800 | COILED SPRING |
131. | [1] | 159211-0200 | GOVERNOR SPRING |
132. | [1] | 159214-0000 | COILED SPRING |
133. | [1] | 159212-1220 | HEADLESS SCREW |
135. | [1] | 159248-0600 | UNION NUT |
136. | [2] | 026520-2440 | GASKET D23.9&20.2T1 |
137. | [1] | 159248-0700 | CAP |
140. | [1] | 159205-0301 | LEVER SHAFT |
141. | [1] | 159234-5200 | GUIDE SLEEVE |
145. | [1] | 159233-5000 | UNION NUT |
146. | [1] | 023020-8040 | UNION NUT M8P1H5 |
147. | [1] | 139222-0200 | UNION NUT |
148. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
149. | [1] | 159237-5000 | CAP |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-0120 | STRAP |
156. | [1] | 159237-0300 | BLEEDER SCREW |
157. | [1] | 014110-5440 | LOCKING WASHER |
158. | [1] | 159233-5200 | UNION NUT |
159. | [1] | 159242-0800 | PLATE |
160. | [1] | 159252-0122 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-0220 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-0400 | COILED SPRING |
160/6. | [1] | 159205-0621 | LEVER SHAFT |
167. | [1] | 029621-0080 | PACKING RING |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159241-5221 | CONTROL LEVER |
171. | [1] | 014110-8440 | LOCKING WASHER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
175. | [1] | 154010-2900 | BLEEDER SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-0100 | HEXAGON NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159227-8020 | BRACKET |
251. | [2] | 159243-3800 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
253. | [1] | 139010-0000 | STUD |
257. | [2] | 154156-0700 | TUBE |
300. | [1] | 159209-6700 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
310. | [1] | 026516-2040 | GASKET D19.9&16.2T1 |
311. | [1] | 159237-0100 | CAPSULE |
340. | [1] | 159245-8300 | PLATE |
341. | [2] | 020104-1040 | BLEEDER SCREW |
350. | [1] | 159225-2600 | BRACKET |
351. | [1] | 020118-1440 | BLEEDER SCREW |
352. | [2] | 020106-1040 | BLEEDER SCREW M6P1L12 |
353. | [1] | 159245-8620 | PLATE |
354. | [1] | 020106-0840 | BLEEDER SCREW |
835S. | [1] | 154062-1900 | CAP D12L24 |
836S. | [1] | 154062-1700 | CAP D20L32 |
Include in #1:
101606-6150
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Start By:a. disassemble governorb. remove fuel injection pumps 1. Remove rack (1) from the fuel pump housing. 2. Remove six lifters (2) from the fuel pump housing. Put identification marks on the lifters for installation purposes. 3. Remove camshaft (3) from the fuel pump housing. It may be necessary to use a soft hammer to push the camshaft out of the governor end of the fuel pump housing. 4. Remove races (4) and bearing (5) from the camshaft. Remove ring (6) if necessary. 5. Remove rack bearing (7) from both ends of the housing and dowel (8) if necessary. 6. Use tooling (A), and remove three camshaft bearings (9). 7. Remove the bolts, cover (10) and the gasket. 8. Remove pins (12), the seal and dowels (11) if necessary. Pins (12) must be pushed from the inside out.Assemble Fuel Injection Pump Housing
1. Clean and inspect all parts. Make a replacement of all parts that are worn or damaged. 2. Lubricate the seal with clean engine oil, and install pin (1). Pin (1) must protrude into the pump bore 2.15 .05 mm (.085 .002 in).3. Install dowel (2) so that it protrudes into the pump bore 1.93 0.05 mm (.076 .002 in). 4. Install the gasket, cover (3) and the bolts. 5. Install the rack bearing with tooling (A). Install the bearing until the driver comes in contact with the plate. The bearing should be installed to a depth of 83.0 0.5 mm (3.27 .02 in) from the fuel pump mounting face. 6. Measure rack bearing (4). Dimension (X) must be 11.178 0.05 mm (.4400 .002 in). Diameter (W) must be 12.767 0.058 mm (.5026 .0022 in). 7. Install dowel (5). Dowel (5) must protrude 6.0 0.5 mm (.24 .02 in) from the fuel pump housing face.8. Install the rear rack bearing with tooling (B) to a depth of 7.16 0.13 mm (.282 .005 in) below the fuel pump housing surface. The inside diameter of the rear rack bearing must be 12.746 0.045 mm (.5018 .0017 in). 9. Use tooling (C), and install three camshaft bearings (6). Oil holes (7) in the camshaft bearings must be positioned 30° 3° above the horizontal centerline toward the engine side of the fuel pump housing. The outer bearings must be installed 1.0 0.5 mm (0.04 0.02 in) below the surface marked (Z). The inner bearing must be installed 218.0 0.3 mm (8.58 .012 in) below the front surface (Y). Diameter (XX) must be 68.339 0.038 mm (2.6905 .0015 in) after assembly. 10. Install ring (8), races (10) and bearing (9) on the camshaft. 11. Lubricate cam bearings (6) and the camshaft bearing journals with clean engine oil.12. Install camshaft (11) into the fuel pump housing.
The notch in the lifter must be in line with the dowel in the lifter bore. The lifter must slide up and down freely in
1. Clean and inspect all parts. Make a replacement of all parts that are worn or damaged. 2. Lubricate the seal with clean engine oil, and install pin (1). Pin (1) must protrude into the pump bore 2.15 .05 mm (.085 .002 in).3. Install dowel (2) so that it protrudes into the pump bore 1.93 0.05 mm (.076 .002 in). 4. Install the gasket, cover (3) and the bolts. 5. Install the rack bearing with tooling (A). Install the bearing until the driver comes in contact with the plate. The bearing should be installed to a depth of 83.0 0.5 mm (3.27 .02 in) from the fuel pump mounting face. 6. Measure rack bearing (4). Dimension (X) must be 11.178 0.05 mm (.4400 .002 in). Diameter (W) must be 12.767 0.058 mm (.5026 .0022 in). 7. Install dowel (5). Dowel (5) must protrude 6.0 0.5 mm (.24 .02 in) from the fuel pump housing face.8. Install the rear rack bearing with tooling (B) to a depth of 7.16 0.13 mm (.282 .005 in) below the fuel pump housing surface. The inside diameter of the rear rack bearing must be 12.746 0.045 mm (.5018 .0017 in). 9. Use tooling (C), and install three camshaft bearings (6). Oil holes (7) in the camshaft bearings must be positioned 30° 3° above the horizontal centerline toward the engine side of the fuel pump housing. The outer bearings must be installed 1.0 0.5 mm (0.04 0.02 in) below the surface marked (Z). The inner bearing must be installed 218.0 0.3 mm (8.58 .012 in) below the front surface (Y). Diameter (XX) must be 68.339 0.038 mm (2.6905 .0015 in) after assembly. 10. Install ring (8), races (10) and bearing (9) on the camshaft. 11. Lubricate cam bearings (6) and the camshaft bearing journals with clean engine oil.12. Install camshaft (11) into the fuel pump housing.
The notch in the lifter must be in line with the dowel in the lifter bore. The lifter must slide up and down freely in
