105931-5301 ZEXEL 9 420 611 554 BOSCH GOVERNOR 9420611554 1059315301 me740805

Information governor

BOSCH 9 420 611 554 9420611554

ZEXEL 105931-5301 1059315301

MITSUBISHI ME740805 me740805

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-5301 zexel genuine, new aftermarket engine parts with delivery

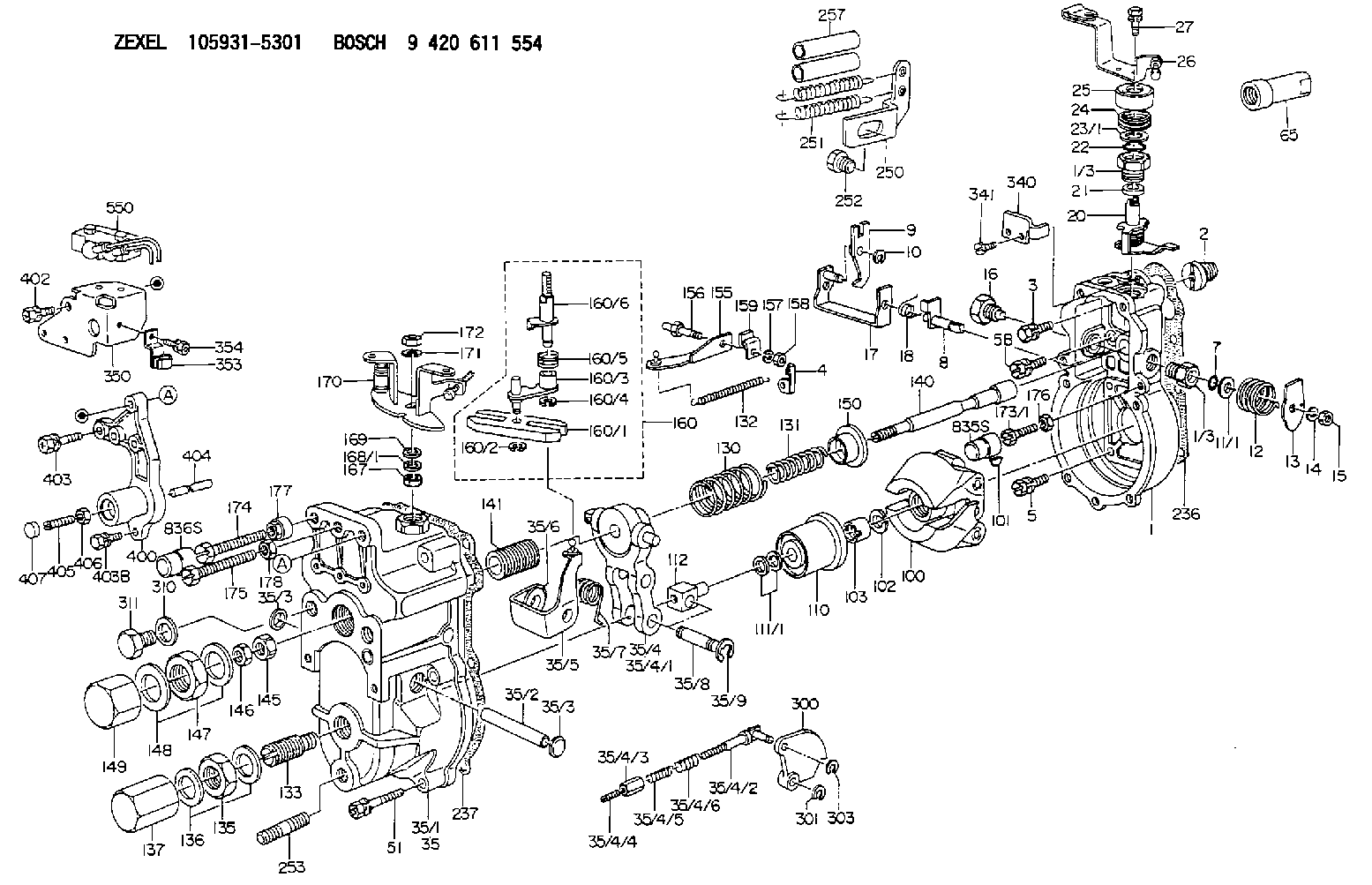

Scheme ###:

1.	[1]	159200-2320	GOVERNOR HOUSING
1/3.	[2]	154321-2600	BUSHING
1/3.	[2]	154321-2600	BUSHING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	029631-0030	O-RING &9.8W2.3
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-0400	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
11/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
11/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
11/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
11/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
11/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-0100	CONTROL LEVER
14.	[1]	014110-8440	LOCKING WASHER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-0000	CAPSULE
17.	[1]	159202-0920	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	016530-1010	O-RING
23/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
23/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
23/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
23/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
23/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
23/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
24.	[1]	159215-2900	COILED SPRING
25.	[1]	154322-0100	CAP
26.	[1]	159242-6520	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159251-3220	GOVERNOR COVER
35/1.	[1]	159201-3020	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0120	TENSIONING LEVER
35/4/1.	[1]	159203-0120	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0000	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5020	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-0201	COILED SPRING
35/8.	[1]	159231-0800	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-1020	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0100	TERMINAL STUD
130.	[1]	159210-0700	GOVERNOR SPRING
131.	[1]	159211-2600	COILED SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-3920	COILED SPRING
135.	[1]	159248-0600	UNION NUT
136.	[2]	026520-2440	GASKET D23.9&20.2T1
137.	[1]	159248-0700	CAP
140.	[1]	159205-0301	LEVER SHAFT
141.	[1]	159234-5200	GUIDE SLEEVE
145.	[1]	159233-5000	UNION NUT
146.	[1]	023020-8040	UNION NUT M8P1H5
147.	[1]	139222-0200	UNION NUT
148.	[2]	026522-2740	GASKET D26.9&22.2T1
149.	[1]	159237-5000	CAP
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-0120	STRAP
156.	[1]	159237-0300	BLEEDER SCREW
157.	[1]	014110-5440	LOCKING WASHER
158.	[1]	159233-5200	UNION NUT
159.	[1]	159242-0800	PLATE
160.	[1]	159252-0122	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-0220	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-0400	COILED SPRING
160/6.	[1]	159205-0621	LEVER SHAFT
167.	[1]	029621-0080	PACKING RING
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159241-5221	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154010-2900	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159245-8220	BRACKET
251.	[2]	159243-3800	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	139010-1000	STUD
257.	[2]	154156-0700	TUBE
300.	[1]	159208-0700	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
310.	[1]	026516-2040	GASKET D19.9&16.2T1
311.	[1]	159237-0100	CAPSULE
340.	[1]	159245-8300	PLATE
341.	[2]	020104-1040	BLEEDER SCREW
350.	[1]	159225-2700	BRACKET
353.	[1]	159225-5120	PLATE
354.	[1]	020106-0840	BLEEDER SCREW
400.	[1]	159275-1001	SPACER BUSHING
402.	[1]	020118-3040	BLEEDER SCREW
403.	[2]	020106-2540	BLEEDER SCREW M6P1L25
403B.	[1]	020006-2240	BLEEDER SCREW M6P1L22
404.	[1]	155423-1300	STOP PIN L102.5
405.	[1]	154404-1100	FLAT-HEAD SCREW
406.	[1]	013020-6040	UNION NUT M6P1H5
407.	[1]	159275-1100	CAPSULE
550.	[1]	153169-6520	MICROSWITCH

Include in #1:

101606-1780 as GOVERNOR

101606-6771

101606-6772

101606-6773

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-5301

9 420 611 554
NP-EP/RLD275-1550A1AFL

ME740805 MITSUBISHI

GOVERNOR
K

Information:

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove four bolts (1). Disconnect wires (2) and (3). 2. Remove jake brake (A) by lifting with one hand while holding oil tube (4) to insure it does not come out of jake brake (B).3. Remove jake brake (B). 4. Remove four spacers (5). Install in reverse order.End By:a. install valve coverDisassemble And Assemble Jake Brake
Start By:a. Remove jake brake
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove oil tubes (1) and (2). Remove the o-ring seals and check for wear or damage. Replace the o-ring seals during assembly if required. 2. Remove snap ring (3), cup (4), spacer (5), springs (6) and (7) and piston (8). 3. Remove three retaining rings (9). Remove clip (10), Springs (11) and (12) and piston (13) from three locations on the jake brake. 4. Remove three bolts (16), washers (15), clips (14) and piston (17). Assemble in reverse order.End By:a. install jake brake
