Information governor
BOSCH
F 019 Z1E 490
f019z1e490
ZEXEL
105931-4200
1059314200
MITSUBISHI
ME722735
me722735

Rating:

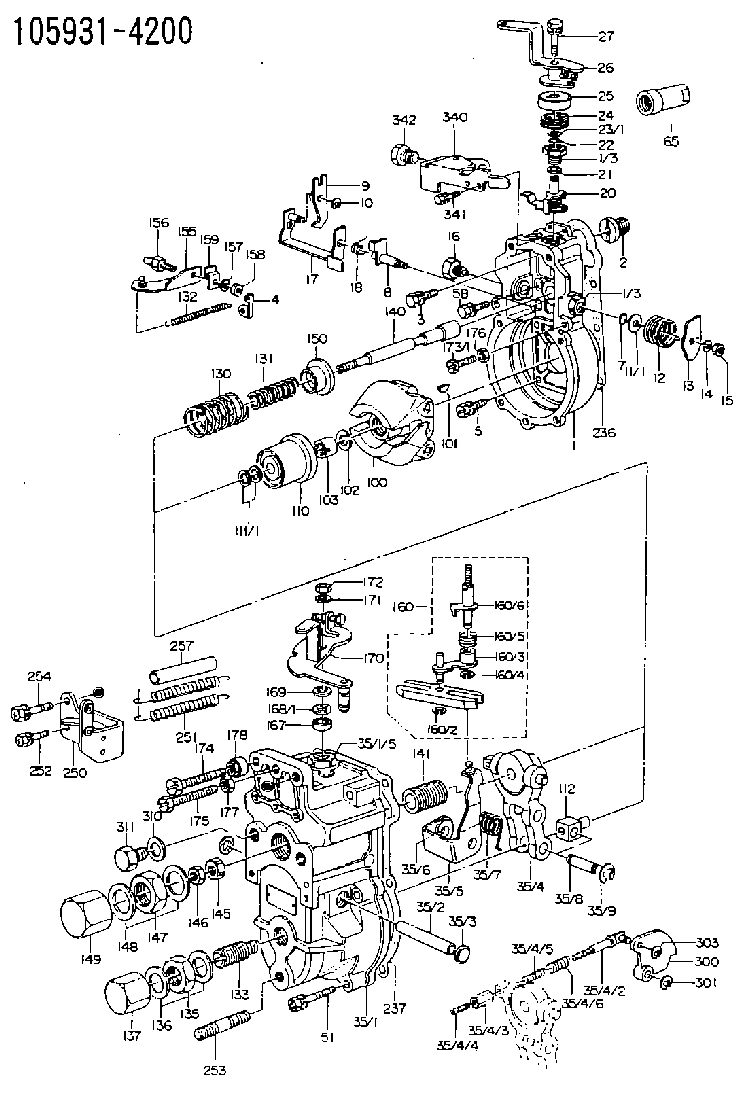

Scheme ###:
1. | [1] | 159200-2320 | GOVERNOR HOUSING |
1/3. | [2] | 154321-2600 | BUSHING |
1/3. | [2] | 154321-2600 | BUSHING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0201 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 029631-0030 | O-RING &9.8W2.3 |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-0400 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
11/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
11/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
11/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
11/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
11/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159242-0100 | CONTROL LEVER |
14. | [1] | 014110-8440 | LOCKING WASHER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-0000 | CAPSULE |
17. | [1] | 159202-0320 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-0220 | CONTROL LEVER |
21. | [1] | 159242-0600 | BUSHING |
22. | [1] | 016530-1010 | O-RING |
23/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
23/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
23/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
23/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
23/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
23/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
24. | [1] | 159215-2900 | COILED SPRING |
25. | [1] | 154322-0100 | CAP |
26. | [1] | 159249-3620 | CONTROL LEVER |
27. | [1] | 020006-4040 | BLEEDER SCREW |
35. | [1] | 159251-1120 | GOVERNOR COVER |
35/1. | [1] | 159201-1420 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-0120 | TENSIONING LEVER |
35/4/1. | [1] | 159203-0120 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0000 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-5020 | GUIDE LEVER |
35/6. | [2] | 159235-5000 | BUSHING |
35/7. | [1] | 159215-0201 | COILED SPRING |
35/8. | [1] | 159231-0800 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154050-1720 | STOPPING DEVICE |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-1020 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0100 | TERMINAL STUD |
130. | [1] | 159210-0700 | GOVERNOR SPRING |
131. | [1] | 159211-2600 | COILED SPRING |
132. | [1] | 159214-0000 | COILED SPRING |
133. | [1] | 159212-3920 | COILED SPRING |
135. | [1] | 159248-0600 | UNION NUT |
136. | [2] | 026520-2440 | GASKET D23.9&20.2T1 |
137. | [1] | 159248-0700 | CAP |
140. | [1] | 159205-0301 | LEVER SHAFT |
141. | [1] | 159234-5200 | GUIDE SLEEVE |
145. | [1] | 159233-5000 | UNION NUT |
146. | [1] | 023020-8040 | UNION NUT M8P1H5 |
147. | [1] | 139222-0200 | UNION NUT |
148. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
149. | [1] | 159237-5000 | CAP |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-0120 | STRAP |
156. | [1] | 159237-0300 | BLEEDER SCREW |
157. | [1] | 014110-5440 | LOCKING WASHER |
158. | [1] | 159233-5200 | UNION NUT |
159. | [1] | 159242-0800 | PLATE |
160. | [1] | 159252-0122 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-0220 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-0400 | COILED SPRING |
160/6. | [1] | 159205-0621 | LEVER SHAFT |
167. | [1] | 029621-0080 | PACKING RING |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159260-1220 | CONTROL LEVER |
171. | [1] | 014110-8440 | LOCKING WASHER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
175. | [1] | 154010-2200 | BLEEDER SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-2800 | UNION NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159228-1520 | BRACKET |
251. | [2] | 159243-4300 | COILED SPRING |
252. | [2] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
253. | [1] | 139010-0000 | STUD |
254. | [1] | 020118-1840 | BLEEDER SCREW |
257. | [2] | 154156-1800 | TUBE |
300. | [1] | 159209-1600 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
310. | [1] | 026516-2040 | GASKET D19.9&16.2T1 |
311. | [1] | 159237-0100 | CAPSULE |
340. | [1] | 159225-4500 | BRACKET |
341. | [2] | 020104-1040 | BLEEDER SCREW |
342. | [1] | 159248-0200 | BLEEDER SCREW |
835S. | [1] | 154062-1900 | CAP D12L24 |
836S. | [1] | 154062-1700 | CAP D20L32 |
Include in #1:
101606-1080
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
1. Remove the two bolts, and remove the fuel ratio control from the governor. Remove O-ring seal (1) from the fuel ratio control. 2. Put tooling (A) in a vise as shown so that the station being used is not over the vise jaw. Place the fuel ratio control over the pins in tooling (A). Remove cover (2) and the gasket from fuel ratio control.
There is spring force behind cover (3). Hold cover (3) in position, and slowly remove the bolts that hold it to release the spring force.
3. Remove cover (3) from housing (4). 4. Remove nut (5) and stop (6) from the cover. 5. Remove spring (9), washer (7), and diaphragm (10) from retainer (8). Remove retainer (8) from housing (11). 6. Remove nut (16) from extension (15), and remove the extension from retainer (8). Remove valve (12), spring (13) and O-ring seal (14) from the extension. 7. Remove spring (18), retainer (17) and spring (19) from the housing. 8. Remove piston assembly (20) from the housing. 9. Use tooling (B), and remove snap ring (21) and the wave washers from valve assembly (22). Remove piston assembly (23) from the valve assembly.10. Remove seal (24) from piston (23). 11. If necessary, remove stem (26) from valve (25).12. Clean and inspect all parts. Make a replacement of all parts that are worn or damaged.Assemble Fuel Ratio Control
1. Assemble stem (2) to valve (1) using 9S3265 Retaining Compound. 2. Put seal (4) on piston (3), and put piston (3) on valve assembly (5). 3. Put two wave washers in position on valve (5), and use tooling (A) to install the snap ring on the valve assembly. 4. Place housing (7) on tooling (B), and put tooling (C) into the bore of the housing. Lubricate tooling (C) with clean engine oil.5. Put a small amount of clean oil on the seal of the piston assembly, and push piston assembly (6) into position with a smooth swift motion. 6. Place spring (8) and retainer and spring (9) in position in housing (7). 7. Put O-ring seal (12) on extension (13). Put spring (11) and valve (10) in position on the extension.8. Lubricate O-ring seal (12) with clean engine oil. Install extension (13) in retainer (14). Install nut (15). 9. Put diaphragm (18), washer (17) and spring (16) in position on retainer (14). Install retainer (14) in housing (7). 10. Install stop (20) and nut (19) in the cover. 11. Hold retainer (14) in position, and install cover (21) on the housing. Install the bolts that hold the cover, and tighten them to a torque of 9 3 N m (7 2 lb.ft.). 12. Make a replacement of the gasket for cover (22), and install the cover. 13. Put O-ring seal (23) in position on the fuel ratio control.14. Put the fuel ratio control in position on the governor. Make sure the flange on the end of the fuel ratio control is behind the groove (slot) in the
There is spring force behind cover (3). Hold cover (3) in position, and slowly remove the bolts that hold it to release the spring force.
3. Remove cover (3) from housing (4). 4. Remove nut (5) and stop (6) from the cover. 5. Remove spring (9), washer (7), and diaphragm (10) from retainer (8). Remove retainer (8) from housing (11). 6. Remove nut (16) from extension (15), and remove the extension from retainer (8). Remove valve (12), spring (13) and O-ring seal (14) from the extension. 7. Remove spring (18), retainer (17) and spring (19) from the housing. 8. Remove piston assembly (20) from the housing. 9. Use tooling (B), and remove snap ring (21) and the wave washers from valve assembly (22). Remove piston assembly (23) from the valve assembly.10. Remove seal (24) from piston (23). 11. If necessary, remove stem (26) from valve (25).12. Clean and inspect all parts. Make a replacement of all parts that are worn or damaged.Assemble Fuel Ratio Control
1. Assemble stem (2) to valve (1) using 9S3265 Retaining Compound. 2. Put seal (4) on piston (3), and put piston (3) on valve assembly (5). 3. Put two wave washers in position on valve (5), and use tooling (A) to install the snap ring on the valve assembly. 4. Place housing (7) on tooling (B), and put tooling (C) into the bore of the housing. Lubricate tooling (C) with clean engine oil.5. Put a small amount of clean oil on the seal of the piston assembly, and push piston assembly (6) into position with a smooth swift motion. 6. Place spring (8) and retainer and spring (9) in position in housing (7). 7. Put O-ring seal (12) on extension (13). Put spring (11) and valve (10) in position on the extension.8. Lubricate O-ring seal (12) with clean engine oil. Install extension (13) in retainer (14). Install nut (15). 9. Put diaphragm (18), washer (17) and spring (16) in position on retainer (14). Install retainer (14) in housing (7). 10. Install stop (20) and nut (19) in the cover. 11. Hold retainer (14) in position, and install cover (21) on the housing. Install the bolts that hold the cover, and tighten them to a torque of 9 3 N m (7 2 lb.ft.). 12. Make a replacement of the gasket for cover (22), and install the cover. 13. Put O-ring seal (23) in position on the fuel ratio control.14. Put the fuel ratio control in position on the governor. Make sure the flange on the end of the fuel ratio control is behind the groove (slot) in the
