Information governor
BOSCH
9 420 612 965
9420612965
ZEXEL
105931-4090
1059314090
ISUZU
1157707370
1157707370

Rating:

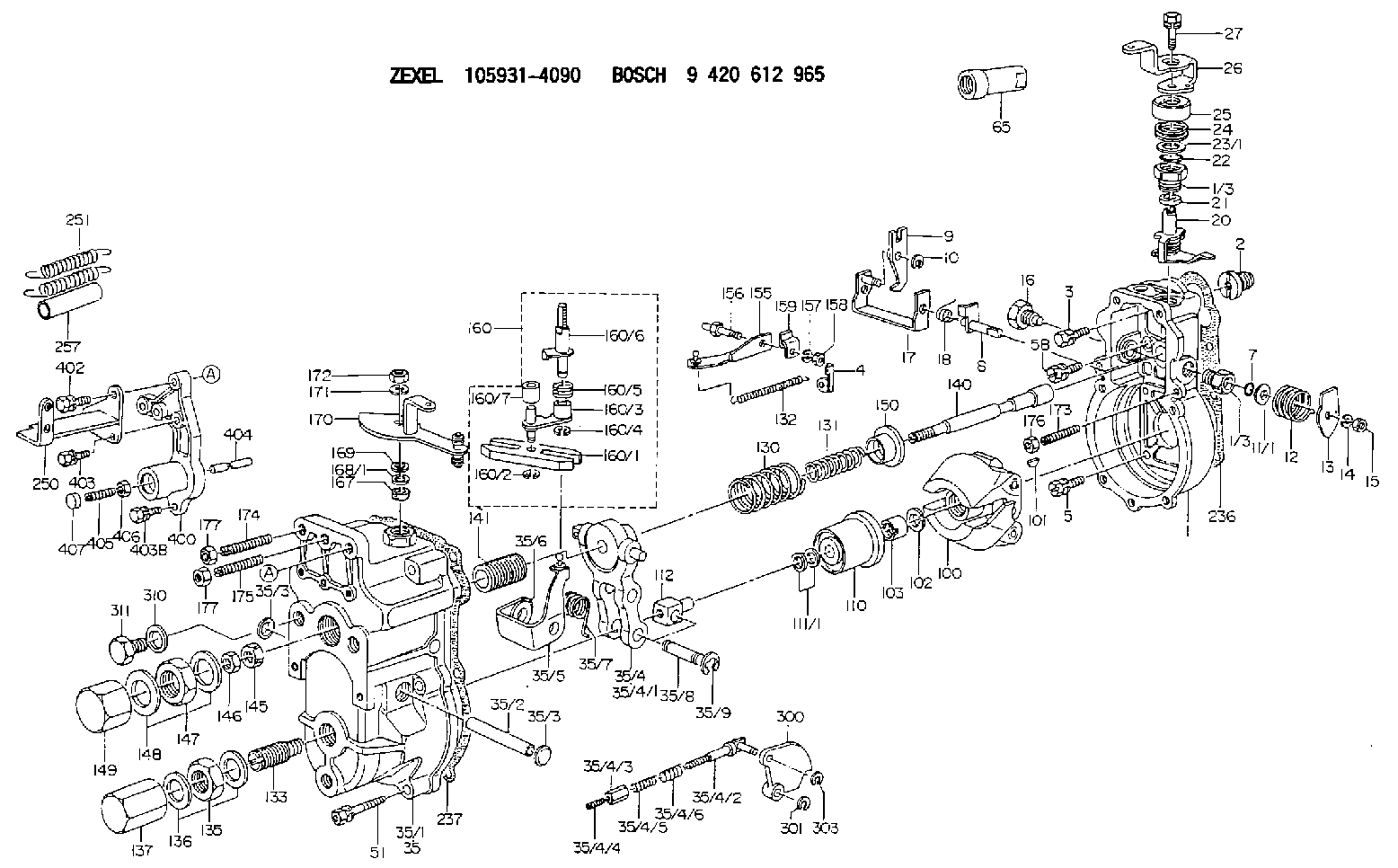

Scheme ###:
1. | [1] | 159200-1020 | GOVERNOR HOUSING |
1/3. | [2] | 154321-0400 | BUSHING |
1/3. | [2] | 154321-0400 | BUSHING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0201 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 029631-0030 | O-RING &9.8W2.3 |
8. | [1] | 159205-2321 | LEVER SHAFT |
9. | [1] | 159202-0400 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
11/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
11/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
11/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
11/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
11/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
12. | [1] | 159215-0000 | COILED SPRING |
13. | [1] | 159242-0100 | CONTROL LEVER |
14. | [1] | 014110-8440 | LOCKING WASHER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-0000 | CAPSULE |
17. | [1] | 159202-0920 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159242-0220 | CONTROL LEVER |
21. | [1] | 159242-0600 | BUSHING |
22. | [1] | 029631-0030 | O-RING &9.8W2.3 |
23/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
23/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
23/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
23/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
23/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
23/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
24. | [1] | 159215-2200 | COILED SPRING |
25. | [1] | 154322-0100 | CAP |
26. | [1] | 159242-8200 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159251-3220 | GOVERNOR COVER |
35/1. | [1] | 159201-3020 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-0120 | TENSIONING LEVER |
35/4/1. | [1] | 159203-0120 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0000 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-5020 | GUIDE LEVER |
35/6. | [2] | 159235-5000 | BUSHING |
35/7. | [1] | 159215-0201 | COILED SPRING |
35/8. | [1] | 159231-0800 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154050-1720 | STOPPING DEVICE |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-1020 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0100 | TERMINAL STUD |
130. | [1] | 159210-2100 | GOVERNOR SPRING |
131. | [1] | 159211-2700 | GOVERNOR SPRING |
132. | [1] | 159214-0000 | COILED SPRING |
133. | [1] | 159212-3220 | HEADLESS SCREW |
135. | [1] | 139220-0200 | UNION NUT |
136. | [2] | 026520-2440 | GASKET D23.9&20.2T1 |
137. | [1] | 159248-0700 | CAP |
140. | [1] | 159205-0301 | LEVER SHAFT |
141. | [1] | 159234-5200 | GUIDE SLEEVE |
145. | [1] | 159233-5000 | UNION NUT |
146. | [1] | 023020-8040 | UNION NUT M8P1H5 |
147. | [1] | 139222-0200 | UNION NUT |
148. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
149. | [1] | 159237-5000 | CAP |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-0120 | STRAP |
156. | [1] | 159237-0300 | BLEEDER SCREW |
157. | [1] | 014110-5440 | LOCKING WASHER |
158. | [1] | 159233-5200 | UNION NUT |
159. | [1] | 159242-0800 | PLATE |
160. | [1] | 159252-2021 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-0220 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-0400 | COILED SPRING |
160/6. | [1] | 159205-3821 | LEVER SHAFT |
160/7. | [1] | 159225-1400 | ROLLER |
167. | [1] | 029621-0080 | PACKING RING |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159240-4320 | CONTROL LEVER |
171. | [1] | 014110-8440 | LOCKING WASHER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173. | [1] | 155615-1100 | FLAT-HEAD SCREW M6P1.0L37 |
174. | [1] | 154010-0100 | FLAT-HEAD SCREW |
175. | [1] | 154010-0100 | FLAT-HEAD SCREW |
176. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
177. | [2] | 154011-0100 | HEXAGON NUT |
177. | [2] | 154011-0100 | HEXAGON NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159245-9120 | BRACKET |
251. | [2] | 159243-1200 | COILED SPRING |
257. | [2] | 154156-0500 | TUBE |
300. | [1] | 159207-6600 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
310. | [1] | 026516-2040 | GASKET D19.9&16.2T1 |
311. | [1] | 159237-0100 | CAPSULE |
400. | [1] | 159275-1001 | SPACER BUSHING |
402. | [1] | 020018-2840 | BLEEDER SCREW |
403. | [3] | 020006-2540 | BLEEDER SCREW M6P1L25 |
403B. | [1] | 020006-2240 | BLEEDER SCREW M6P1L22 |
404. | [1] | 155423-1300 | STOP PIN L102.5 |
405. | [1] | 154404-1100 | FLAT-HEAD SCREW |
406. | [1] | 013020-6040 | UNION NUT M6P1H5 |
407. | [1] | 159275-1100 | CAPSULE |
