105931-3810 ZEXEL F 019 Z1E 487 BOSCH GOVERNOR f019z1e487 1059313810 me716791

Information governor

BOSCH F 019 Z1E 487 f019z1e487

ZEXEL 105931-3810 1059313810

MITSUBISHI ME716791 me716791

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-3810 zexel genuine, new aftermarket engine parts with delivery

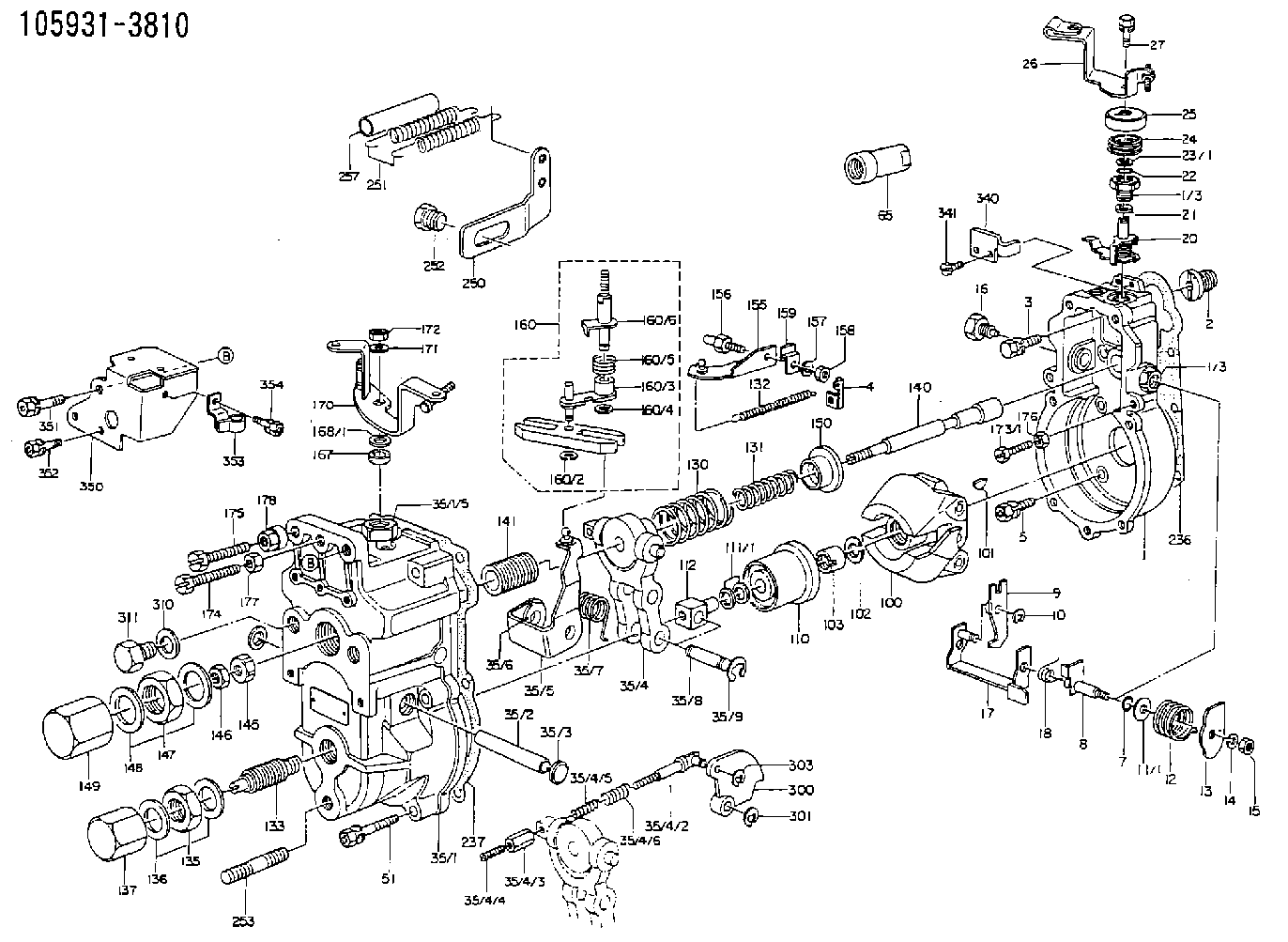

Scheme ###:

1.	[1]	159200-2320	GOVERNOR HOUSING
1/3.	[2]	154321-2600	BUSHING
1/3.	[2]	154321-2600	BUSHING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	029631-0030	O-RING &9.8W2.3
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-0400	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
11/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
11/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
11/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
11/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
11/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-0100	CONTROL LEVER
14.	[1]	014110-8440	LOCKING WASHER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-0000	CAPSULE
17.	[1]	159202-0320	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	016530-1010	O-RING
23/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
23/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
23/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
23/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
23/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
23/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
24.	[1]	159215-2900	COILED SPRING
25.	[1]	154322-0100	CAP
26.	[1]	159249-1920	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159251-1120	GOVERNOR COVER
35/1.	[1]	159201-1420	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0120	TENSIONING LEVER
35/4/1.	[1]	159203-0120	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0000	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5020	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-0201	COILED SPRING
35/8.	[1]	159231-0800	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-1020	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0100	TERMINAL STUD
130.	[1]	159210-3800	COILED SPRING
131.	[1]	159211-0200	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-1220	HEADLESS SCREW
135.	[1]	159248-0600	UNION NUT
136.	[2]	026520-2440	GASKET D23.9&20.2T1
137.	[1]	159248-0700	CAP
140.	[1]	159205-0301	LEVER SHAFT
141.	[1]	159234-5200	GUIDE SLEEVE
145.	[1]	159233-5000	UNION NUT
146.	[1]	023020-8040	UNION NUT M8P1H5
147.	[1]	139222-0200	UNION NUT
148.	[2]	026522-2740	GASKET D26.9&22.2T1
149.	[1]	159237-5000	CAP
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-0120	STRAP
156.	[1]	159237-0300	BLEEDER SCREW
157.	[1]	014110-5440	LOCKING WASHER
158.	[1]	159233-5200	UNION NUT
159.	[1]	159242-0800	PLATE
160.	[1]	159252-0122	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-0220	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-0400	COILED SPRING
160/6.	[1]	159205-0621	LEVER SHAFT
167.	[1]	029621-0080	PACKING RING
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159241-5221	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154010-2900	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159227-8020	BRACKET
251.	[2]	159243-3800	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	139010-0000	STUD
257.	[2]	154156-0700	TUBE
300.	[1]	159207-1000	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
310.	[1]	026516-2040	GASKET D19.9&16.2T1
311.	[1]	159237-0100	CAPSULE
340.	[1]	159245-8300	PLATE
341.	[2]	020104-1040	BLEEDER SCREW
350.	[1]	159225-2600	BRACKET
351.	[1]	020118-1440	BLEEDER SCREW
352.	[2]	020106-1040	BLEEDER SCREW M6P1L12
353.	[1]	159245-8620	PLATE
354.	[1]	020106-0840	BLEEDER SCREW
835S.	[1]	154062-1900	CAP D12L24
836S.	[1]	154062-1700	CAP D20L32

Include in #1:

101603-6840 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-3810

F 019 Z1E 487
NP-EP/RLD275-1550A1AFL

ME716791 MITSUBISHI

GOVERNOR
K

Information:

2. Loosen clamp (5). 3. Remove three bolts (4) and elbow (6) from the turbocharger.4. Loosen clamp (7) on the inlet manifold hose. 5. Loosen clamp (8) and slide it on to the turbocharger. 6. Loosen bolts and nuts (9) and slide tubes (10) into the exhaust manifold flanges to get clearance for the removal of the turbocharger.7. Remove two bolts (12) and turbocharger (11). 8. Remove two O-ring seals (14).9. Remove three bolts (13) and mounting bracket (15). 10. Remove the two O-ring seals from the cylinder block.Install Turbocharger
1. Inspect all O-ring seals for wear or damage. Put a small amount of oil on the O-ring seals. 2. Put O-ring seals (1) and (3) in position.3. Install mounting bracket (2) and the bolts that hold it in place. 4. Put turbocharger (4) in position and install the bolts.5. Put tube (7) in position and install clamps (5). 6. Put 5P3931 Anti-Seize on the threads of bolts (6). Install bolts (6) and the nuts. 7. Put clamp (8) in position and tighten it.8. Put elbow (9) in position and install the bolts. 9. Tighten clamp (10). 10. Put hoses (12) in position and tighten clamps (11).
