105931-2330 ZEXEL F 019 Z1E 483 BOSCH GOVERNOR f019z1e483 1059312330 me717244

Information governor

BOSCH F 019 Z1E 483 f019z1e483

ZEXEL 105931-2330 1059312330

MITSUBISHI ME717244 me717244

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-2330 zexel genuine, new aftermarket engine parts with delivery

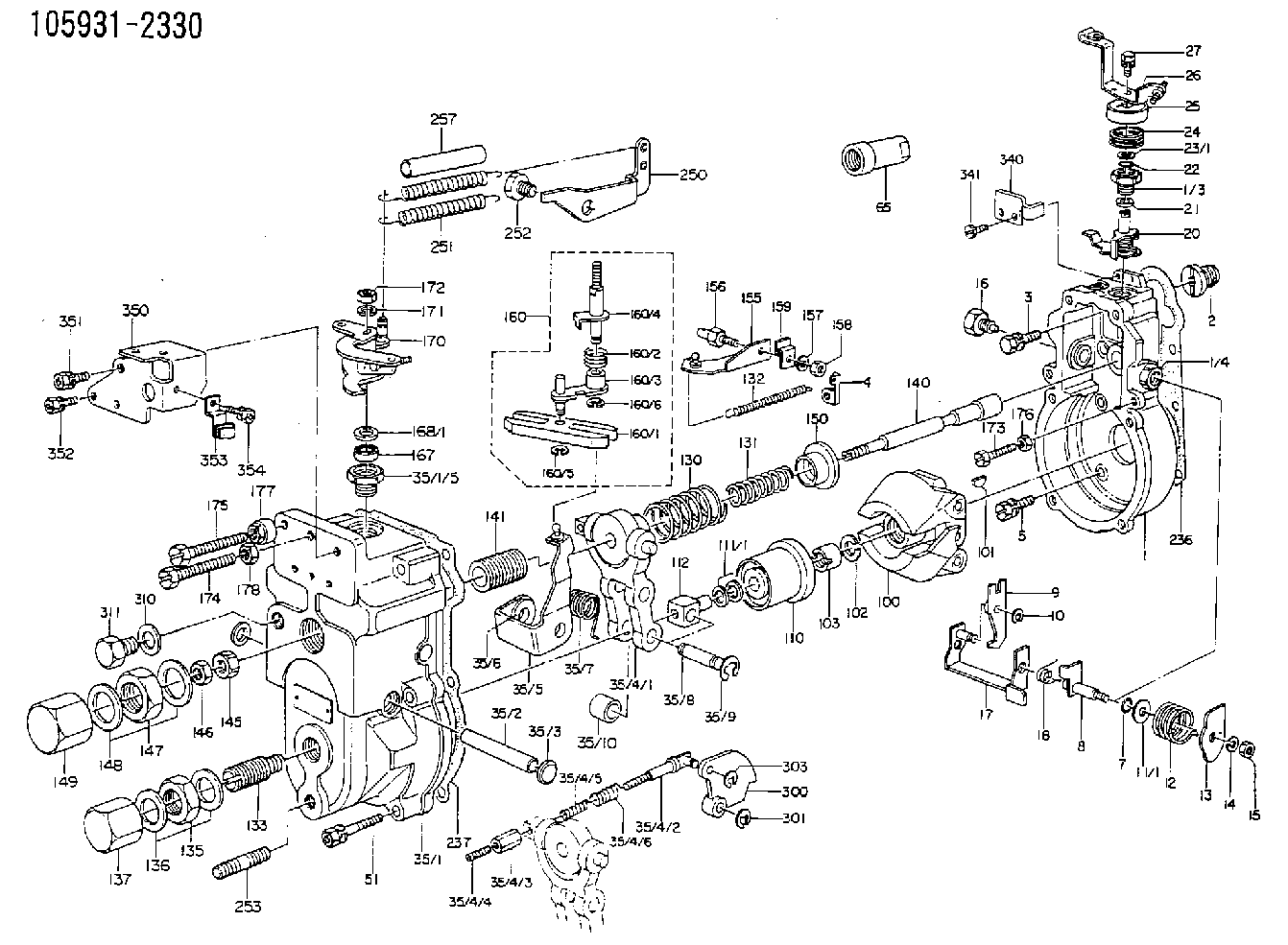

Scheme ###:

1.	[1]	159200-2520	GOVERNOR HOUSING
1/3.	[1]	154321-0400	BUSHING
1/4.	[1]	154321-0400	BUSHING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-2820	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	029300-6040	PLAIN WASHER D11&6.4T1
7.	[1]	029631-0030	O-RING &9.8W2.3
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-2301	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
11/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
11/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
11/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
11/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
11/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-0100	CONTROL LEVER
14.	[1]	014110-8440	LOCKING WASHER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-0000	CAPSULE
17.	[1]	159202-2420	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-7820	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	016530-1010	O-RING
23/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
23/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
23/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
23/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
23/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
23/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
24.	[1]	159215-2900	COILED SPRING
25.	[1]	154322-0100	CAP
26.	[1]	159242-7920	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159255-3420	GOVERNOR COVER
35/1.	[1]	159301-7520	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0220	TENSIONING LEVER
35/4/1.	[1]	159203-0420	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0000	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-0201	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-1801	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154101-0920	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0100	TERMINAL STUD
130.	[1]	159210-4400	GOVERNOR SPRING
131.	[1]	159211-2900	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-4020	HEADLESS SCREW
135.	[1]	139220-0200	UNION NUT
136.	[2]	026520-2440	GASKET D23.9&20.2T1
137.	[1]	159248-0700	CAP
140.	[1]	159205-1801	LEVER SHAFT
141.	[1]	159234-5200	GUIDE SLEEVE
145.	[1]	159233-5000	UNION NUT
146.	[1]	023020-8040	UNION NUT M8P1H5
147.	[1]	139222-0200	UNION NUT
148.	[2]	026522-2740	GASKET D26.9&22.2T1
149.	[1]	159237-5000	CAP
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-7920	STRAP
156.	[1]	159237-0300	BLEEDER SCREW
157.	[1]	014110-5440	LOCKING WASHER
158.	[1]	159233-5620	UNION NUT
159.	[1]	159242-0800	PLATE
160.	[1]	159252-0920	LEVER GROUP
160/1.	[1]	159205-2520	CONTROL LEVER
160/2.	[1]	159215-1300	COILED SPRING
160/3.	[1]	159202-1520	CONTROL LEVER
160/4.	[1]	159202-1400	CONTROL LEVER
160/5.	[1]	016010-0610	LOCKING WASHER
160/6.	[1]	016010-0810	LOCKING WASHER
167.	[1]	029621-0080	PACKING RING
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159241-8620	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8000	BLEEDER SCREW
175.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	154390-1100	GASKET
250.	[1]	159225-5420	BRACKET
251.	[2]	159243-4600	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	139010-0000	STUD
257.	[2]	154156-0500	TUBE
300.	[1]	159207-7000	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
310.	[1]	026516-2040	GASKET D19.9&16.2T1
311.	[1]	159237-0100	CAPSULE
340.	[1]	159245-8300	PLATE
341.	[2]	020104-1040	BLEEDER SCREW
350.	[1]	159225-5300	BRACKET
351.	[1]	020118-1440	BLEEDER SCREW
352.	[2]	020106-1040	BLEEDER SCREW M6P1L12
353.	[1]	159245-8620	PLATE
354.	[1]	020106-0840	BLEEDER SCREW
835S.	[1]	154062-1900	CAP D12L24
836S.	[1]	154062-1700	CAP D20L32

Include in #1:

101603-6100 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-2330

F 019 Z1E 483
NP-EP/RLD275-1550A1CFL

ME717244 MITSUBISHI

GOVERNOR
K

Information:

start by: a) remove fuel pump drive gear and automatic timing advance Before any timing gears are removed, make sure the "C" mark on the crankshaft is in alignment with the "C" mark on the camshaft gear. Put a mark on the idler gear and on the crankshaft gear at location (B).1. Remove two bolts (1) and plate (3). Remove idler gear (2). 2. Remove the idler gear bearing with tooling (A). 3. Remove four bolts (4) and washers. Remove camshaft drive gear (5). If the camshaft drive gear is hard to remove, hit it with a soft hammer.4. Remove the three nuts and washers that hold the fuel injection housing to the timing gear plate. 5. Remove six bolts (6) and the two locks (7) and (8). 6. Remove the timing gear plate.Install Timing Gears And Plate
1. Install the timing gear plate and gasket. Install the two locks and six bolts.2. Install the three nuts and washers that hold the fuel injection pump housing to the timing gear plate. 3. Install the camshaft drive gear. Make sure the "C" mark on the crankshaft gear is in alignment with the "C" mark on the camshaft drive gear. Install the four washers and bolts.4. Use tool (A) to install the bearing in the idler gear. 5. Install idler gear (2). Make sure the mark on the idler gear and the mark on the camshaft gear are in alignment at location (B). Install plate (3) and bolts (1).end by: a) install fuel pump drive gear and automatic timing advance
