105931-1030 ZEXEL F 019 Z1E 222 BOSCH GOVERNOR f019z1e222 1059311030 1157204960

Information governor

BOSCH F 019 Z1E 222 f019z1e222

ZEXEL 105931-1030 1059311030

ISUZU 1157204960 1157204960

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105931-1030 zexel genuine, new aftermarket engine parts with delivery

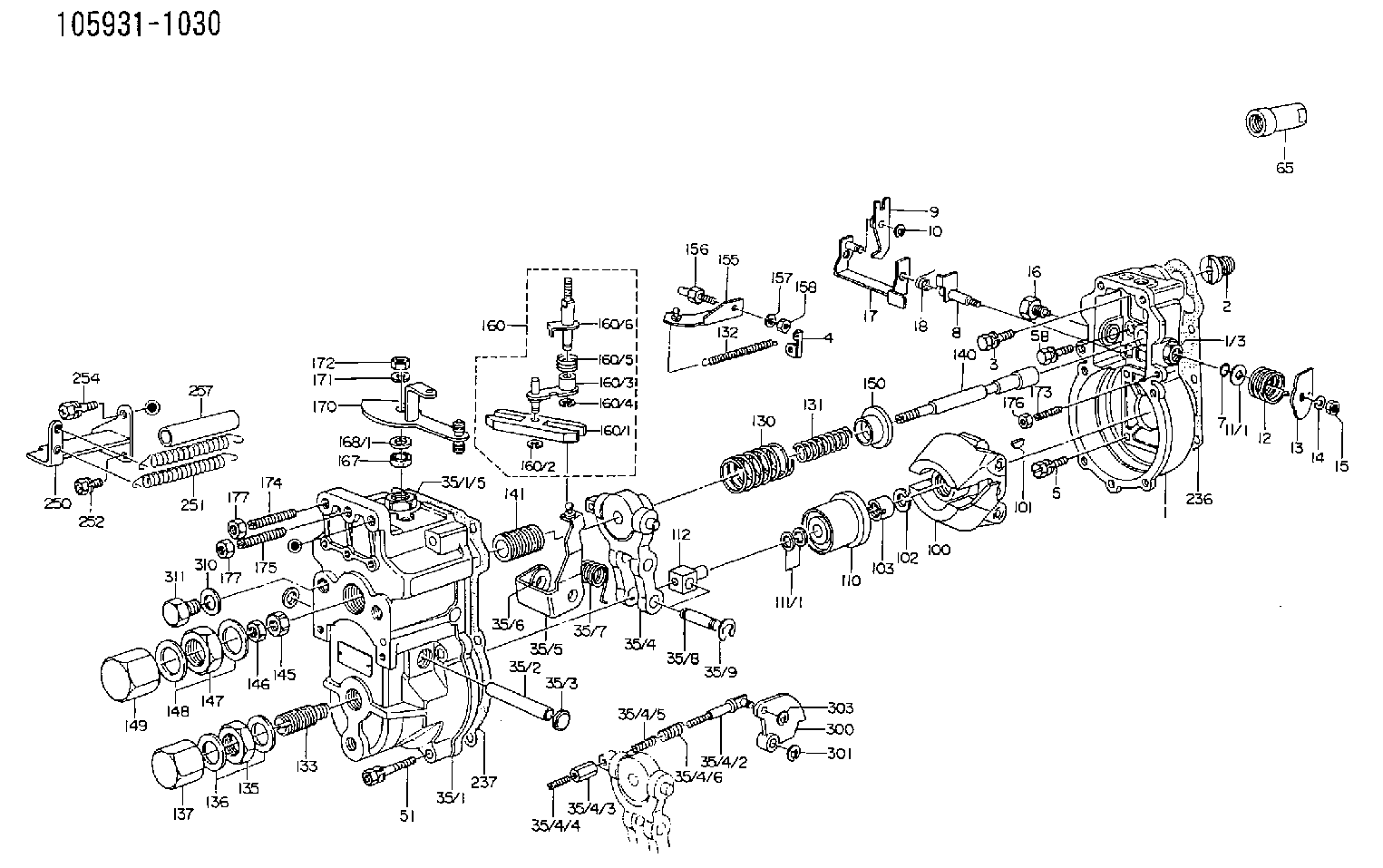

Scheme ###:

1.	[1]	159200-0220	GOVERNOR HOUSING
1/3.	[1]	154321-0400	BUSHING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	029631-0030	O-RING &9.8W2.3
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-0400	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
11/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
11/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
11/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
11/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
11/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-0100	CONTROL LEVER
14.	[1]	014110-8440	LOCKING WASHER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-0000	CAPSULE
17.	[1]	159202-0320	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
35.	[1]	159251-1120	GOVERNOR COVER
35/1.	[1]	159201-1420	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0120	TENSIONING LEVER
35/4/1.	[1]	159203-0120	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0000	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5020	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-0201	COILED SPRING
35/8.	[1]	159231-0800	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-1020	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0100	TERMINAL STUD
130.	[1]	159210-0300	GOVERNOR SPRING
131.	[1]	159211-0400	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-2220	HEADLESS SCREW
135.	[1]	139220-0200	UNION NUT
136.	[2]	026520-2440	GASKET D23.9&20.2T1
137.	[1]	159248-0700	CAP
140.	[1]	159205-0301	LEVER SHAFT
141.	[1]	159234-5200	GUIDE SLEEVE
145.	[1]	159233-5000	UNION NUT
146.	[1]	023020-8040	UNION NUT M8P1H5
147.	[1]	139222-0200	UNION NUT
148.	[2]	026522-2740	GASKET D26.9&22.2T1
149.	[1]	159237-5000	CAP
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-0120	STRAP
156.	[1]	159233-0200	BLEEDER SCREW
157.	[1]	014110-5440	LOCKING WASHER
158.	[1]	159233-5200	UNION NUT
160.	[1]	159252-0122	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-0220	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-0400	COILED SPRING
160/6.	[1]	159205-0621	LEVER SHAFT
167.	[1]	029621-0080	PACKING RING
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159240-4320	CONTROL LEVER
171.	[1]	014110-8440	LOCKING WASHER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
174.	[1]	154010-0100	FLAT-HEAD SCREW
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	029240-6010	UNION NUT M6P1.0H5*
177.	[2]	154011-0100	HEXAGON NUT
177.	[2]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159227-5520	BRACKET
251.	[2]	159243-1200	COILED SPRING
252.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
254.	[1]	020018-1640	BLEEDER SCREW M8P1.25L16 4T
257.	[2]	154156-0500	TUBE
300.	[1]	159206-2400	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
310.	[1]	026516-2040	GASKET D19.9&16.2T1
311.	[1]	159237-0100	CAPSULE

Include in #1:

101601-7640 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105931-1030

F 019 Z1E 222

1157204960 ISUZU

GOVERNOR
* K

Information:

Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the correct training.Before begining ANY work on the fuel system, refer to Operation and Maintenance Manual, "General Hazard Information and High Pressure Fuel Lines" for safety information.Refer to Systems Operation, Testing and Adjusting Manual, "Cleanliness of Fuel System Components" for detailed information on the standards of cleanliness that must be observed during ALL work on the fuel system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be
