105923-4475 ZEXEL F 019 Z1E 001 BOSCH GOVERNOR f019z1e001 1059234475

Information governor

BOSCH F 019 Z1E 001 f019z1e001

ZEXEL 105923-4475 1059234475

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-4475 zexel genuine, new aftermarket engine parts with delivery

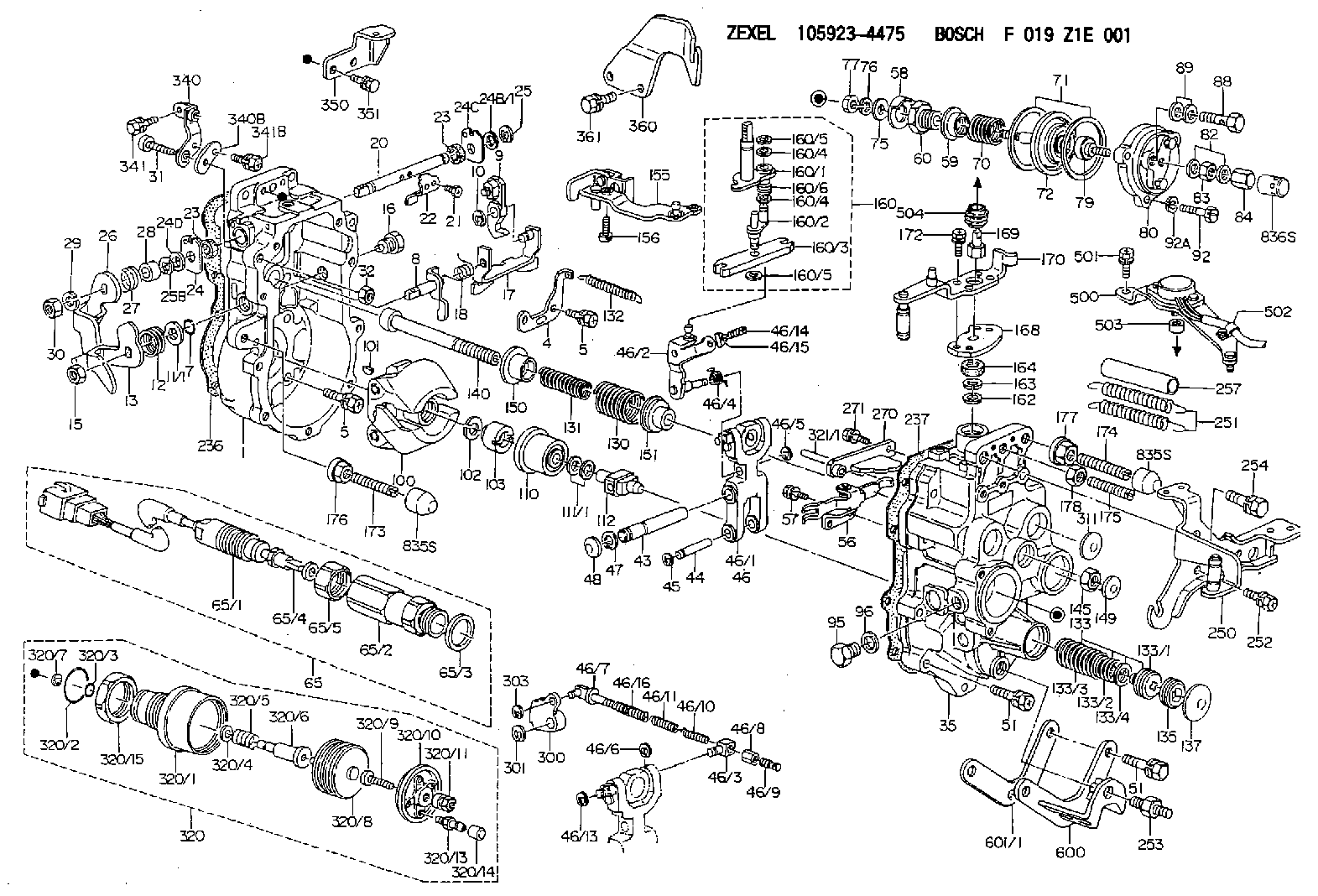

Scheme ###:

1.	[1]	159360-0020	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[10]	139006-6100	BLEEDER SCREW
5.	[10]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5720	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-0400	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2820	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-9800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-9820	CONTROL LEVER
27.	[1]	159368-9600	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	153505-0800	FLAT-HEAD SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-0220	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159363-5720	TENSIONING LEVER
46/1.	[1]	159363-5620	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
51.	[9]	020106-3840	BLEEDER SCREW
56.	[1]	159362-3220	LEVER GROUP
57.	[2]	020105-1040	BLEEDER SCREW M5P0.8L10
58.	[1]	146711-0000	PLATE
59.	[1]	154413-3600	BUSHING
60.	[1]	146716-0000	UNION NUT
65.	[1]	154612-0720	RACK SENSOR ASSY
65/1.	[1]	479742-7820	RACK SENSOR
65/2.	[1]	154614-8300	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
70.	[1]	154402-3300	COILED SPRING
71.	[2]	154413-2600	GASKET
72.	[1]	154415-1020	DIAPHRAGM
75.	[1]	154415-1100	SLOTTED WASHER
76.	[1]	014110-6440	LOCKING WASHER
77.	[1]	013030-6010	UNION NUT
79.	[1]	154413-4000	FLAT-HEAD SCREW
80.	[1]	154404-5600	COVER
82.	[2]	026506-1040	GASKET D9.9&6.2T1
83.	[1]	013030-6040	UNION NUT M6P1H3.6
84.	[1]	154035-1600	CAP NUT
88.	[1]	029731-0180	EYE BOLT
89.	[2]	026510-1340	GASKET D13.4&10.2T1
92.	[3]	154062-2900	BLEEDER SCREW
92A.	[3]	014110-6440	LOCKING WASHER
95.	[1]	029111-2090	CAPSULE
96.	[1]	029331-2130	GASKET
100.	[1]	154101-4420	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2100	TERMINAL STUD
130.	[1]	159367-3500	GOVERNOR SPRING
131.	[1]	159367-6300	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-5720	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-1100	COILED SPRING
133/3.	[1]	159368-0300	COILED SPRING
133/4.	[1]	139410-3000	SHIM D14&10.1T2.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2520	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159363-8620	LEVER GROUP
160/1.	[1]	159363-8520	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-6600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159381-5800	CONTROL LEVER
169.	[1]	159233-6800	UNION NUT
170.	[1]	159383-1220	CONTROL LEVER
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-3800	FLAT-HEAD SCREW
173B.	[1]	154013-3900	FLAT-HEAD SCREW
173C.	[1]	154013-4600	FLAT-HEAD SCREW
174.	[1]	154013-3700	FLAT-HEAD SCREW
174B.	[1]	154013-4400	FLAT-HEAD SCREW
174C.	[1]	154013-4700	FLAT-HEAD SCREW
175.	[1]	154013-2800	FLAT-HEAD SCREW
176.	[1]	154011-4800	UNION NUT
177.	[1]	154011-4700	UNION NUT
178.	[1]	013131-0040	UNION NUT M10P1.25H6
236.	[1]	154390-4200	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159400-1420	BRACKET
251.	[2]	154339-9000	COILED SPRING
252.	[3]	020106-1440	BLEEDER SCREW M6P1.0L14
253.	[1]	159400-2700	STUD
254.	[1]	020010-2040	BLEEDER SCREW M10P1.25L20
257.	[2]	154156-2300	TUBE
270.	[1]	159362-2120	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159376-0800	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
320.	[1]	155425-1620	ANEROID CAPSULE
320/1.	[1]	154413-5321	DIAPHRAGM HOUSING
320/2.	[1]	016500-2400	O-RING
320/3.	[1]	016500-0810	O-RING
320/4.	[1]	029311-6020	SHIM
320/5.	[1]	155423-4300	COILED SPRING
320/6.	[1]	155424-7301	STOP PIN
320/7.	[1]	159238-4200	LOCKING WASHER
320/8.	[1]	155403-3021	BELLOWS
320/9.	[1]	155423-1500	SCREW PLUG
320/10.	[1]	155423-2000	COVER
320/11.	[1]	154011-4600	UNION NUT
320/13.	[1]	139805-0000	JOINT CONNECTION
320/14.	[1]	155424-0300	CAP
320/15.	[1]	154413-4500	UNION NUT
321/1.	[1]	159274-5100	STOP PIN L72.5
321/1.	[1]	159274-5200	STOP PIN L73
321/1.	[1]	159274-5300	STOP PIN L73.5
321/1.	[1]	159274-5400	STOP PIN L74
321/1.	[1]	159274-5500	STOP PIN L74.5
321/1.	[1]	159274-5600	STOP PIN L75
321/1.	[1]	159274-5700	STOP PIN L75.5
321/1.	[1]	159274-5800	STOP PIN L76
321/1.	[1]	159274-5900	STOP PIN L76.5
321/1.	[1]	159274-6000	STOP PIN L77
321/1.	[1]	159274-6100	STOP PIN L77.5
321/1.	[1]	159274-6200	STOP PIN L78
321/1.	[1]	159274-6300	STOP PIN L78.5
321/1.	[1]	159274-6400	STOP PIN L79
321/1.	[1]	159274-6500	STOP PIN L79.5
321/1.	[1]	159274-6600	STOP PIN L80
321/1.	[1]	159274-6700	STOP PIN L80.5
321/1.	[1]	159274-6800	STOP PIN L81
321/1.	[1]	159274-6900	STOP PIN L81.5
321/1.	[1]	159274-7000	STOP PIN L82
321/1.	[1]	159274-7100	STOP PIN L82.5
321/1.	[1]	159274-7200	STOP PIN L83
321/1.	[1]	159274-7300	STOP PIN L83.5
321/1.	[1]	159274-7400	STOP PIN L84
321/1.	[1]	159274-7500	STOP PIN L84.5
321/1.	[1]	159274-7600	STOP PIN L85
321/1.	[1]	159274-7700	STOP PIN L85.5
321/1.	[1]	159274-7800	STOP PIN L86
321/1.	[1]	159274-7900	STOP PIN L86.5
321/1.	[1]	159274-8000	STOP PIN L87
321/1.	[1]	159274-8100	STOP PIN L87.5
321/1.	[1]	159274-8200	STOP PIN L88
321/1.	[1]	159274-8300	STOP PIN L88.5
321/1.	[1]	159274-8400	STOP PIN L89
321/1.	[1]	159274-8500	STOP PIN L89.5
321/1.	[1]	159274-8600	STOP PIN L90
340.	[1]	159396-0120	BRACKET
340B.	[1]	159396-0200	PLATE
341.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
341B.	[1]	020106-1840	BLEEDER SCREW M6P1L18
350.	[1]	159399-6000	BRACKET
351.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
360.	[1]	159399-8800	BRACKET
361.	[2]	020018-1640	BLEEDER SCREW M8P1.25L16 4T
500.	[1]	154602-2320	LOAD SENSOR ASSY
501.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
502.	[1]	154614-4120	CLAMPING BAND
503.	[1]	154413-1100	JOINT CONNECTION
504.	[1]	154604-8200	BOOT
600.	[1]	159400-2520	BRACKET
601/1.	[0]	139426-3200	SHIM
601/1.	[0]	139426-3300	SHIM
601/1.	[0]	139426-3400	SHIM
601/1.	[0]	139426-3500	SHIM
601/1.	[0]	139426-3600	SHIM
601/1.	[0]	139426-3700	SHIM
601/1.	[0]	139426-3800	SHIM
601/1.	[0]	139426-3900	SHIM
601/1.	[0]	139426-4000	SHIM
835S.	[2]	154062-3220	CAP
835S.	[2]	154062-3220	CAP
836S.	[1]	154062-2720	CAP

Include in #1:

107492-0106 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-4475
105923-4476

F 019 Z1E 001

GOVERNOR
* K

Information:

Introduction
Correction to D3G failures of the fuel injection pumpProblem
The D3G has had failures of the fuel injection pump. The failures are seen as low power, running rough, smoking, and hard starting. The failures occur from 8 to 1350 hours. Most failures have been concentrated in the 8 to 400 hour range. There appears to be no environmental aspects or application aspects to the failures at this time. Solution
The rotary fuel pump that is used on the Track-Type Tractors uses diesel fuel for lubrication of the pump. One plunger is used for all 6 injectors. This increases the sensitivity to fuel quality. Customers that are having problems should use 256-4968 Fuel Conditioner . This should help fuel quality by increasing the lubrication. This additive can also be used with low sulfur diesel. Use this fuel conditioner according to directions. For more information, refer to , PELJ0525, "Introducing New Cat Diesel Fuel Conditioner". Low sulfur diesel is already available in many states per the 2007 Highway Diesel Rule. Refer to the following map that shows the areas that produce lower sulfur diesel fuel.
Illustration 1 g01229705
Note: Toyu fuel is not suitable for use in these machines. Toyu fuel does not provide any lubrication for the pump. Using this fuel may cause early failures.
