105923-3230 ZEXEL 9 420 611 815 BOSCH GOVERNOR 9420611815 1059233230 me742639

Information governor

BOSCH 9 420 611 815 9420611815

ZEXEL 105923-3230 1059233230

MITSUBISHI ME742639 me742639

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-3230 zexel genuine, new aftermarket engine parts with delivery

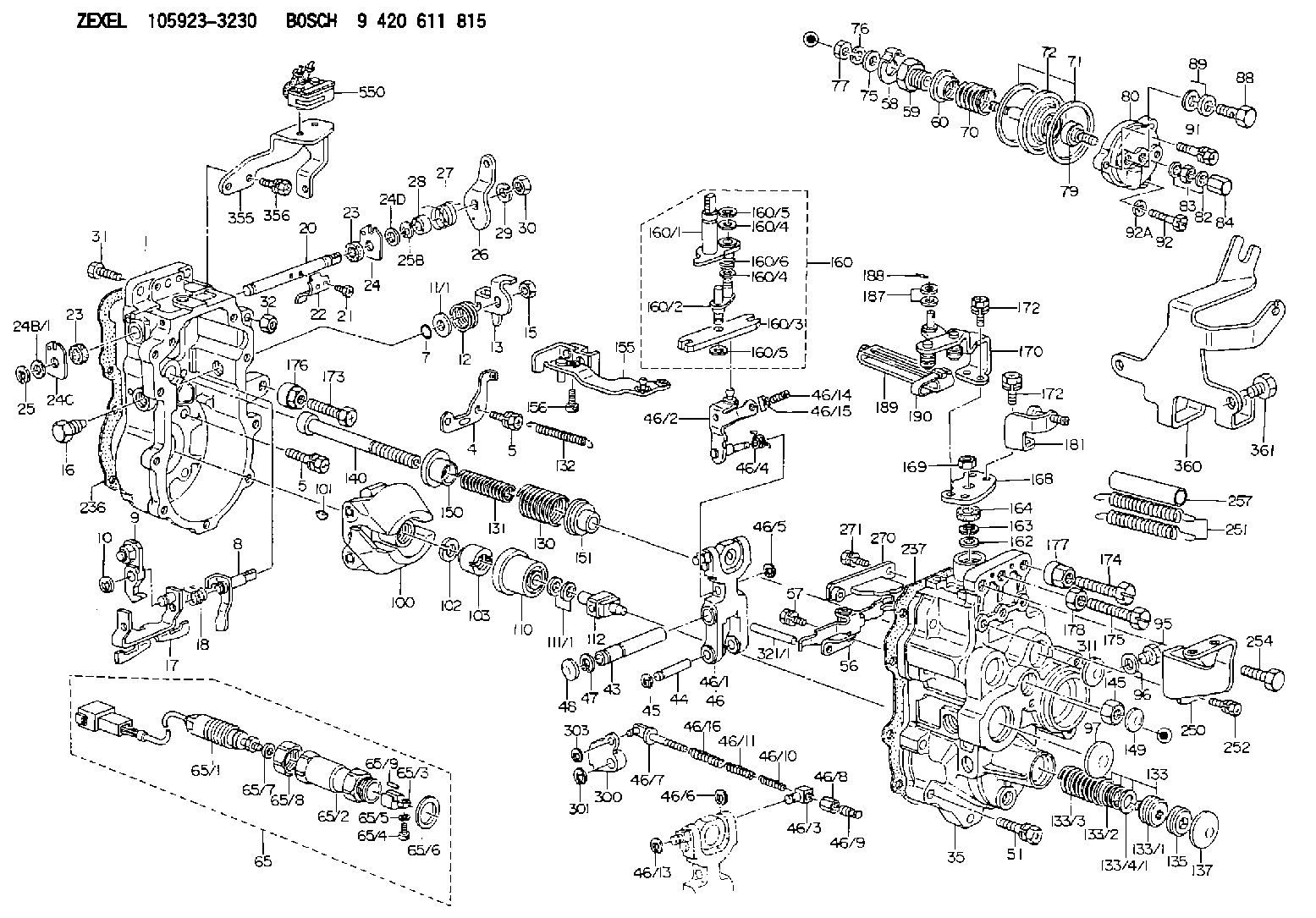

Scheme ###:

1.	[1]	159360-0320	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[8]	139006-6100	BLEEDER SCREW
5.	[8]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-3720	LEVER SHAFT
9.	[1]	159362-5620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-8000	COILED SPRING
13.	[1]	159362-4100	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5100	CAPSULE
17.	[1]	159362-1821	CONTROL LEVER
18.	[1]	159368-6800	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-2000	CONTROL LEVER
27.	[1]	159368-6100	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-0320	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159363-5720	TENSIONING LEVER
46/1.	[1]	159363-5620	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
56.	[1]	159362-3720	LEVER GROUP
57.	[2]	020105-1040	BLEEDER SCREW M5P0.8L10
58.	[1]	146711-0000	PLATE
59.	[1]	154413-3600	BUSHING
60.	[1]	146716-0000	UNION NUT
65.	[1]	154611-8420	RACK SENSOR ASSY
65/1.	[1]	479775-5120	RACK SENSOR
65/2.	[1]	154614-4800	JOINT CONNECTION
65/3.	[1]	154614-3200	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	026524-3040	GASKET
65/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
70.	[1]	154416-4200	COILED SPRING
71.	[2]	154413-2600	GASKET
72.	[1]	154415-1020	DIAPHRAGM
75.	[1]	154415-1100	SLOTTED WASHER
76.	[1]	014110-6440	LOCKING WASHER
77.	[1]	013030-6010	UNION NUT
79.	[1]	154413-4000	FLAT-HEAD SCREW
80.	[1]	154404-5000	COVER
82.	[2]	026506-1040	GASKET D9.9&6.2T1
83.	[1]	013030-6040	UNION NUT M6P1H3.6
84.	[1]	154035-1600	CAP NUT
88.	[1]	029731-0180	EYE BOLT
89.	[2]	026510-1340	GASKET D13.4&10.2T1
91.	[1]	020106-2040	BLEEDER SCREW M6P1L20
92.	[2]	139006-7000	BLEEDER SCREW
92A.	[2]	014110-6440	LOCKING WASHER
95.	[1]	029111-2090	CAPSULE
96.	[1]	029331-2130	GASKET
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-4520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-5200	TERMINAL STUD
130.	[1]	159367-1200	GOVERNOR SPRING
131.	[1]	159367-6300	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-2120	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2621	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-2020	LEVER GROUP
160/1.	[1]	159364-3220	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-6600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159382-5620	CONTROL LEVER
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-3300	BLEEDER SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	139210-0400	UNION NUT
181.	[1]	159380-0520	CONTROL LEVER
187.	[4]	029310-6020	SHIM D12.6&6.6T0.50
188.	[2]	155402-3800	SAFETY PIN
189.	[1]	159382-4600	CLEVIS
190.	[1]	159911-1100	CLAMPING BAND
236.	[1]	154390-4100	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159398-5120	BRACKET
251.	[2]	154339-3500	COILED SPRING
252.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
254.	[1]	020010-2040	BLEEDER SCREW M10P1.25L20
257.	[2]	154156-3100	TUBE
270.	[1]	159362-7020	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159374-9300	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
321/1.	[1]	159274-5100	STOP PIN L72.5
321/1.	[1]	159274-5200	STOP PIN L73
321/1.	[1]	159274-5300	STOP PIN L73.5
321/1.	[1]	159274-5400	STOP PIN L74
321/1.	[1]	159274-5500	STOP PIN L74.5
321/1.	[1]	159274-5600	STOP PIN L75
321/1.	[1]	159274-5700	STOP PIN L75.5
321/1.	[1]	159274-5800	STOP PIN L76
321/1.	[1]	159274-5900	STOP PIN L76.5
321/1.	[1]	159274-6000	STOP PIN L77
321/1.	[1]	159274-6100	STOP PIN L77.5
321/1.	[1]	159274-6200	STOP PIN L78
321/1.	[1]	159274-6300	STOP PIN L78.5
321/1.	[1]	159274-6400	STOP PIN L79
321/1.	[1]	159274-6500	STOP PIN L79.5
321/1.	[1]	159274-6600	STOP PIN L80
321/1.	[1]	159274-6700	STOP PIN L80.5
321/1.	[1]	159274-6800	STOP PIN L81
321/1.	[1]	159274-6900	STOP PIN L81.5
321/1.	[1]	159274-7000	STOP PIN L82
321/1.	[1]	159274-7100	STOP PIN L82.5
321/1.	[1]	159274-7200	STOP PIN L83
321/1.	[1]	159274-7300	STOP PIN L83.5
321/1.	[1]	159274-7400	STOP PIN L84
321/1.	[1]	159274-7500	STOP PIN L84.5
321/1.	[1]	159274-7600	STOP PIN L85
321/1.	[1]	159274-7700	STOP PIN L85.5
321/1.	[1]	159274-7800	STOP PIN L86
321/1.	[1]	159274-7900	STOP PIN L86.5
321/1.	[1]	159274-8000	STOP PIN L87
321/1.	[1]	159274-8100	STOP PIN L87.5
321/1.	[1]	159274-8200	STOP PIN L88
321/1.	[1]	159274-8300	STOP PIN L88.5
321/1.	[1]	159274-8400	STOP PIN L89
321/1.	[1]	159274-8500	STOP PIN L89.5
321/1.	[1]	159274-8600	STOP PIN L90
355.	[1]	159398-9220	BRACKET
356.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
360.	[1]	159398-9020	BRACKET
361.	[2]	010010-1240	BLEEDER SCREW M10P1.5L12 4T
550.	[1]	153146-6220	MICROSWITCH

Include in #1:

106673-7830 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-3230

9 420 611 815
NP-EP/RLD225-1200P6JXR

ME742639 MITSUBISHI

GOVERNOR
K 14JF MECHANICAL GOVERNOR GOV RLD-J(P) GOV

Information:

This Revised Service Letter replaces the 30May2018 Service Letter. Changes have been made to the Parts Needed.
TERMINATION DATE
31May2020
PROBLEM
The DEF injector can become plugged on certain D6N Track-Type Tractors. If the DEF injector becomes plugged it can lead to partial or full blockage of DEF flow.
AFFECTED PRODUCT
Model Identification Number
D6N LGP MG500195-00197, 199-1655
SGG00101-00214
D6N XL GB600100, 200-638
NJN00101-00156
PARTS NEEDED
Qty
Part Number Description
1 4182073 GASKET AS
1 4609257 INJECTOR AS-DEF
1 5457668 SFWR GP-A1000
1 BULK_COOLANT SEE OMM
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
DEF Injector Replacement ? Remove and Install:
Remove DEF injector and replace. Follow Disassembly and Assembly, UENR4079, for DEF Injector and Mounting - Remove and Install.
Update Engine Software:
Reflash the engine controller (ECM) with the software listed in the Parts Needed or latest available on SIS Web.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-3000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
3001-5000 hrs,
37-60 mo 100.0% 0.0% 0.0% 0.0% 0.0% 100.0%
This is a 1.5-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
