105923-2910 ZEXEL 9 420 611 804 BOSCH GOVERNOR 9420611804 1059232910 1157709620

Information governor

BOSCH 9 420 611 804 9420611804

ZEXEL 105923-2910 1059232910

ISUZU 1157709620 1157709620

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-2910 zexel genuine, new aftermarket engine parts with delivery

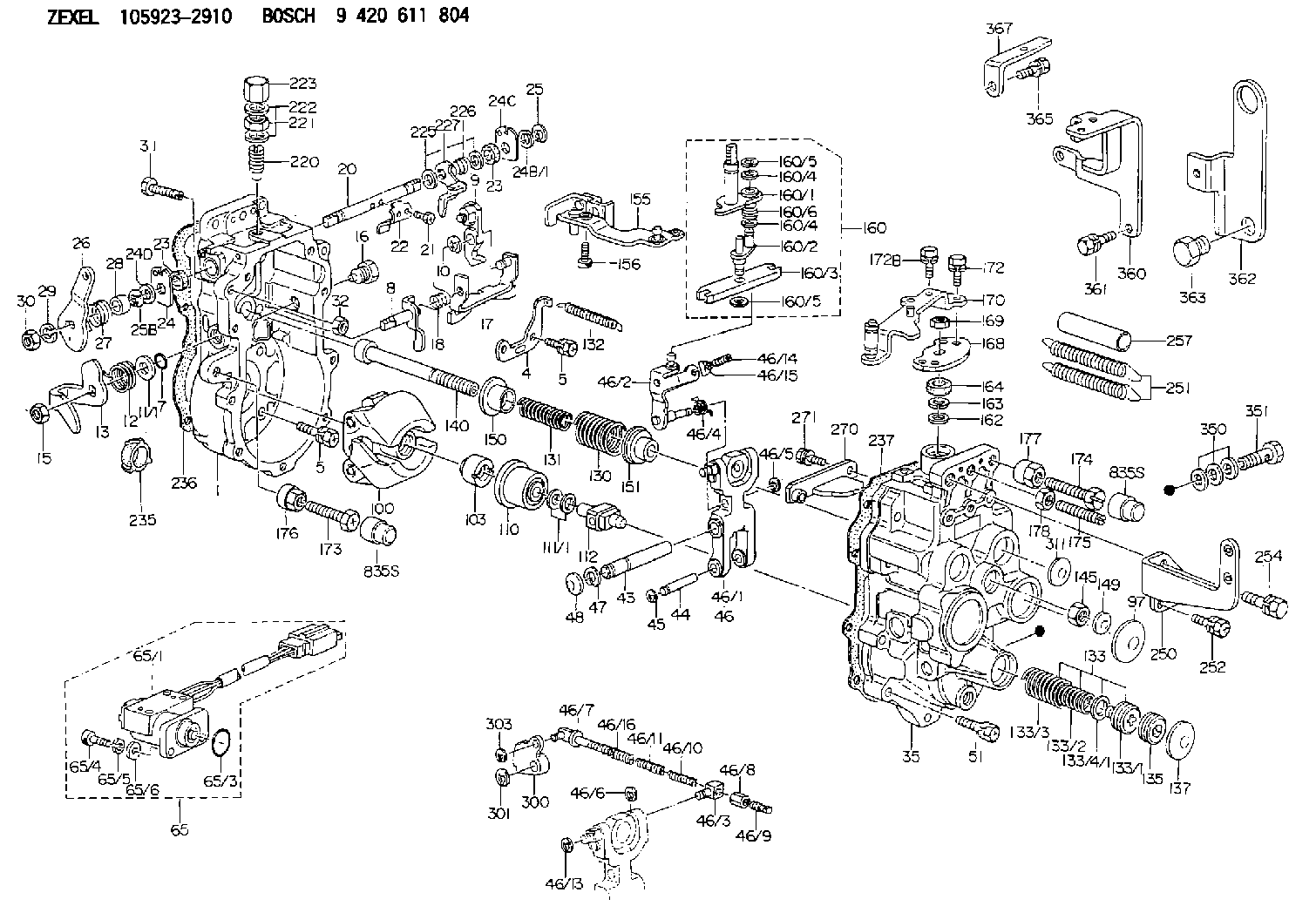

Scheme ###:

1.	[1]	159360-0420	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[8]	139006-6100	BLEEDER SCREW
5.	[8]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5720	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-0400	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2820	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-1320	CONTROL LEVER
27.	[1]	159368-7300	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-1820	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159363-5720	TENSIONING LEVER
46/1.	[1]	159363-5620	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
65.	[1]	154611-0621	RACK SENSOR ASSY
65/1.	[1]	407945-0022	RACK SENSOR
65/3.	[1]	139726-0000	O-RING
65/4.	[2]	010206-2040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[2]	029320-6010	LOCKING WASHER
65/6.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-4120	FLYWEIGHT ASSEMBLY
103.	[1]	154101-2500	HEXAGON NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2400	TERMINAL STUD
130.	[1]	159367-3500	GOVERNOR SPRING
131.	[1]	159367-6200	GOVERNOR SPRING
132.	[1]	159369-1900	COILED SPRING
133.	[1]	159368-2120	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2521	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-5820	LEVER GROUP
160/1.	[1]	159364-6520	LEVER SHAFT
160/2.	[1]	159362-5921	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-8600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159381-4620	CONTROL LEVER
172.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
172B.	[1]	020106-3540	BLEEDER SCREW
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-2800	FLAT-HEAD SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	013131-0040	UNION NUT M10P1.25H6
220.	[1]	154158-4420	HEADLESS SCREW
221.	[1]	029201-2030	UNION NUT M12P1.0H4
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154390-4100	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159396-7820	BRACKET
251.	[2]	154338-5300	COILED SPRING
252.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
254.	[1]	010110-1640	BLEEDER SCREW M101.25L16
257.	[2]	154156-3100	TUBE
270.	[1]	159362-4720	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159373-8000	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
350.	[3]	139512-0000	GASKET D17.2&12.2T1.0
351.	[1]	139812-3120	EYE BOLT
360.	[1]	159397-0700	BRACKET
361.	[2]	010038-1240	BLEEDER SCREW
362.	[1]	159398-8600	HANGER
363.	[1]	131329-0300	BLEEDER SCREW
365.	[1]	010038-1040	BLEEDER SCREW
367.	[1]	159397-5200	BRACKET

Include in #1:

106991-1920 as GOVERNOR

106991-1921

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-2910

9 420 611 804
NP-EP/RLD225-1250P6JFR

1157709620 ISUZU

GOVERNOR
K 14JF MECHANICAL GOVERNOR GOV RLD-J(P) GOV
