105923-2900 ZEXEL 9 420 611 299 BOSCH GOVERNOR 9420611299 1059232900 1157709610

Information governor

BOSCH 9 420 611 299 9420611299

ZEXEL 105923-2900 1059232900

ISUZU 1157709610 1157709610

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-2900 zexel genuine, new aftermarket engine parts with delivery

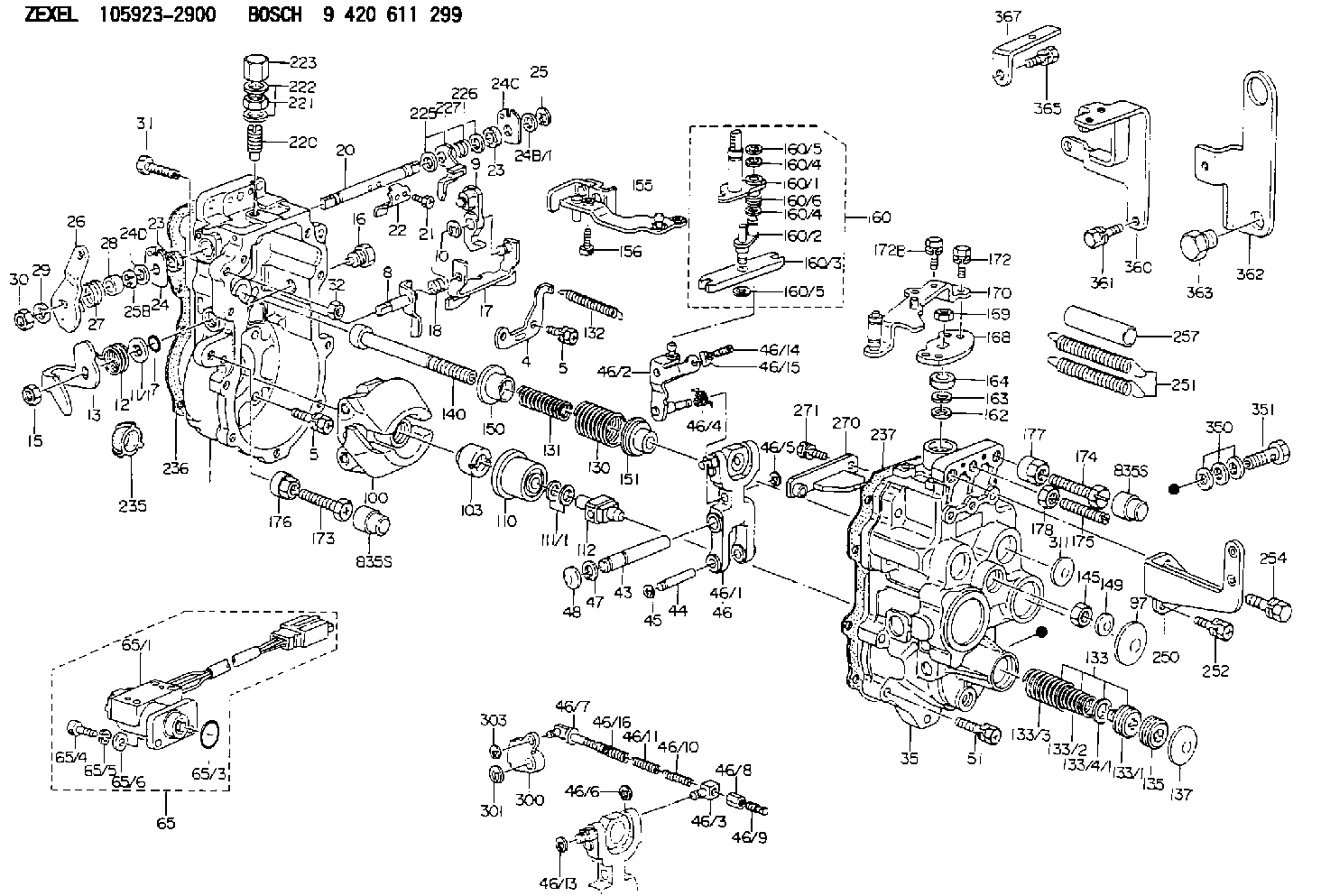

Scheme ###:

1.	[1]	159360-0420	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[8]	139006-6100	BLEEDER SCREW
5.	[8]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5720	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-0400	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2820	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-1320	CONTROL LEVER
27.	[1]	159368-7300	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-1820	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159363-5720	TENSIONING LEVER
46/1.	[1]	159363-5620	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
65.	[1]	154611-0621	RACK SENSOR ASSY
65/1.	[1]	407945-0022	RACK SENSOR
65/3.	[1]	139726-0000	O-RING
65/4.	[2]	010206-2040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[2]	029320-6010	LOCKING WASHER
65/6.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-4120	FLYWEIGHT ASSEMBLY
103.	[1]	154101-2500	HEXAGON NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2400	TERMINAL STUD
130.	[1]	159367-3500	GOVERNOR SPRING
131.	[1]	159367-6200	GOVERNOR SPRING
132.	[1]	159369-1900	COILED SPRING
133.	[1]	159368-2120	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2521	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-5820	LEVER GROUP
160/1.	[1]	159364-6520	LEVER SHAFT
160/2.	[1]	159362-5921	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-8600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159381-4620	CONTROL LEVER
172.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
172B.	[1]	020106-3540	BLEEDER SCREW
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-2800	FLAT-HEAD SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	013131-0040	UNION NUT M10P1.25H6
220.	[1]	154158-4420	HEADLESS SCREW
221.	[1]	029201-2030	UNION NUT M12P1.0H4
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154390-4100	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159396-7820	BRACKET
251.	[2]	154338-5300	COILED SPRING
252.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
254.	[1]	010110-1640	BLEEDER SCREW M101.25L16
257.	[2]	154156-3100	TUBE
270.	[1]	159362-4720	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159373-6500	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
350.	[3]	139512-0000	GASKET D17.2&12.2T1.0
351.	[1]	139812-3120	EYE BOLT
360.	[1]	159397-0700	BRACKET
361.	[2]	010038-1240	BLEEDER SCREW
362.	[1]	159398-8600	HANGER
363.	[1]	131329-0300	BLEEDER SCREW
365.	[1]	010038-1040	BLEEDER SCREW
367.	[1]	159397-5200	BRACKET
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32

Include in #1:

106991-1910 as GOVERNOR

106991-1911

106991-1912

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-2900

9 420 611 299
NP-EP/RLD225-1250P6JFR

1157709610 ISUZU

GOVERNOR
K 14JF MECHANICAL GOVERNOR GOV RLD-J(P) GOV

Information:

PARTS NEEDED
Qty
Part Number Description
80 6V5839 WASHER-HARD
80 8T2223 BOLT-SOCKET HD
20 20R5566 INJECTOR GP-F -G
1 SOFTWARE See Note in Action Required
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
****Parts Stock ****
Rework the following engines in dealer parts stock and/or dealer exchange inventory:
797F LAA/HAA
For engine arrangements 2621300, 2822060, 2863503, 3981020, 330-0200, 2863503, 3601647, 3659323, 3659326, 3659327, 3659328, 3659329, 4170588, 188764, 4213013, 4213014, 4233501, 4233502, 20R1363, 20R1494, 20R1495, 20R1496, 20R4668
Service Replacement C175-20 Engines with a LLM, A4K, ZK3, H4N.
Disassemble and replace the former 3315895 or 10R8998 Fuel Injector with the the 20R5566 Fuel Injector in reconditioned or reman engines or the new 4439454 Fuel Injector in new engines in dealer exchange inventory.
Refer to KENR6052-11 R&I Electronic Unit Injector
New engine software is required to support the new fuel injector. Engines must be equipped with the new engine software listed in M0067056.
****Affected Product****
Replace the existing 331-5895 Fuel Injectors or the 10R8998 Fuel Injectors with the new 20R-5566 Fuel Injectors. Refer to the service manual as necessary.
Refer to KENR6052-11 R&I Electronic Unit Injector
Engines must be equipped with the new engine software listed in M0067056.
SERVICE CLAIM ALLOWANCES
****Parts Stock****
Submit one claim for each engine reworked in dealer parts stock. For Reman engine refer to the Parts Needed. For new engines 80 - 6V5839 Washers, 80 - 8T2223 Bolts, 20 - 4439454 Injectors and latest software plus 7 hours of labor will be allowed for each engine that is reworked in dealer parts stock inventory.
Include engine serial number in additional comments field of the claim.
****Affected Product****
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-5000 hrs,
0-12 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 14.0-hour job
When applicable reasonable travel time and mileage will be allowed.
PARTS DISPOSITION
****Parts Stock****
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
****Affected Product****
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
