105923-2830 ZEXEL 9 420 611 297 BOSCH GOVERNOR 9420611297 1059232830 1157709540

Information governor

BOSCH 9 420 611 297 9420611297

ZEXEL 105923-2830 1059232830

ISUZU 1157709540 1157709540

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-2830 zexel genuine, new aftermarket engine parts with delivery

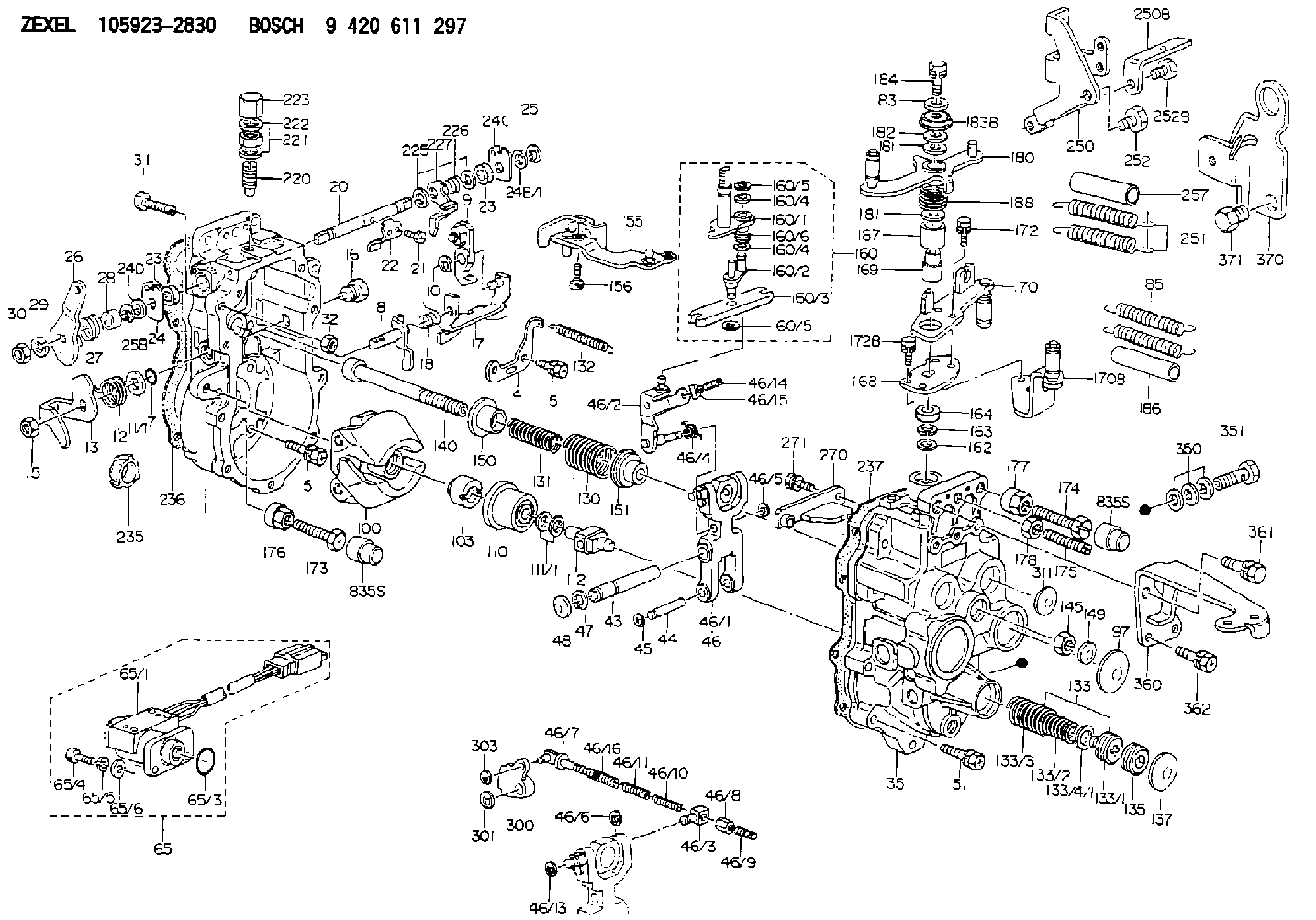

Scheme ###:

1.	[1]	159360-0420	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[8]	139006-6100	BLEEDER SCREW
5.	[8]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5720	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-0400	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2820	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-1320	CONTROL LEVER
27.	[1]	159368-7300	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-1820	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159363-5720	TENSIONING LEVER
46/1.	[1]	159363-5620	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
65.	[1]	154611-0621	RACK SENSOR ASSY
65/1.	[1]	407945-0022	RACK SENSOR
65/3.	[1]	139726-0000	O-RING
65/4.	[2]	010206-2040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[2]	029320-6010	LOCKING WASHER
65/6.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-4120	FLYWEIGHT ASSEMBLY
103.	[1]	154101-2500	HEXAGON NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2400	TERMINAL STUD
130.	[1]	159367-3500	GOVERNOR SPRING
131.	[1]	159367-6200	GOVERNOR SPRING
132.	[1]	159369-1900	COILED SPRING
133.	[1]	159368-2120	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2521	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-5820	LEVER GROUP
160/1.	[1]	159364-6520	LEVER SHAFT
160/2.	[1]	159362-5921	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-8600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159381-0000	CONTROL LEVER
169.	[1]	159233-7301	UNION NUT
170.	[1]	159381-0220	CONTROL LEVER
170B.	[1]	159381-0320	CONTROL LEVER
172.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
172B.	[1]	020105-1440	BLEEDER SCREW M5P0.8L14
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-2800	FLAT-HEAD SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	013131-0040	UNION NUT M10P1.25H6
180.	[1]	159380-3120	CONTROL LEVER
181.	[2]	139310-0500	PLAIN WASHER
181.	[2]	139310-0500	PLAIN WASHER
182.	[0]	029311-0010	SHIM D14&10.1T0.2
183.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
183B.	[1]	159235-7100	CAP
184.	[1]	020006-1270	BLEEDER SCREW M6P1L12 7T
185.	[2]	154338-3600	COILED SPRING
186.	[2]	154156-2400	TUBE
187.	[1]	159230-4300	BUSHING
188.	[1]	159368-9200	COILED SPRING
220.	[1]	154158-4420	HEADLESS SCREW
221.	[1]	029201-2030	UNION NUT M12P1.0H4
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154390-4100	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159395-4720	BRACKET
250B.	[1]	159395-5300	BRACKET
251.	[2]	154338-1100	COILED SPRING
252.	[1]	010038-1440	BLEEDER SCREW M8P1.25L14
252B.	[1]	139014-0000	BLEEDER SCREW M14P1.5L14
257.	[2]	154156-2500	TUBE
270.	[1]	159362-4720	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159373-3800	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
350.	[3]	139512-0000	GASKET D17.2&12.2T1.0
351.	[1]	139812-3120	EYE BOLT
360.	[1]	159396-5500	BRACKET
361.	[1]	010110-1640	BLEEDER SCREW M101.25L16
362.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
370.	[1]	159398-8500	HANGER
371.	[1]	131329-0300	BLEEDER SCREW

Include in #1:

106971-1190 as GOVERNOR

106971-1191

106971-1192

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-2830

9 420 611 297
NP-EP/RLD225-1250P6JFR

1157709540 ISUZU

GOVERNOR
K

Information:

TERMINATION DATE
30Apr2017
PROBLEM
The existing diesel exhaust fluid filter can become plugged due to debris on certain 725C, and 730C Articulated Trucks. If the existing filter plugs it will cause E931 low DEF pressure fault codes and E1389 inducements. There is new engine and aftertreatment software available that should also be installed as part of this letter.
AFFECTED PRODUCT
Model Identification Number
725C TFB00111-00329
730C TFF00121-00537
730C EJ TFH00131-00146
PARTS NEEDED
Qty
Part Number Description
1 3783187 FILTER-DEF
1 3915262 GASKET
1 4233251 CONNECTOR AS
1 4250385 FILTER AS-DEF
1 4526055 BASE AS-FILTER
1 4531604 FILTER-DEF
1 4653400 SFWR GP-Engine
1 4653401 SFWR GP-Aftertreatment
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 20% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
To install the new filter. Refer to Special Instruction, REHS9664, "Installation of the New Diesel Exhaust Fluid Filter On Certain Tier 4 Final Applications".
Flash the 465-3400 Engine Software and the 465-3401 Aftertreatment Software or latest available on SIS Web.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-3000 hrs,
0-72 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 2.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
