Information governor
BOSCH
9 420 611 050
9420611050
ZEXEL
105923-2371
1059232371
MITSUBISHI
ME742371
me742371

Rating:
Scheme ###:

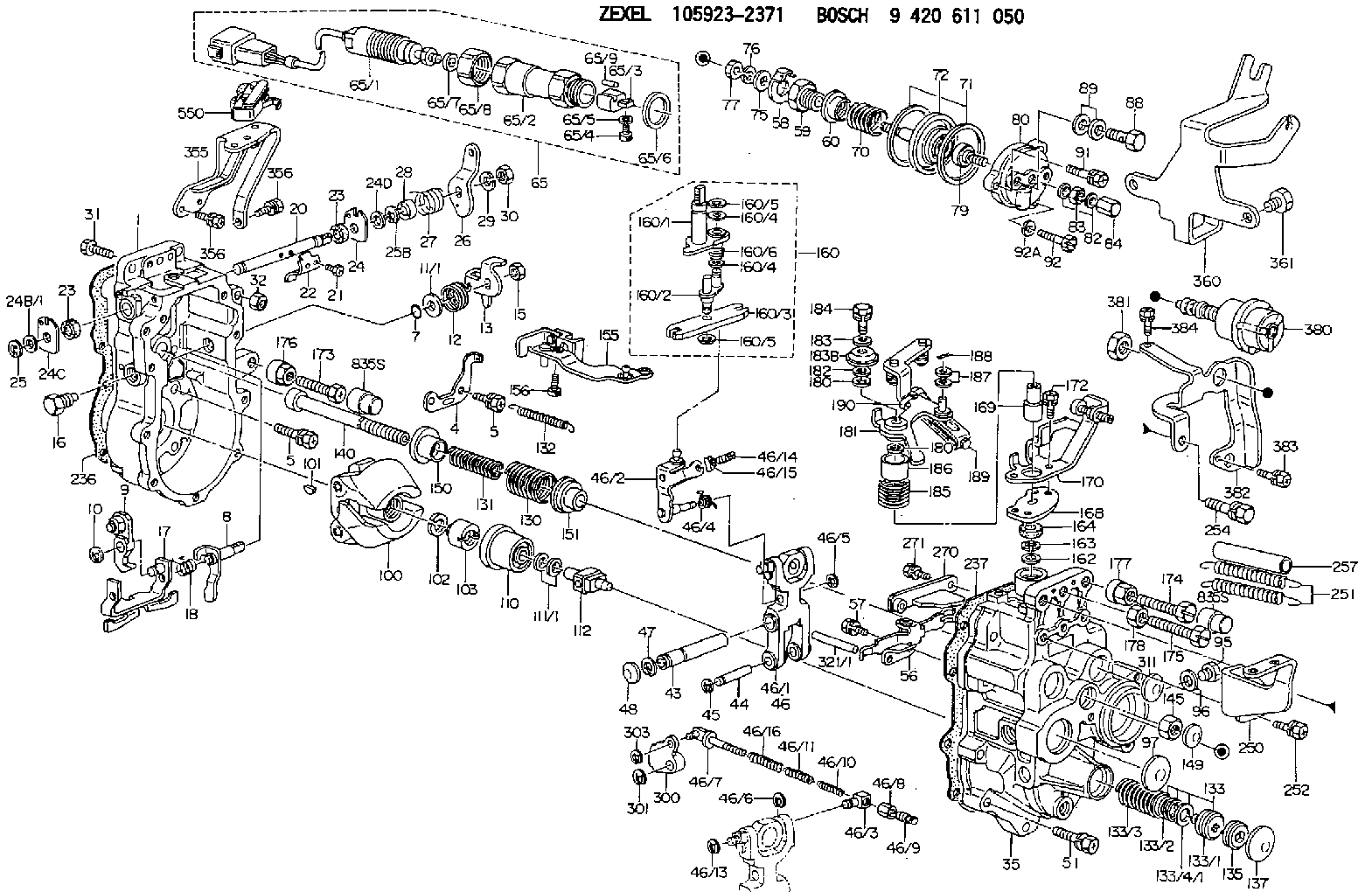

1. | [1] | 159360-0320 | GOVERNOR HOUSING |
4. | [1] | 159362-5520 | PLATE |
5. | [8] | 139006-6100 | BLEEDER SCREW |
5. | [8] | 139006-6100 | BLEEDER SCREW |
7. | [1] | 139709-0100 | O-RING |
8. | [1] | 159364-3720 | LEVER SHAFT |
9. | [1] | 159362-5620 | CONTROL LEVER |
10. | [1] | 016010-0740 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159368-8000 | COILED SPRING |
13. | [1] | 159362-4100 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159364-5100 | CAPSULE |
17. | [1] | 159362-1821 | CONTROL LEVER |
18. | [1] | 159368-6800 | COILED SPRING |
20. | [1] | 159364-3800 | LEVER SHAFT |
21. | [2] | 020104-1240 | BLEEDER SCREW |
22. | [1] | 159362-0600 | CONTROL LEVER |
23. | [2] | 139608-0600 | PACKING RING |
23. | [2] | 139608-0600 | PACKING RING |
24. | [1] | 159362-0700 | PLAIN WASHER |
24B/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
24B/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
24C. | [1] | 159362-0700 | PLAIN WASHER |
24D. | [1] | 139308-2100 | PLAIN WASHER |
25. | [1] | 159238-4200 | LOCKING WASHER |
25B. | [1] | 159238-4200 | LOCKING WASHER |
26. | [1] | 159390-2000 | CONTROL LEVER |
27. | [1] | 159368-6100 | COILED SPRING |
28. | [1] | 159364-6000 | BUSHING |
29. | [1] | 014110-8440 | LOCKING WASHER |
30. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
31. | [1] | 155644-1301 | BLEEDER SCREW |
32. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
35. | [1] | 159361-0320 | GOVERNOR COVER |
43. | [1] | 159364-0700 | LEVER SHAFT |
44. | [1] | 159364-0800 | BEARING PIN |
45. | [2] | 016010-0640 | LOCKING WASHER |
46. | [1] | 159363-5720 | TENSIONING LEVER |
46/1. | [1] | 159363-5620 | TENSIONING LEVER |
46/2. | [1] | 159362-8221 | GUIDE LEVER |
46/3. | [1] | 159364-4201 | BEARING PIN |
46/4. | [1] | 159368-6201 | COILED SPRING |
46/5. | [1] | 016010-0540 | LOCKING WASHER |
46/6. | [1] | 016010-0440 | LOCKING WASHER |
46/7. | [1] | 159364-4121 | RACK |
46/8. | [1] | 159364-4300 | UNION NUT |
46/9. | [1] | 159364-4400 | FLAT-HEAD SCREW |
46/10. | [1] | 159368-6900 | COILED SPRING |
46/11. | [1] | 159368-7000 | COILED SPRING |
46/13. | [1] | 016010-0540 | LOCKING WASHER |
46/14. | [1] | 159364-1900 | FLAT-HEAD SCREW |
46/15. | [1] | 159364-1800 | UNION NUT |
46/16. | [1] | 159368-9500 | COILED SPRING |
47. | [2] | 016110-1020 | LOCKING WASHER |
48. | [2] | 159237-0200 | CAPSULE |
51. | [9] | 020106-3840 | BLEEDER SCREW |
56. | [1] | 159362-3720 | LEVER GROUP |
57. | [2] | 020105-1040 | BLEEDER SCREW M5P0.8L10 |
58. | [1] | 146711-0000 | PLATE |
59. | [1] | 154413-3600 | BUSHING |
60. | [1] | 146716-0000 | UNION NUT |
65. | [1] | 154610-9920 | RACK SENSOR ASSY |
65/1. | [1] | 479742-7920 | RACK SENSOR |
65/2. | [1] | 154614-4800 | JOINT CONNECTION |
65/3. | [1] | 154614-3200 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER |
65/6. | [1] | 026524-3040 | GASKET |
65/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
65/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
65/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
65/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
65/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
65/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
70. | [1] | 154411-8800 | COILED SPRING |
71. | [2] | 154413-2600 | GASKET |
72. | [1] | 154415-1020 | DIAPHRAGM |
75. | [1] | 154415-1100 | SLOTTED WASHER |
76. | [1] | 014110-6440 | LOCKING WASHER |
77. | [1] | 013030-6010 | UNION NUT |
79. | [1] | 154413-4000 | FLAT-HEAD SCREW |
80. | [1] | 154404-5000 | COVER |
82. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
83. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
84. | [1] | 154035-1600 | CAP NUT |
88. | [1] | 029731-0180 | EYE BOLT |
89. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
91. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
92. | [2] | 139006-7000 | BLEEDER SCREW |
92A. | [2] | 014110-6440 | LOCKING WASHER |
95. | [1] | 029111-2090 | CAPSULE |
96. | [1] | 029331-2130 | GASKET |
97. | [1] | 159364-2000 | CAPSULE |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159364-5200 | TERMINAL STUD |
130. | [1] | 159367-1200 | GOVERNOR SPRING |
131. | [1] | 159367-6300 | GOVERNOR SPRING |
132. | [1] | 159368-6500 | COILED SPRING |
133. | [1] | 159368-2120 | SPRING PACK |
133/1. | [1] | 159364-2200 | GUIDE SLEEVE |
133/2. | [1] | 159368-0100 | COILED SPRING |
133/3. | [1] | 159368-0400 | COILED SPRING |
133/4/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
133/4/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
133/4/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
133/4/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
133/4/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
133/4/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
133/4/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
133/4/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
133/4/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
133/4/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
135. | [1] | 159364-2300 | FLAT-HEAD SCREW |
137. | [1] | 159364-2000 | CAPSULE |
140. | [1] | 159364-2500 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159364-2600 | SLOTTED WASHER |
151. | [1] | 159364-2700 | SLOTTED WASHER |
155. | [1] | 159363-2620 | STRAP |
156. | [1] | 010235-1020 | HEX-SOCKET-HEAD CAP SCREW |
160. | [1] | 159362-7720 | LEVER GROUP |
160/1. | [1] | 159364-9520 | LEVER SHAFT |
160/2. | [1] | 159362-1020 | CONTROL LEVER |
160/3. | [1] | 159362-2000 | CONTROL LEVER |
160/4. | [2] | 159362-1300 | SHIM |
160/4. | [2] | 159362-1300 | SHIM |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/6. | [1] | 159368-6600 | COILED SPRING |
162. | [1] | 139411-0600 | SHIM |
163. | [1] | 159238-3000 | LOCKING WASHER |
164. | [1] | 139610-0800 | PACKING RING |
168. | [1] | 159381-5800 | CONTROL LEVER |
169. | [1] | 159233-8000 | UNION NUT |
170. | [1] | 159382-3420 | CONTROL LEVER |
172. | [2] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
173. | [1] | 154013-1700 | BLEEDER SCREW |
173B. | [1] | 154013-1800 | BLEEDER SCREW |
173C. | [1] | 154013-1900 | BLEEDER SCREW |
174. | [1] | 154013-2000 | BLEEDER SCREW |
175. | [1] | 154013-3300 | BLEEDER SCREW |
176. | [1] | 154011-4000 | UNION NUT |
177. | [1] | 154011-4100 | UNION NUT |
178. | [1] | 139210-0400 | UNION NUT |
180. | [2] | 139310-0500 | PLAIN WASHER |
180. | [2] | 139310-0500 | PLAIN WASHER |
181. | [1] | 159382-3620 | CONTROL LEVER |
182. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
183. | [1] | 014010-6140 | PLAIN WASHER D13&6.5T1 |
183B. | [1] | 159235-7900 | CAP |
184. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
185. | [1] | 159369-1100 | COILED SPRING |
186. | [1] | 159230-7100 | BUSHING |
187. | [4] | 014010-6140 | PLAIN WASHER D13&6.5T1 |
188. | [2] | 155402-3800 | SAFETY PIN |
189. | [1] | 159382-4600 | CLEVIS |
190. | [1] | 159911-1100 | CLAMPING BAND |
236. | [1] | 154390-4100 | GASKET |
237. | [1] | 154390-2500 | GASKET |
250. | [1] | 159398-5120 | BRACKET |
251. | [2] | 154339-3500 | COILED SPRING |
252. | [2] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
254. | [1] | 020010-2540 | BLEEDER SCREW M10P1.25L25 |
257. | [2] | 154156-3100 | TUBE |
270. | [1] | 159362-7020 | GUIDE PLATE |
271. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
300. | [1] | 159372-2500 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [2] | 159237-5400 | CAPSULE |
321/1. | [1] | 159274-5100 | STOP PIN L72.5 |
321/1. | [1] | 159274-5200 | STOP PIN L73 |
321/1. | [1] | 159274-5300 | STOP PIN L73.5 |
321/1. | [1] | 159274-5400 | STOP PIN L74 |
321/1. | [1] | 159274-5500 | STOP PIN L74.5 |
321/1. | [1] | 159274-5600 | STOP PIN L75 |
321/1. | [1] | 159274-5700 | STOP PIN L75.5 |
321/1. | [1] | 159274-5800 | STOP PIN L76 |
321/1. | [1] | 159274-5900 | STOP PIN L76.5 |
321/1. | [1] | 159274-6000 | STOP PIN L77 |
321/1. | [1] | 159274-6100 | STOP PIN L77.5 |
321/1. | [1] | 159274-6200 | STOP PIN L78 |
321/1. | [1] | 159274-6300 | STOP PIN L78.5 |
321/1. | [1] | 159274-6400 | STOP PIN L79 |
321/1. | [1] | 159274-6500 | STOP PIN L79.5 |
321/1. | [1] | 159274-6600 | STOP PIN L80 |
321/1. | [1] | 159274-6700 | STOP PIN L80.5 |
321/1. | [1] | 159274-6800 | STOP PIN L81 |
321/1. | [1] | 159274-6900 | STOP PIN L81.5 |
321/1. | [1] | 159274-7000 | STOP PIN L82 |
321/1. | [1] | 159274-7100 | STOP PIN L82.5 |
321/1. | [1] | 159274-7200 | STOP PIN L83 |
321/1. | [1] | 159274-7300 | STOP PIN L83.5 |
321/1. | [1] | 159274-7400 | STOP PIN L84 |
321/1. | [1] | 159274-7500 | STOP PIN L84.5 |
321/1. | [1] | 159274-7600 | STOP PIN L85 |
321/1. | [1] | 159274-7700 | STOP PIN L85.5 |
321/1. | [1] | 159274-7800 | STOP PIN L86 |
321/1. | [1] | 159274-7900 | STOP PIN L86.5 |
321/1. | [1] | 159274-8000 | STOP PIN L87 |
321/1. | [1] | 159274-8100 | STOP PIN L87.5 |
321/1. | [1] | 159274-8200 | STOP PIN L88 |
321/1. | [1] | 159274-8300 | STOP PIN L88.5 |
321/1. | [1] | 159274-8400 | STOP PIN L89 |
321/1. | [1] | 159274-8500 | STOP PIN L89.5 |
321/1. | [1] | 159274-8600 | STOP PIN L90 |
355. | [1] | 159397-7720 | BRACKET |
356. | [3] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
356. | [3] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
360. | [1] | 159398-5220 | BRACKET |
361. | [2] | 010010-1240 | BLEEDER SCREW M10P1.5L12 4T |
380. | [1] | 159398-4400 | DAMPER |
381. | [1] | 029201-4140 | UNION NUT M14P1.5H5 |
382. | [1] | 159397-7920 | BRACKET |
383. | [1] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
384. | [1] | 020106-1040 | BLEEDER SCREW M6P1L12 |
550. | [1] | 153146-2220 | MICROSWITCH |
Include in #1:
106673-7490
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Start By:a. remove flywheel The crankshaft rear seal and wear sleeve come as a set and must be installed as a set. If a replacement of the seal is to be made, a replacement of the wear sleeve must also be made. 1. Make at least three holes in seal (1) with a hammer and a sharp punch.2. Use Tool (A) to remove seal (1). 3. Install Tool (C) in the seal bore.4. Install Tool (B) between Tool (C) and wear sleeve (2). Turn Tool (B) until the Tool makes a dent (crease) in wear sleeve (2). Do this in three or more places until the wear sleeve is loose.5. Remove Tools (B) and (C), and remove wear sleeve (2) from the crankshaft.Install Crankshaft Rear Seal & Wear Sleeve
The crankshaft seal and wear sleeve come as a set and must not be separated from each other at any time. Carefully read Special Instruction, SMHS8508, that is included with each seal and wear sleeve before any handling of the seal group is made.
Typical Example1. Install the rear crankshaft seal and wear sleeve with Tool (D). Use the procedures which follow: a. Clean and make a preparation of the wear sleeve inside diameter and crankshaft outside diameter with 6V1541 Quick Cure Primer. Make an application of 9S3265 Retaining Compound to the crankshaft outside diameter before the wear sleeve is installed on the crankshaft. Do not let any Quick Cure Primer or Retaining Compound get on the lip of the seal.b. Install locator (3) and the bolts on crankshaft (4).c. The seal and wear sleeve must be installed dry. Make sure the seal is installed with the part number and the arrows showing crankshaft rotation toward the outside.
The front and rear seals and wear sleeves have different spiral grooves in the seal. Because of this type of design, the rear seal group for an engine is different from the front seal group. If a seal group is installed on the wrong side of the engine, oil can actually be taken out of the engine instead of moving the oil back into the engine.
d. Put wear sleeve (2) and seal (7) as a unit in position on locator (3).e. Put installer (5) in position on locator (3).f. Put clean engine oil on the face of nut (6) and its contact area on installer (5). Install nut (6) on locator (3).g. Tighten nut (6) until installer (5) makes contact with locator (3).h. Remove Tool (D) from the crankshaft seal and wear sleeve. Tool (D) will install the seal and wear sleeve to the correct depth on the crankshaft.End By:a. install flywheel
The crankshaft seal and wear sleeve come as a set and must not be separated from each other at any time. Carefully read Special Instruction, SMHS8508, that is included with each seal and wear sleeve before any handling of the seal group is made.
Typical Example1. Install the rear crankshaft seal and wear sleeve with Tool (D). Use the procedures which follow: a. Clean and make a preparation of the wear sleeve inside diameter and crankshaft outside diameter with 6V1541 Quick Cure Primer. Make an application of 9S3265 Retaining Compound to the crankshaft outside diameter before the wear sleeve is installed on the crankshaft. Do not let any Quick Cure Primer or Retaining Compound get on the lip of the seal.b. Install locator (3) and the bolts on crankshaft (4).c. The seal and wear sleeve must be installed dry. Make sure the seal is installed with the part number and the arrows showing crankshaft rotation toward the outside.
The front and rear seals and wear sleeves have different spiral grooves in the seal. Because of this type of design, the rear seal group for an engine is different from the front seal group. If a seal group is installed on the wrong side of the engine, oil can actually be taken out of the engine instead of moving the oil back into the engine.
d. Put wear sleeve (2) and seal (7) as a unit in position on locator (3).e. Put installer (5) in position on locator (3).f. Put clean engine oil on the face of nut (6) and its contact area on installer (5). Install nut (6) on locator (3).g. Tighten nut (6) until installer (5) makes contact with locator (3).h. Remove Tool (D) from the crankshaft seal and wear sleeve. Tool (D) will install the seal and wear sleeve to the correct depth on the crankshaft.End By:a. install flywheel
