105923-2360 ZEXEL 9 420 610 455 BOSCH GOVERNOR 9420610455 1059232360 me741666

Information governor

BOSCH 9 420 610 455 9420610455

ZEXEL 105923-2360 1059232360

MITSUBISHI ME741666 me741666

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-2360 zexel genuine, new aftermarket engine parts with delivery

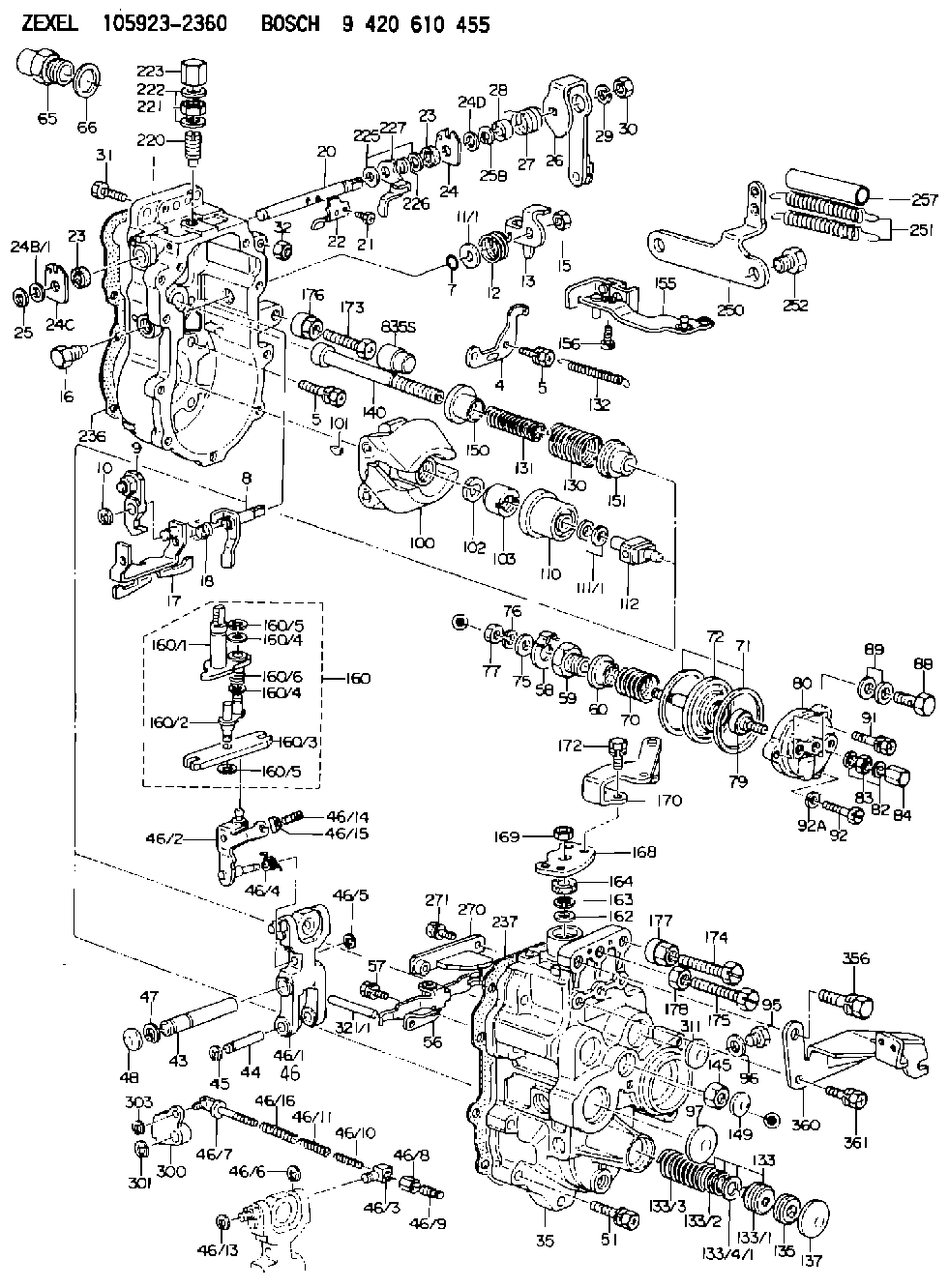

Scheme ###:

1.	[1]	159360-0820	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[8]	139006-6100	BLEEDER SCREW
5.	[8]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-3720	LEVER SHAFT
9.	[1]	159362-5620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-8000	COILED SPRING
13.	[1]	159362-4100	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5100	CAPSULE
17.	[1]	159362-1821	CONTROL LEVER
18.	[1]	159368-6800	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-3421	CONTROL LEVER
27.	[1]	159368-6100	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-0320	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159362-8420	TENSIONING LEVER
46/1.	[1]	159362-8320	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
56.	[1]	159362-3720	LEVER GROUP
57.	[2]	020105-1040	BLEEDER SCREW M5P0.8L10
58.	[1]	146711-0000	PLATE
59.	[1]	154413-3600	BUSHING
60.	[1]	146716-0000	UNION NUT
65.	[1]	155404-3400	CAP
66.	[1]	026524-3040	GASKET
70.	[1]	154402-4900	COILED SPRING
71.	[2]	154413-2600	GASKET
72.	[1]	154415-1020	DIAPHRAGM
75.	[1]	154415-1100	SLOTTED WASHER
76.	[1]	014110-6440	LOCKING WASHER
77.	[1]	013030-6010	UNION NUT
79.	[1]	154413-4000	FLAT-HEAD SCREW
80.	[1]	154404-5000	COVER
82.	[2]	026506-1040	GASKET D9.9&6.2T1
83.	[1]	013030-6040	UNION NUT M6P1H3.6
84.	[1]	154035-1600	CAP NUT
88.	[1]	029731-0180	EYE BOLT
89.	[2]	026510-1340	GASKET D13.4&10.2T1
91.	[1]	020106-2040	BLEEDER SCREW M6P1L20
92.	[2]	139006-7000	BLEEDER SCREW
92A.	[2]	014110-6440	LOCKING WASHER
95.	[1]	029111-2090	CAPSULE
96.	[1]	029331-2130	GASKET
97.	[1]	159364-2000	CAPSULE
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-5200	TERMINAL STUD
130.	[1]	159367-1200	GOVERNOR SPRING
131.	[1]	159367-6300	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-2120	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2620	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-2020	LEVER GROUP
160/1.	[1]	159364-3220	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-6600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159380-5420	CONTROL LEVER
172.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-3300	BLEEDER SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	139210-0400	UNION NUT
220.	[1]	159368-8420	HEADLESS SCREW
221.	[1]	154011-4300	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
236.	[1]	154390-4100	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159395-2320	BRACKET
251.	[2]	154339-3100	COILED SPRING
252.	[2]	010010-1240	BLEEDER SCREW M10P1.5L12 4T
257.	[2]	154156-2500	TUBE
270.	[1]	159362-7020	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159373-8800	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
321/1.	[1]	159274-5100	STOP PIN L72.5
321/1.	[1]	159274-5200	STOP PIN L73
321/1.	[1]	159274-5300	STOP PIN L73.5
321/1.	[1]	159274-5400	STOP PIN L74
321/1.	[1]	159274-5500	STOP PIN L74.5
321/1.	[1]	159274-5600	STOP PIN L75
321/1.	[1]	159274-5700	STOP PIN L75.5
321/1.	[1]	159274-5800	STOP PIN L76
321/1.	[1]	159274-5900	STOP PIN L76.5
321/1.	[1]	159274-6000	STOP PIN L77
321/1.	[1]	159274-6100	STOP PIN L77.5
321/1.	[1]	159274-6200	STOP PIN L78
321/1.	[1]	159274-6300	STOP PIN L78.5
321/1.	[1]	159274-6400	STOP PIN L79
321/1.	[1]	159274-6500	STOP PIN L79.5
321/1.	[1]	159274-6600	STOP PIN L80
321/1.	[1]	159274-6700	STOP PIN L80.5
321/1.	[1]	159274-6800	STOP PIN L81
321/1.	[1]	159274-6900	STOP PIN L81.5
321/1.	[1]	159274-7000	STOP PIN L82
321/1.	[1]	159274-7100	STOP PIN L82.5
321/1.	[1]	159274-7200	STOP PIN L83
321/1.	[1]	159274-7300	STOP PIN L83.5
321/1.	[1]	159274-7400	STOP PIN L84
321/1.	[1]	159274-7500	STOP PIN L84.5
321/1.	[1]	159274-7600	STOP PIN L85
321/1.	[1]	159274-7700	STOP PIN L85.5
321/1.	[1]	159274-7800	STOP PIN L86
321/1.	[1]	159274-7900	STOP PIN L86.5
321/1.	[1]	159274-8000	STOP PIN L87
321/1.	[1]	159274-8100	STOP PIN L87.5
321/1.	[1]	159274-8200	STOP PIN L88
321/1.	[1]	159274-8300	STOP PIN L88.5
321/1.	[1]	159274-8400	STOP PIN L89
321/1.	[1]	159274-8500	STOP PIN L89.5
321/1.	[1]	159274-8600	STOP PIN L90
356.	[1]	010110-1640	BLEEDER SCREW M101.25L16
360.	[1]	159397-5920	BRACKET
361.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14

Include in #1:

106673-7480 as GOVERNOR

106673-7481

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-2360
105923-2361

9 420 610 455

ME741666 MITSUBISHI

GOVERNOR
* K

Information:

(1) Fuel pump drive gear (mechanical governor): Diameter of gear bore ... 44.45 to 44.48 mm (1.750 to 1.751 in)Outside diameter of fuel pump hub ... 44.40 to 44.420 mm (1.748 to 1.7488 in)Fuel pump drive gear [hydraulic governor (not shown)]:Diameter of gear bore ... 41.275 to 41.305 mm (1.6250 to 1.6262 in)Outside diameter of gear carrier ... 41.212 to 41.245 mm (1.6225 to 1.6238 in)Running clearance between gear and carrier ... 0.030 to 0.094 mm (0.0012 to 0.0037 in)(2) Camshaft gear: The threads of the removal holes in the camshaft gear have been changed from 5/16 UNF to M8X 1.25. Gears with metric threads have the letter "M" near one of the tapped holes.Diameter of gear bore ... 34.93 to 34.95 mm (1.375 to 1.376 in)Outside diameter of camshaft hub ... 34.902 to 34.917 mm (1.3741 to 1.3747 in)Clearance between gear and camshaft hub ... -0.023 to +0.033 mm (-.0009 to +.0013 in)(3) Torque for camshaft gear bolt ... 70 N m (50 lb ft)(4) Idler gear and hub (with bearing): Inside diameter of gear bearing ... 50.795 to 50.818 mm (1.9998 to 2.0007 in)Outside diameter of gear hub ... 50.700 to 50.737 mm (1.9960 to 1.9975 in)Clearance of gear on hub ... 0.058 to 0.119 mm (0.0023 to 0.0047 in)Idler gear end play ... 0.10 to 0.20 mm (0.004 to 0.008 in)Maximum permissible end play ... 0.25 mm (0.010 in)Idler gear and hub (with needle bearing):Inside diameter of idler gear ... 62.016 to 62.032 mm (2.4414 to 2.4422 in)Outside diameter of bearing ... 69.999 mm (2.4409 in)Clearance between idler gear and bearing ... 0.013 to 0.033 mm (0.0005 to 0.0013 in)Inside diameter of gear bearing ... 55.001 mm (2.1654 in)Outside diameter of gear hub ... 54.988 to 55.001 mm (2.1649 to 2.1654 in)Clearance of gear on hub ... 0.000 to 0.013 mm (0.0000 to 0.0005 in)Idler gear end play ... 0.15 to 0.51 mm (0.006 to 0.020 in)(5) Torque for idler gear bolts ... 40 N m (30 lb ft)(6) Crankshaft gear: Diameter of gear bore ... 47.63 to 47.65 mm (1.875 to 1.876 in)Outside diameter of crankshaft for gear ... 47.630 to 47.638 mm (1.8750 to 1.8755 in)(7) Oil pump idler gear: Diameter of gear bore ... 25.40 to 25.430 mm (1.000 to 1.0012 in)Outside diameter of bearing ... 25.40 to 25.420 mm (1.000 to 1.0008 in)Inside diameter of bearing ... 22.225 to 22.258 mm (0.8750 to 0.8763 in)Outside diameter of idler gear shaft ... 22.192 to 22.205 mm (0.8737 to 0.8742 in)Clearance of gear on shaft ... 0.020 to 0.066 mm (0.0008 to 0.0026 in)Idler gear end play ... 0.05 to 0.41 mm (0.002 to 0.016 in)Timing gear backlash:Minimum ... 0.08 mm (0.003 in)Maximum ... 0.15 mm (0.006 in)
