Information governor
BOSCH
9 420 611 043
9420611043
ZEXEL
105923-2011
1059232011
MITSUBISHI
ME741637
me741637

Rating:

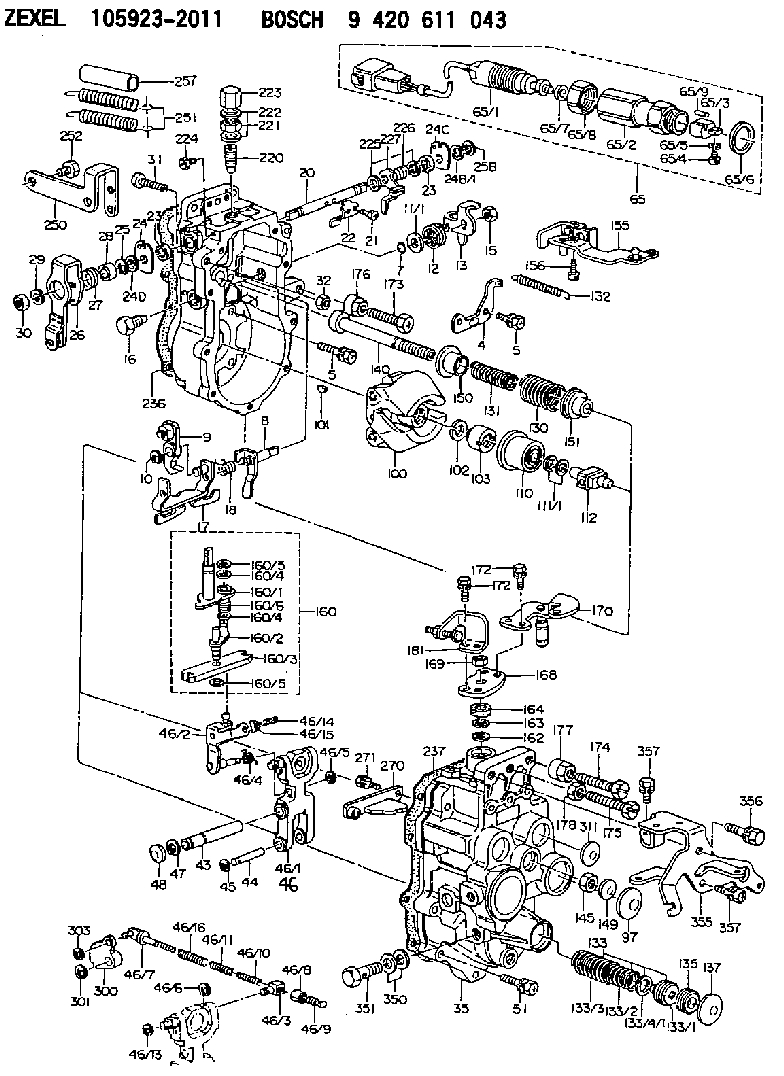

Scheme ###:
1. | [1] | 159360-0720 | GOVERNOR HOUSING |
4. | [1] | 159362-5520 | PLATE |
5. | [10] | 139006-6100 | BLEEDER SCREW |
5. | [10] | 139006-6100 | BLEEDER SCREW |
7. | [1] | 139709-0100 | O-RING |
8. | [1] | 159364-3720 | LEVER SHAFT |
9. | [1] | 159362-5620 | CONTROL LEVER |
10. | [1] | 016010-0740 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159368-8000 | COILED SPRING |
13. | [1] | 159362-4100 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159364-5100 | CAPSULE |
17. | [1] | 159362-1821 | CONTROL LEVER |
18. | [1] | 159368-6800 | COILED SPRING |
20. | [1] | 159364-3800 | LEVER SHAFT |
21. | [2] | 020104-1240 | BLEEDER SCREW |
22. | [1] | 159362-0600 | CONTROL LEVER |
23. | [2] | 139608-0600 | PACKING RING |
23. | [2] | 139608-0600 | PACKING RING |
24. | [1] | 159362-0700 | PLAIN WASHER |
24B/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
24B/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
24C. | [1] | 159362-0700 | PLAIN WASHER |
24D. | [1] | 139308-2100 | PLAIN WASHER |
25. | [1] | 159238-4200 | LOCKING WASHER |
25B. | [1] | 159238-4200 | LOCKING WASHER |
26. | [1] | 159390-3320 | CONTROL LEVER |
27. | [1] | 159368-7300 | COILED SPRING |
28. | [1] | 159364-6000 | BUSHING |
29. | [1] | 014110-8440 | LOCKING WASHER |
30. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
31. | [1] | 155644-1301 | BLEEDER SCREW |
32. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
35. | [1] | 159361-0520 | GOVERNOR COVER |
43. | [1] | 159364-0700 | LEVER SHAFT |
44. | [1] | 159364-0800 | BEARING PIN |
45. | [2] | 016010-0640 | LOCKING WASHER |
46. | [1] | 159363-5720 | TENSIONING LEVER |
46/1. | [1] | 159363-5620 | TENSIONING LEVER |
46/2. | [1] | 159362-8221 | GUIDE LEVER |
46/3. | [1] | 159364-4201 | BEARING PIN |
46/4. | [1] | 159368-6201 | COILED SPRING |
46/5. | [1] | 016010-0540 | LOCKING WASHER |
46/6. | [1] | 016010-0440 | LOCKING WASHER |
46/7. | [1] | 159364-4121 | RACK |
46/8. | [1] | 159364-4300 | UNION NUT |
46/9. | [1] | 159364-4400 | FLAT-HEAD SCREW |
46/10. | [1] | 159368-6900 | COILED SPRING |
46/11. | [1] | 159368-7000 | COILED SPRING |
46/13. | [1] | 016010-0540 | LOCKING WASHER |
46/14. | [1] | 159364-1900 | FLAT-HEAD SCREW |
46/15. | [1] | 159364-1800 | UNION NUT |
46/16. | [1] | 159368-9500 | COILED SPRING |
47. | [2] | 016110-1020 | LOCKING WASHER |
48. | [2] | 159237-0200 | CAPSULE |
51. | [9] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154611-7420 | RACK SENSOR ASSY |
65/1. | [1] | 479775-2920 | RACK SENSOR |
65/2. | [1] | 154614-4800 | JOINT CONNECTION |
65/3. | [1] | 154614-3100 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER |
65/6. | [1] | 026524-3040 | GASKET |
65/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
65/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
65/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
65/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
65/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
65/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
97. | [1] | 159364-2000 | CAPSULE |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159364-5200 | TERMINAL STUD |
130. | [1] | 159367-1900 | GOVERNOR SPRING |
131. | [1] | 159367-6300 | GOVERNOR SPRING |
132. | [1] | 159368-6500 | COILED SPRING |
133. | [1] | 159368-2420 | SPRING PACK |
133/1. | [1] | 159364-2200 | GUIDE SLEEVE |
133/2. | [1] | 159368-0100 | COILED SPRING |
133/3. | [1] | 159368-0600 | COILED SPRING |
133/4/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
133/4/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
133/4/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
133/4/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
133/4/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
133/4/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
133/4/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
133/4/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
133/4/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
135. | [1] | 159364-2300 | FLAT-HEAD SCREW |
137. | [1] | 159364-2000 | CAPSULE |
140. | [1] | 159364-2500 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159364-2600 | SLOTTED WASHER |
151. | [1] | 159364-2700 | SLOTTED WASHER |
155. | [1] | 159363-2721 | STRAP |
156. | [1] | 010235-1020 | HEX-SOCKET-HEAD CAP SCREW |
160. | [1] | 159362-2020 | LEVER GROUP |
160/1. | [1] | 159364-3220 | LEVER SHAFT |
160/2. | [1] | 159362-1020 | CONTROL LEVER |
160/3. | [1] | 159362-2000 | CONTROL LEVER |
160/3. | [1] | 159362-2000 | CONTROL LEVER |
160/4. | [2] | 159362-1300 | SHIM |
160/4. | [2] | 159362-1300 | SHIM |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/6. | [1] | 159368-6600 | COILED SPRING |
162. | [1] | 139411-0600 | SHIM |
163. | [1] | 159238-3000 | LOCKING WASHER |
164. | [1] | 139610-0800 | PACKING RING |
168. | [1] | 159380-0300 | CONTROL LEVER |
169. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
170. | [1] | 159381-1020 | CONTROL LEVER |
172. | [4] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
172. | [4] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
173. | [1] | 154013-1700 | BLEEDER SCREW |
173B. | [1] | 154013-1800 | BLEEDER SCREW |
173C. | [1] | 154013-1900 | BLEEDER SCREW |
174. | [1] | 154013-2000 | BLEEDER SCREW |
175. | [1] | 154013-3300 | BLEEDER SCREW |
176. | [1] | 154011-4000 | UNION NUT |
177. | [1] | 154011-4100 | UNION NUT |
178. | [1] | 139210-0400 | UNION NUT |
181. | [1] | 159381-1100 | CONTROL LEVER |
220. | [1] | 159368-8420 | HEADLESS SCREW |
221. | [1] | 154011-4300 | UNION NUT |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-2100 | CAP NUT |
224. | [1] | 139006-0800 | BLEEDER SCREW |
225. | [2] | 029310-8050 | SHIM D13.5&8T0.5 |
226. | [1] | 159368-9101 | COILED SPRING |
227. | [1] | 159362-6720 | CONTROL LEVER |
236. | [1] | 154390-4200 | GASKET |
237. | [1] | 154390-2500 | GASKET |
250. | [1] | 159398-3120 | BRACKET |
251. | [2] | 154339-3200 | COILED SPRING |
252. | [2] | 010010-1640 | BLEEDER SCREW M10P1.5L16 4T |
257. | [2] | 154156-3100 | TUBE |
270. | [1] | 159362-7020 | GUIDE PLATE |
271. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
300. | [1] | 159372-1800 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [2] | 159237-5400 | CAPSULE |
350. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
351. | [1] | 139812-0100 | EYE BOLT |
355. | [1] | 159396-7420 | BRACKET |
356. | [1] | 010110-1640 | BLEEDER SCREW M101.25L16 |
357. | [3] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
357. | [3] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
Include in #1:
108822-2381
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Start By:a. remove fuel injection linesb. remove fuel filter and basec. remove fuel transfer pump The following illustrations are of a 3304 Engine. 1. Disconnect the governor control linkage from the governor.2. On 3304 Engines only: remove oil supply line (1), oil drain line (2) and heat shield (3). Remove the O-ring seal from oil drain line (2) if it is damaged. Remove the gaskets and screen from the top of the turbocharger.3. Disconnect fuel drain lines (4) and (5) from the fuel injection pump housing and governor. 4. Remove the nuts, washers and cover from the timing gear housing. Remove studs (6) if they are damaged or loose.5. Loosen bolt (7) enough to leave a gap of 3.18 mm (.125 in) between washer (8) and the fuel pump drive gear.6. Install Tool (A) as shown. Tighten the stud to pull the fuel pump drive gear loose from the taper on the fuel injection pump camshaft.7. Remove Tool (A), bolt (7) and washer (8) from the engine. 8. Fasten a nylon strap and hoist to the fuel injection pump housing and governor. The 3304 fuel injection pump housing and governor weighs 24 kg (53 lb). The 3306 fuel injection pump housing and governor weighs 29 kg (64 lb).9. Remove bolt (9), bolt (10), three nuts (11) and the fuel injection pump housing and governor. Remove the two O-ring seals from the bottom and the two O-ring seals from the front of the fuel injection pump housing and governor.Install Fuel Injection Pump Housing & Governor
