105923-1801 ZEXEL 9 420 611 035 BOSCH GOVERNOR 9420611035 1059231801 me740825

Information governor

BOSCH 9 420 611 035 9420611035

ZEXEL 105923-1801 1059231801

MITSUBISHI ME740825 me740825

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-1801 zexel genuine, new aftermarket engine parts with delivery

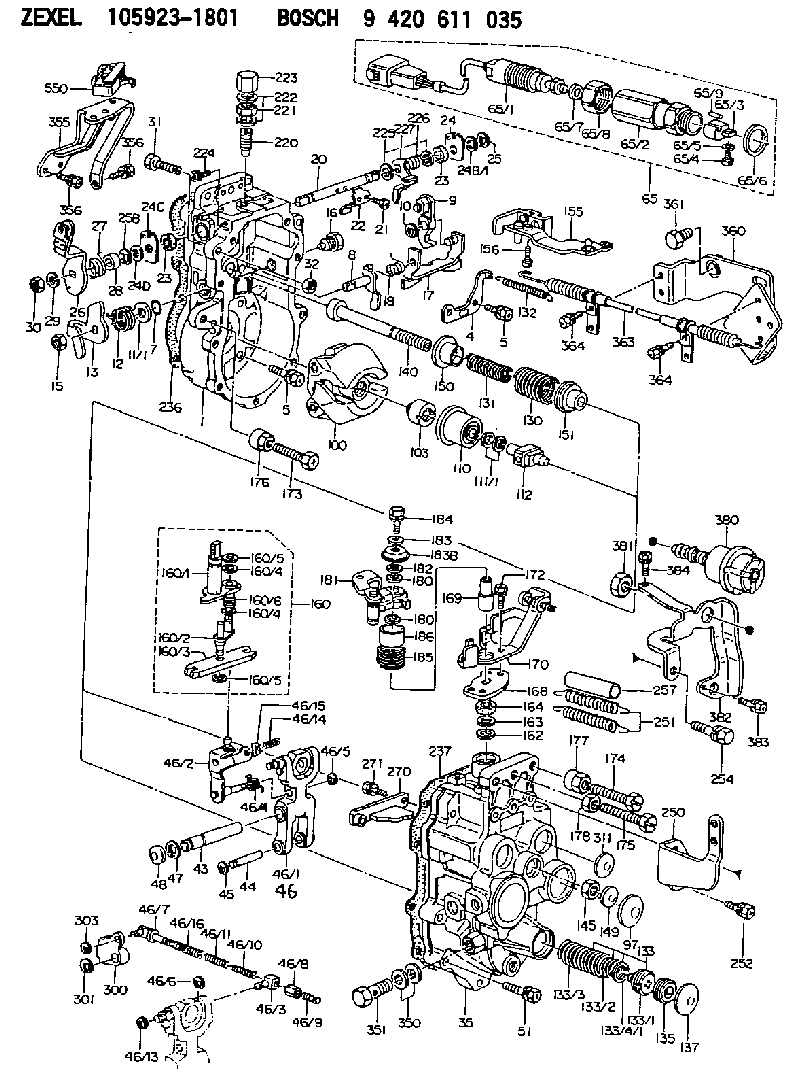

Scheme ###:

1.	[1]	159360-0520	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[10]	139006-6100	BLEEDER SCREW
5.	[10]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-1500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-0520	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-3800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-5420	CONTROL LEVER
27.	[1]	159368-7300	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
32.	[1]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-0520	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159362-8420	TENSIONING LEVER
46/1.	[1]	159362-8320	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
65.	[1]	154611-3920	RACK SENSOR ASSY
65/1.	[1]	479775-0420	RACK SENSOR
65/2.	[1]	154614-2500	JOINT CONNECTION
65/3.	[1]	154614-3200	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	026524-3040	GASKET
65/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-2021	FLYWEIGHT ASSEMBLY
103.	[1]	154101-2500	HEXAGON NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2400	TERMINAL STUD
130.	[1]	159367-2300	GOVERNOR SPRING
131.	[1]	159367-6600	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-2420	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0100	COILED SPRING
133/3.	[1]	159368-0600	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2820	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-7720	LEVER GROUP
160/1.	[1]	159364-9520	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-6600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159381-5800	CONTROL LEVER
169.	[1]	159233-7301	UNION NUT
170.	[1]	159381-8420	CONTROL LEVER
172.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-3300	BLEEDER SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	139210-0400	UNION NUT
180.	[2]	139310-0500	PLAIN WASHER
180.	[2]	139310-0500	PLAIN WASHER
181.	[1]	159381-8920	CONTROL LEVER
182.	[0]	029311-0010	SHIM D14&10.1T0.2
183.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
183B.	[1]	159235-7100	CAP
184.	[1]	020006-1270	BLEEDER SCREW M6P1L12 7T
185.	[1]	159369-1100	COILED SPRING
186.	[1]	159230-7100	BUSHING
220.	[1]	159368-8420	HEADLESS SCREW
221.	[1]	154011-4300	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
224.	[1]	139006-0800	BLEEDER SCREW
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
236.	[1]	154390-4200	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159397-7420	BRACKET
251.	[2]	154339-2200	COILED SPRING
252.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
254.	[1]	020010-2540	BLEEDER SCREW M10P1.25L25
257.	[2]	154156-3100	TUBE
270.	[1]	159362-7020	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159372-2300	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
350.	[2]	139512-0000	GASKET D17.2&12.2T1.0
351.	[1]	139812-0100	EYE BOLT
355.	[1]	159397-8020	BRACKET
356.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
356.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
360.	[1]	159563-9520	BRACKET
361.	[2]	156633-4700	BLEEDER SCREW
363.	[1]	159398-0120	WIRE
364.	[4]	020106-1040	BLEEDER SCREW M6P1L12
364.	[4]	020106-1040	BLEEDER SCREW M6P1L12
380.	[1]	159397-7800	DAMPER
381.	[1]	029201-4140	UNION NUT M14P1.5H5
382.	[1]	159397-7920	BRACKET
383.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
384.	[1]	020106-1040	BLEEDER SCREW M6P1L12
550.	[1]	153146-3020	MICROSWITCH

Include in #1:

108822-2341 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-1801
105923-1802

9 420 611 035

ME740825 MITSUBISHI

GOVERNOR
* K

Information:

(1) 4.236 Rocker Lever: Inside diameter of rocker arm ... 19.063 to 19.101 mm (.7505 to .7520 in)Rocker arm clearance on rocker shaft ... 0.03 to 0.089 mm (.001 to .0035 in)Maximum permissible clearance (worn) ... 0.13 mm (.005 in)T4.236 Rocker Lever: Inside diameter of rocker arm ... 22.225 to 22.255 mm (.8750 to .8762 in)Outside diameter of bushing ... 22.276 to 22.314 mm (.8770 to .8785 in)Interference fit of bushing in rocker arm ... 0.020 to 0.089 mm (.0008 to .0035 in)Diameter of bushing ... 19.063 to 19.101 mm (.7505 to .7520 in)Rocker arm clearance between shaft and bushing (new) ... 0.03 to 0.089 mm (.001 to .0035 in)Maximum permissible clearance (worn) ... 0.13 mm (.005 in)(2) Diameter of rocker shaft ... 19.012 to 19.037 mm (.7485 to .7495 in)(3) Install seal (3) in cylinder head before rocker shaft is installed.(4) Length of push rods ... 270.46 to 271.98 mm (10.648 to 10.708 in) Diameter of push rods ... 7.87 to 7.92 mm (.310 to .312 in)(5) End play of camshaft (new) ... 0.10 to 0.41 mm (.004 to .016 in) Maximum permissible end play (worn) ... 0.51 mm (.020 in)(6) Torque for bolt that holds camshaft gear on camshaft ... 70 N m (50 lb ft)(7) Camshaft thrust washer: A new cylinder block, camshaft and thrust washer have been introduced on the 4.236 and T4.236 engines. The thrust washer recess in the new block is deeper. The thrust washer thickness remains the same. The change became effective at engine serial number LD or LJ-----U106654N and up. The engine serial number is located above the fuel injection pump on the block.Thickness of camshaft thrust washer ... 5.49 to 5.54 mm (.216 to .218 in)Outside diameter of thrust washer ... 72.95 to 73.00 mm (2.872 to 2.874 in)Cylinder block recess diameter for thrust washer ... 73.03 to 73.28 mm (2.875 to 2.885 in)Clearance of thrust washer in recess ... 0.03 to 0.33 mm (.001 to .013 in)Inside diameter of thrust washer ... 44.45 mm (1.750 in)Thickness of thrust washer ... 5.49 to 5.54 mm (.216 to .218 in) The recess in the cylinder block is deeper for current models.Earlier Models:Cylinder block recess depth for thrust washer ... 4.75 to 4.83 mm (.187 to .190 in)Projection of thrust washer above cylinder block front face ... 0.66 to 0.79 mm (.026 to .031 in)Current Models:Cylinder block recess depth for thrust washer ... 5.38 to 5.49 mm (.212 to .216 in)Projection of thrust washer above cylinder block face ... 0.0 to 0.13 mm (.000 to .005 in)(8) Diameter of camshaft journals: No. 1 journal ... 50.71 to 50.737 mm (1.9965 to 1.9975 in)Minimum permissible diameter ... 50.660 mm (1.9945 in)No. 2 journal ... 50.457 to 50.483 mm (1.9865 to 1.9875 in)Minimum permissible diameter ... 50.406 mm (1.9845 in)No. 3 journal ... 49.949 to 49.975 mm (1.9665 to 1.9675 in)Minimum permissible diameter ... 49.898 mm (1.9645 in)See Cylinder Block for camshaft bore specifications.(9)
