105923-1461 ZEXEL 9 420 610 943 BOSCH GOVERNOR 9420610943 1059231461 223008261a




Information governor

BOSCH 9 420 610 943 9420610943
ZEXEL 105923-1461 1059231461
HINO 223008261A 223008261a
105923-1461 GOVERNOR
Rating:
75
Buy GOVERNOR 105923-1461 zexel genuine, new aftermarket engine parts with delivery

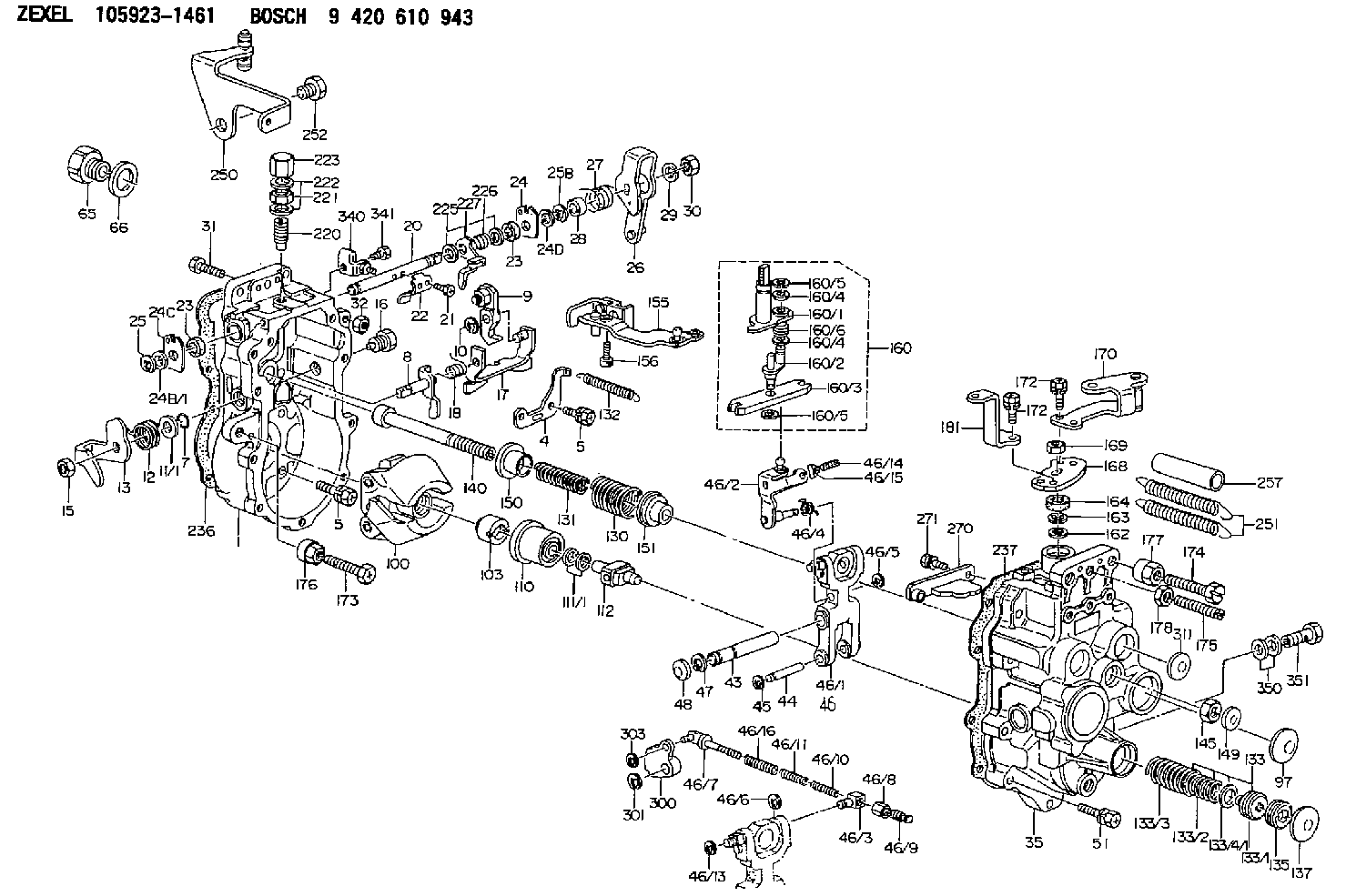

Scheme ###:

GOVERNOR HOUSING
1. [1] 159360-0420 GOVERNOR HOUSING
4. [1] 159362-5520 PLATE
5. [8] 139006-6100 BLEEDER SCREW
5. [8] 139006-6100 BLEEDER SCREW
7. [1] 139709-0100 O-RING
8. [1] 159364-0120 LEVER SHAFT
9. [1] 159362-5620 CONTROL LEVER
10. [1] 016010-0740 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159368-7800 COILED SPRING
13. [1] 159362-1500 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159364-5000 CAPSULE
17. [1] 159362-0520 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159364-3800 LEVER SHAFT
21. [2] 020104-1240 BLEEDER SCREW
22. [1] 159362-0600 CONTROL LEVER
23. [2] 139608-0600 PACKING RING
23. [2] 139608-0600 PACKING RING
24. [1] 159362-0700 PLAIN WASHER
24B/1. [0] 139408-1000 SHIM D16&8T0.5
24B/1. [0] 139408-1300 SHIM D16&8T0.2
24C. [1] 159362-0700 PLAIN WASHER
24D. [1] 139308-2100 PLAIN WASHER
25. [1] 159238-4200 LOCKING WASHER
25B. [1] 159238-4200 LOCKING WASHER
26. [1] 159390-4420 CONTROL LEVER
27. [1] 159368-6100 COILED SPRING
28. [1] 159364-6000 BUSHING
29. [1] 014110-8440 LOCKING WASHER
30. [1] 013020-8040 UNION NUT M8P1.25H7
31. [2] 155644-1301 BLEEDER SCREW
32. [2] 013030-6040 UNION NUT M6P1H3.6
35. [1] 159361-1420 GOVERNOR COVER
43. [1] 159364-0700 LEVER SHAFT
44. [1] 159364-0800 BEARING PIN
45. [2] 016010-0640 LOCKING WASHER
46. [1] 159362-8420 TENSIONING LEVER
46/1. [1] 159362-8320 TENSIONING LEVER
46/2. [1] 159362-8221 GUIDE LEVER
46/3. [1] 159364-4201 BEARING PIN
46/4. [1] 159368-6201 COILED SPRING
46/5. [1] 016010-0540 LOCKING WASHER
46/6. [1] 016010-0440 LOCKING WASHER
46/7. [1] 159364-4121 RACK
46/8. [1] 159364-4300 UNION NUT
46/9. [1] 159364-4400 FLAT-HEAD SCREW
46/10. [1] 159368-6900 COILED SPRING
46/11. [1] 159368-7000 COILED SPRING
46/13. [1] 016010-0540 LOCKING WASHER
46/14. [1] 159364-1900 FLAT-HEAD SCREW
46/15. [1] 159364-1800 UNION NUT
46/16. [1] 159368-9500 COILED SPRING
47. [2] 016110-1020 LOCKING WASHER
48. [2] 159237-0200 CAPSULE
51. [9] 020106-3840 BLEEDER SCREW
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
97. [1] 159364-2000 CAPSULE
100. [1] 154101-2021 FLYWEIGHT ASSEMBLY
103. [1] 154101-2500 HEXAGON NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159364-2400 TERMINAL STUD
130. [1] 159367-3200 GOVERNOR SPRING
131. [1] 159367-6100 GOVERNOR SPRING
132. [1] 159368-6500 COILED SPRING
133. [1] 159368-3720 SPRING PACK
133/1. [1] 159364-2200 GUIDE SLEEVE
133/2. [1] 159368-0000 COILED SPRING
133/3. [1] 159368-0600 COILED SPRING
133/4/1. [0] 029311-0010 SHIM D14&10.1T0.2
133/4/1. [0] 029311-0180 SHIM D14&10.1T0.3
133/4/1. [0] 029311-0190 SHIM D14&10.1T0.40
133/4/1. [0] 029311-0210 SHIM D14&10.1T1
133/4/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
133/4/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
133/4/1. [0] 139410-3000 SHIM D14&10.1T2.0
133/4/1. [0] 139410-3100 SHIM D14&10.1T3.0
133/4/1. [0] 139410-3200 SHIM D14&10.1T4.0
135. [1] 159364-2300 FLAT-HEAD SCREW
137. [1] 159364-2000 CAPSULE
140. [1] 159364-2500 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159364-2600 SLOTTED WASHER
151. [1] 159364-2700 SLOTTED WASHER
155. [1] 159363-2620 STRAP
156. [1] 010235-1020 HEX-SOCKET-HEAD CAP SCREW
160. [1] 159362-2020 LEVER GROUP
160/1. [1] 159364-3220 LEVER SHAFT
160/2. [1] 159362-1020 CONTROL LEVER
160/3. [1] 159362-2000 CONTROL LEVER
160/4. [2] 159362-1300 SHIM
160/4. [2] 159362-1300 SHIM
160/5. [2] 016010-0840 LOCKING WASHER
160/5. [2] 016010-0840 LOCKING WASHER
160/6. [1] 159368-6600 COILED SPRING
162. [1] 139411-0600 SHIM
163. [1] 159238-3000 LOCKING WASHER
164. [1] 139610-0800 PACKING RING
168. [1] 159380-0300 CONTROL LEVER
169. [1] 013020-8040 UNION NUT M8P1.25H7
170. [1] 159381-7620 CONTROL LEVER
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
173. [1] 154013-1700 BLEEDER SCREW
173B. [1] 154013-1800 BLEEDER SCREW
173C. [1] 154013-1900 BLEEDER SCREW
174. [1] 154013-2000 BLEEDER SCREW
175. [1] 154013-3000 FLAT-HEAD SCREW
176. [1] 154011-4000 UNION NUT
177. [1] 154011-4100 UNION NUT
178. [1] 013131-0040 UNION NUT M10P1.25H6
181. [1] 159381-2500 CONTROL LEVER
220. [1] 159368-8420 HEADLESS SCREW
221. [1] 154011-4300 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-2100 CAP NUT
225. [2] 029310-8050 SHIM D13.5&8T0.5
226. [1] 159368-9101 COILED SPRING
227. [1] 159362-6720 CONTROL LEVER
236. [1] 154390-4100 GASKET
237. [1] 154390-2500 GASKET
250. [1] 159397-8920 BRACKET
251. [2] 154339-1000 COILED SPRING
252. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
257. [2] 154156-2500 TUBE
270. [1] 159362-4620 GUIDE PLATE
271. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
300. [1] 159373-2500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [2] 159237-5400 CAPSULE
340. [1] 159395-0020 PLATE
341. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
350. [2] 029331-2120 GASKET
351. [1] 029731-2040 EYE BOLT

Include in #1:

106971-3191 as GOVERNOR
106971-3192

Cross reference number

Zexel num
Bosch num
Firm num
Name
105923-1461
105923-1462
9 420 610 943
223008261A  HINO
GOVERNOR
* K




Information:

6N9294 Alternator Group, 3T6352 Alternator 24V 35A (Delco-Remy Number 1117647)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (hot) ... 35A(1) Torque for the ground terminal nut ... 2.3 0.6 N m (21 5 lb in)(2) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(3) Torque for the output terminal nut ... 7.1 0.9 N m (64 8 lb in)3T6354 Regulator (Delco-Remy Number 1116405) Inside Alternator
Voltage setting ... No adjustmentPermissible voltage range ... 26 to 30VDelco-Remy (25SI)
5S9088 Alternator Group, 3T1888 Alternator 24V 50A (Delco-Remy Number 1117248)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output (hot) ... 50A(1) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(2) Torque for the output terminal nut ... 13.5 1.3 N m (10 1 lb ft)7N129 Regulator (Delco-Remy Number 1892824) Inside Alternator
Voltage setting range ... 27.5 1.0VAdjust voltage setting to ... 28V There are two types of adjustment: One type of adjustment is made by removing a pipe plug and turning the adjusting screw one or two notches in a clockwise direction to increase the voltage setting or one or two notches in a counterclockwise direction to decrease the voltage setting. The second type of adjustment is similar except, remove the end cover to expose the potentiometer for adjustment.Then increase speed to get a maximum output of ... 50ABosch
6N9294 Alternator Group, 7N9720 Alternator 24V 35A (Bosch Number 0-122-469-001)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (hot) ... 37ATorque for the ground terminal nut ... 2.1 to 2.8 N m (19 to 25 lb in)(1) Torque for the pulley nut ... 95 to 110 N m (70 to 80 lb ft)(2) Torque for the output terminal nut ... 13.5 1.3 N m (10 1 lb ft)9G7567 Regulator (Bosch Number 1-197-011-000) Under Alternator Cover. For
