105923-1334 ZEXEL 9 420 610 942 BOSCH GOVERNOR 9420610942 1059231334 223008960a

Information governor

BOSCH 9 420 610 942 9420610942

ZEXEL 105923-1334 1059231334

HINO 223008960A 223008960a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105923-1334 zexel genuine, new aftermarket engine parts with delivery

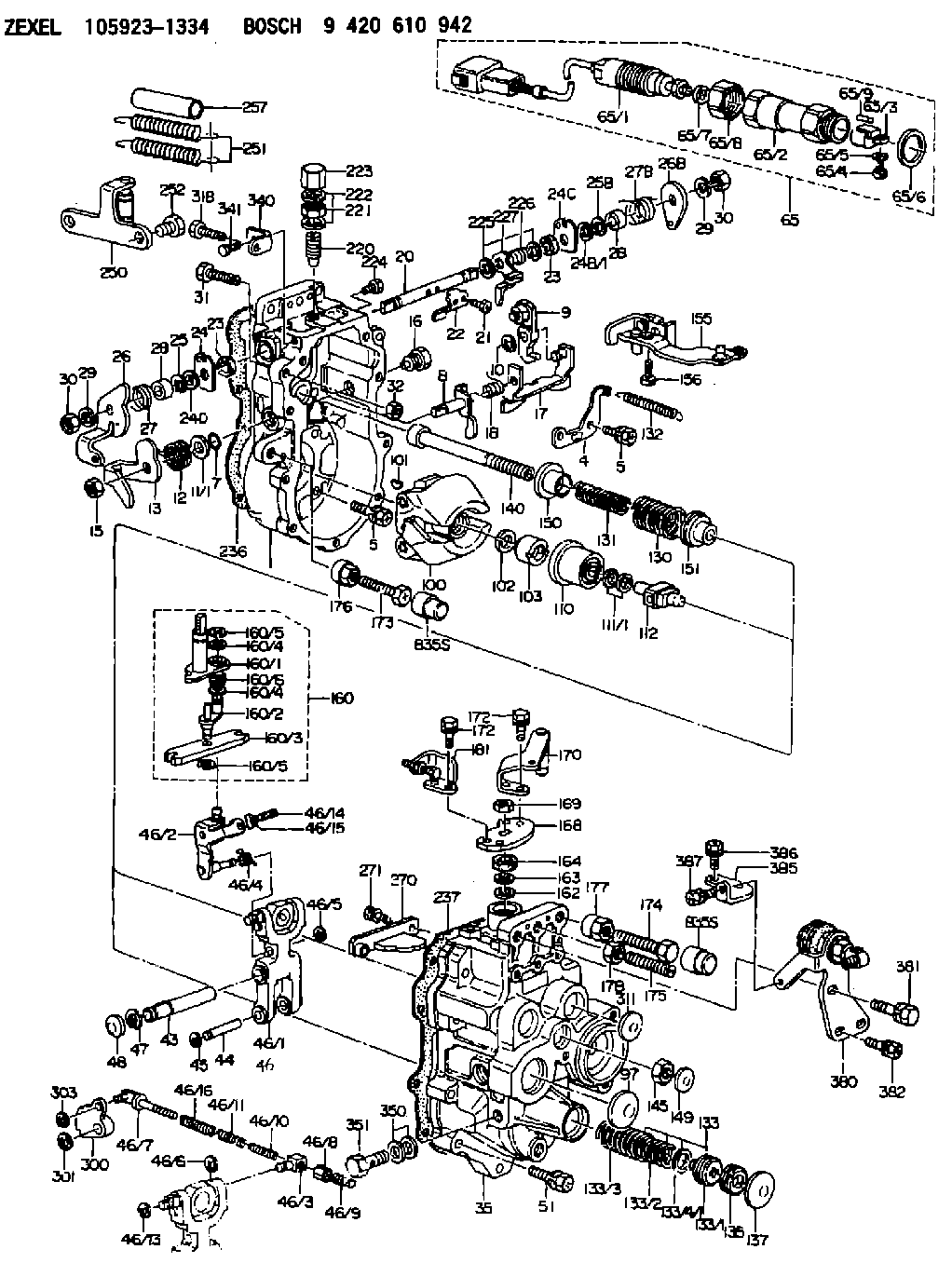

Scheme ###:

1.	[1]	159360-0520	GOVERNOR HOUSING
4.	[1]	159362-5520	PLATE
5.	[10]	139006-6100	BLEEDER SCREW
5.	[10]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-0120	LEVER SHAFT
9.	[1]	159362-5620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7800	COILED SPRING
13.	[1]	159362-1500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-0520	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159364-8000	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-4000	CONTROL LEVER
26B.	[1]	159390-2900	CONTROL LEVER
27.	[1]	159368-7300	COILED SPRING
27B.	[1]	159368-6100	COILED SPRING
28.	[2]	159364-6000	BUSHING
28.	[2]	159364-6000	BUSHING
29.	[2]	014110-8440	LOCKING WASHER
29.	[2]	014110-8440	LOCKING WASHER
30.	[2]	013020-8040	UNION NUT M8P1.25H7
30.	[2]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
31B.	[1]	153505-0800	FLAT-HEAD SCREW
32.	[2]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-1320	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159362-8420	TENSIONING LEVER
46/1.	[1]	159362-8320	TENSIONING LEVER
46/2.	[1]	159362-8221	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-6201	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
65.	[1]	154611-6720	RACK SENSOR ASSY
65/1.	[1]	479775-3820	RACK SENSOR
65/2.	[1]	154614-4800	JOINT CONNECTION
65/3.	[1]	154614-3100	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	026524-3040	GASKET
65/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
97.	[1]	159364-2000	CAPSULE
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2100	TERMINAL STUD
130.	[1]	159367-0800	GOVERNOR SPRING
131.	[1]	159367-6200	GOVERNOR SPRING
132.	[1]	159369-0100	COILED SPRING
133.	[1]	159368-3720	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-0000	COILED SPRING
133/3.	[1]	159368-0600	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-2320	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-5820	LEVER GROUP
160/1.	[1]	159364-6520	LEVER SHAFT
160/2.	[1]	159362-5921	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-8600	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159381-5720	CONTROL LEVER
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-1700	BLEEDER SCREW
173B.	[1]	154013-1800	BLEEDER SCREW
173C.	[1]	154013-1900	BLEEDER SCREW
174.	[1]	154013-2000	BLEEDER SCREW
175.	[1]	154013-3000	FLAT-HEAD SCREW
176.	[1]	154011-4000	UNION NUT
177.	[1]	154011-4100	UNION NUT
178.	[1]	139210-0300	UNION NUT
181.	[1]	159381-1320	CONTROL LEVER
220.	[1]	159368-8420	HEADLESS SCREW
221.	[1]	154011-4300	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-2100	CAP NUT
224.	[1]	139006-0800	BLEEDER SCREW
225.	[2]	029310-8050	SHIM D13.5&8T0.5
226.	[1]	159368-9101	COILED SPRING
227.	[1]	159362-6720	CONTROL LEVER
236.	[1]	154390-4200	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159396-9420	BRACKET
251.	[2]	154339-0400	COILED SPRING
252.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
257.	[2]	154156-0500	TUBE
270.	[1]	159362-6820	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159373-1600	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
340.	[1]	159395-6020	PLATE
341.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
350.	[2]	139514-0300	GASKET
351.	[1]	139814-2100	EYE BOLT
380.	[1]	159398-0421	CYLINDER
381.	[1]	010110-2040	BLEEDER SCREW M10P1.25L20
382.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
385.	[1]	159396-9600	BRACKET
386.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
387.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12

Include in #1:

108622-3436 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105923-1334
105923-1335

9 420 610 942

223008960A HINO

GOVERNOR
* K

Information:

Piston Pin Bearing Removal And Installation (Connecting rods that have straight sides on the piston pin end).
The 5P8639 Press Group and the 5P8655 Tool Group are used to remove and install the piston pin bearings in the connecting rods. Use the procedure that follows to remove and install the piston pin bearing from the connecting rod.Remove the crankshaft bearing from the large end of the connecting rod and install the cap on the rod.Put the connecting rod in an oven and get the temperature of the rod to 400°F (204°C).Put the 5P8654 Spacer in the counterbore of the base plate. Be sure the spacer is in the bore straight and is against the bottom of the counterbore. Put the
