105921-9580 ZEXEL 9 420 611 780 BOSCH GOVERNOR 9420611780 1059219580 19101z6803




Information governor

BOSCH 9 420 611 780 9420611780
ZEXEL 105921-9580 1059219580
NISSAN-DIESEL 19101Z6803 19101z6803
105921-9580 GOVERNOR
Rating:
70
Buy GOVERNOR 105921-9580 zexel genuine, new aftermarket engine parts with delivery

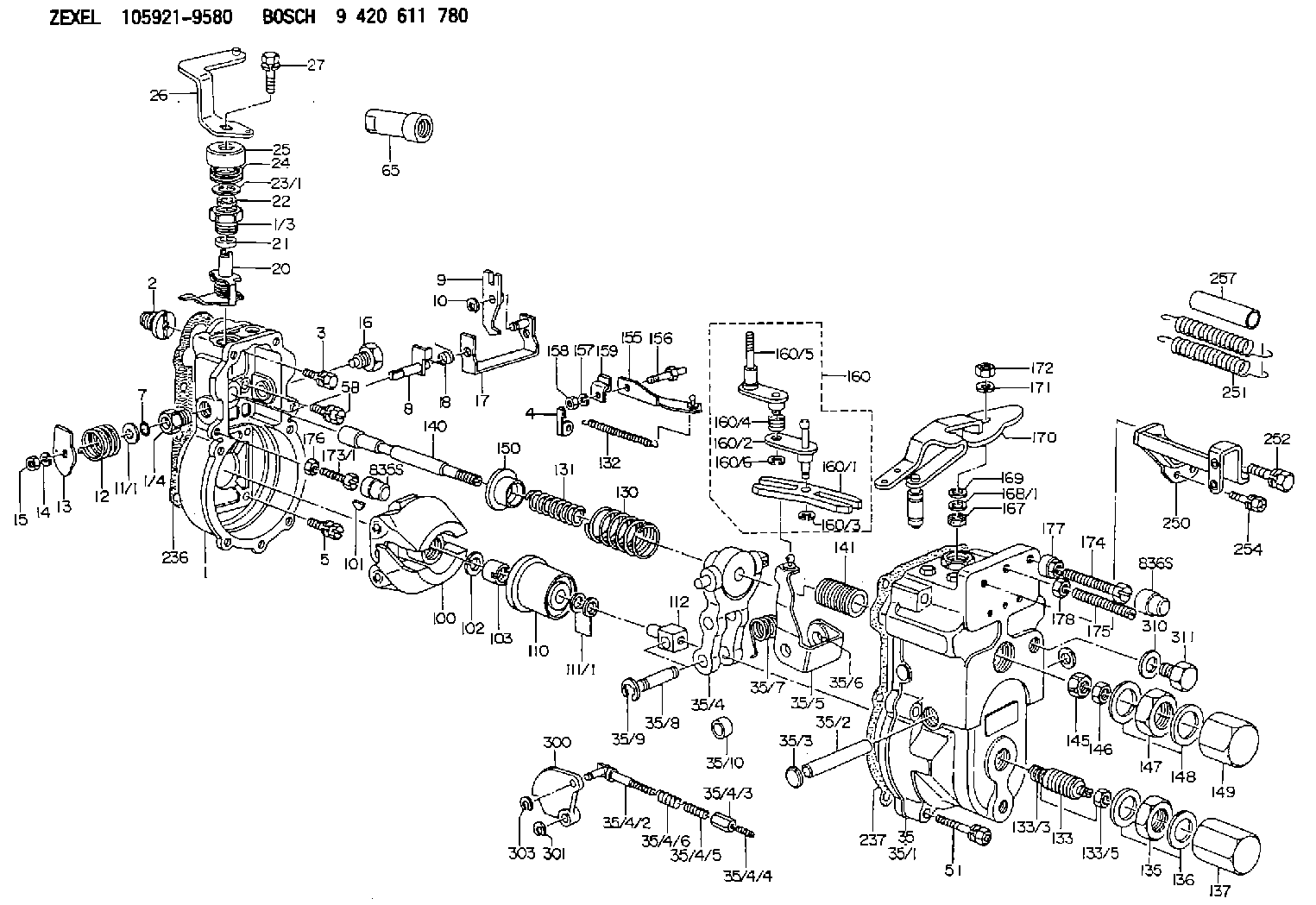

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-9320 GOVERNOR HOUSING
1/3. [1] 154321-0400 BUSHING
1/4. [1] 154321-3400 BUSHING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-1401 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 029631-0030 O-RING &9.8W2.3
8. [1] 159205-2821 LEVER SHAFT
9. [1] 159202-2601 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
11/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
11/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
11/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
11/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
11/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
12. [1] 159215-0500 COILED SPRING
13. [1] 159242-0100 CONTROL LEVER
14. [1] 014110-8440 LOCKING WASHER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-0000 CAPSULE
17. [1] 159202-3820 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159249-2220 CONTROL LEVER
21. [1] 029311-0210 SHIM D14&10.1T1
22. [1] 139610-0400 PACKING RING
23/1. [0] 139411-0700 SHIM D22&11T0.7
23/1. [0] 153305-0100 SHIM D22&11T0.5
23/1. [0] 153305-0200 SHIM D22&11T0.4
23/1. [0] 153305-0300 SHIM D22&11T0.3
23/1. [0] 153305-0400 SHIM D22&11T0.25
23/1. [0] 153305-0500 SHIM D22&11T1.0
23/1. [0] 153305-0600 SHIM D22&11T1.1
23/1. [0] 153305-0700 SHIM D22&11T2.0
23/1. [0] 153305-1300 SHIM D22&11T0.951
23/1. [0] 153305-1400 SHIM D22&11T0.95
24. [1] 159215-3100 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159291-6420 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159255-3320 GOVERNOR COVER
35/1. [1] 159301-7420 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-1020 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0000 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-5420 GUIDE LEVER
35/6. [2] 159235-5000 BUSHING
35/7. [1] 159215-5600 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-1801 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154101-0920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0100 TERMINAL STUD
130. [1] 159210-9200 GOVERNOR SPRING
131. [1] 159211-6300 GOVERNOR SPRING
132. [1] 159214-0100 COILED SPRING
133. [1] 159219-2320 HEADLESS SCREW
133/3. [1] 159219-2700 COILED SPRING
133/5. [1] 013020-6040 UNION NUT M6P1H5
135. [1] 139220-0200 UNION NUT
136. [2] 026520-2440 GASKET D23.9&20.2T1
137. [1] 159248-0700 CAP
140. [1] 159205-1801 LEVER SHAFT
141. [1] 159234-5200 GUIDE SLEEVE
145. [1] 159233-5000 UNION NUT
146. [1] 023020-8040 UNION NUT M8P1H5
147. [1] 139222-0200 UNION NUT
148. [2] 026522-2740 GASKET D26.9&22.2T1
149. [1] 159237-5000 CAP
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-5820 STRAP
156. [1] 159237-0300 BLEEDER SCREW
157. [1] 014110-5440 LOCKING WASHER
158. [1] 159233-5620 UNION NUT
159. [1] 159242-1300 PLATE
160. [1] 159252-1620 LEVER GROUP
160/1. [1] 159202-1400 CONTROL LEVER
160/2. [1] 159202-1520 CONTROL LEVER
160/3. [1] 016010-0610 LOCKING WASHER
160/4. [1] 159215-3300 COILED SPRING
160/5. [1] 159205-3310 CONTROL LEVER
160/6. [1] 016010-0810 LOCKING WASHER
167. [1] 029621-0080 PACKING RING
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159268-0520 CONTROL LEVER
171. [1] 014110-8440 LOCKING WASHER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-8000 BLEEDER SCREW
175. [1] 154012-5300 FLAT-HEAD SCREW
176. [1] 159233-7500 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 013020-8040 UNION NUT M8P1.25H7
236. [1] 154390-0000 GASKET
237. [1] 154390-1100 GASKET
250. [1] 159223-4220 BRACKET
251. [2] 154338-6300 COILED SPRING
252. [1] 020118-1640 BLEEDER SCREW
254. [2] 020106-1240 BLEEDER SCREW M6P1.0L12
257. [2] 154156-3400 TUBE
300. [1] 159288-4500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
310. [1] 026516-2040 GASKET D19.9&16.2T1
311. [1] 159237-0100 CAPSULE

Include in #1:

101608-9560 as GOVERNOR
101608-9561
101701-9140

Cross reference number

Zexel num
Bosch num
Firm num
Name
105921-9580
9 420 611 780
NP-EP/RLD275-1600A1CFR
19101Z6803  NISSAN-DIESEL
GOVERNOR
K




Information:

Water Pump
Inspection of Water Pump
If the inspection of the impeller and shaft finds abnormal noise or rough rotation, replace the assembly.
Inspection of impeller and shaft rotation conditionThermostat
Disassembly of Thermostat
Inspection of Thermostat
To test the thermostat operation, immerse the thermostat in a container filled with water, and heat the water while measuring the water temperature. Record the temperature at which the valve starts to open and the temperature at which the valve lift becomes 8 mm [0.3 in.] or more. (a) Stir the water in the container to ensure uniform temperature distribution.(b) When installing the thermostat, be sure to check the valve opening temperature indication stamped on the upper face of the thermostat mounting flange.
Inspection of thermostatOverheat Warning Unit (Thermo Switch)
Inspection of Overheat Warning Unit
Immerse the temperature sensor in oil, and measure the resistance while increasing the oil temperature. If the temperature measurement exceeds the standard value significantly, replace the thermo switch.
Since the inspection requires heating of oil to high temperatures, be careful not to get burns or start a fire.
Overheat warning unit

Have questions with 105921-9580?





Group cross 105921-9580 ZEXEL

Nissan-Diesel

105921-9500
9 420 611 778
NP-EP/RLD275-1650A1FFR
19101Z6771
GOVERNOR
105921-9510
F 019 Z5E 494
NP-EP/RLD275-1600A1FXR
19101Z6772
GOVERNOR
105921-9520
F 019 Z5E 495
NP-EP/RLD275-1600A1FXR
19101Z6773
GOVERNOR
105921-9530
F 019 Z5E 496
NP-EP/RLD275-1600A1FXR
19101Z6774
GOVERNOR
105921-9540



Nissan-Diesel

105921-9550
9 420 611 779
NP-EP/RLD275-1650A1FFR
19101Z6770
GOVERNOR
105921-9560
F 019 Z5E 497
NP-EP/RLD275-1600A1CFR
19101Z6802
GOVERNOR
105921-9570
F 019 Z5E 498
NP-EP/RLD275-1650A1FFR
19101Z6806
GOVERNOR
105921-9580
9 420 611 780
NP-EP/RLD275-1600A1CFR
19101Z6803
GOVERNOR
105921-9590

105921-9591
9 420 611 781

GOVERNOR

Nissan-Diesel

105921-9591

105921-9592
F 01G 29N 02Y
19101Z6778
GOVERNOR
105921-9592

105921-9593
9 420 614 528
19101Z6901
GOVERNOR
105921-9593
F 01G 29N 02Z
NP-EP/RLD275-1600A1FXR

GOVERNOR
