105921-9470 ZEXEL 9 420 611 776 BOSCH GOVERNOR 9420611776 1059219470




Information governor

BOSCH 9 420 611 776 9420611776
ZEXEL 105921-9470 1059219470
105921-9470 GOVERNOR
Rating:
59
Buy GOVERNOR 105921-9470 zexel genuine, new aftermarket engine parts with delivery

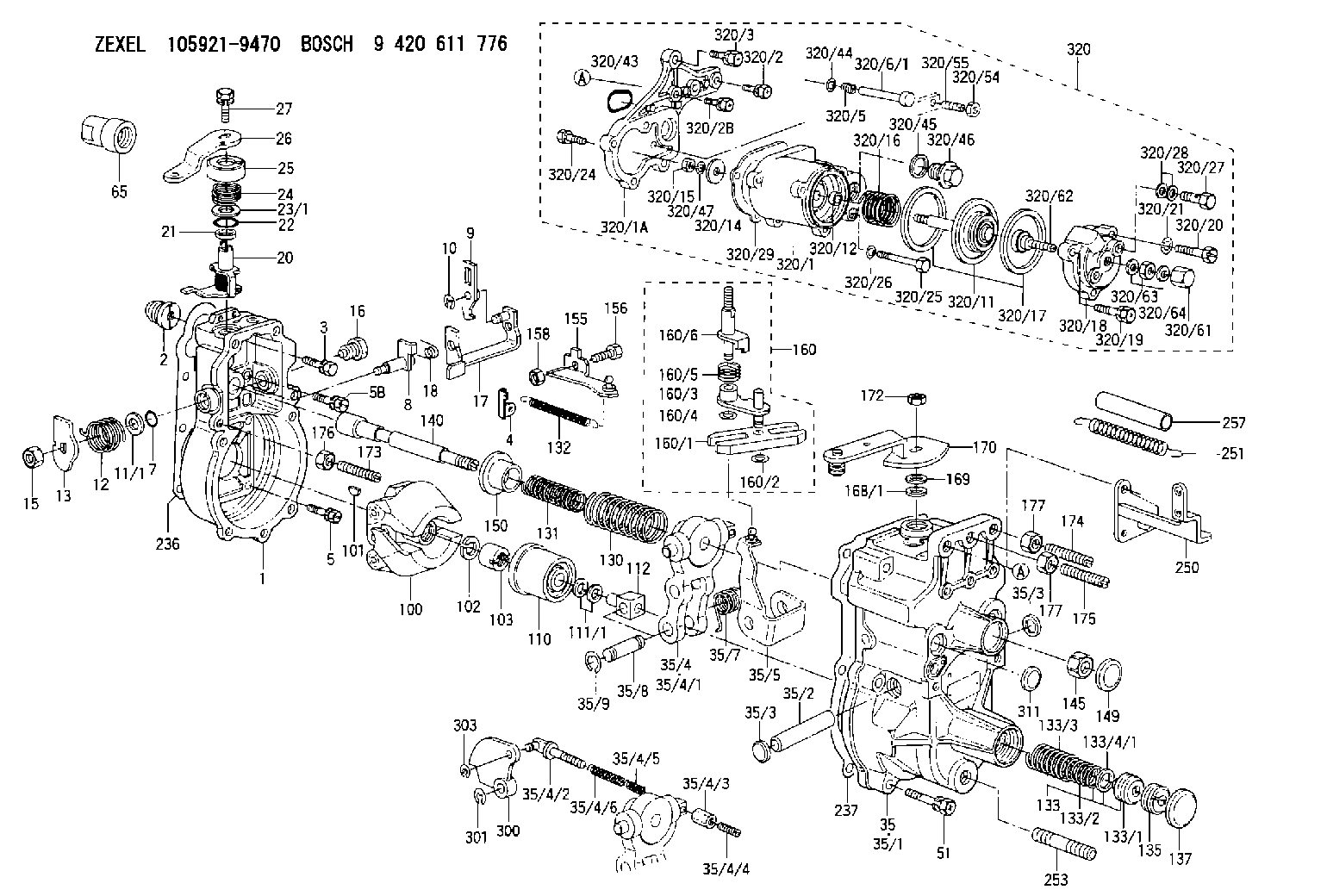

Scheme ###:

1. [1] 159200-3220 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-2720 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 016530-1010 O-RING
8. [1] 159205-2821 LEVER SHAFT
9. [1] 159202-2900 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0500 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-5200 CAPSULE
17. [1] 159202-3320 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159242-0920 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING &9.8W2.3
23/1. [0] 139410-1300 SHIM D20.8&10.2T0.3
23/1. [0] 139410-1700 SHIM D20.8&10.2T0.2
23/1. [0] 139410-1800 SHIM D20.8&10.2T0.4
23/1. [0] 139410-2800 SHIM D20.8&10.2T0.6
23/1. [0] 139410-3700 SHIM D20.8&10.2T0.9
24. [1] 159215-3100 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159249-9100 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159251-7520 GOVERNOR COVER
35/1. [1] 159201-5521 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-1120 TENSIONING LEVER
35/4/1. [1] 159203-1120 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-6020 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-2000 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-1020 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-3200 GOVERNOR SPRING
131. [1] 159211-1300 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159212-9720 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-3300 COILED SPRING
133/3. [1] 159212-5700 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-7820 STRAP
156. [1] 159233-5800 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT M5P0.8H4
160. [1] 159252-1121 LEVER GROUP
160/1. [1] 159202-2200 CONTROL LEVER
160/2. [1] 016010-0810 LOCKING WASHER
160/3. [1] 159202-3120 CONTROL LEVER
160/4. [1] 016010-0810 LOCKING WASHER
160/5. [1] 159215-2600 COILED SPRING
160/6. [1] 159205-2922 LEVER SHAFT
168/1. [0] 139410-1200 SHIM D26&10.2T0.3
168/1. [0] 139410-1900 SHIM D26&10.2T0.2
168/1. [0] 139410-2000 SHIM D26&10.2T0.4
168/1. [0] 139410-2400 SHIM D26&10.2T0.35
168/1. [0] 139410-2500 SHIM D26&10.2T0.25
168/1. [0] 139410-2900 SHIM D26&10.2T0.6
169. [1] 139410-2100 SHIM
170. [1] 159266-3920 CONTROL LEVER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
174. [1] 154010-0100 FLAT-HEAD SCREW
175. [1] 154010-0100 FLAT-HEAD SCREW
176. [1] 029240-6010 UNION NUT M6P1.0H5*
177. [2] 154011-0100 HEXAGON NUT
177. [2] 154011-0100 HEXAGON NUT
236. [1] 154390-0000 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159226-7720 BRACKET
251. [1] 154332-8000 COILED SPRING
253. [1] 139010-0000 STUD
257. [1] 154156-0600 TUBE
300. [1] 159288-6500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE
320. [1] 154422-1220 MANIFOLD-PRESSURE COMP.
320/1. [1] 154408-9520 GOVERNOR HOUSING
320/1A. [1] 154412-8600 SPACER BUSHING
320/2. [1] 020106-2240 BLEEDER SCREW
320/2B. [2] 020106-2540 BLEEDER SCREW M6P1L25
320/3. [1] 020118-3240 BLEEDER SCREW
320/5. [1] 159275-1400 COILED SPRING
320/6/1. [1] 159274-0120 STOP PIN L125
320/6/1. [1] 159274-0220 STOP PIN L127.50
320/6/1. [1] 159274-0320 STOP PIN L128.00
320/6/1. [1] 159274-0420 STOP PIN L127.00
320/6/1. [1] 159274-0520 STOP PIN L126.00
320/6/1. [1] 159274-0620 STOP PIN L129.00
320/6/1. [1] 159274-0720 STOP PIN L128.50
320/6/1. [1] 159274-0820 STOP PIN L125.50
320/6/1. [1] 159274-0920 STOP PIN L126.50
320/6/1. [1] 159274-1120 STOP PIN L119.5
320/6/1. [1] 159274-1220 STOP PIN L120
320/6/1. [1] 159274-1320 STOP PIN L120.5
320/6/1. [1] 159274-1420 STOP PIN L121
320/6/1. [1] 159274-1520 STOP PIN L121.5
320/6/1. [1] 159274-1620 STOP PIN L122
320/6/1. [1] 159274-1720 STOP PIN L122.5
320/6/1. [1] 159274-1820 STOP PIN L123
320/6/1. [1] 159274-1920 STOP PIN L123.5
320/6/1. [1] 159274-4220 STOP PIN L129.5
320/6/1. [1] 159274-4320 STOP PIN L130
320/6/1. [1] 159274-4420 STOP PIN L130.5
320/6/1. [1] 159274-4520 STOP PIN L131
320/6/1. [1] 159274-4620 STOP PIN L131.5
320/6/1. [1] 159274-4720 STOP PIN L132
320/6/1. [1] 159274-4820 STOP PIN L132.5
320/6/1. [1] 159274-4920 STOP PIN L133
320/6/1. [1] 159274-5020 STOP PIN L133.5
320/11. [1] 154400-8521 DIAPHRAGM
320/12. [1] 154413-1400 BUSHING
320/14. [1] 154406-5500 SLOTTED WASHER
320/15. [1] 013030-6040 UNION NUT M6P1H3.6
320/16. [1] 154416-9800 COILED SPRING
320/17. [2] 154413-2600 GASKET
320/18. [1] 154404-5000 COVER
320/19. [1] 020106-2040 BLEEDER SCREW M6P1L20
320/20. [2] 139006-7000 BLEEDER SCREW
320/21. [2] 014110-6440 LOCKING WASHER
320/24. [3] 020106-2540 BLEEDER SCREW M6P1L25
320/25. [1] 139006-1300 BLEEDER SCREW M6P1L76
320/26. [1] 029320-6010 LOCKING WASHER
320/27. [1] 029731-0180 EYE BOLT
320/28. [2] 029341-0110 GASKET
320/29. [1] 154413-2800 GASKET
320/43. [1] 159226-4500 SPACER RING
320/44. [1] 014010-5140 PLAIN WASHER D12&5.5T0.8
320/45. [1] 029331-8040 GASKET
320/46. [1] 154406-5800 FLAT-HEAD SCREW
320/47. [1] 014110-6440 LOCKING WASHER
320/54. [1] 013030-6040 UNION NUT M6P1H3.6
320/55. [1] 154404-4800 FLAT-HEAD SCREW
320/61. [1] 154035-1600 CAP NUT
320/62. [1] 154404-4400 FLAT-HEAD SCREW
320/63. [1] 013030-6040 UNION NUT M6P1H3.6
320/64. [2] 026506-1040 GASKET D9.9&6.2T1

Include in #1:

101691-3040 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105921-9470
9 420 611 776
NP-EP/RLD350-1650A1EXR

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV




Information:

3406B and 3406C Non-Peec Engines
Steps 4 through 7 do not apply to PEEC engines.
Illustration 16. Install Lever Assembly
(1) 6N-3646 Lever. (2) 5P-0537 Washer. (3) 6V-8918 Bolt. (4) 9M-3858 Rack Preload Spring. (5) 1B-7182 Bolt.4. Install lever (1) with washer (2) and bolt (3).5. Install bolt (5) into hole as shown.6. Hook spring (4) between bolt (5) and lever (1).
Illustration 17. Install Rack Positioning Assembly
(1) 9U-5296 Rack Assembly. (2) Original cover mounting bolts or 4F-7957 Bolt.7. Install rack positioning assembly (1) with bolts (2). Use rack positioning assembly (1) as a "fuel ON" and "fuel OFF" control. Position the assembly to the full "fuel ON" position for all tests. Use the positioning assembly for rack adjustment.3406 Peec Engines
Steps 8 and 9 do not apply to Non-PEEC engines.
Illustration 18. Installing testing hardware for 3406 PEEC Engines
(1) 9U-5292 Rack Preload Assembly. (2) 9U-5120 Spanner Wrench. (3) 9U-5295 Positioning Assembly.8. Remove the BTM from the injection pump and install the 9U-5292 Rack Preload Assembly (1). Make sure the pin is properly located in the slot of the servo shaft. After installing the rack preload assembly, finger tighten the bolts.9. Remove the shut-off solenoid with a 9U-5120 Spanner Wrench (2) and install 9U-5295 Positioning Assembly (3). Use rack preload assembly (1) as a "fuel ON" and "fuel OFF" control. Position the assembly to the full "fuel ON" position for all tests. Use the positioning assembly for rack adjustment.Connect Hoses and Lines
Illustration 19. Connect Lube Oil Supply and Drain Hose
(1) 7G-7105 Hose. (2) 5P-6661 Fitting. (3) 9U-7709 Oil Drain Tube and two 5D-1026 Hose Clamps.
Illustration 20. Connect Fuel Supply and Return Lines
(4) 030-7947 Fitting, 3J-1907 O-ring Seal, and 7G-7105 Hose. (5) 8T-2160 Orifice Fitting, 3J-1907 O-ring Seal, and 7G-7105 Hose. (6) 9U-5298 Fuel Injection Line Tube Assembly (verify fuel line part number in TMI).1. Attach one end of hose (1) to the Lube Oil Supply fitting on the test stand. Attach the other end to the 5P-6661 Fitting on the rear support.2. Connect the oil drain tube (2) to the rear support and the test stand's stand-pipe with two hose clamps. On the AVM20-12C, the drain hose can be routed to the lube oil drain pan.3. Install fitting, O-ring, and hose (4) onto the fuel injection pump. Connect the other end of the hose to the "Test Oil Supply" connection on the test stand.4. Install fitting, O-ring, and hose (5) onto the fuel injection pump. Connect the other end of the hose to the "Test Oil Return" connection on the test stand.
Hold nut on 9U-6705 Master Nozzle when tightening fuel injection line tube assemblies (6). If the nut is not held in place during tightening, the master nozzle can be damaged.
5. Install six fuel injection line tube assemblies (6).Pre-Test Checks
1. Remove the lock-out on the electrical box, if installed.2. Release the Emergency Stop button.3. Start the bench and visually check for oil leaks from covers, hoses, etc.4. Check for oil flow through the drain tube. Also, check for oil flowing out of the oil
