Information governor
BOSCH
F 01G 29N 0GV
f01g29n0gv
ZEXEL
105921-9133
1059219133

Rating:

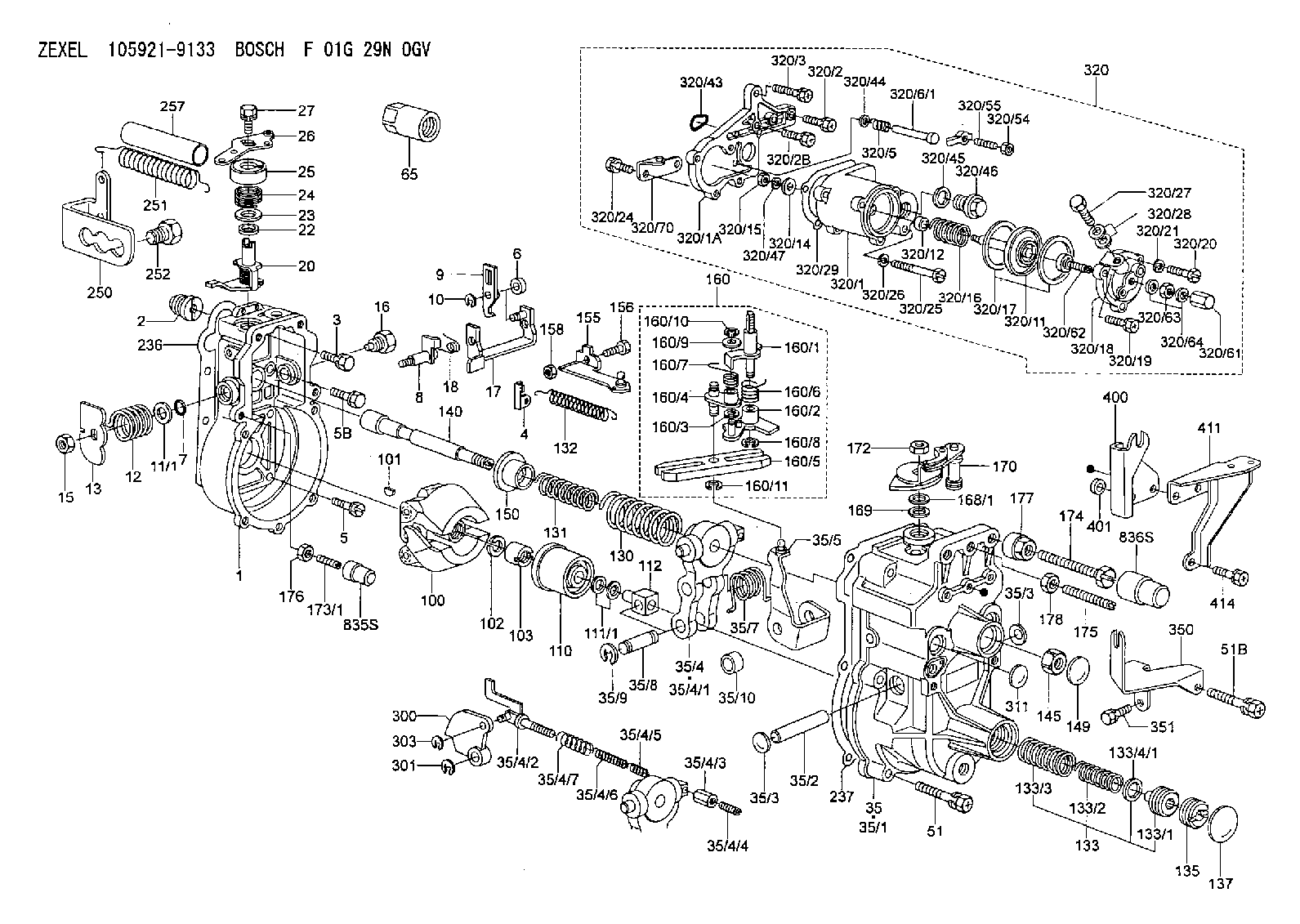

Scheme ###:
1. | [1] | 159200-8820 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW |
4. | [1] | 159232-1600 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW |
6. | [1] | 159242-0600 | BUSHING |
7. | [1] | 016530-1010 | O-RING |
8. | [1] | 159205-2821 | LEVER SHAFT |
9. | [1] | 159202-7500 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0500 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-4220 | CONTROL LEVER |
18. | [1] | 159215-0600 | COILED SPRING |
20. | [1] | 159291-2920 | CONTROL LEVER |
22. | [1] | 139610-0400 | PACKING RING |
23. | [1] | 139411-0700 | SHIM D22&11T0.7 |
23B. | [1] | 153305-0100 | SHIM D22&11T0.5 |
24. | [1] | 159215-3100 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159291-6720 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW |
35. | [1] | 159255-1220 | GOVERNOR COVER |
35/1. | [1] | 159201-5521 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-1520 | TENSIONING LEVER |
35/4/1. | [1] | 159203-1420 | TENSIONING LEVER |
35/4/2. | [1] | 159204-6322 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/4/7. | [1] | 159216-0700 | COILED SPRING |
35/5. | [1] | 159203-6220 | GUIDE LEVER |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [6] | 020106-3840 | BLEEDER SCREW |
51B. | [1] | 020106-4540 | BLEEDER SCREW |
65. | [1] | 155404-5700 | CAP |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-8200 | GOVERNOR SPRING |
131. | [1] | 159211-3400 | GOVERNOR SPRING |
132. | [1] | 159214-0300 | COILED SPRING |
133. | [1] | 159219-3620 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-5500 | COILED SPRING |
133/3. | [1] | 159212-5300 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-7520 | STRAP |
156. | [1] | 159233-0620 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT |
160. | [1] | 159252-2321 | LEVER GROUP |
160/1. | [1] | 159205-3921 | LEVER SHAFT |
160/2. | [1] | 159202-4420 | CONTROL LEVER |
160/3. | [1] | 029310-6030 | SHIM |
160/4. | [1] | 159202-4520 | CONTROL LEVER |
160/5. | [1] | 159202-2200 | CONTROL LEVER |
160/6. | [1] | 159215-2600 | COILED SPRING |
160/7. | [1] | 159215-3600 | COILED SPRING |
160/8. | [1] | 016010-0810 | LOCKING WASHER |
160/9. | [1] | 014020-6140 | PLAIN WASHER D11.5&6.5 |
160/10. | [1] | 016010-0610 | LOCKING WASHER |
160/11. | [1] | 016010-0810 | LOCKING WASHER |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159269-5720 | CONTROL LEVER |
172. | [1] | 013020-8040 | UNION NUT |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-7200 | BLEEDER SCREW |
175. | [1] | 154013-1600 | FLAT-HEAD SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-2800 | UNION NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159222-6120 | BRACKET |
251. | [2] | 159243-4700 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
257. | [2] | 154156-0500 | TUBE |
300. | [1] | 159288-3200 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
320. | [1] | 154422-8620 | MANIFOLD-PRESSURE COMP. |
320/1. | [1] | 154408-9520 | GOVERNOR HOUSING |
320/1A. | [1] | 154412-8600 | SPACER BUSHING |
320/2. | [2] | 020106-2840 | BLEEDER SCREW |
320/2B. | [1] | 020106-2540 | BLEEDER SCREW |
320/3. | [1] | 020118-2840 | BLEEDER SCREW |
320/5. | [1] | 159275-1400 | COILED SPRING |
320/6/1. | [1] | 159274-0120 | STOP PIN L125 |
320/6/1. | [1] | 159274-0220 | STOP PIN L127.50 |
320/6/1. | [1] | 159274-0320 | STOP PIN L128.00 |
320/6/1. | [1] | 159274-0420 | STOP PIN L127.00 |
320/6/1. | [1] | 159274-0520 | STOP PIN L126.00 |
320/6/1. | [1] | 159274-0620 | STOP PIN L129.00 |
320/6/1. | [1] | 159274-0720 | STOP PIN L128.50 |
320/6/1. | [1] | 159274-0820 | STOP PIN L125.50 |
320/6/1. | [1] | 159274-0920 | STOP PIN L126.50 |
320/6/1. | [1] | 159274-1120 | STOP PIN L119.5 |
320/6/1. | [1] | 159274-1220 | STOP PIN L120 |
320/6/1. | [1] | 159274-1320 | STOP PIN L120.5 |
320/6/1. | [1] | 159274-1420 | STOP PIN L121 |
320/6/1. | [1] | 159274-1520 | STOP PIN L121.5 |
320/6/1. | [1] | 159274-1620 | STOP PIN L122 |
320/6/1. | [1] | 159274-1720 | STOP PIN L122.5 |
320/6/1. | [1] | 159274-1820 | STOP PIN L123 |
320/6/1. | [1] | 159274-1920 | STOP PIN L123.5 |
320/6/1. | [1] | 159274-4220 | STOP PIN L129.5 |
320/6/1. | [1] | 159274-4320 | STOP PIN L130 |
320/6/1. | [1] | 159274-4420 | STOP PIN L130.5 |
320/6/1. | [1] | 159274-4520 | STOP PIN L131 |
320/6/1. | [1] | 159274-4620 | STOP PIN L131.5 |
320/6/1. | [1] | 159274-4720 | STOP PIN L132 |
320/6/1. | [1] | 159274-4820 | STOP PIN L132.5 |
320/6/1. | [1] | 159274-4920 | STOP PIN L133 |
320/6/1. | [1] | 159274-5020 | STOP PIN L133.5 |
320/11. | [1] | 154400-8521 | DIAPHRAGM |
320/12. | [1] | 154413-1400 | BUSHING |
320/14. | [1] | 154406-5500 | SLOTTED WASHER |
320/15. | [1] | 013030-6040 | UNION NUT |
320/16. | [1] | 154416-0100 | COILED SPRING |
320/17. | [2] | 154413-2600 | GASKET |
320/18. | [1] | 154404-5100 | COVER |
320/19. | [1] | 020106-2040 | BLEEDER SCREW |
320/20. | [2] | 139006-7000 | BLEEDER SCREW |
320/21. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
320/24. | [3] | 020106-2540 | BLEEDER SCREW |
320/25. | [1] | 139006-1300 | BLEEDER SCREW |
320/26. | [1] | 029320-6010 | LOCKING WASHER |
320/27. | [1] | 029731-0180 | EYE BOLT |
320/28. | [2] | 026510-1340 | GASKET |
320/29. | [1] | 154413-2800 | GASKET |
320/43. | [1] | 159226-4500 | SPACER RING |
320/44. | [1] | 014010-5140 | PLAIN WASHER |
320/45. | [1] | 029331-8040 | GASKET |
320/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
320/47. | [1] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
320/54. | [1] | 013030-6040 | UNION NUT |
320/55. | [1] | 154404-4800 | FLAT-HEAD SCREW |
320/61. | [1] | 154035-1600 | CAP NUT |
320/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
320/63. | [1] | 013030-6040 | UNION NUT |
320/64. | [2] | 026506-1040 | GASKET |
320/70. | [1] | 159245-5420 | BRACKET |
350. | [1] | 159223-2000 | BRACKET |
351. | [1] | 020106-1040 | BLEEDER SCREW M6P1.0L12 |
400. | [1] | 159223-2100 | BRACKET |
401. | [1] | 159227-5600 | BUSHING |
411. | [1] | 159222-6220 | BRACKET |
414. | [1] | 020106-1240 | BLEEDER SCREW |
835S. | [1] | 154062-1900 | CAP |
836S. | [1] | 154062-1700 | CAP |
Include in #1:
101401-9824
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Adjusting the engine speeds
To adjust engine speed, remove the cooling fan and install the safety cover over the fan to prevent getting hurt. For speed adjustment specification, see 8-05.(1) The upper limit of engine speed can be adjusted with the HIGH-SPEED stopper bolt.This stopper bolt has been set properly and sealed in the factory before shipping of the engine. Never tamper with the seal unless it is necessary.(2) The lower limit of engine speed can be adjusted with the LOW-SPEED stopper bolt.(3) Never remove the sealing cap unnecessarily to adjust the torque spring set. For the proper disassembling procedure, see 4-02. CAUTION Warm up the engine (until coolant temperature rises up to 60°C or above) before adjusting engine speeds.(4) During running of the engine for speed adjustment, check the engine for gas leak, water leak, oil leak, and fuel leak.(5) After adjustment, perform engine acceleration and deceleration test to confirm that the engine is free from hunting and smoking.
HIGH-SPEED and LOW-SPEED Set BoltsChecking and adjustment of nozzles
To check and adjust the injection nozzles, use the following procedure:1. Injection start pressure(1) Remove the nozzle assembly to be tested from the cylinder head and set the nozzle on the nozzle tester.Perform air bleeding by moving the tester handle up and down.(2) Operate the handle at a speed of 60 rpm or more and read the gauge pressure of fuel injected from the nozzle.* Injection start pressure: 140 +10-0kgf/cm2 [13.7+1.0-0 MPa(3) If reading of gauge pressure is not within the specified range, disassemble the nozzle and vary thickness of the adjusting shim.Increasing or decreasing shim thickness by 0.1 mm will cause injection pressure to vary about 10 kgf/cm2 [0.98 MPa]
Testing Injection Start Pressure(4) When installing the nozzle, use the following values of tightening torque:* Nozzle tightening (to cylinder head) torque: 5.0 - 6.0 kgf m [49 - 59 N m]* Nozzle retaining nut tightening torque: 3.5 - 4.0 kgf m [34 - 39 N m]* Nozzle union collar tightening torque: 2.5 - 3.0 kgf m [25 - 29 N m]
Installing Nozzle Assembly2. Chattering testOperate the tester handle at a speed of about 1 stroke per second.(1) Needle valve oscillationIt is considered normal if the nozzle injects fuel mist, making intermittent sounds, and oscillations of the needle valve are transmitted to the handle.(2) State of fuel mist injectionThe nozzle should inject fuel mist straight in the direction of its axis. A nozzle is defective if it does not inject steadily or it injects fuel in several separate stripes.A nozzle is defective if it spills fuel accumulated on the bottom of the nozzle after chattering test. However, a very small drop of fuel remaining on the tip of nozzle after chattering test may be regarded as normal.
Charttering Test
After-spilling3. Injection testOperate the tester handle at a speed of 4 to 6 strokes per second.* A nozzle should inject fuel mist uniformly in the shape of a cone.4. Checking the compression pressure(1) Make sure of the following:(a) All of the engine oil level, air cleaner,
