Information governor
BOSCH
9 420 610 583
9420610583
ZEXEL
105921-9130
1059219130

Rating:

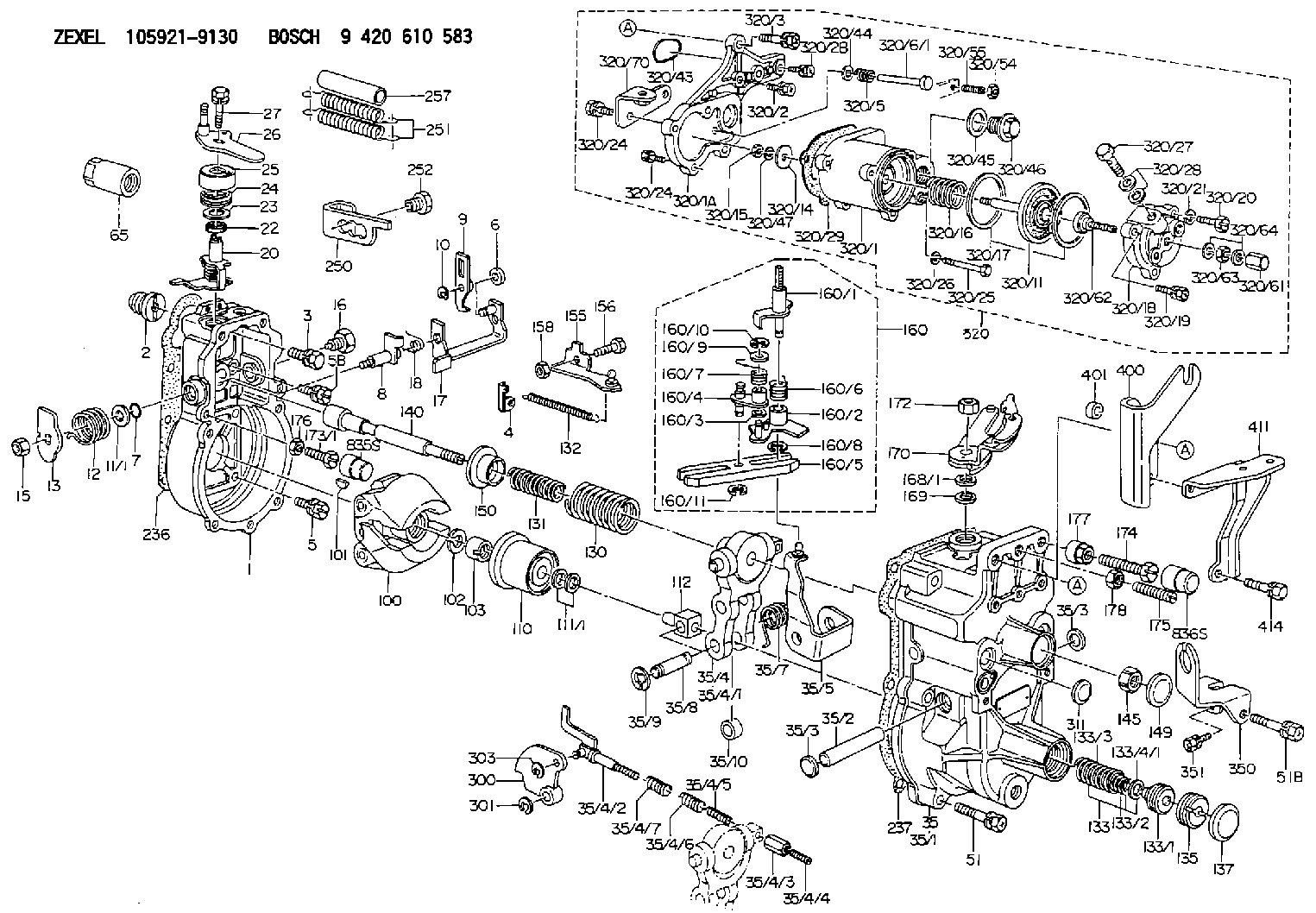

Scheme ###:
1. | [1] | 159200-8820 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-1600 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
6. | [1] | 159242-0600 | BUSHING |
7. | [1] | 016530-1010 | O-RING |
8. | [1] | 159205-2821 | LEVER SHAFT |
9. | [1] | 159202-7500 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0500 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-4220 | CONTROL LEVER |
18. | [1] | 159215-0600 | COILED SPRING |
20. | [1] | 159291-2920 | CONTROL LEVER |
22. | [1] | 139610-0400 | PACKING RING |
23. | [1] | 139411-0700 | SHIM D22&11T0.7 |
23B. | [1] | 153305-0100 | SHIM D22&11T0.5 |
24. | [1] | 159215-3100 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159291-5120 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159255-1220 | GOVERNOR COVER |
35/1. | [1] | 159201-5521 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-1520 | TENSIONING LEVER |
35/4/1. | [1] | 159203-1420 | TENSIONING LEVER |
35/4/2. | [1] | 159204-6322 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/4/7. | [1] | 159216-0700 | COILED SPRING |
35/5. | [1] | 159203-6220 | GUIDE LEVER |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [6] | 020106-3840 | BLEEDER SCREW |
51B. | [1] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
65. | [1] | 155404-5700 | CAP |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-8200 | GOVERNOR SPRING |
131. | [1] | 159211-3400 | GOVERNOR SPRING |
132. | [1] | 159214-0300 | COILED SPRING |
133. | [1] | 159219-3620 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-5500 | COILED SPRING |
133/3. | [1] | 159212-5300 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-7520 | STRAP |
156. | [1] | 159233-0620 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
160. | [1] | 159252-2321 | LEVER GROUP |
160/1. | [1] | 159205-3921 | LEVER SHAFT |
160/2. | [1] | 159202-4420 | CONTROL LEVER |
160/3. | [1] | 029310-6030 | SHIM D11.5&6.2T0.2 |
160/4. | [1] | 159202-4520 | CONTROL LEVER |
160/5. | [1] | 159202-2200 | CONTROL LEVER |
160/6. | [1] | 159215-2600 | COILED SPRING |
160/7. | [1] | 159215-3600 | COILED SPRING |
160/8. | [1] | 016010-0810 | LOCKING WASHER |
160/9. | [1] | 014020-6140 | PLAIN WASHER |
160/10. | [1] | 016010-0610 | LOCKING WASHER |
160/11. | [1] | 016010-0810 | LOCKING WASHER |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159269-5720 | CONTROL LEVER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
175. | [1] | 154013-1600 | FLAT-HEAD SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-2800 | UNION NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159222-6120 | BRACKET |
251. | [2] | 159243-4700 | COILED SPRING |
252. | [1] | 159248-0200 | BLEEDER SCREW |
257. | [2] | 154156-0500 | TUBE |
300. | [1] | 159288-3200 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
320. | [1] | 154421-8820 | MANIFOLD-PRESSURE COMP. |
320/1. | [1] | 154408-9520 | GOVERNOR HOUSING |
320/1A. | [1] | 154412-8600 | SPACER BUSHING |
320/2. | [2] | 020106-2840 | BLEEDER SCREW |
320/2B. | [1] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/3. | [1] | 020118-2840 | BLEEDER SCREW |
320/5. | [1] | 159275-1400 | COILED SPRING |
320/6/1. | [1] | 159274-0120 | STOP PIN L125 |
320/6/1. | [1] | 159274-0220 | STOP PIN L127.50 |
320/6/1. | [1] | 159274-0320 | STOP PIN L128.00 |
320/6/1. | [1] | 159274-0420 | STOP PIN L127.00 |
320/6/1. | [1] | 159274-0520 | STOP PIN L126.00 |
320/6/1. | [1] | 159274-0620 | STOP PIN L129.00 |
320/6/1. | [1] | 159274-0720 | STOP PIN L128.50 |
320/6/1. | [1] | 159274-0820 | STOP PIN L125.50 |
320/6/1. | [1] | 159274-0920 | STOP PIN L126.50 |
320/6/1. | [1] | 159274-1120 | STOP PIN L119.5 |
320/6/1. | [1] | 159274-1220 | STOP PIN L120 |
320/6/1. | [1] | 159274-1320 | STOP PIN L120.5 |
320/6/1. | [1] | 159274-1420 | STOP PIN L121 |
320/6/1. | [1] | 159274-1520 | STOP PIN L121.5 |
320/6/1. | [1] | 159274-1620 | STOP PIN L122 |
320/6/1. | [1] | 159274-1720 | STOP PIN L122.5 |
320/6/1. | [1] | 159274-1820 | STOP PIN L123 |
320/6/1. | [1] | 159274-1920 | STOP PIN L123.5 |
320/6/1. | [1] | 159274-4220 | STOP PIN L129.5 |
320/6/1. | [1] | 159274-4320 | STOP PIN L130 |
320/6/1. | [1] | 159274-4420 | STOP PIN L130.5 |
320/6/1. | [1] | 159274-4520 | STOP PIN L131 |
320/6/1. | [1] | 159274-4620 | STOP PIN L131.5 |
320/6/1. | [1] | 159274-4720 | STOP PIN L132 |
320/6/1. | [1] | 159274-4820 | STOP PIN L132.5 |
320/6/1. | [1] | 159274-4920 | STOP PIN L133 |
320/6/1. | [1] | 159274-5020 | STOP PIN L133.5 |
320/11. | [1] | 154400-8521 | DIAPHRAGM |
320/14. | [1] | 154406-5500 | SLOTTED WASHER |
320/15. | [1] | 013030-6010 | UNION NUT |
320/16. | [1] | 154403-5900 | COILED SPRING |
320/17. | [2] | 154413-2600 | GASKET |
320/18. | [1] | 154404-5100 | COVER |
320/19. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
320/20. | [2] | 139006-7000 | BLEEDER SCREW |
320/21. | [2] | 014110-6440 | LOCKING WASHER |
320/24. | [3] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/24. | [3] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/25. | [1] | 139006-1300 | BLEEDER SCREW M6P1L76 |
320/26. | [1] | 029320-6010 | LOCKING WASHER |
320/27. | [1] | 029731-0180 | EYE BOLT |
320/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
320/29. | [1] | 154413-2800 | GASKET |
320/43. | [1] | 159226-4500 | SPACER RING |
320/44. | [1] | 014010-5140 | PLAIN WASHER D12&5.5T0.8 |
320/45. | [1] | 029331-8040 | GASKET |
320/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
320/47. | [1] | 014110-6440 | LOCKING WASHER |
320/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/55. | [1] | 154404-4800 | FLAT-HEAD SCREW |
320/61. | [1] | 154035-1600 | CAP NUT |
320/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
320/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
320/70. | [1] | 159245-5420 | BRACKET |
350. | [1] | 159223-2000 | BRACKET |
351. | [1] | 020106-1040 | BLEEDER SCREW M6P1L12 |
400. | [1] | 159223-2100 | BRACKET |
401. | [1] | 159227-5600 | BUSHING |
411. | [1] | 159222-6220 | BRACKET |
414. | [1] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
Include in #1:
101401-9821
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Setting rack(4) Setting governor (setting maximum speed )(a) While applying the full load to the engine, hold the speed control lever in the specified maximum speed position.(b) Adjust the governor setting bolt (maximum speed setting bolt) to the specified speed position, and set it there.
Setting governor(5) Setting torque spring (optional specification)Set the speed control lever at the maximum speed, and apply the load to the engine. Turn the torque spring adjusting screw until the engine delivers the specified output at the specified speed. Fix the screw with the locknut, and install a cap to the lock nut.
Setting torque spring(6) Measuring speed variationMeasurement of speed variation at removal of load.(a) Operate the speed control to set the engine at the rated output and speed.(b) From this condition, instantaneously remove the load to put the engine into the no-load condition. Operate the engine with the speed control lever fixed.(c) The engine speed temporarily jumps up then lowers and stabilizes. Record the momentary maximum speed, stabilized speed, and time from the removal of the load to the stabilization of the speed.Measurement of speed variation at application of load.From the no-load condition, instantaneously apply the specified load to the engine. Record the momentary maximum speed, stabilized speed, and time from the application of the load to the stabilization of the speed.Calculation of speed variationCalculate the speed variation from the measured results. When the speed variation falls outside specified limits, adjust the governor notches.
Measuring speed variation(7) Adjusting speed variation (adjusting governor notches)(a) Adjust the speed variation by turning the adjusting screw of the swivel lever.(b) Remove the plug at the top of the governor, and set the speed control lever to the low idle speed position. The swivel lever turns up to reveal the head of the adjusting screw. Turn the adjusting screw with a flat-head screwdriver.(c) The speed variation decreases as the adjusting screw is tightened and increases as the adjusting screw is loosened. One notch equals a quarter turn of the adjusting screw and changes the engine speed by three to five revolutions.(d) Turning the adjusting screw changes the governor spring tension and hence the maximum speed. Readjust the governor setting bolt.(e) The maximum speed increases as the adjusting screw is tightened and decreases as the adjusting screw is loosened.
The adjusting screw can be loosened by 20 notches (or five turns) from the position where it is fully tightened. It is dangerous if the adjusting screw is loosened more.
Adjusting speed variation(8) SealingSeal each setting bolt.Break-in Operation
When the engine is overhauled, it should be mounted on a dynamometer and operated for break-in and inspection.Starting Up
(1) Before starting the engine, check the levels of coolant, engine oil and fuel, and bleed the fuel and cooling system.(2) With the fuel supply cut off, operate the starter and crank the engine for about 15 seconds to circulate engine oil.(3) Move the speed control lever slightly in the direction for increased fuel (do not move it to "full injection" position), and then turn the starter switch
