Information governor
BOSCH
9 420 610 582
9420610582
ZEXEL
105921-9090
1059219090
NISSAN-DIESEL
19101Z6675
19101z6675

Rating:
Scheme ###:

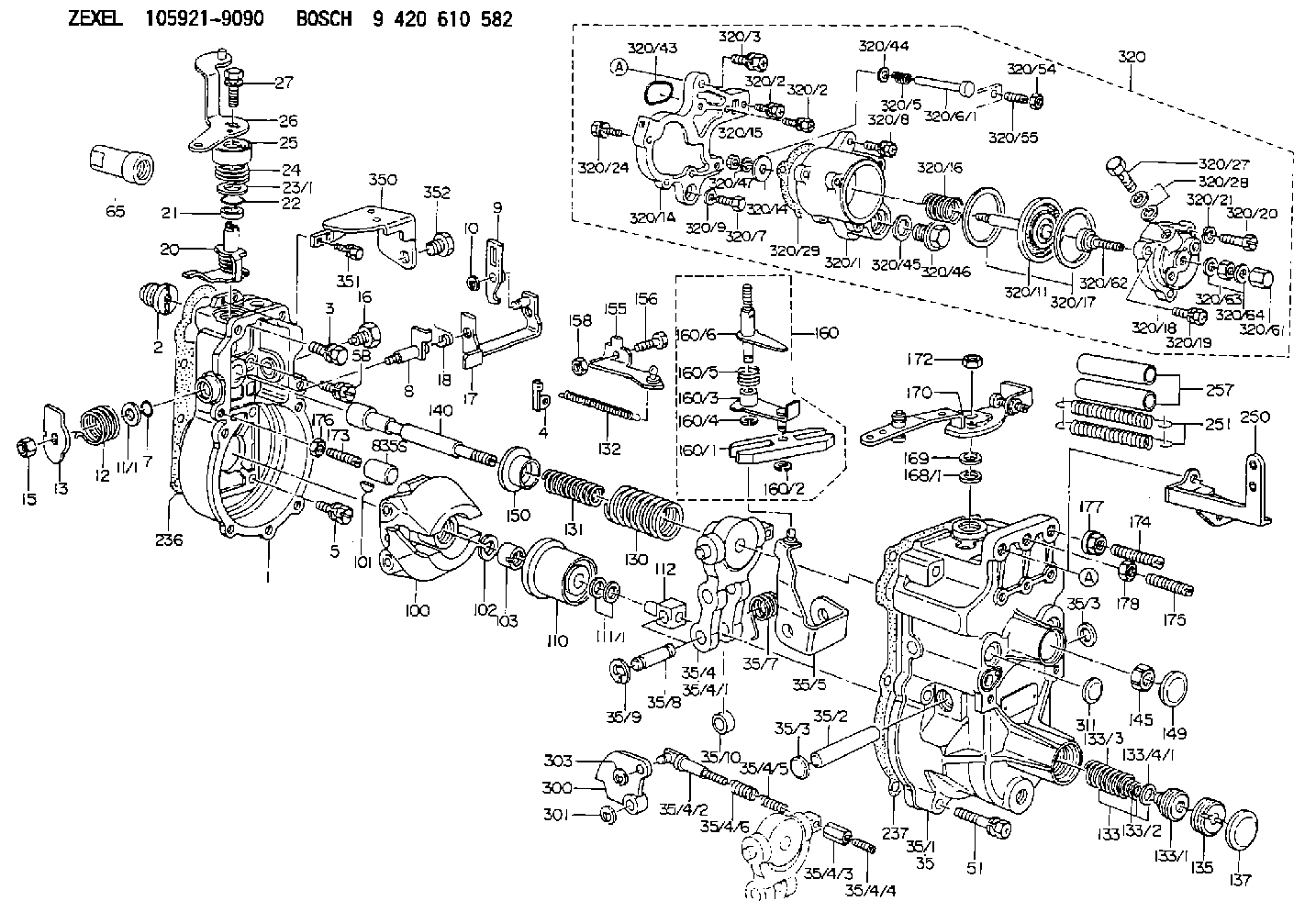

1. | [1] | 159200-6920 | GOVERNOR HOUSING |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
4. | [1] | 159232-0401 | PLATE |
5. | [5] | 029010-6810 | BLEEDER SCREW |
5B. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
7. | [1] | 016530-1010 | O-RING |
8. | [1] | 159205-2821 | LEVER SHAFT |
9. | [1] | 159202-4101 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0500 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-4220 | CONTROL LEVER |
18. | [1] | 159215-0600 | COILED SPRING |
20. | [1] | 159242-0920 | CONTROL LEVER |
21. | [1] | 159242-0600 | BUSHING |
22. | [1] | 029631-0030 | O-RING &9.8W2.3 |
23/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
23/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
23/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
23/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
23/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
23/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
23/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
23/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
23/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
24. | [1] | 159215-3100 | COILED SPRING |
25. | [1] | 159235-5800 | CAP |
26. | [1] | 159290-1920 | CONTROL LEVER |
27. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
35. | [1] | 159250-3520 | GOVERNOR COVER |
35/1. | [1] | 159201-5521 | GOVERNOR COVER |
35/2. | [1] | 159205-0400 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-1720 | TENSIONING LEVER |
35/4/1. | [1] | 159203-1520 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-6220 | GUIDE LEVER |
35/7. | [1] | 159215-1701 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-2900 | BUSHING |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154050-1720 | STOPPING DEVICE |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159210-8000 | GOVERNOR SPRING |
131. | [1] | 159211-2400 | GOVERNOR SPRING |
132. | [1] | 159214-0000 | COILED SPRING |
133. | [1] | 159212-6620 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-5500 | COILED SPRING |
133/3. | [1] | 159212-5200 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
155. | [1] | 159204-5620 | STRAP |
156. | [1] | 159233-0520 | BLEEDER SCREW |
158. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
160. | [1] | 159252-1121 | LEVER GROUP |
160/1. | [1] | 159202-2200 | CONTROL LEVER |
160/2. | [1] | 016010-0810 | LOCKING WASHER |
160/3. | [1] | 159202-3120 | CONTROL LEVER |
160/4. | [1] | 016010-0810 | LOCKING WASHER |
160/5. | [1] | 159215-2600 | COILED SPRING |
160/6. | [1] | 159205-2922 | LEVER SHAFT |
168/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
168/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
168/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
168/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
168/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
168/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
168/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
168/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
168/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
168/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
168/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
169. | [1] | 139410-2300 | SHIM |
170. | [1] | 159263-4620 | CONTROL LEVER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173. | [1] | 154013-4300 | FLAT-HEAD SCREW |
174. | [1] | 154013-4200 | FLAT-HEAD SCREW |
175. | [1] | 154010-0100 | FLAT-HEAD SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-4800 | UNION NUT |
178. | [1] | 154011-0100 | HEXAGON NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159227-5320 | BRACKET |
251. | [2] | 154317-6900 | COILED SPRING |
257. | [2] | 154156-2700 | TUBE |
300. | [1] | 159282-0700 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
320. | [1] | 154420-4620 | MANIFOLD-PRESSURE COMP. |
320/1. | [1] | 154412-0821 | DIAPHRAGM HOUSING |
320/1A. | [1] | 154412-9401 | SPACER BUSHING |
320/2. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/2. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/3. | [1] | 020118-3040 | BLEEDER SCREW |
320/5. | [1] | 159275-1400 | COILED SPRING |
320/6/1. | [1] | 159274-0120 | STOP PIN L125 |
320/6/1. | [1] | 159274-0220 | STOP PIN L127.50 |
320/6/1. | [1] | 159274-0320 | STOP PIN L128.00 |
320/6/1. | [1] | 159274-0420 | STOP PIN L127.00 |
320/6/1. | [1] | 159274-0520 | STOP PIN L126.00 |
320/6/1. | [1] | 159274-0620 | STOP PIN L129.00 |
320/6/1. | [1] | 159274-0720 | STOP PIN L128.50 |
320/6/1. | [1] | 159274-0820 | STOP PIN L125.50 |
320/6/1. | [1] | 159274-0920 | STOP PIN L126.50 |
320/6/1. | [1] | 159274-1120 | STOP PIN L119.5 |
320/6/1. | [1] | 159274-1220 | STOP PIN L120 |
320/6/1. | [1] | 159274-1320 | STOP PIN L120.5 |
320/6/1. | [1] | 159274-1420 | STOP PIN L121 |
320/6/1. | [1] | 159274-1520 | STOP PIN L121.5 |
320/6/1. | [1] | 159274-1620 | STOP PIN L122 |
320/6/1. | [1] | 159274-1720 | STOP PIN L122.5 |
320/6/1. | [1] | 159274-1820 | STOP PIN L123 |
320/6/1. | [1] | 159274-1920 | STOP PIN L123.5 |
320/6/1. | [1] | 159274-4220 | STOP PIN L129.5 |
320/6/1. | [1] | 159274-4320 | STOP PIN L130 |
320/6/1. | [1] | 159274-4420 | STOP PIN L130.5 |
320/6/1. | [1] | 159274-4520 | STOP PIN L131 |
320/6/1. | [1] | 159274-4620 | STOP PIN L131.5 |
320/6/1. | [1] | 159274-4720 | STOP PIN L132 |
320/6/1. | [1] | 159274-4820 | STOP PIN L132.5 |
320/6/1. | [1] | 159274-4920 | STOP PIN L133 |
320/6/1. | [1] | 159274-5020 | STOP PIN L133.5 |
320/7. | [1] | 020306-1640 | BLEEDER SCREW |
320/8. | [3] | 020106-2240 | BLEEDER SCREW |
320/9. | [1] | 139505-0000 | PLAIN WASHER |
320/11. | [1] | 154400-8521 | DIAPHRAGM |
320/14. | [1] | 154406-5500 | SLOTTED WASHER |
320/15. | [1] | 013030-6010 | UNION NUT |
320/16. | [1] | 154402-4500 | COILED SPRING |
320/17. | [2] | 154413-2600 | GASKET |
320/18. | [1] | 154404-5100 | COVER |
320/19. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
320/20. | [2] | 139006-7000 | BLEEDER SCREW |
320/21. | [2] | 014110-6440 | LOCKING WASHER |
320/24. | [2] | 020106-2240 | BLEEDER SCREW |
320/27. | [1] | 029731-0180 | EYE BOLT |
320/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
320/29. | [1] | 154413-2501 | GASKET |
320/43. | [1] | 159226-4500 | SPACER RING |
320/44. | [1] | 014010-5140 | PLAIN WASHER D12&5.5T0.8 |
320/45. | [1] | 029331-8040 | GASKET |
320/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
320/47. | [1] | 014110-6440 | LOCKING WASHER |
320/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/55. | [1] | 154404-4800 | FLAT-HEAD SCREW |
320/61. | [1] | 154035-1600 | CAP NUT |
320/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
320/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
350. | [1] | 159220-0600 | BRACKET |
351. | [2] | 020104-1040 | BLEEDER SCREW |
352. | [1] | 020106-1040 | BLEEDER SCREW M6P1L12 |
Include in #1:
101696-9670
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Installation of Oil Seal Case
(1) Coat the outside surface of the oil seal with engine oil.(2) Install the oil seal on the oil seal case.(3) Coat the lip of the oil seal with engine oil.(4) Install the O-ring into the oil seal case, and install the oil seal case on the flywheel housing. The oil seal case must be installed with the "Q" mark facing up.(5) Secure the oil seal case with the bolts.
Installation of oil seal caseInstallation of Flywheel
(1) Install the flywheel to the crankshaft by aligning the hole with the dowel pin on the back-end of the crankshaft.(2) Place the washer and tighten the four bolts to the specified torque.
Installation of flywheelMeasurement of Flywheel Axial and Radial Runouts
Measure the flywheel runout with the flywheel installed to the crankshaft. If the standard value is exceeded, check the bolts for tightening condition and the mounting face for adhesion of foreign particles.
Measurement of face runout and circular runoutCylinder Head and Valve Mechanisms
Installation of Valve Stem Seals
(1) Apply engine oil to the valve stem, and insert it into the valve guide.(2) Place a new stem seal on the valve guide.(3) Using the stem seal installer, install the stem seal to the valve guide, making use of the valve stem as a guide.
Installation of valve stem sealInstallation of Valves and Valve Springs
(1) Place the valve spring and retainer on the valve guide, and install the valve cotter using the valve spring pusher.
Excessive compression of the valve spring can cause the retainer to contact the stem seal and damage the seal.
Installation of valve and valve spring(2) Using a soft-faced hammer, tap the top of the valve stem several times to make sure that the spring and valve cotter are securely installed.
Confirmation of secure valve cotter installationInstallation of Cylinder Head Gasket
(1) Make sure that the top face of the crankcase and piston upper surfaces are clean and free of dust.(2) Place a new gasket of the crankcase, making sure that the dowel pins on the top face of the crankcase enter the holes in the gasket.
Do not use a liquid gasket.
Installation of cylinder head gasketInstallation of Cylinder Head
Place the cylinder head on the head gasket, making sure that the dowel pins on the top face of the crankcase enters the holes in the cylinder head.
Installation of cylinder headTightening of Cylinder Head Bolts
Tighten the cylinder head bolts, following the tightening sequence shown in the diagram two or three times before reaching the specified torque.
Cylinder head bolt tightening sequenceAssembly of Rocker Arm and Rocker Shaft Assembly
When installing the rocker arms, make sure that the shaft assembly marks face the front of the engine, as shown in the diagram. After the assembly, make sure that the rocker arms move smoothly.
Assembly of rocker shaft assemblyInstallation of Pushrods
(1) Insert the pushrods in the cylinder head through the pushrod holes.(2) Make sure that the ball end of each pushrod rests securely on the curved surface of the tappet.Installation of Rocker Shaft Assembly
(1) Install the valve caps.(2) Tighten the rocker
(1) Coat the outside surface of the oil seal with engine oil.(2) Install the oil seal on the oil seal case.(3) Coat the lip of the oil seal with engine oil.(4) Install the O-ring into the oil seal case, and install the oil seal case on the flywheel housing. The oil seal case must be installed with the "Q" mark facing up.(5) Secure the oil seal case with the bolts.
Installation of oil seal caseInstallation of Flywheel
(1) Install the flywheel to the crankshaft by aligning the hole with the dowel pin on the back-end of the crankshaft.(2) Place the washer and tighten the four bolts to the specified torque.
Installation of flywheelMeasurement of Flywheel Axial and Radial Runouts
Measure the flywheel runout with the flywheel installed to the crankshaft. If the standard value is exceeded, check the bolts for tightening condition and the mounting face for adhesion of foreign particles.
Measurement of face runout and circular runoutCylinder Head and Valve Mechanisms
Installation of Valve Stem Seals
(1) Apply engine oil to the valve stem, and insert it into the valve guide.(2) Place a new stem seal on the valve guide.(3) Using the stem seal installer, install the stem seal to the valve guide, making use of the valve stem as a guide.
Installation of valve stem sealInstallation of Valves and Valve Springs
(1) Place the valve spring and retainer on the valve guide, and install the valve cotter using the valve spring pusher.
Excessive compression of the valve spring can cause the retainer to contact the stem seal and damage the seal.
Installation of valve and valve spring(2) Using a soft-faced hammer, tap the top of the valve stem several times to make sure that the spring and valve cotter are securely installed.
Confirmation of secure valve cotter installationInstallation of Cylinder Head Gasket
(1) Make sure that the top face of the crankcase and piston upper surfaces are clean and free of dust.(2) Place a new gasket of the crankcase, making sure that the dowel pins on the top face of the crankcase enter the holes in the gasket.
Do not use a liquid gasket.
Installation of cylinder head gasketInstallation of Cylinder Head
Place the cylinder head on the head gasket, making sure that the dowel pins on the top face of the crankcase enters the holes in the cylinder head.
Installation of cylinder headTightening of Cylinder Head Bolts
Tighten the cylinder head bolts, following the tightening sequence shown in the diagram two or three times before reaching the specified torque.
Cylinder head bolt tightening sequenceAssembly of Rocker Arm and Rocker Shaft Assembly
When installing the rocker arms, make sure that the shaft assembly marks face the front of the engine, as shown in the diagram. After the assembly, make sure that the rocker arms move smoothly.
Assembly of rocker shaft assemblyInstallation of Pushrods
(1) Insert the pushrods in the cylinder head through the pushrod holes.(2) Make sure that the ball end of each pushrod rests securely on the curved surface of the tappet.Installation of Rocker Shaft Assembly
(1) Install the valve caps.(2) Tighten the rocker
