Information governor
BOSCH
9 420 610 431
9420610431
ZEXEL
105921-9070
1059219070
MITSUBISHI
ME742277
me742277

Rating:

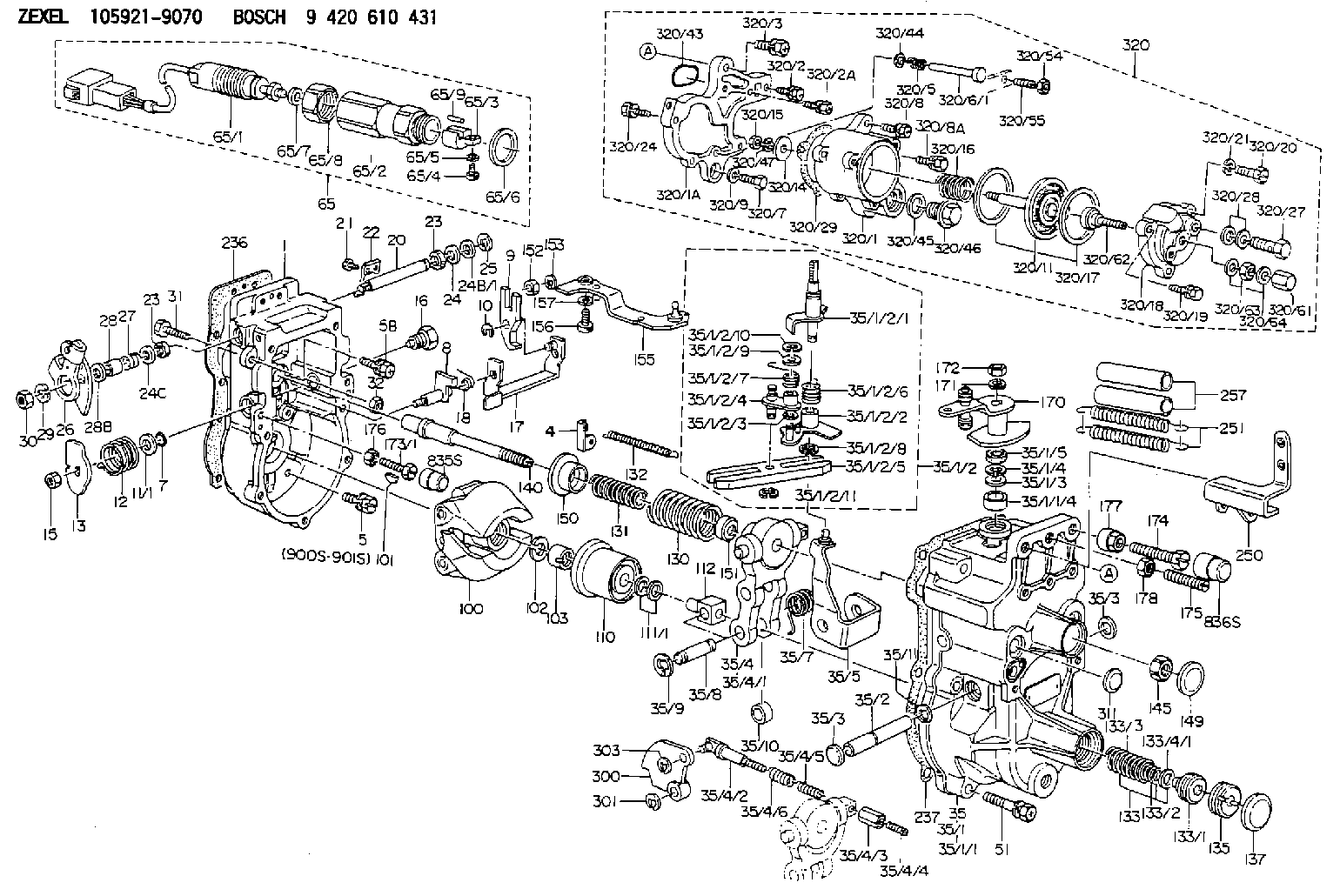

Scheme ###:
1. | [1] | 159200-7520 | GOVERNOR HOUSING |
4. | [1] | 159232-0401 | PLATE |
5. | [8] | 139006-4100 | BLEEDER SCREW |
5B. | [2] | 139006-6000 | BLEEDER SCREW |
7. | [1] | 016530-1010 | O-RING |
8. | [1] | 159205-2821 | LEVER SHAFT |
9. | [1] | 159202-2601 | CONTROL LEVER |
10. | [1] | 016010-0810 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159215-0500 | COILED SPRING |
13. | [1] | 159242-6601 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159237-5500 | CAPSULE |
17. | [1] | 159202-4220 | CONTROL LEVER |
18. | [1] | 159215-0600 | COILED SPRING |
20. | [1] | 155004-5100 | LEVER SHAFT |
21. | [2] | 020104-1240 | BLEEDER SCREW |
22. | [1] | 159290-3800 | CONTROL LEVER |
23. | [2] | 139608-0400 | PACKING RING |
23. | [2] | 139608-0400 | PACKING RING |
24. | [1] | 139308-1900 | PLAIN WASHER |
24B/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
24B/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
24C. | [1] | 139308-1900 | PLAIN WASHER |
25. | [1] | 159238-4200 | LOCKING WASHER |
26. | [1] | 159291-3500 | CONTROL LEVER |
27. | [1] | 159215-7100 | COILED SPRING |
28. | [1] | 159230-4000 | BUSHING |
28B. | [1] | 159221-6600 | PLAIN WASHER |
29. | [1] | 014110-8440 | LOCKING WASHER |
30. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
31. | [1] | 155644-1301 | BLEEDER SCREW |
32. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
35. | [1] | 159255-1620 | GOVERNOR COVER |
35/1. | [1] | 159301-2821 | GOVERNOR COVER |
35/1/1. | [1] | 159301-2721 | GOVERNOR COVER |
35/1/1/4. | [1] | 159230-3301 | BUSHING |
35/1/2. | [1] | 159252-3420 | LEVER GROUP |
35/1/2/1. | [1] | 159205-5320 | LEVER SHAFT |
35/1/2/2. | [1] | 159202-4420 | CONTROL LEVER |
35/1/2/3. | [1] | 029310-6030 | SHIM D11.5&6.2T0.2 |
35/1/2/4. | [1] | 159202-4520 | CONTROL LEVER |
35/1/2/5. | [1] | 159202-2200 | CONTROL LEVER |
35/1/2/6. | [1] | 159215-2600 | COILED SPRING |
35/1/2/7. | [1] | 159215-3600 | COILED SPRING |
35/1/2/8. | [1] | 016010-0810 | LOCKING WASHER |
35/1/2/9. | [1] | 014020-6140 | PLAIN WASHER |
35/1/2/10. | [1] | 016010-0610 | LOCKING WASHER |
35/1/2/11. | [1] | 016010-0810 | LOCKING WASHER |
35/1/3. | [1] | 139411-0600 | SHIM |
35/1/4. | [1] | 159238-3000 | LOCKING WASHER |
35/1/5. | [1] | 029621-0080 | PACKING RING |
35/2. | [1] | 159205-5500 | LEVER SHAFT |
35/3. | [2] | 159237-0200 | CAPSULE |
35/3. | [2] | 159237-0200 | CAPSULE |
35/4. | [1] | 159253-4520 | TENSIONING LEVER |
35/4/1. | [1] | 159253-4420 | TENSIONING LEVER |
35/4/2. | [1] | 159204-5021 | RACK |
35/4/3. | [1] | 159233-0300 | UNION NUT |
35/4/4. | [1] | 159234-0300 | FLAT-HEAD SCREW |
35/4/5. | [1] | 159216-0000 | COILED SPRING |
35/4/6. | [1] | 159216-0100 | COILED SPRING |
35/5. | [1] | 159203-6320 | GUIDE LEVER |
35/7. | [1] | 159215-5400 | COILED SPRING |
35/8. | [1] | 159231-1300 | BEARING PIN |
35/9. | [2] | 016010-0610 | LOCKING WASHER |
35/10. | [1] | 159238-4100 | BUSHING |
35/11. | [1] | 016010-1010 | LOCKING WASHER |
51. | [7] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154611-7920 | RACK SENSOR ASSY |
65/1. | [1] | 479775-4620 | RACK SENSOR |
65/2. | [1] | 154614-2500 | JOINT CONNECTION |
65/3. | [1] | 154614-3100 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER |
65/6. | [1] | 026524-3040 | GASKET |
65/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
65/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
65/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
65/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
65/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
65/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159236-0200 | TERMINAL STUD |
130. | [1] | 159217-0300 | GOVERNOR SPRING |
131. | [1] | 159211-6700 | GOVERNOR SPRING |
132. | [1] | 159214-0100 | COILED SPRING |
133. | [1] | 159219-3520 | SPRING PACK |
133/1. | [1] | 159234-5602 | GUIDE SLEEVE |
133/2. | [1] | 159212-8700 | COILED SPRING |
133/3. | [1] | 159219-1400 | COILED SPRING |
133/4/1. | [0] | 029310-9240 | SHIM D11.9&9T0.1 |
133/4/1. | [0] | 029310-9250 | SHIM D11.9&9T0.2 |
133/4/1. | [0] | 029310-9260 | SHIM D11.9&9T0.25 |
133/4/1. | [0] | 029310-9270 | SHIM D11.9&9T1.0 |
133/4/1. | [0] | 139409-0100 | SHIM D11.9&9T0.3 |
133/4/1. | [0] | 139409-0200 | SHIM D11.9&9T0.5 |
133/4/1. | [0] | 139409-0300 | SHIM D11.5&9T0.8 |
135. | [1] | 159248-2700 | FLAT-HEAD SCREW |
137. | [1] | 159237-5300 | CAPSULE |
140. | [1] | 159205-2101 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159235-5300 | SLOTTED WASHER |
151. | [1] | 159235-6700 | SLOTTED WASHER |
152. | [1] | 159235-5200 | BUSHING |
153. | [1] | 016010-0540 | LOCKING WASHER |
155. | [1] | 159204-7220 | STRAP |
156. | [1] | 010235-1020 | HEX-SOCKET-HEAD CAP SCREW |
157. | [1] | 029320-5020 | LOCKING WASHER |
170. | [1] | 159264-9421 | CONTROL LEVER |
171. | [1] | 014110-8440 | LOCKING WASHER |
172. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
173/1. | [1] | 139006-3500 | BLEEDER SCREW M6P1.0L33 |
173/1. | [1] | 139006-3700 | BLEEDER SCREW M6P1.0L34 |
173/1. | [1] | 139006-3800 | BLEEDER SCREW M6P1.0L35 |
173/1. | [1] | 139006-3900 | BLEEDER SCREW M6P1.0L36 |
173/1. | [1] | 139006-5300 | BLEEDER SCREW M6P1.0L31 |
173/1. | [1] | 139006-5400 | BLEEDER SCREW M6P1.0L32 |
173/1. | [1] | 155615-2500 | BLEEDER SCREW M6P1.0L37 |
174. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
175. | [1] | 154010-0100 | FLAT-HEAD SCREW |
176. | [1] | 159225-8600 | UNION NUT |
177. | [1] | 154011-2300 | UNION NUT |
178. | [1] | 154011-0100 | HEXAGON NUT |
236. | [1] | 159238-4000 | GASKET |
237. | [1] | 159238-3100 | GASKET |
250. | [1] | 159220-1920 | BRACKET |
251. | [2] | 154332-4700 | COILED SPRING |
257. | [2] | 154156-2300 | TUBE |
300. | [1] | 159288-5100 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [1] | 159237-0200 | CAPSULE |
320. | [1] | 154421-8420 | MANIFOLD-PRESSURE COMP. |
320/1. | [1] | 154412-0821 | DIAPHRAGM HOUSING |
320/1A. | [1] | 154413-2701 | SPACER BUSHING |
320/2. | [1] | 020106-2240 | BLEEDER SCREW |
320/2A. | [1] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/3. | [1] | 020118-3040 | BLEEDER SCREW |
320/5. | [1] | 159275-1400 | COILED SPRING |
320/6/1. | [1] | 159274-0120 | STOP PIN L125 |
320/6/1. | [1] | 159274-0220 | STOP PIN L127.50 |
320/6/1. | [1] | 159274-0320 | STOP PIN L128.00 |
320/6/1. | [1] | 159274-0420 | STOP PIN L127.00 |
320/6/1. | [1] | 159274-0520 | STOP PIN L126.00 |
320/6/1. | [1] | 159274-0620 | STOP PIN L129.00 |
320/6/1. | [1] | 159274-0720 | STOP PIN L128.50 |
320/6/1. | [1] | 159274-0820 | STOP PIN L125.50 |
320/6/1. | [1] | 159274-0920 | STOP PIN L126.50 |
320/6/1. | [1] | 159274-1120 | STOP PIN L119.5 |
320/6/1. | [1] | 159274-1220 | STOP PIN L120 |
320/6/1. | [1] | 159274-1320 | STOP PIN L120.5 |
320/6/1. | [1] | 159274-1420 | STOP PIN L121 |
320/6/1. | [1] | 159274-1520 | STOP PIN L121.5 |
320/6/1. | [1] | 159274-1620 | STOP PIN L122 |
320/6/1. | [1] | 159274-1720 | STOP PIN L122.5 |
320/6/1. | [1] | 159274-1820 | STOP PIN L123 |
320/6/1. | [1] | 159274-1920 | STOP PIN L123.5 |
320/6/1. | [1] | 159274-4220 | STOP PIN L129.5 |
320/6/1. | [1] | 159274-4320 | STOP PIN L130 |
320/6/1. | [1] | 159274-4420 | STOP PIN L130.5 |
320/6/1. | [1] | 159274-4520 | STOP PIN L131 |
320/6/1. | [1] | 159274-4620 | STOP PIN L131.5 |
320/6/1. | [1] | 159274-4720 | STOP PIN L132 |
320/6/1. | [1] | 159274-4820 | STOP PIN L132.5 |
320/6/1. | [1] | 159274-4920 | STOP PIN L133 |
320/6/1. | [1] | 159274-5020 | STOP PIN L133.5 |
320/7. | [1] | 020306-1640 | BLEEDER SCREW |
320/8. | [2] | 020106-2240 | BLEEDER SCREW |
320/8A. | [1] | 020106-2540 | BLEEDER SCREW M6P1L25 |
320/9. | [1] | 139505-0000 | PLAIN WASHER |
320/11. | [1] | 154400-8521 | DIAPHRAGM |
320/14. | [1] | 154406-5500 | SLOTTED WASHER |
320/15. | [1] | 013030-6010 | UNION NUT |
320/16. | [1] | 154402-9300 | COILED SPRING |
320/17. | [2] | 154413-2600 | GASKET |
320/18. | [1] | 154404-5000 | COVER |
320/19. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
320/20. | [2] | 139006-7000 | BLEEDER SCREW |
320/21. | [2] | 014110-6440 | LOCKING WASHER |
320/24. | [2] | 020106-2240 | BLEEDER SCREW |
320/27. | [1] | 029731-0180 | EYE BOLT |
320/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
320/29. | [1] | 154413-2501 | GASKET |
320/43. | [1] | 159226-4500 | SPACER RING |
320/44. | [1] | 014010-5140 | PLAIN WASHER D12&5.5T0.8 |
320/45. | [1] | 029331-8040 | GASKET |
320/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
320/47. | [1] | 014110-6440 | LOCKING WASHER |
320/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/55. | [1] | 154404-4800 | FLAT-HEAD SCREW |
320/61. | [1] | 154035-1600 | CAP NUT |
320/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
320/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
320/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105921-9070
ME742277 MITSUBISHI
GOVERNOR
K 14JJ MECHANICAL GOVERNOR GOV
K 14JJ MECHANICAL GOVERNOR GOV
