105921-9000 ZEXEL 9 420 610 579 BOSCH GOVERNOR 9420610579 1059219000 1920017d11




Information governor

BOSCH 9 420 610 579 9420610579
ZEXEL 105921-9000 1059219000
NISSAN-DIESEL 1920017D11 1920017d11
105921-9000 GOVERNOR
Rating:
17
Buy GOVERNOR 105921-9000 zexel genuine, new aftermarket engine parts with delivery

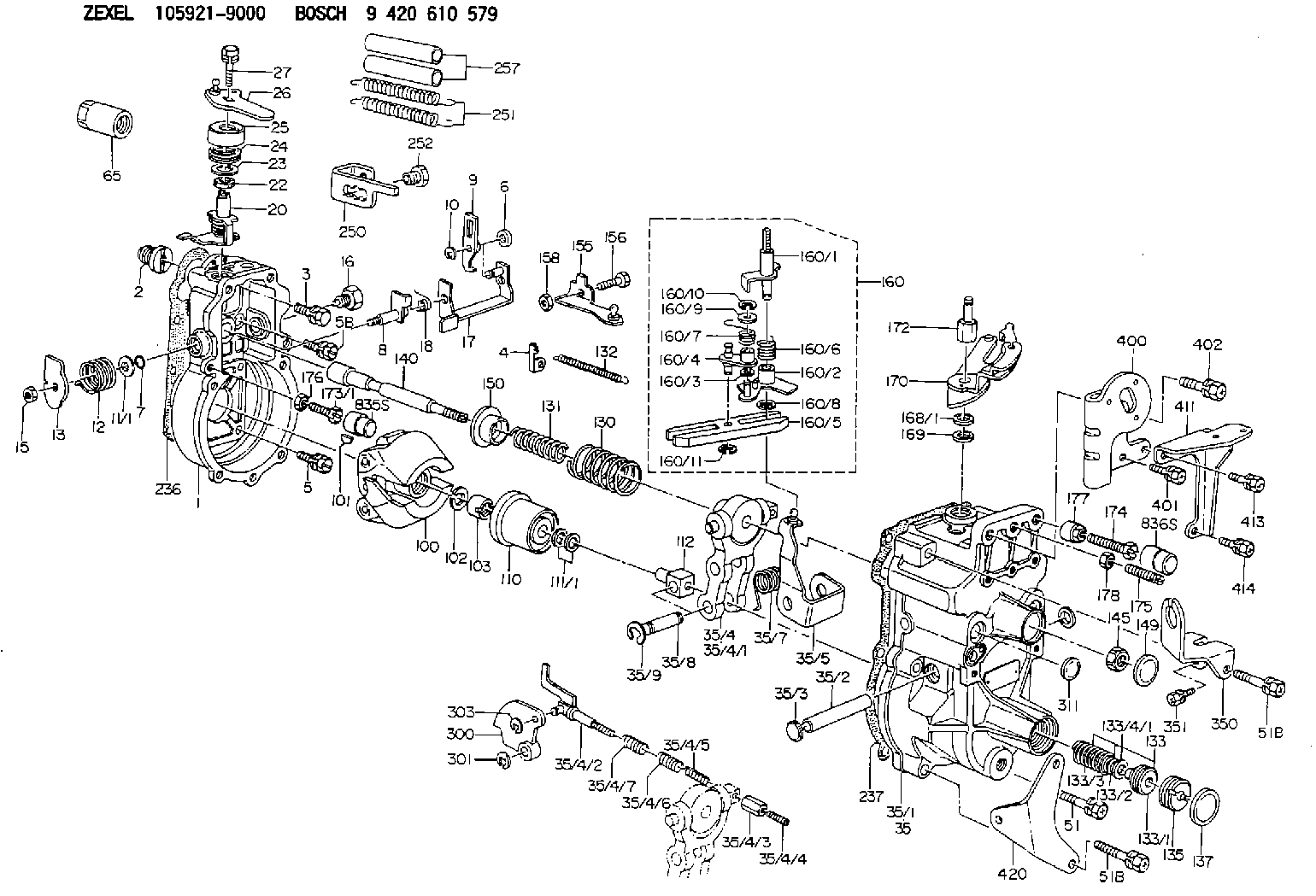

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-8820 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-1600 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
6. [1] 159242-0600 BUSHING
7. [1] 016530-1010 O-RING
8. [1] 159205-2821 LEVER SHAFT
9. [1] 159202-7500 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0500 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-5500 CAPSULE
17. [1] 159202-4020 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159291-2920 CONTROL LEVER
22. [1] 139610-0400 PACKING RING
23. [1] 139411-0700 SHIM D22&11T0.7
23B. [1] 153305-0100 SHIM D22&11T0.5
24. [1] 159215-3100 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159290-6021 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159255-3020 GOVERNOR COVER
35/1. [1] 159201-5022 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-1520 TENSIONING LEVER
35/4/1. [1] 159203-1420 TENSIONING LEVER
35/4/2. [1] 159204-6322 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/4/7. [1] 159216-0700 COILED SPRING
35/5. [1] 159203-6220 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-2900 BUSHING
51. [4] 020106-3840 BLEEDER SCREW
51B. [3] 020106-4540 BLEEDER SCREW M6P1.0L45
51B. [3] 020106-4540 BLEEDER SCREW M6P1.0L45
65. [1] 155404-5700 CAP
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-8200 GOVERNOR SPRING
131. [1] 159211-3400 GOVERNOR SPRING
132. [1] 159214-0300 COILED SPRING
133. [1] 159219-3620 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-5500 COILED SPRING
133/3. [1] 159212-5300 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-7520 STRAP
156. [1] 159233-0620 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT M5P0.8H4
160. [1] 159252-2321 LEVER GROUP
160/1. [1] 159205-3921 LEVER SHAFT
160/2. [1] 159202-4420 CONTROL LEVER
160/3. [1] 029310-6030 SHIM D11.5&6.2T0.2
160/4. [1] 159202-4520 CONTROL LEVER
160/5. [1] 159202-2200 CONTROL LEVER
160/6. [1] 159215-2600 COILED SPRING
160/7. [1] 159215-3600 COILED SPRING
160/8. [1] 016010-0810 LOCKING WASHER
160/9. [1] 014020-6140 PLAIN WASHER
160/10. [1] 016010-0610 LOCKING WASHER
160/11. [1] 016010-0810 LOCKING WASHER
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159265-0420 CONTROL LEVER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
175. [1] 154010-1100 FLAT-HEAD SCREW
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-2800 UNION NUT
236. [1] 154390-0000 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159222-6120 BRACKET
251. [2] 159243-4700 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
257. [2] 154156-0500 TUBE
300. [1] 159288-2500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE
350. [1] 159220-6000 BRACKET
351. [1] 020106-1040 BLEEDER SCREW M6P1L12
400. [1] 159220-6300 BRACKET
401. [2] 020106-1240 BLEEDER SCREW M6P1.0L12
402. [1] 020118-1440 BLEEDER SCREW
411. [1] 159220-6420 BRACKET
413. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
414. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
420. [1] 159220-5720 BRACKET

Include in #1:

101401-9730 as GOVERNOR
101403-9230

Cross reference number

Zexel num
Bosch num
Firm num
Name
105921-9000
9 420 610 579
NP-EP/RLD325-1700A1FFR
1920017D11  NISSAN-DIESEL
GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV




Information:

Fuel Injection Nozzles
Disassembly of Fuel Injection Nozzles
Inspection of Fuel Injection Nozzles
Check each fuel injection nozzle for the following, and if defects are found, repair or replace the fuel injection nozzle.(1) Inspection of injection start pressure(a) Install each fuel injection nozzle on the nozzle tester, and move the handle up and down to release air.(b) Operate the handle of the tester at a rate of about 1 stroke per second, and read the indication on the pressure gage. The indication rises slowly, and the indicator oscillates during spraying. To obtain the injection start pressure value, read the indication when the indicator starts to oscillate.
Inspection of fuel injection nozzle valve opening(c) If the injection start pressure deviates significantly from the standard value, disassemble the fuel injection nozzle, and make an adjustment by changing the washer thickness. 0.1 mm [0.0039 in.] thickness of shims will change the injection pressure 0.98 Mpa (10 kgf/cm2 [142 psi]. The shims are available in 10 different thickness from 1.25 to 1.70 mm [0.0492 to 0.0669 in.] increment of 0.05 mm [0.0020 in.]
Never tap the tip of the nozzle tip when removing the nozzle tip.
Replacement of fuel injection nozzle tip(2) Inspection of fuel injection nozzle spray pattern(a) When inspecting each fuel injection nozzle with the nozzle tester, also check the nozzle for clogs, spray pattern and leakage.(b) Make sure that the fuel is sprayed straight from the nozzle when the handle of the tester is operated at a rate of about 1 stroke per second.
Inspection of spray pattern of fuel injection nozzle(3) Cleaning and replacement of faulty nozzles(a) Loosen the nozzle retaining nut, remove the nozzle tip, and clean the needle valve and body.
Never tap the tip of the nozzle tip when removing the nozzle tip.
(b) Use a fresh cleaning solution to clean the needle valve and body. After cleaning, assemble the needle valve and body in clean diesel fuel. The needle valve and body are precision finished. Handle them carefully, and do not change the combination of parts.
Cleaning of fuel injection nozzle tip(c) Tighten the nozzle retaining nut on the nozzle tip to the specified torque.(d) If the spray pattern is still not acceptable after adjustment and cleaning, replace the nozzle tip. (a) Never touch the sliding surface of the needle valve.(b) When installing a new nozzle tip, remove the seal film (synthetic resin film), and slide needle valve in the nozzle in a fresh cleaning solution to remove anti-rust oil coating thoroughly from the new nozzleReassembly of Fuel Injection Nozzles
Fuel Filter
Disassembly and Inspection of Fuel Filter

Have questions with 105921-9000?





Group cross 105921-9000 ZEXEL

Nissan-Diesel

105921-9000
9 420 610 579
NP-EP/RLD325-1700A1FFR
1920017D11
GOVERNOR
105921-9010



105921-9020
9 420 610 580

GOVERNOR
105921-9030



105921-9040



Nissan-Diesel

105921-9050
F 019 Z5E 482
NP-EP/RLD275-1600A1FXR
19101Z6616
GOVERNOR
105921-9060
9 420 610 581
NP-EP/RLD275-1600A1FXR
19101Z6674
GOVERNOR

Mitsubishi

105921-9070
9 420 610 431
NP-EP/RLD325-1670A1GXR
ME742277
GOVERNOR
105921-9080


GOVERNOR
105921-9081

105921-9082
9 420 611 770

GOVERNOR

Nissan-Diesel

105921-9082
F 019 Z5E 483
NP-EP/RLD325-1700A1FXR
1920019D10
GOVERNOR
105921-9090
9 420 610 582
NP-EP/RLD275-1600A1FXR
19101Z6675
GOVERNOR
