105921-8571 ZEXEL 9 420 610 872 BOSCH GOVERNOR 9420610872 1059218571 1920017d72

Information governor

BOSCH 9 420 610 872 9420610872

ZEXEL 105921-8571 1059218571

NISSAN-DIESEL 1920017D72 1920017d72

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105921-8571 zexel genuine, new aftermarket engine parts with delivery

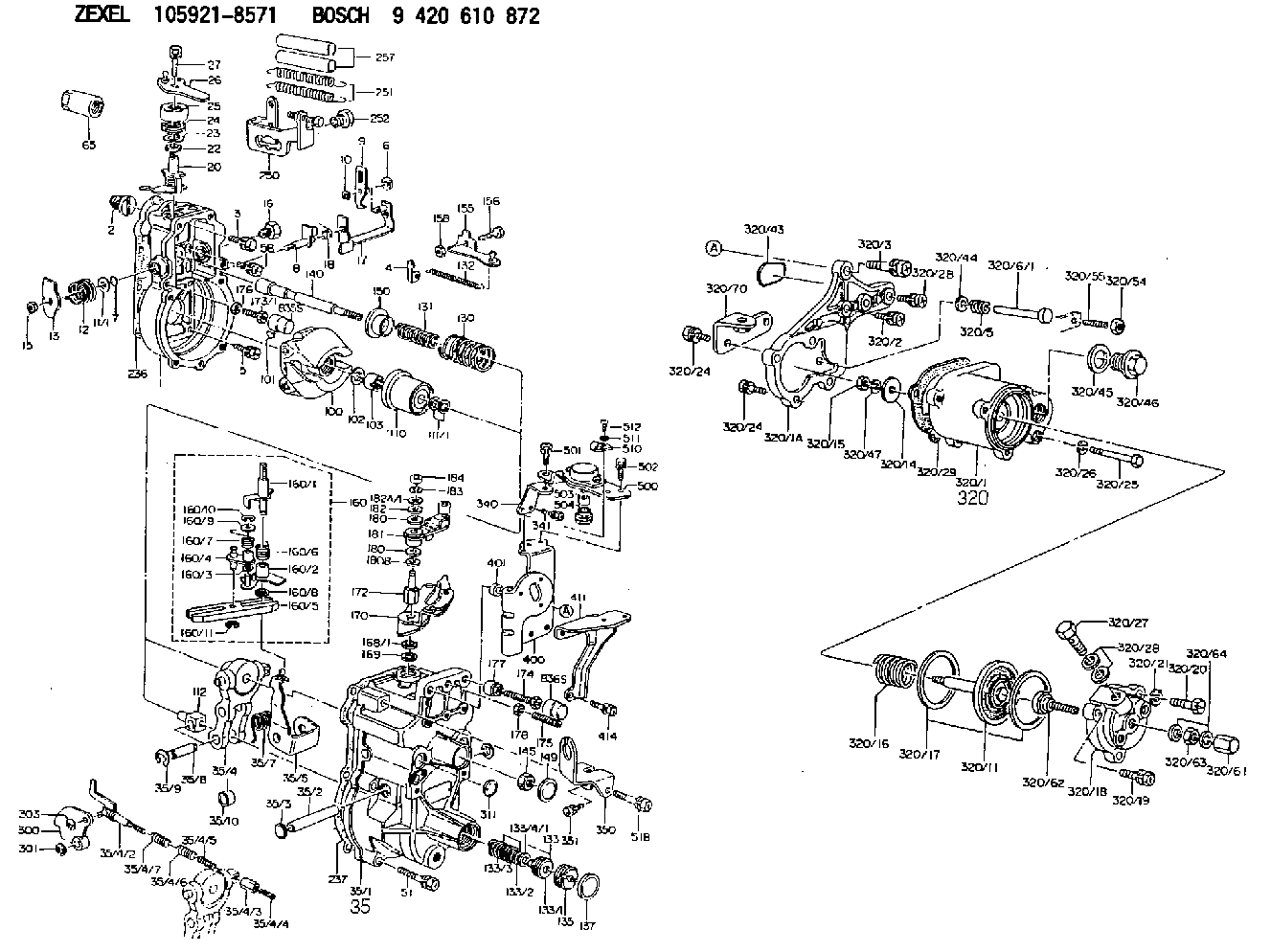

Scheme ###:

1.	[1]	159200-8820	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-1600	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	159242-0600	BUSHING
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2821	LEVER SHAFT
9.	[1]	159202-7500	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0500	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-4220	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159291-2920	CONTROL LEVER
22.	[1]	139610-0400	PACKING RING
23.	[1]	139411-0700	SHIM D22&11T0.7
23B.	[1]	153305-0100	SHIM D22&11T0.5
24.	[1]	159215-3100	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159290-6021	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159255-1220	GOVERNOR COVER
35/1.	[1]	159201-5521	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-1520	TENSIONING LEVER
35/4/1.	[1]	159203-1420	TENSIONING LEVER
35/4/2.	[1]	159204-6322	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/4/7.	[1]	159216-0700	COILED SPRING
35/5.	[1]	159203-6220	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[6]	020106-3840	BLEEDER SCREW
51B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-8200	GOVERNOR SPRING
131.	[1]	159211-3400	GOVERNOR SPRING
132.	[1]	159214-0300	COILED SPRING
133.	[1]	159219-3620	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5500	COILED SPRING
133/3.	[1]	159212-5300	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-7520	STRAP
156.	[1]	159233-0620	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-4520	LEVER GROUP
160/1.	[1]	159205-6410	LEVER SHAFT
160/2.	[1]	159202-4420	CONTROL LEVER
160/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
160/4.	[1]	159202-4520	CONTROL LEVER
160/5.	[1]	159202-2200	CONTROL LEVER
160/6.	[1]	159215-2600	COILED SPRING
160/7.	[1]	159215-3600	COILED SPRING
160/8.	[1]	016010-0810	LOCKING WASHER
160/9.	[1]	014020-6140	PLAIN WASHER
160/10.	[1]	016010-0610	LOCKING WASHER
160/11.	[1]	016010-0810	LOCKING WASHER
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159265-0420	CONTROL LEVER
172.	[1]	159233-7800	UNION NUT
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
175.	[1]	154013-1600	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-2800	UNION NUT
180.	[2]	159238-5300	PLAIN WASHER
180.	[2]	159238-5300	PLAIN WASHER
180B.	[1]	139410-2600	SHIM
181.	[1]	159268-7020	CONTROL LEVER
182.	[1]	139410-2600	SHIM
182A/1.	[0]	139410-1300	SHIM D20.8&10.2T0.3
182A/1.	[0]	139410-1700	SHIM D20.8&10.2T0.2
182A/1.	[0]	139410-1800	SHIM D20.8&10.2T0.4
182A/1.	[0]	139410-2800	SHIM D20.8&10.2T0.6
182A/1.	[0]	139410-3700	SHIM D20.8&10.2T0.9
183.	[1]	016010-0840	LOCKING WASHER
184.	[1]	159235-7700	BUSHING
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159222-6820	BRACKET
251.	[3]	159243-4700	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[3]	154156-0500	TUBE
300.	[1]	159287-3300	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154421-4320	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154408-9520	GOVERNOR HOUSING
320/1A.	[1]	154412-8600	SPACER BUSHING
320/2.	[2]	020106-2840	BLEEDER SCREW
320/2B.	[1]	020106-2540	BLEEDER SCREW M6P1L25
320/3.	[1]	020118-2840	BLEEDER SCREW
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/11.	[1]	154400-8521	DIAPHRAGM
320/14.	[1]	154406-5500	SLOTTED WASHER
320/15.	[1]	013030-6010	UNION NUT
320/16.	[1]	154402-3100	COILED SPRING
320/17.	[2]	154413-2600	GASKET
320/18.	[1]	154404-5100	COVER
320/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
320/20.	[2]	139006-7000	BLEEDER SCREW
320/21.	[2]	014110-6440	LOCKING WASHER
320/24.	[3]	020106-2540	BLEEDER SCREW M6P1L25
320/24.	[3]	020106-2540	BLEEDER SCREW M6P1L25
320/25.	[1]	139006-1300	BLEEDER SCREW M6P1L76
320/26.	[1]	029320-6010	LOCKING WASHER
320/27.	[1]	029731-0180	EYE BOLT
320/28.	[2]	026510-1340	GASKET D13.4&10.2T1
320/29.	[1]	154413-2800	GASKET
320/43.	[1]	159226-4500	SPACER RING
320/44.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/45.	[1]	029331-8040	GASKET
320/46.	[1]	154406-5800	FLAT-HEAD SCREW
320/47.	[1]	014110-6440	LOCKING WASHER
320/54.	[1]	013030-6040	UNION NUT M6P1H3.6
320/55.	[1]	154404-4800	FLAT-HEAD SCREW
320/61.	[1]	154035-1600	CAP NUT
320/62.	[1]	154404-4400	FLAT-HEAD SCREW
320/63.	[1]	013030-6040	UNION NUT M6P1H3.6
320/64.	[2]	026506-1040	GASKET D9.9&6.2T1
320/70.	[1]	159245-5420	BRACKET
340.	[1]	159222-6900	BRACKET
341.	[2]	020104-1040	BLEEDER SCREW
350.	[1]	159220-6000	BRACKET
351.	[1]	020106-1040	BLEEDER SCREW M6P1L12
400.	[1]	159220-5600	BRACKET
401.	[1]	159227-5600	BUSHING
411.	[1]	159222-6220	BRACKET
414.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
500.	[1]	154602-1820	LOAD SENSOR ASSY
501.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
502.	[2]	020105-1240	BLEEDER SCREW M5P0.8L12
503.	[1]	154413-1100	JOINT CONNECTION
504.	[1]	154604-8200	BOOT
510.	[1]	154604-0200	CLAMPING BAND
511.	[1]	014020-4140	PLAIN WASHER D8&4.5T0.5
512.	[1]	012154-1040	FLAT-HEAD SCREW M4P0.7L10

Include in #1:

101401-9681 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105921-8571

9 420 610 872
NP-EP/RLD325-1700A1FXR

1920017D72 NISSAN-DIESEL

GOVERNOR
K

Information:

Image1.1.1
5. Attach a hose to the other end of the fuel rail and hold the free end of the hose in a cup/bucket of water. Hose shown is a JIC 37o ?6 hose. Refer to Illustration 1.2.1
Image1.2.1
6. Pressurize the cooling system with compressed air and regulate pressure between 5-15 psi.
Do Not Exceed 15 psi or Cooling System Damage Can Result.
7. Submerse the hose in a cup/bucket of water.
8. Monitor for 10 minutes and check for a steady rate of air bubbles coming out of the hose that is submersed in the cup/bucket of water.
9. If steady stream of air is present, replace the cylinder head, coolant regulators, and both 030-7937 port connectors. Depending on the application, you will need to replace some cooling system seals. (List of seals by application to be included)
10. Once the cylinder heads have been replaced pressure test the head again using the same procedure. Once this has been completed the cooling system should be flushed using instructions listed below.
Cleaning the Cooling System
1. Drain all of the coolant form cooling system.
2. Fill the cooling system with clean water.
3. Start engine and run it until the thermostat opens.
4. Add two cups of non-foaming liquid automatic dish washer soap.
Note: Do not use plain dish soap. Aeration of the cooling system and resultant damage could occur.
5. After the soap has bee added run engine for approximately twenty minutes. Check to see if the fuel is breaking up.
6. If the fuel is still not breaking up than add two more cups of soap and run for 10 minutes. Drain mixture from cooling system.
7. Fill cooling system with clean water and check surface for fuel. If fuel is present, repeat steps 3 through 7. When water is clear, drain and rinse the cooling system one more time. Then add coolant and conditioner.
