105921-8201 ZEXEL 9 420 611 520 BOSCH GOVERNOR 9420611520 1059218201 1157708530

Information governor

BOSCH 9 420 611 520 9420611520

ZEXEL 105921-8201 1059218201

ISUZU 1157708530 1157708530

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105921-8201 zexel genuine, new aftermarket engine parts with delivery

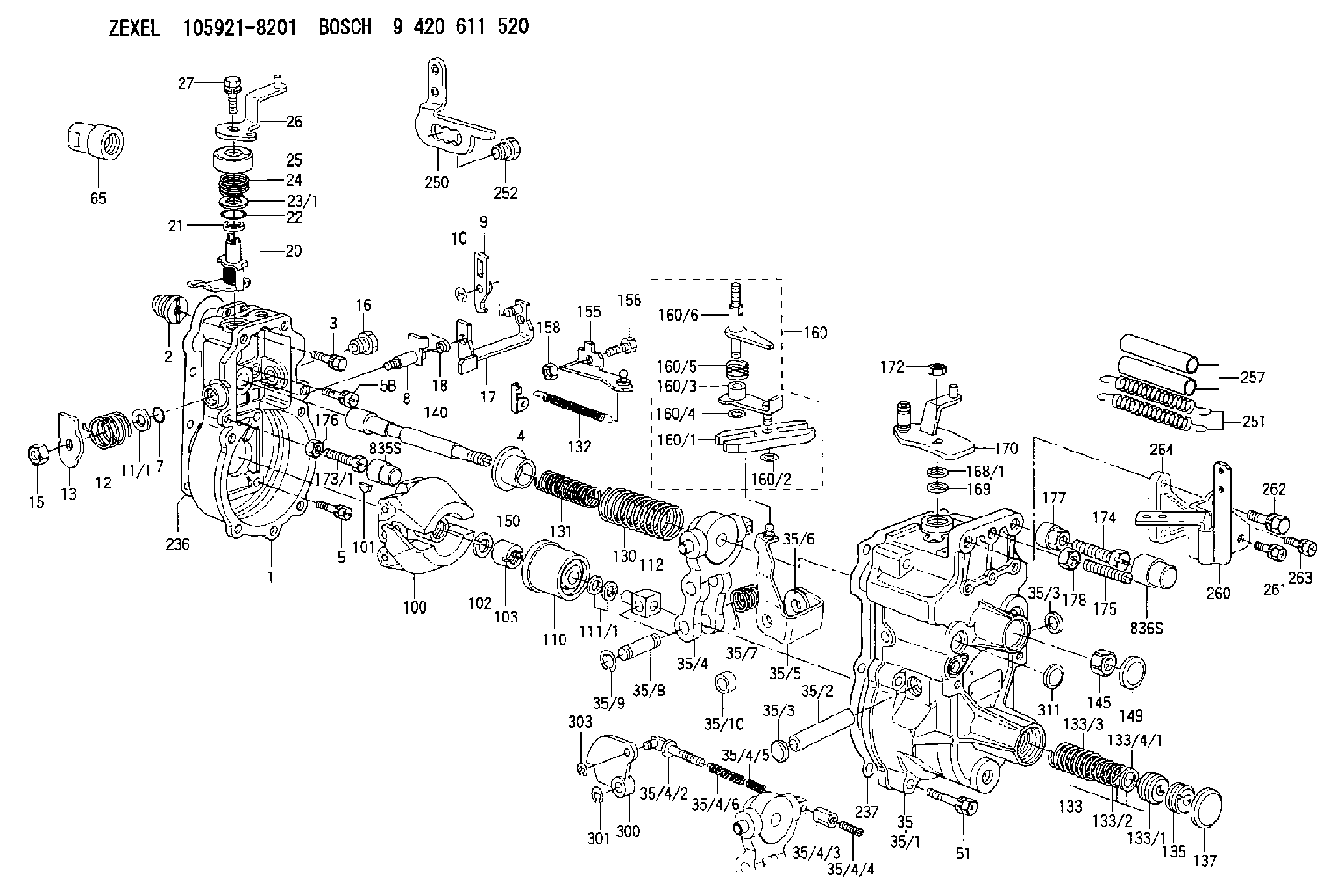

Scheme ###:

1.	[1]	159200-4320	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-2720	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2821	LEVER SHAFT
9.	[1]	159202-4101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0500	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-4020	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159242-0920	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	029311-0220	SHIM D18&10.3T0.2
23/1.	[0]	029311-0230	SHIM D18&10.3T0.5
23/1.	[0]	029311-0430	SHIM D18&10.3T0.30
23/1.	[0]	029311-0440	SHIM D18&10.3T0.40
23/1.	[0]	029311-0450	SHIM D18&10.3T0.25
23/1.	[0]	029311-0460	SHIM D18&10.3T0.35
23/1.	[0]	139410-3300	SHIM D18&10.3T0.6
23/1.	[0]	139410-3400	SHIM D18&10.3T0.8
23/1.	[0]	139410-3500	SHIM D18&10.3T0.9
24.	[1]	159215-3100	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159291-3220	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159251-9320	GOVERNOR COVER
35/1.	[1]	159201-7920	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-1620	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5420	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-5400	GOVERNOR SPRING
131.	[1]	159211-1200	COILED SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159219-1620	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5500	COILED SPRING
133/3.	[1]	159212-4600	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-7820	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-1121	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-3120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2600	COILED SPRING
160/6.	[1]	159205-2922	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159268-7320	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159227-5720	BRACKET
251.	[2]	159243-2300	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-0500	TUBE
260.	[1]	159226-6201	BRACKET
261.	[2]	020106-2540	BLEEDER SCREW M6P1L25
262.	[1]	020018-3040	BLEEDER SCREW M8P1.25L30
263.	[1]	020106-2240	BLEEDER SCREW
264.	[1]	159226-4701	SPACER BUSHING
300.	[1]	159286-8000	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
835S.	[1]	154062-1900	CAP D12L24
836S.	[1]	154062-1700	CAP D20L32

Include in #1:

101603-8771 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105921-8201

9 420 611 520
NP-EP/RLD260-1400A1FFR

1157708530 ISUZU

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

REM05-08
CAT® Reman
February 2005 APPEARANCE CHANGE TO CAT® REMAN DIFN NOZZLES Announcement The Caterpillar Remanufactured Products Group announces an appearance change on selected Cat Reman DIFN nozzles effective 02/04/05. In order to improve the salvage of DIFN nozzles, Cat Reman will begin using bodies for a third life on select DIFN nozzels. The current process allows for only one use. Effective on 02/04/05 they will begin machining the nozzle bodies to allow for a new tip to be pressed in. These nozzles will have the appearance of having a longer tip and shorter body. See pictures below. This change will not alter fit or performance in any way. Part Numbers Impacted
The table below lists part numbers impacted by this change.
Features and Benefits
Cat Remanufactured fuel nozzles offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured fuel nozzles. Cat Remanufactured fuel nozzles provide immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar® parts distribution system
Customer access regardless of location
Backed by Cat warranty
Consistent support
Core Acceptance Core Acceptance Criteria for Caterpillar Remanufactured fuel nozzles is simple, visual, and requires no special tools. Consult your Core Acceptance Guide for complete details. Warranty Please consult the appropriate warranty statement for your area. Core Management Please refer to the Caterpillar core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail. For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD00390, go to the Reman Dealer website https://reman.cat.com. If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
