105921-7891 ZEXEL 9 420 610 862 BOSCH GOVERNOR 9420610862 1059217891 19101z6509

Information governor

BOSCH 9 420 610 862 9420610862

ZEXEL 105921-7891 1059217891

NISSAN-DIESEL 19101Z6509 19101z6509

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105921-7891 zexel genuine, new aftermarket engine parts with delivery

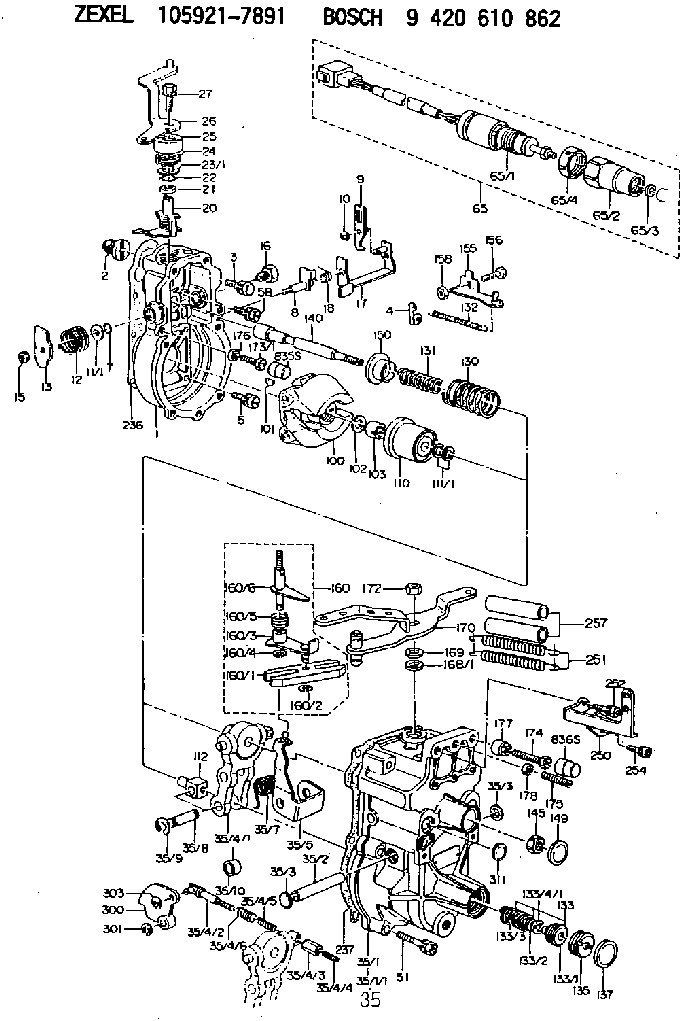

Scheme ###:

1.	[1]	159200-6920	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0401	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2821	LEVER SHAFT
9.	[1]	159202-4101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0500	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-4020	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159242-0920	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	029311-0220	SHIM D18&10.3T0.2
23/1.	[0]	029311-0230	SHIM D18&10.3T0.5
23/1.	[0]	029311-0430	SHIM D18&10.3T0.30
23/1.	[0]	029311-0440	SHIM D18&10.3T0.40
23/1.	[0]	029311-0450	SHIM D18&10.3T0.25
23/1.	[0]	029311-0460	SHIM D18&10.3T0.35
23/1.	[0]	139410-3300	SHIM D18&10.3T0.6
23/1.	[0]	139410-3400	SHIM D18&10.3T0.8
23/1.	[0]	139410-3500	SHIM D18&10.3T0.9
25.	[1]	159235-5800	CAP
26.	[1]	159291-1200	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159251-8920	GOVERNOR COVER
35/1.	[1]	159201-5022	GOVERNOR COVER
35/1.	[1]	159201-5022	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-1720	TENSIONING LEVER
35/4/1.	[1]	159203-1520	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-6220	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154611-2321	RACK SENSOR ASSY
65/1.	[1]	407945-0080	RACK SENSOR
65/2.	[1]	154614-8100	JOINT CONNECTION
65/3.	[0]	139406-0700	SHIM
65/3B.	[0]	153305-0800	SHIM D10&6.1T0.2
65/3C.	[0]	153305-0900	SHIM D10&6.1T0.4
65/4.	[1]	154614-1900	UNION NUT
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-0100	GOVERNOR SPRING
131.	[1]	159211-1500	GOVERNOR SPRING
132.	[1]	159214-0100	COILED SPRING
133.	[1]	159219-0620	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-4700	COILED SPRING
133/3.	[1]	159212-7500	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5620	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-1121	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-3120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2600	COILED SPRING
160/6.	[1]	159205-2922	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159268-2820	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
174B.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	013020-8040	UNION NUT M8P1.25H7
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159222-0220	BRACKET
251.	[2]	154332-3700	COILED SPRING
252.	[1]	020118-1640	BLEEDER SCREW
254.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
257.	[2]	154156-1800	TUBE
300.	[1]	159286-2500	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE

Include in #1:

101607-9281 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105921-7891

9 420 610 862
NP-EP/RLD275-1650A1FFR

19101Z6509 NISSAN-DIESEL

GOVERNOR
