105921-5341 ZEXEL 9 420 613 302 BOSCH GOVERNOR 9420613302 1059215341

Information governor

BOSCH 9 420 613 302 9420613302

ZEXEL 105921-5341 1059215341

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105921-5341 zexel genuine, new aftermarket engine parts with delivery

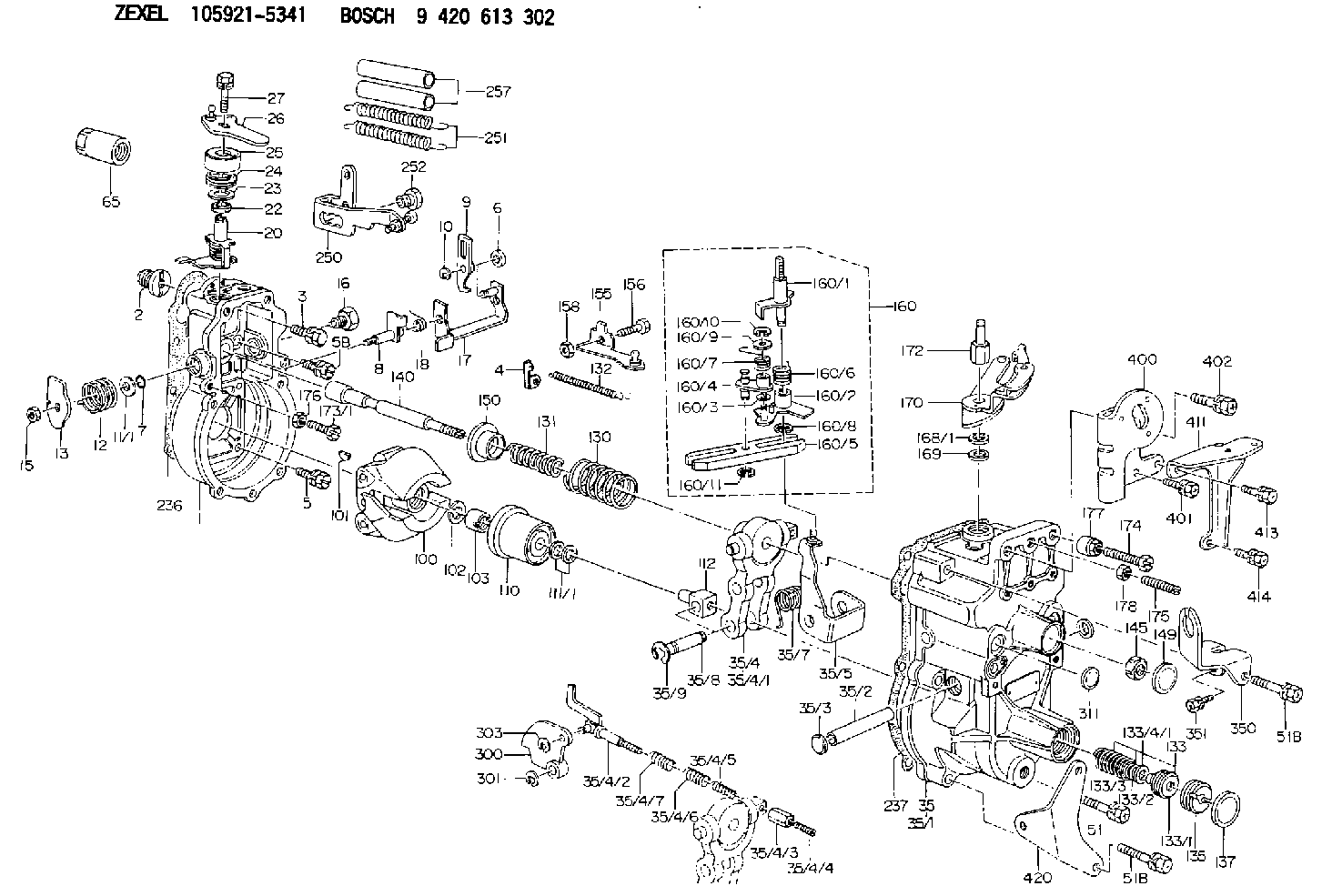

Scheme ###:

1.	[1]	159200-7720	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-1600	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	159242-0600	BUSHING
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2821	LEVER SHAFT
9.	[1]	159202-6300	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0500	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5200	CAPSULE
17.	[1]	159202-3020	CONTROL LEVER
18.	[1]	159215-0600	COILED SPRING
20.	[1]	159242-7220	CONTROL LEVER
22.	[1]	139610-0400	PACKING RING
23.	[1]	139411-0700	SHIM D22&11T0.7
23B.	[1]	153305-0100	SHIM D22&11T0.5
24.	[1]	159215-3100	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159290-6021	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-5920	GOVERNOR COVER
35/1.	[1]	159201-5022	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2820	TENSIONING LEVER
35/4/1.	[1]	159203-1820	TENSIONING LEVER
35/4/2.	[1]	159204-6322	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/4/7.	[1]	159216-0700	COILED SPRING
35/5.	[1]	159203-6020	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-2000	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
51.	[4]	020106-3840	BLEEDER SCREW
51B.	[3]	020106-4540	BLEEDER SCREW M6P1.0L45
51B.	[3]	020106-4540	BLEEDER SCREW M6P1.0L45
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-0300	GOVERNOR SPRING
131.	[1]	159211-3700	GOVERNOR SPRING
132.	[1]	159214-0300	COILED SPRING
133.	[1]	159219-0520	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-8700	COILED SPRING
133/3.	[1]	159219-0701	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-6220	STRAP
156.	[1]	159233-5800	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-2321	LEVER GROUP
160/1.	[1]	159205-3921	LEVER SHAFT
160/2.	[1]	159202-4420	CONTROL LEVER
160/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
160/4.	[1]	159202-4520	CONTROL LEVER
160/5.	[1]	159202-2200	CONTROL LEVER
160/6.	[1]	159215-2600	COILED SPRING
160/7.	[1]	159215-3600	COILED SPRING
160/8.	[1]	016010-0810	LOCKING WASHER
160/9.	[1]	014020-6140	PLAIN WASHER
160/10.	[1]	016010-0610	LOCKING WASHER
160/11.	[1]	016010-0810	LOCKING WASHER
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159265-0420	CONTROL LEVER
172.	[1]	159231-6500	UNION NUT
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
174B.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159220-5920	BRACKET
251.	[2]	159243-4700	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-0500	TUBE
300.	[1]	159283-3200	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
350.	[1]	159220-6000	BRACKET
351.	[1]	020106-1040	BLEEDER SCREW M6P1L12
400.	[1]	159220-6300	BRACKET
401.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
402.	[1]	020118-1440	BLEEDER SCREW
411.	[1]	159220-6420	BRACKET
413.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
414.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
420.	[1]	159220-5720	BRACKET

Include in #1:

101491-9791 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105921-5341

9 420 613 302

GOVERNOR
* K

Information:

Introduction
This publication contains information on the locking screw of the 341-8700 Fuel Injection Pump Gp . Locking Mechanism of the Three Lobe Fuel Pump
The locking screw is located on the side of the fuel injection pump. The locking screw is tightened with the washer in an Upward position. The washer is placed in the Upward position for shipping purposes prior to installation. Refer to Illustration 1. The locking screw must be moved to the Unlocked position after installation and prior to starting the engine. Loosen the screw and reposition the washer to the Downward position. Tighten the screw after moving the washer to the Downward position. Refer to Illustration 2
Illustration 1 g02166847
Locked position (1) Locking screw (2) Washer is moved in the upward position
Illustration 2 g02168035
Unlocked position (1) Locking Screw (2) Washer is moved in the downward position
