105921-4283 ZEXEL 9 420 613 756 BOSCH GOVERNOR 9420613756 1059214283




Information governor

BOSCH 9 420 613 756 9420613756
ZEXEL 105921-4283 1059214283
105921-4283 GOVERNOR
Rating:
62
Buy GOVERNOR 105921-4283 zexel genuine, new aftermarket engine parts with delivery

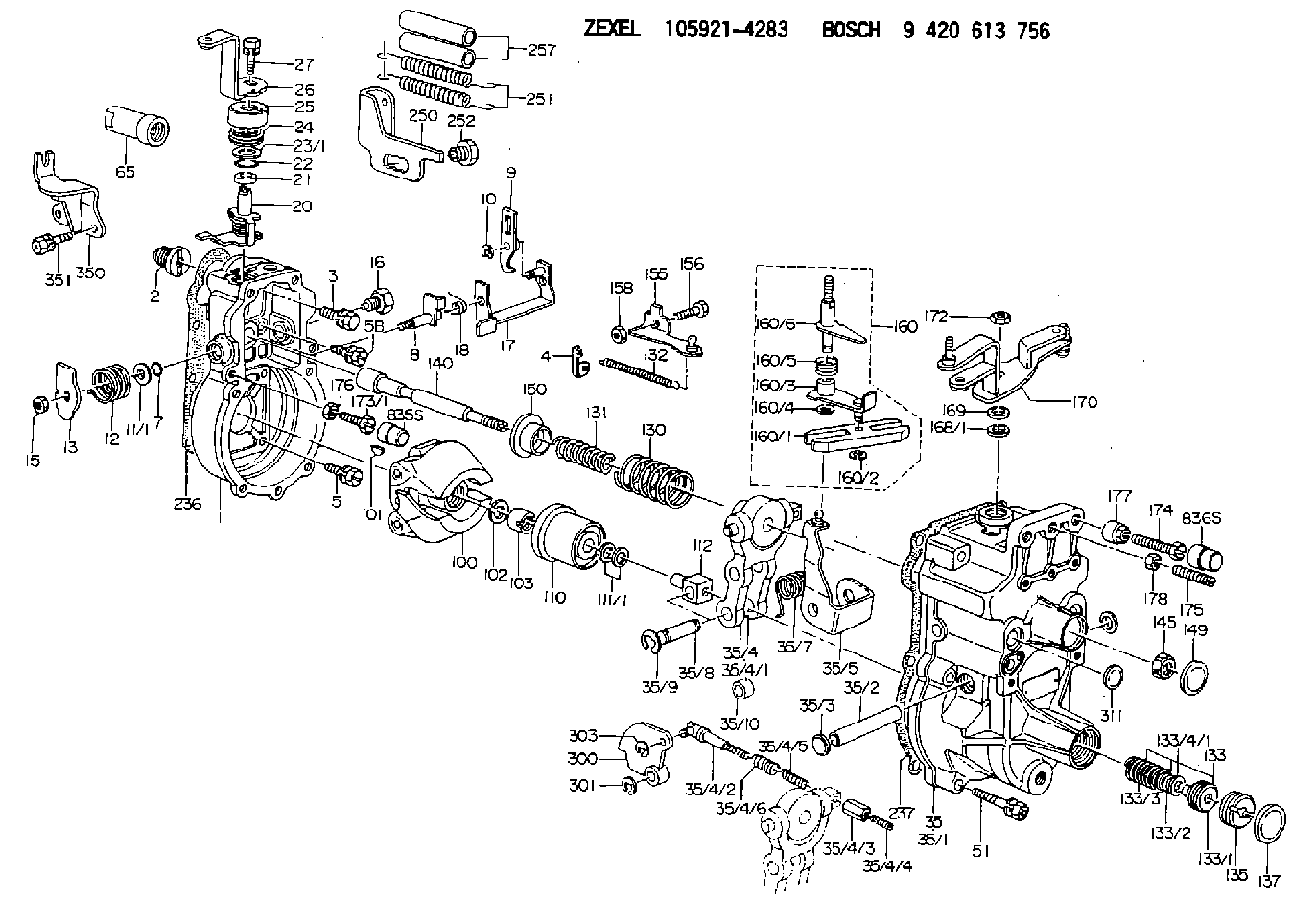

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-4320 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0401 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 016530-1010 O-RING
8. [1] 159205-2821 LEVER SHAFT
9. [1] 159202-4101 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0500 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-5500 CAPSULE
17. [1] 159202-6020 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159242-0920 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING &9.8W2.3
23/1. [0] 029311-0220 SHIM D18&10.3T0.2
23/1. [0] 029311-0230 SHIM D18&10.3T0.5
23/1. [0] 029311-0430 SHIM D18&10.3T0.30
23/1. [0] 029311-0440 SHIM D18&10.3T0.40
23/1. [0] 029311-0450 SHIM D18&10.3T0.25
23/1. [0] 029311-0460 SHIM D18&10.3T0.35
23/1. [0] 139410-3300 SHIM D18&10.3T0.6
23/1. [0] 139410-3400 SHIM D18&10.3T0.8
23/1. [0] 139410-3500 SHIM D18&10.3T0.9
24. [1] 159215-3100 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159290-2021 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159251-8920 GOVERNOR COVER
35/1. [1] 159201-5022 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-1720 TENSIONING LEVER
35/4/1. [1] 159203-1520 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-6220 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-2900 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-8920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-2000 GOVERNOR SPRING
131. [1] 159211-2400 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159212-8620 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-5500 COILED SPRING
133/3. [1] 159212-8600 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-5620 STRAP
156. [1] 159233-0520 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT M5P0.8H4
160. [1] 159252-1121 LEVER GROUP
160/1. [1] 159202-2200 CONTROL LEVER
160/2. [1] 016010-0810 LOCKING WASHER
160/3. [1] 159202-3120 CONTROL LEVER
160/4. [1] 016010-0810 LOCKING WASHER
160/5. [1] 159215-2600 COILED SPRING
160/6. [1] 159205-2922 LEVER SHAFT
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159263-4320 CONTROL LEVER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
175. [1] 154037-2700 FLAT-HEAD SCREW
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
236. [1] 154390-0000 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159220-8720 BRACKET
251. [2] 154332-6000 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
257. [2] 154156-1800 TUBE
300. [1] 159284-1600 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE
350. [1] 159229-5121 BRACKET
351. [2] 020106-1240 BLEEDER SCREW M6P1.0L12

Include in #1:

101601-5713 as GOVERNOR
101601-5714

Cross reference number

Zexel num
Bosch num
Firm num
Name
105921-4283
9 420 613 756
NP-EP/RLD250-1650A4FFR

GOVERNOR
* K 14JK MECHANICAL GOVERNOR GOV RLD GOV




Information:


Illustration 1 g06022453
Typical example
(1) Existing fuel injection pump stop solenoid with red colored connection
(2) New fuel injection pump stop solenoid with cream colored connectionThere have been some isolated instances of issues with the existing fuel injection pump stop solenoid (1). The issues with the fuel injection pump stop solenoid have caused issues with starting the engine and fuel leaks.A new fuel injection pump stop solenoid (2) has been introduced. The improved fuel injection pump stop solenoid will offer better reliability and extended service life.The part number for the fuel injection pump stop solenoid has not changed.Follow step 1 through to step 7 for the correct procedure to replace the fuel injection pump stop solenoid.
Turn the battery disconnect switch to the OFF position.
Disconnect the electrical connection from the fuel injection pump stop solenoid.
Remove the existing fuel injection pump stop solenoid.
Install the new fuel injection pump stop solenoid. Tighten the fuel injection pump stop solenoid to a torque of 15 N m (133 lb in).
Remove the protective cap.
Connect the electrical connection to the fuel injection pump stop solenoid.
Turn the battery disconnect switch to the ON position.
