105542-6620 ZEXEL F 019 Z1E 194 BOSCH GOVERNOR f019z1e194 1055426620 5157100130

Information governor

BOSCH F 019 Z1E 194 f019z1e194

ZEXEL 105542-6620 1055426620

ISUZU 5157100130 5157100130

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105542-6620 zexel genuine, new aftermarket engine parts with delivery

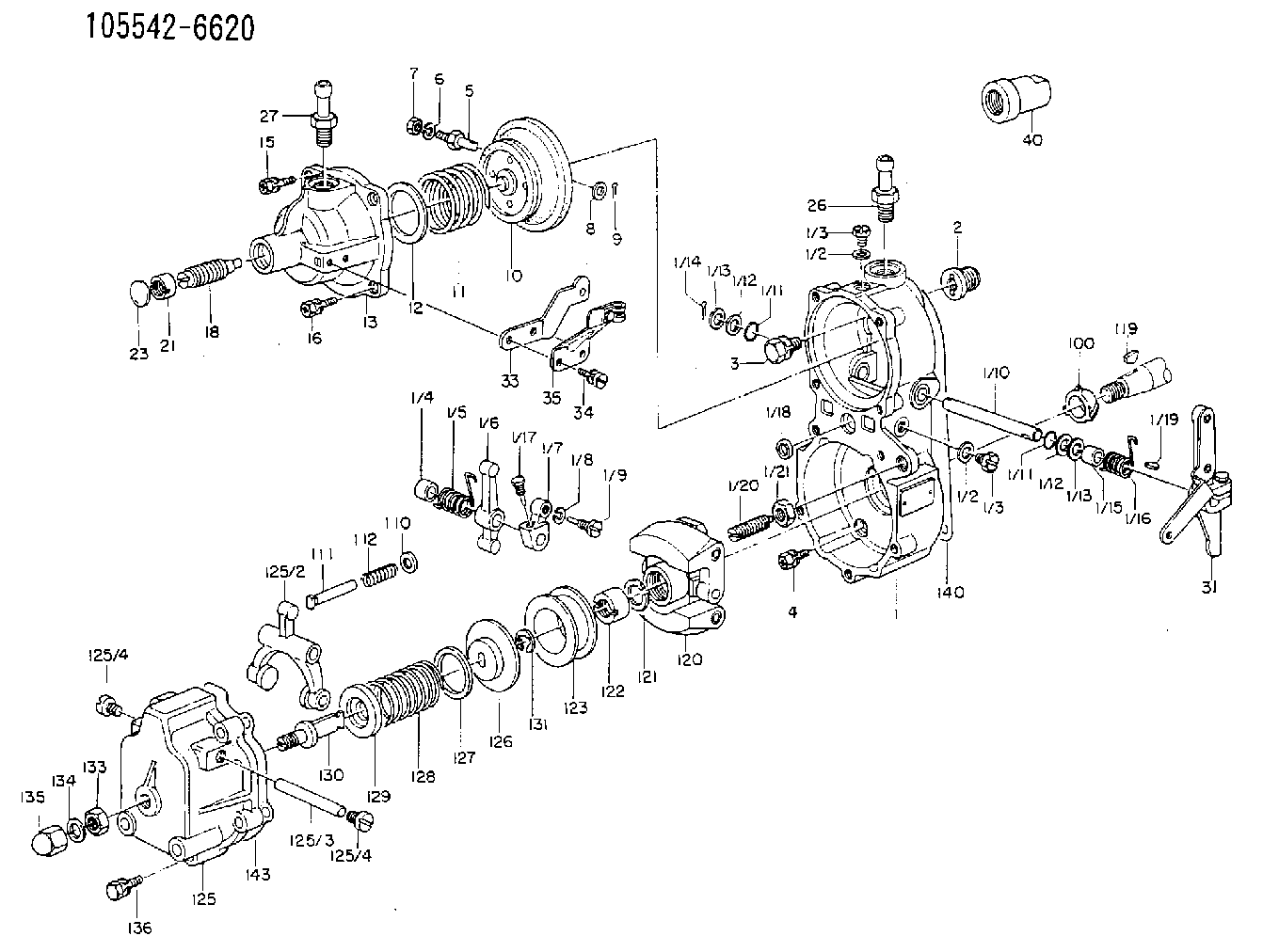

Scheme ###:

1.	[1]	155014-7320	GOVERNOR HOUSING
1/1.	[1]	155000-9110	GOVERNOR HOUSING
1/2.	[2]	026506-1040	GASKET D9.9&6.2T1
1/2.	[2]	026506-1040	GASKET D9.9&6.2T1
1/3.	[2]	029010-6010	CAPSULE M6P1.0L7
1/3.	[2]	029010-6010	CAPSULE M6P1.0L7
1/4.	[1]	155052-7600	BUSHING
1/5.	[1]	155005-0800	COILED SPRING
1/6.	[1]	155003-1000	CONTROL LEVER
1/7.	[1]	155003-1100	CONTROL LEVER
1/8.	[1]	029320-6010	LOCKING WASHER
1/9.	[1]	155411-8100	FLAT-HEAD SCREW
1/10.	[1]	155004-2200	LEVER SHAFT
1/11.	[2]	029630-8060	O-RING
1/11.	[2]	029630-8060	O-RING
1/12.	[2]	029300-8010	PLAIN WASHER D15&8T1.00
1/12.	[2]	029300-8010	PLAIN WASHER D15&8T1.00
1/13.	[0]	029310-8010	PLAIN WASHER D15&8.4T0.2
1/13.	[0]	029310-8010	PLAIN WASHER D15&8.4T0.2
1/13.	[0]	029310-8020	PLAIN WASHER D15&8.4T0.3
1/14.	[1]	025520-1210	SPLIT PIN
1/15.	[1]	155052-7600	BUSHING
1/16.	[1]	155005-0900	COILED SPRING
1/17.	[1]	155006-0300	BLEEDER SCREW
1/18.	[1]	029620-5010	PACKING RING
1/19.	[1]	025802-1010	WOODRUFF KEY
1/20.	[1]	155007-0520	HEADLESS SCREW
1/21.	[1]	029241-0060	UNION NUT
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[4]	029010-6810	BLEEDER SCREW
5.	[1]	153406-0400	BLEEDER SCREW
6.	[1]	014110-5440	LOCKING WASHER
7.	[1]	013020-5220	UNION NUT M5P0.8H4
8.	[1]	023500-6210	PLAIN WASHER D11&6.4T1.5
9.	[1]	025520-1210	SPLIT PIN
10.	[1]	155020-4820	DIAPHRAGM
11.	[1]	155031-5800	GOVERNOR SPRING
12/1.	[0]	155407-1100	SHIM D37&30.5T0.5
12/1.	[0]	155407-1200	SHIM D37&30.5T1.0
12/1.	[0]	155407-1300	SHIM D37&30.5T1.5
12/1.	[0]	155407-1400	SHIM D37&30.5T2.0
12/1.	[0]	155407-1500	SHIM D37&30.5T2.5
12/1.	[0]	155407-1600	SHIM D37&30.5T3.0
12/1.	[0]	155407-1700	SHIM D37&30.5T0.2
12/1.	[0]	155407-1800	SHIM D37&30.5T0.3
13.	[1]	155240-0500	COVER
15.	[3]	020105-1640	BLEEDER SCREW M5P0.8L16
16.	[1]	029010-5350	BLEEDER SCREW
18.	[1]	155241-2620	HEADLESS SCREW
21.	[1]	155245-0100	HEXAGON NUT
23.	[1]	029142-0010	CAPSULE
26.	[1]	029721-2050	JOINT CONNECTION
27.	[1]	155616-3020	JOINT CONNECTION
31.	[1]	155400-6620	CONTROL LEVER
33.	[1]	155402-2800	PLATE
34.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
35.	[1]	155418-0000	CLAMPING BAND
40.	[1]	155404-0200	CAP
100.	[1]	155412-5200	IMPELLER WHEEL
110.	[1]	029300-5010	PLAIN WASHER
111/1.	[0]	155411-0200	STOP PIN L51
111/1.	[0]	155411-0300	STOP PIN L51.5
111/1.	[0]	155411-0400	STOP PIN L52
111/1.	[0]	155411-7800	STOP PIN L48.5
111/1.	[0]	155411-7900	STOP PIN L49.5
111/1.	[0]	155411-8000	STOP PIN L50.5
111/1.	[0]	155411-9700	STOP PIN L48
111/1.	[0]	155411-9800	STOP PIN L49
111/1.	[0]	155411-9900	STOP PIN L50
112.	[1]	155411-8200	COILED SPRING
119.	[1]	025803-1610	WOODRUFF KEY
120.	[1]	154102-0720	FLYWEIGHT ASSEMBLY
121.	[1]	029321-2020	LOCKING WASHER
122.	[1]	029231-2030	UNION NUT
123.	[1]	154123-0800	SLIDING PIECE
125.	[1]	154405-4620	COVER
125/2.	[1]	154406-2000	FORK LINK
125/3.	[1]	154406-0500	BEARING PIN
125/4.	[2]	029050-8050	FLAT-HEAD SCREW
125/4.	[2]	029050-8050	FLAT-HEAD SCREW
126.	[1]	154406-1700	SLOTTED WASHER
127.	[0]	029302-3010	SHIM D30&23T0.5
127B.	[0]	029302-3020	SHIM D30&23T1.0
128.	[1]	155032-3100	GOVERNOR SPRING
128B.	[1]	155032-3200	GOVERNOR SPRING
129.	[1]	154406-1600	SLOTTED WASHER
130.	[1]	154406-1100	FLAT-HEAD SCREW
131.	[1]	016010-0740	LOCKING WASHER
133.	[1]	023040-8040	UNION NUT
134.	[1]	026508-1240	GASKET D11.9&8.2T1
135.	[1]	154035-0600	CAP NUT
136.	[5]	029000-6810	BLEEDER SCREW
140.	[1]	154390-0000	GASKET
143.	[1]	154390-1000	GASKET

Include in #1:

101461-0030 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105542-6620

F 019 Z1E 194

5157100130 ISUZU

GOVERNOR
* K

Information:

Changing Ether Cylinders
Ether is poisonous and flammable.Do not store replacement cylinders in living areas or in the operator's compartment.Do not smoke while changing ether cylinders.Use ether only in well ventilated areas.Use it with care to avoid fires.Keep the cylinders out of the reach of children.Avoid breathing of the ether vapors or repeated contact of ether with skin.Do not store cylinders in direct sunlight.Do not puncture or burn cylinders.Discard cylinders in a safe place.
The ether cylinder is located at the right front of the machine, inside the guard. 1. Remove the two bolts to open the guard. 2. Loosen the clamp (1). Unscrew the cylinder (2). 3. Remove the used gasket and replace it with the new one provided with each new cylinder. 4. Install a new cylinder and tighten it hand tight. Tighten the clamp.5. Close the guard and install the retaining bolts.
Remove the ether cylinder before shipping the machine.
