Information governor
BOSCH
9 420 610 249
9420610249
ZEXEL
105542-6350
1055426350
ISUZU
9813101370
9813101370

Rating:

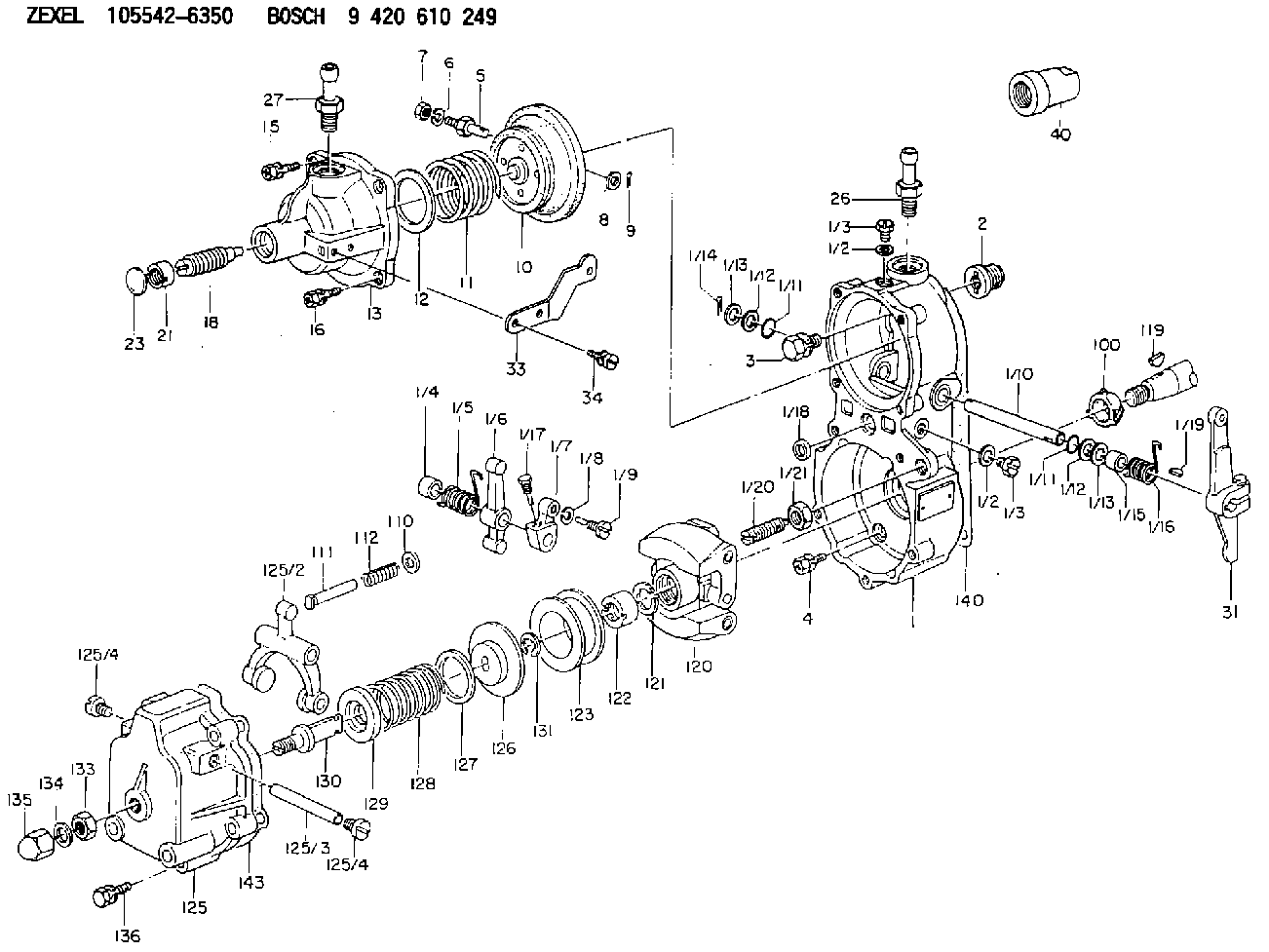

Scheme ###:
1. | [1] | 155014-7320 | GOVERNOR HOUSING |
1/1. | [1] | 155000-9110 | GOVERNOR HOUSING |
1/2. | [2] | 026506-1040 | GASKET |
1/2. | [2] | 026506-1040 | GASKET |
1/3. | [2] | 029010-6010 | CAPSULE |
1/3. | [2] | 029010-6010 | CAPSULE |
1/4. | [1] | 155052-7600 | BUSHING |
1/5. | [1] | 155005-0800 | COILED SPRING |
1/6. | [1] | 155003-1000 | CONTROL LEVER |
1/7. | [1] | 155003-1100 | CONTROL LEVER |
1/8. | [1] | 029320-6010 | LOCKING WASHER |
1/9. | [1] | 155411-8100 | FLAT-HEAD SCREW |
1/10. | [1] | 155004-2200 | LEVER SHAFT |
1/11. | [2] | 029630-8060 | O-RING |
1/11. | [2] | 029630-8060 | O-RING |
1/12. | [2] | 029300-8010 | PLAIN WASHER |
1/12. | [2] | 029300-8010 | PLAIN WASHER |
1/13. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
1/13. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
1/13. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
1/13. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
1/14. | [1] | 025520-1210 | SPLIT PIN |
1/15. | [1] | 155052-7600 | BUSHING |
1/16. | [1] | 155005-0900 | COILED SPRING |
1/17. | [1] | 155006-0300 | BLEEDER SCREW |
1/18. | [1] | 029620-5010 | PACKING RING |
1/19. | [1] | 025802-1010 | WOODRUFF KEY |
1/20. | [1] | 155007-0520 | HEADLESS SCREW |
1/21. | [1] | 029241-0060 | UNION NUT |
2. | [1] | 154007-0200 | ADAPTOR |
3. | [1] | 020018-1840 | BLEEDER SCREW |
4. | [4] | 029010-6810 | BLEEDER SCREW |
5. | [1] | 153406-0400 | BLEEDER SCREW |
6. | [1] | 014110-5440 | LOCKING WASHER |
7. | [0] | 013020-5220 | |
7. | [1] | 013020-5240 | UNION NUT |
8. | [1] | 023500-6210 | PLAIN WASHER |
9. | [1] | 025520-1210 | SPLIT PIN |
10. | [1] | 155020-8420 | DIAPHRAGM |
11. | [1] | 155031-5300 | GOVERNOR SPRING |
12/1. | [0] | 155407-1100 | SHIM D37&30.5T0.5 |
12/1. | [0] | 155407-1200 | SHIM D37&30.5T1.0 |
12/1. | [0] | 155407-1300 | SHIM D37&30.5T1.5 |
12/1. | [0] | 155407-1400 | SHIM D37&30.5T2.0 |
12/1. | [0] | 155407-1500 | SHIM D37&30.5T2.5 |
12/1. | [0] | 155407-1600 | SHIM D37&30.5T3.0 |
12/1. | [0] | 155407-1700 | SHIM D37&30.5T0.2 |
12/1. | [0] | 155407-1800 | SHIM D37&30.5T0.3 |
13. | [1] | 155240-0500 | COVER |
15. | [3] | 020105-1640 | BLEEDER SCREW |
16. | [1] | 029010-5350 | BLEEDER SCREW |
18. | [1] | 155241-1220 | HEADLESS SCREW |
21. | [1] | 155245-0100 | HEXAGON NUT |
23. | [1] | 029142-0010 | CAPSULE |
26. | [1] | 029721-2050 | JOINT CONNECTION |
27. | [1] | 155616-3020 | JOINT CONNECTION |
31. | [1] | 155400-6720 | CONTROL LEVER |
33. | [1] | 155402-2800 | PLATE |
34. | [2] | 029050-5040 | FLAT-HEAD SCREW |
40. | [1] | 155404-0200 | CAP |
100. | [1] | 155412-5300 | IMPELLER WHEEL |
110. | [1] | 029300-5010 | PLAIN WASHER |
111/1. | [0] | 155411-0200 | STOP PIN L51 |
111/1. | [0] | 155411-0300 | STOP PIN L51.5 |
111/1. | [0] | 155411-0400 | STOP PIN L52 |
111/1. | [0] | 155411-7800 | STOP PIN L48.5 |
111/1. | [0] | 155411-7900 | STOP PIN L49.5 |
111/1. | [0] | 155411-8000 | STOP PIN L50.5 |
111/1. | [0] | 155411-9700 | STOP PIN L48 |
111/1. | [0] | 155411-9800 | STOP PIN L49 |
111/1. | [0] | 155411-9900 | STOP PIN L50 |
112. | [1] | 155411-8200 | COILED SPRING |
119. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
120. | [1] | 154102-0620 | FLYWEIGHT ASSEMBLY |
121. | [1] | 029321-2020 | LOCKING WASHER |
122. | [1] | 029231-2030 | UNION NUT |
123. | [1] | 154123-0800 | SLIDING PIECE |
125. | [1] | 154405-4720 | COVER |
125/2. | [1] | 154406-2000 | FORK LINK |
125/3. | [1] | 154406-0500 | BEARING PIN |
125/4. | [2] | 029050-8050 | FLAT-HEAD SCREW |
125/4. | [2] | 029050-8050 | FLAT-HEAD SCREW |
126. | [1] | 154406-0200 | SLOTTED WASHER |
127. | [0] | 029302-5000 | SHIM D30&25T0.5 |
127B. | [0] | 029302-5010 | SHIM D30&25T1 |
128. | [1] | 155031-0000 | GOVERNOR SPRING |
128B. | [1] | 155031-8800 | GOVERNOR SPRING |
129. | [1] | 154406-0900 | SLOTTED WASHER |
130. | [1] | 154406-1000 | FLAT-HEAD SCREW |
131. | [1] | 016010-0740 | LOCKING WASHER |
133. | [1] | 154011-0400 | UNION NUT |
134. | [1] | 026508-1240 | GASKET D11.9&8.2T1.0 |
135. | [1] | 154035-0900 | CAP NUT |
136. | [5] | 029000-6810 | BLEEDER SCREW |
140. | [1] | 154390-0000 | GASKET |
143. | [1] | 154390-1000 | GASKET |
Include in #1:
101421-4450
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
If fuel line clamps are not installed in their exact location, vibration can cause the fuel lines to break and cause possible personal injury, or damage to the machine.
1. Disconnect front fuel injection lines (1), disconnect middle fuel injection lines (2) and rear fuel injection lines (3) from the fuel injection pump and the cylinder head assembly.2. Remove fuel injection lines (1), (2) and (3). Put caps or plugs on all fuel line connections to keep foreign material out of the fuel system.3. If a separation of the fuel lines has to be made, make sure the exact location of the clamps are marked for assembly purposes. Remove the clamps and make a separation of the fuel lines. The following steps are for the installation of the fuel injection lines.4. Remove the caps or plugs for the fuel injection line connections.5. If removed, connect the fuel lines with the clamps. Make sure the clamps are installed back in their correct location. Use Tool (A) to tighten the clamp bolts to a torque of 2.3 N m (20 lb in). For more information, see Specifications Manual SENR6470, of Testing & Adjusting Manual SENR6471.6. Install front fuel injection lines (1) on the fuel injection pump and cylinder head assembly.7 Install middle fuel injection lines (2) on the fuel injection pump and the cylinder head assembly.8. Install rear fuel injection lines (3) on the fuel injection pump and the cylinder head assembly.9. Tighten the fuel injection line nuts to a torque of 40 7 N m (30 5 lb ft).
