105542-6340 ZEXEL F 019 Z5E 158 BOSCH GOVERNOR f019z5e158 1055426340 9813101260




Information governor

BOSCH F 019 Z5E 158 f019z5e158
ZEXEL 105542-6340 1055426340
ISUZU 9813101260 9813101260
105542-6340 GOVERNOR
Rating:
20
Buy GOVERNOR 105542-6340 zexel genuine, new aftermarket engine parts with delivery

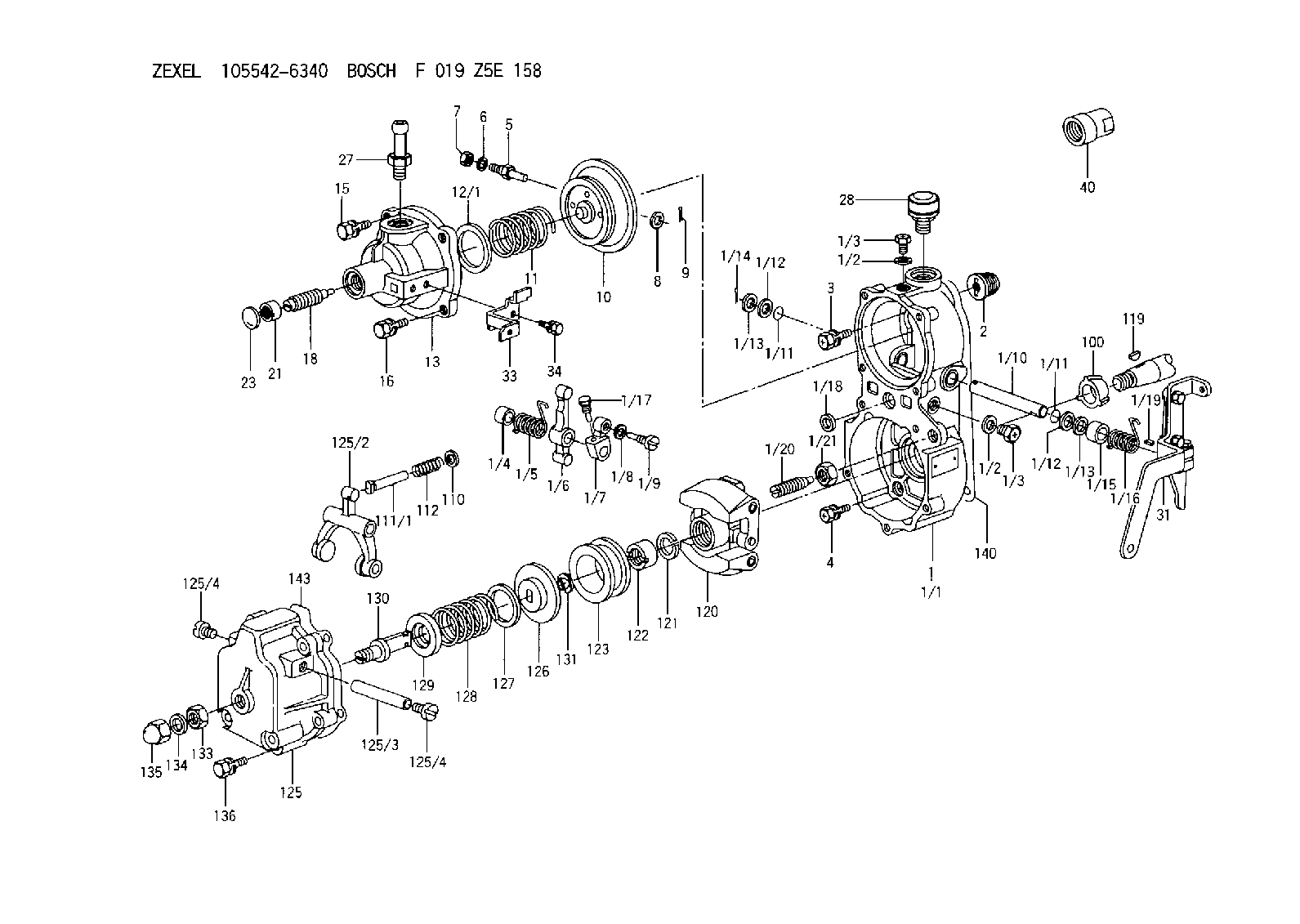

Scheme ###:

GOVERNOR HOUSING
1. [1] 155014-7320 GOVERNOR HOUSING
1/1. [1] 155000-9110 GOVERNOR HOUSING
1/2. [2] 026506-1040 GASKET
1/2. [2] 026506-1040 GASKET
1/3. [2] 029010-6010 CAPSULE M6P1.0L7
1/3. [2] 029010-6010 CAPSULE M6P1.0L7
1/4. [1] 155052-7600 BUSHING
1/5. [1] 155005-0800 COILED SPRING
1/6. [1] 155003-1000 CONTROL LEVER
1/7. [1] 155003-1100 CONTROL LEVER
1/8. [1] 029320-6010 LOCKING WASHER
1/9. [1] 155411-8100 FLAT-HEAD SCREW
1/10. [1] 155004-2200 LEVER SHAFT
1/11. [2] 029630-8060 O-RING
1/11. [2] 029630-8060 O-RING
1/12. [2] 029300-8010 PLAIN WASHER
1/12. [2] 029300-8010 PLAIN WASHER
1/13. [0] 029310-8010 PLAIN WASHER D15&8.4T0.2
1/13. [0] 029310-8020 PLAIN WASHER D15&8.4T0.3
1/14. [1] 025520-1210 SPLIT PIN
1/15. [1] 155052-7600 BUSHING
1/16. [1] 155005-0900 COILED SPRING
1/17. [1] 155006-0300 BLEEDER SCREW
1/18. [1] 029620-5010 PACKING RING
1/19. [1] 025802-1010 WOODRUFF KEY
1/20. [1] 155007-0520 HEADLESS SCREW
1/21. [1] 029241-0060 UNION NUT
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW
4. [4] 029010-6810 BLEEDER SCREW
5. [1] 153406-0400 BLEEDER SCREW
6. [1] 014110-5440 LOCKING WASHER
7. [1] 013020-5220 UNION NUT
8. [1] 023500-6210 PLAIN WASHER
9. [1] 025520-1210 SPLIT PIN
10. [1] 155020-9220 DIAPHRAGM
11. [1] 155031-1100 GOVERNOR SPRING
12/1. [0] 155407-1100 SHIM D37&30.5T0.5
12/1. [0] 155407-1200 SHIM D37&30.5T1.0
12/1. [0] 155407-1300 SHIM D37&30.5T1.5
12/1. [0] 155407-1400 SHIM D37&30.5T2.0
12/1. [0] 155407-1500 SHIM D37&30.5T2.5
12/1. [0] 155407-1600 SHIM D37&30.5T3.0
12/1. [0] 155407-1700 SHIM D37&30.5T0.2
12/1. [0] 155407-1800 SHIM D37&30.5T0.3
13. [1] 155240-0500 COVER
15. [3] 020105-1640 BLEEDER SCREW
16. [1] 029010-5350 BLEEDER SCREW
18. [1] 155241-2620 HEADLESS SCREW
21. [1] 155245-0100 HEXAGON NUT
23. [1] 029142-0010 CAPSULE
27. [1] 155616-3020 JOINT CONNECTION
28. [1] 155406-0220 AIR FILTER
31. [1] 155400-6620 CONTROL LEVER
33. [1] 155402-2800 PLATE
34. [2] 029050-5040 FLAT-HEAD SCREW
40. [1] 155404-0200 CAP
100. [1] 155412-5300 IMPELLER WHEEL
110. [1] 029300-5010 PLAIN WASHER
111/1. [0] 155411-0200 STOP PIN L51
111/1. [0] 155411-0300 STOP PIN L51.5
111/1. [0] 155411-0400 STOP PIN L52
111/1. [0] 155411-7800 STOP PIN L48.5
111/1. [0] 155411-7900 STOP PIN L49.5
111/1. [0] 155411-8000 STOP PIN L50.5
111/1. [0] 155411-9700 STOP PIN L48
111/1. [0] 155411-9800 STOP PIN L49
111/1. [0] 155411-9900 STOP PIN L50
112. [1] 155411-8200 COILED SPRING
119. [1] 025803-1610 WOODRUFF KEY 16 MM
120. [1] 154102-0720 FLYWEIGHT ASSEMBLY
121. [1] 029321-2020 LOCKING WASHER
122. [1] 029231-2030 UNION NUT
123. [1] 154123-0800 SLIDING PIECE
125. [1] 154405-4720 COVER
125/2. [1] 154406-2000 FORK LINK
125/3. [1] 154406-0500 BEARING PIN
125/4. [2] 029050-8050 FLAT-HEAD SCREW
125/4. [2] 029050-8050 FLAT-HEAD SCREW
126. [1] 154406-1700 SLOTTED WASHER
127. [0] 029302-3010 SHIM D30&23T0.5
127B. [0] 029302-3020 SHIM D30&23T1.0
128. [1] 155031-9900 GOVERNOR SPRING
128B. [1] 155032-0900 GOVERNOR SPRING
129. [1] 154406-1600 SLOTTED WASHER
130. [1] 154406-1000 FLAT-HEAD SCREW
131. [1] 016010-0740 LOCKING WASHER
133. [1] 154011-0400 UNION NUT
134. [1] 026508-1240 GASKET D11.9&8.2T1.0
135. [1] 154035-0900 CAP NUT
136. [5] 029000-6810 BLEEDER SCREW
140. [1] 154390-0000 GASKET
143. [1] 154390-1000 GASKET

Include in #1:

101441-0020 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105542-6340
105542-6570
F 019 Z5E 158
NP-EP/RBD1830L2N33
9813101260  ISUZU
GOVERNOR
* K 14JP COMBINED GOVERNOR GOV RBD GOV




Information:

1. Disconnect air line (1) from the fuel ratio control.2. Remove wire seal (4) from the bolts.3. Remove bolts (3) that hold fuel ratio control (2).4. Remove the fuel ratio control by pulling down and out from the collar. The following steps are for the installation of the fuel ratio control.5. Put fuel ratio control (2) in position on the governor. Make sure the valve head of the fuel ratio control is connected in the groove of the collar.6. Install bolts (3) that hold the fuel ratio control to the governor. Connect air line (1) to the fuel ratio control.7. To make an adjustment to the fuel ratio control, see the topic "Governor Adjustment For The Air Fuel Ratio Control" in, Testing & Adjusting Manual SENR6471.8. Install wire seal (4) on the bolts with Tool (A).Disassemble & Assemble Fuel Ratio Control
Start By:a. remove fuel ratio control 1. Put Tool (A) in a vise so that the station being used is not over the vise jaw. Place the fuel ratio control over the pins in Tool (A). Remove bolts (3) and remove cover (26) and gasket (24).
There is spring force behind cover (7). Hold cover (7) in position, and slowly remove the bolts that hold it to release the spring force.
2. Remove bolts (6). Remove cover (7) from housing (10).3. Remove nut (5) and stop (4) from cover (7).4. Remove spring (8), washer (9) and diaphragm (21) from retainer (25). Remove retainer (25) from housing (10).5. Remove tube (1) from the end of extension (19). Remove nut (2) from extension (19) and remove the extension from retainer (25). Remove valve (16), spring (22) and O-ring seal (23) from the extension.6. Remove spring (20), retainer (18) and spring (17) from housing (10).7. Remove piston (12) and valve assembly (14) from the housing.8. Use Tool (B) and remove snap ring (13) and washer (15) from the valve assembly. Remove piston (12) from the valve assembly.9. Remove seal (11) from piston (12).10. If necessary, remove the stem portion from valve assembly (14).11. Clean and inspect all parts. Make a replacement of all parts that are worn and damaged. The following steps are for the assembly of the fuel ratio control.12. If removed during disassembly, assemble the stem portion of valve assembly (14) on the valve using 9S3265 Retaining Compound.13. Lubricate seal (11) lightly with the lubricant being sealed. Put seal (11) on piston (12) and put piston (12) on valve assembly (14).14. Put washer (15) in position on the valve assembly and use Tool (B) to install snap ring (13) on the valve assembly.15. Place housing (10) on Tool (A), and put Tool (C) into the bore of the housing. Lubricate Tool (C) with clean engine oil.16. Push piston (12) into position with a smooth swift motion. Remove Tool (C) from the housing. Place spring (17), retainer (18) and spring (20) in housing (10).17. Put O-ring seal (23) on extension (19). Put spring (22) and valve (16) in position on the

Have questions with 105542-6340?





Group cross 105542-6340 ZEXEL

Isuzu

105542-6300
F 019 Z1E 192
NP-EP/RBD1250L2N30
9813101091
GOVERNOR
105542-6310

9813101011
GOVERNOR
105542-6320

9813101140

105542-6340

105542-6570
F 019 Z5E 158
NP-EP/RBD1830L2N33
9813101260
GOVERNOR
105542-6350
9 420 610 249
NP-EP/RBD1450L2N34
9813101370
GOVERNOR
105542-6370

105542-6690

9813101270

105542-6380

9813203171
GOVERNOR
105542-6390

9813101521
