105492-0210 ZEXEL F 019 Z2F 406 BOSCH GOVERNOR f019z2f406 1054920210

Information governor

BOSCH F 019 Z2F 406 f019z2f406

ZEXEL 105492-0210 1054920210

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105492-0210 zexel genuine, new aftermarket engine parts with delivery

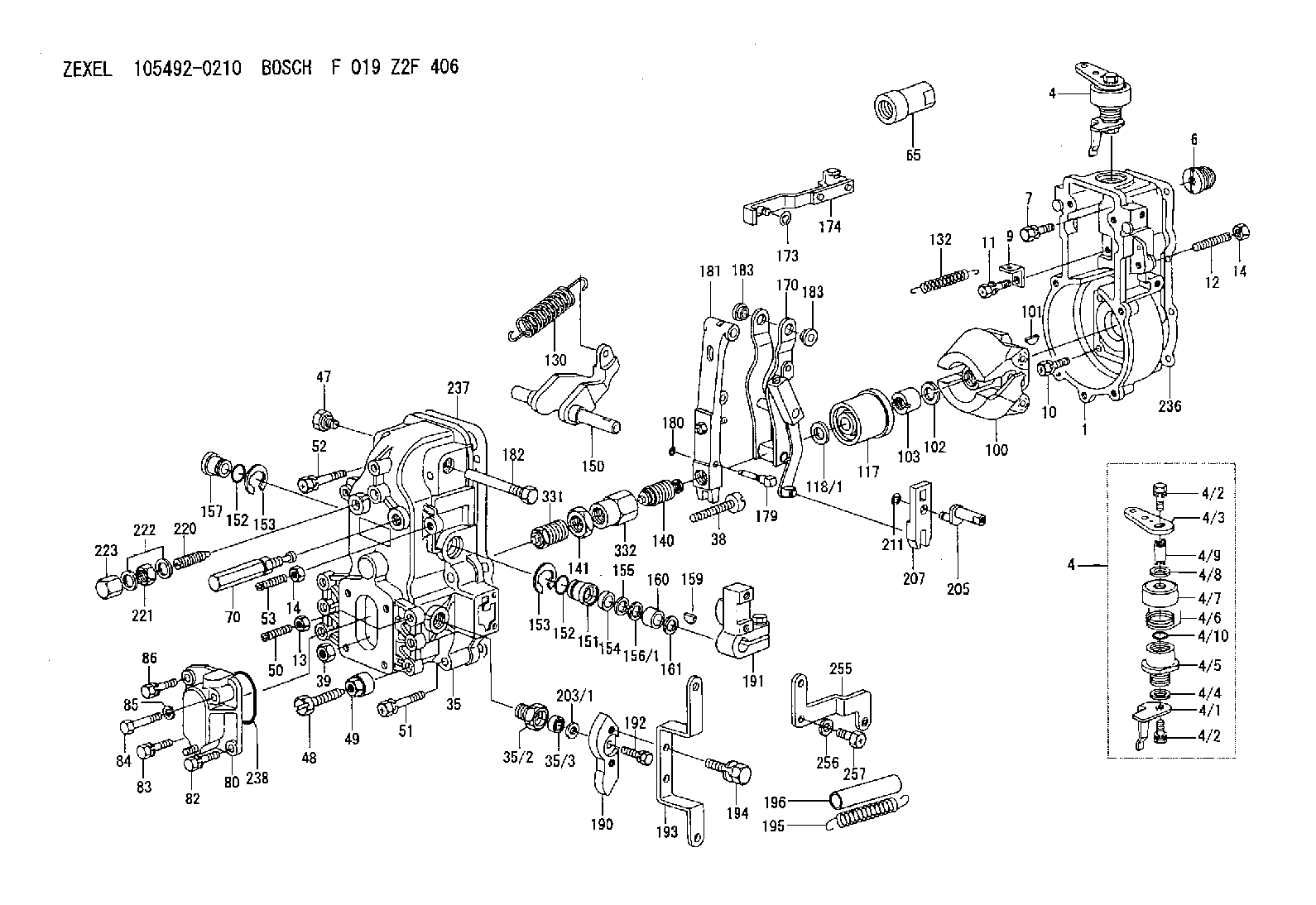

Scheme ###:

1.	[1]	154000-8300	GOVERNOR HOUSING
4.	[1]	154364-2620	CONTROL LEVER
4.	[1]	154364-2620	CONTROL LEVER
4/1.	[1]	154304-3500	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-2600	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-3500	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-0200	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154514-5820	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
65.	[1]	155404-1500	CAP
70.	[1]	154055-1520	HEADLESS SCREW
80.	[1]	154060-0020	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7500	GOVERNOR SPRING
132.	[1]	154154-3700	COILED SPRING
140.	[1]	154178-2820	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-8220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4720	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-0020	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154363-8120	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[1]	154317-3100	COILED SPRING
196.	[1]	154156-0900	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4500	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-3520	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154359-1120	BRACKET
256.	[2]	014110-5440	LOCKING WASHER
257.	[2]	020365-1040	BLEEDER SCREW M5P0.8L10
331.	[1]	154179-1820	HEADLESS SCREW
332.	[1]	029201-6210	UNION NUT

Include in #1:

101691-9611 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105492-0210

F 019 Z2F 406

GOVERNOR
K

Information:

REM07-17
Reman
August 2007 APPEARANCE CHANGE TO REMAN ELECTRONIC & HEUI? INJECTORS
Announcement
The Caterpillar Remanufactured Products Group announces an appearance change on selected Cat? Reman Electronic & HEUI? Injectors.
In order to improve the salvage of EUI and HEUI injector components Cat Reman is introducing a new Metal Deposition process around the sealing cone/case on electronic injectors and HEUI injectors for the families mentioned above. Validation Tests confirm change will not alter quality, reliability, fit or performance in any way. Appearance with this new Metal Deposition process before and after use for acceptable cases are as shown below (Reference: EI800 (B) Injector assembly).
Effective July 2007, this appearance change affects part numbers in the following families: EI400, EI800, MI550, EI550 Classic and Bridge, EI500 and EI550 with ACERTTM Technology electronic injectors and HEUI series HI300 CAT, HIA250 and HIA450 Injectors. Refer to the table below for a complete part number listing by family.
Features And Benefits
Cat Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new price.
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman
Technical Help Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
PELJ0797 CATERPILLAR? ?2007 Caterpillar
