105492-0202 ZEXEL F 019 Z2F 166 BOSCH GOVERNOR f019z2f166 1054920202

Information governor

BOSCH F 019 Z2F 166 f019z2f166

ZEXEL 105492-0202 1054920202

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105492-0202 zexel genuine, new aftermarket engine parts with delivery

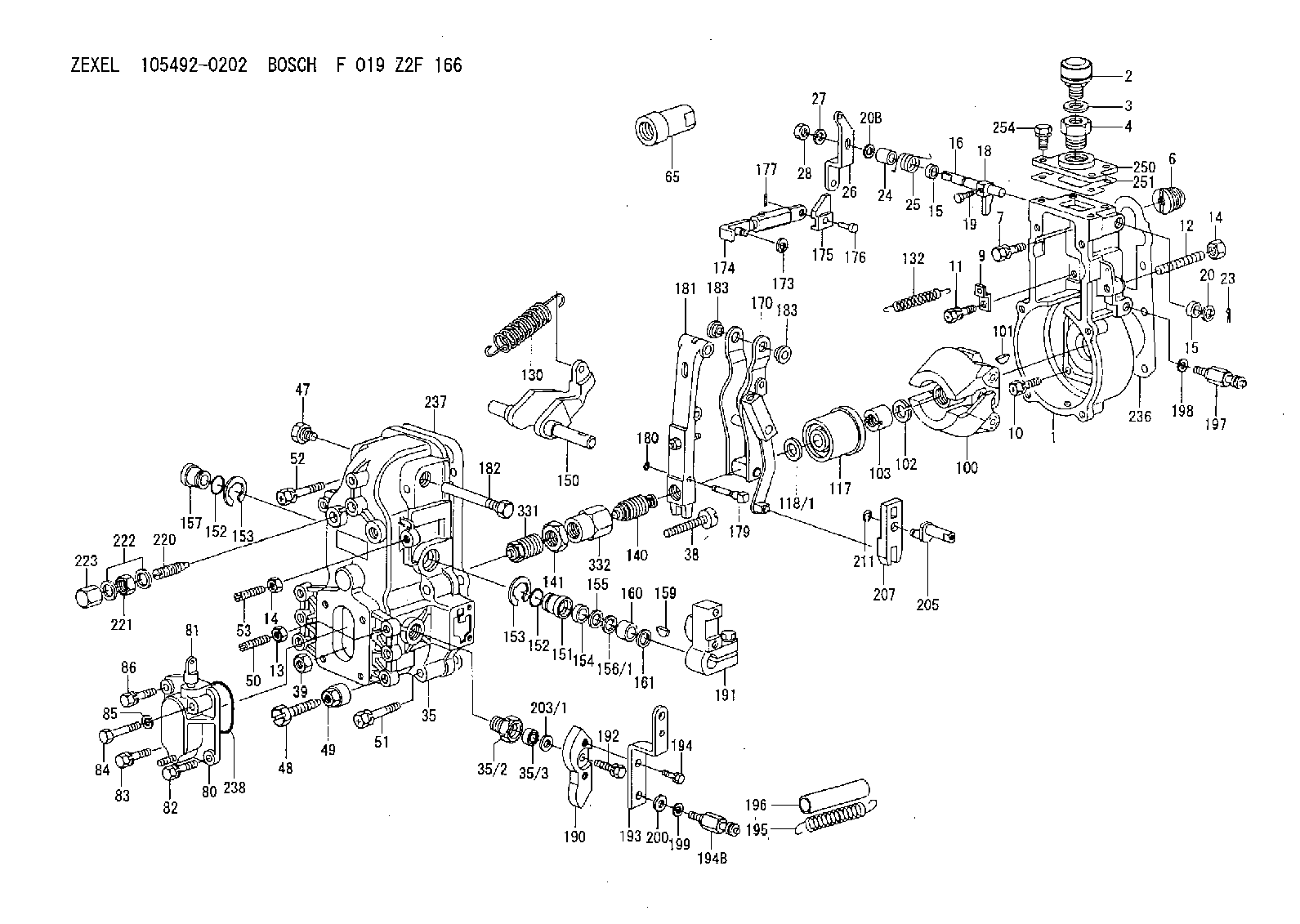

Scheme ###:

1.	[1]	154004-5520	GOVERNOR HOUSING
2.	[1]	155406-0120	AIR FILTER
3.	[1]	026512-1540	GASKET D15.4&12.2T1.50
4.	[1]	154007-2600	ADAPTOR
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3301	LEVER SHAFT
18.	[1]	155003-2820	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[0]	139308-0900	PLAIN WASHER D16&8T1
20B.	[0]	139308-1000	PLAIN WASHER D16&8T1.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-7200	COILED SPRING
26.	[1]	154366-6500	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
35.	[1]	154513-1320	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	154050-1720	STOPPING DEVICE
80.	[1]	154060-5520	COVER
81.	[1]	131030-2520	LEVEL INDICATOR
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6100	GOVERNOR SPRING
132.	[1]	154154-1200	COILED SPRING
140.	[1]	154180-3020	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-8420	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-7020	STRAP
175.	[1]	154232-1500	CONNECTOR
176.	[1]	154222-5800	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-0820	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154360-3100	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
194B.	[1]	154359-7120	BLEEDER SCREW
195.	[1]	154317-9400	COILED SPRING
196.	[1]	154156-3100	TUBE
197.	[1]	154012-1720	BLEEDER SCREW
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	014110-6440	LOCKING WASHER
200.	[3]	014010-6140	PLAIN WASHER D13&6.5T1
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
250.	[1]	154064-4500	COVER
251.	[1]	154390-2000	GASKET
254.	[4]	020106-1640	BLEEDER SCREW M6P1.0L14
331.	[1]	154179-2220	HEADLESS SCREW
332.	[1]	029201-6220	UNION NUT

Include in #1:

101891-9001 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105492-0202

F 019 Z2F 166

GOVERNOR
* K
