105490-5691 ZEXEL 9 420 611 019 BOSCH GOVERNOR 9420611019 1054905691 me731658




Information governor

BOSCH 9 420 611 019 9420611019
ZEXEL 105490-5691 1054905691
MITSUBISHI ME731658 me731658
105490-5691 GOVERNOR
Rating:
24
Buy GOVERNOR 105490-5691 zexel genuine, new aftermarket engine parts with delivery

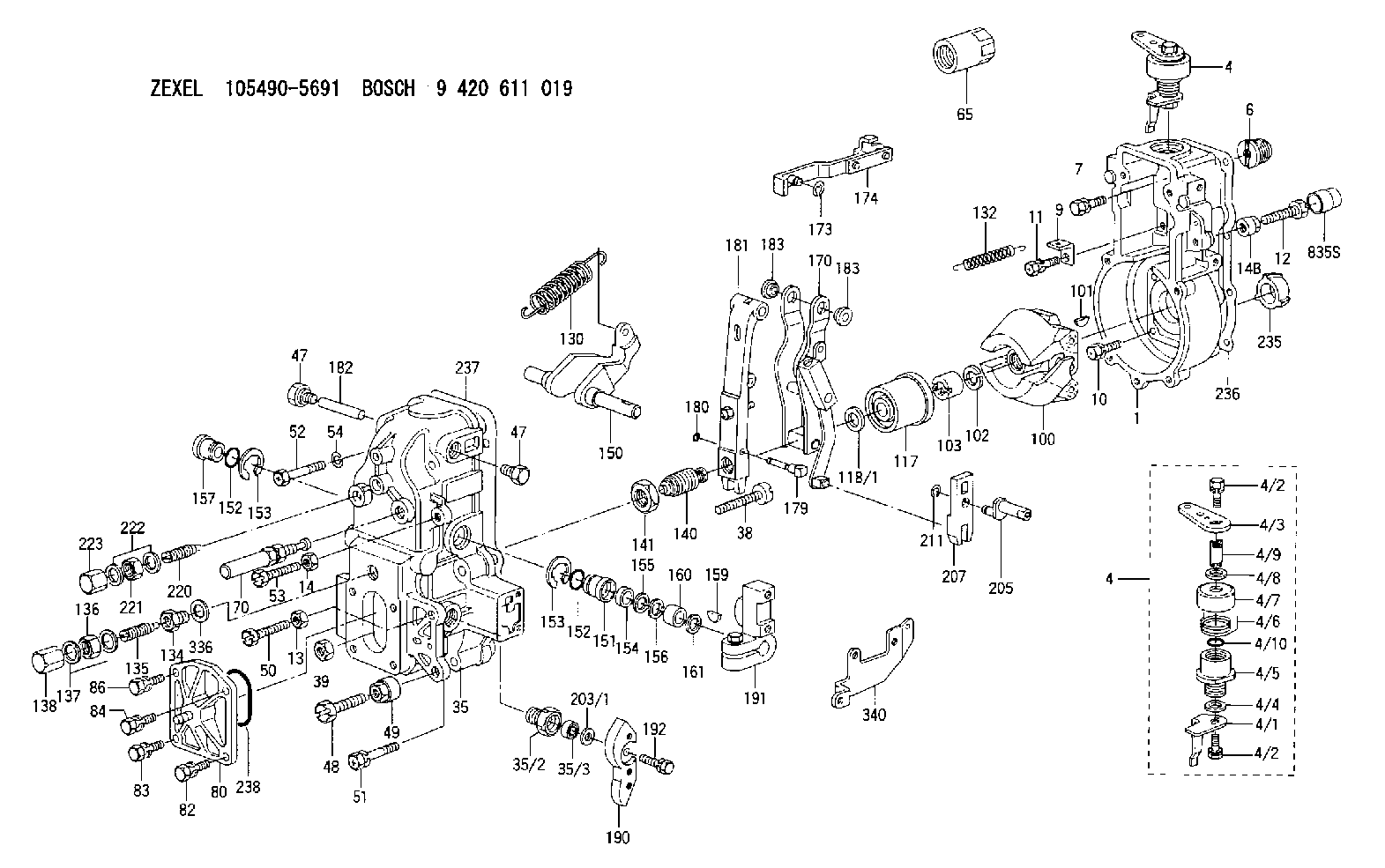

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-0800 GOVERNOR HOUSING
4. [1] 154364-2620 CONTROL LEVER
4. [1] 154364-2620 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154364-2600 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-3500 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
35. [1] 154515-0120 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW M10P1.25L42
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154013-1500 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 155404-3800 CAP
70. [1] 154055-0320 HEADLESS SCREW
80. [1] 154063-3120 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
134. [1] 154370-3000 ADAPTOR
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 029201-2130 UNION NUT M12P1.0H6
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154180-3520 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5701 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-3020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-6820 STRAP
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-5920 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
336. [1] 029331-6030 GASKET
340. [1] 154213-5800 BRACKET
835S. [1] 154062-1700 CAP D20L32

Include in #1:

101607-1462 as GOVERNOR
101607-1463

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-5691
9 420 611 019
NP-EP/RFD200/1650AF56DSL
ME731658  MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:


Core Management
Please refer to the Caterpillar® Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
RWSmith
Remanufactured Products Group
LC-2148 (309) 675-5445

Have questions with 105490-5691?





Group cross 105490-5691 ZEXEL

Mitsubishi

105490-5600
9 420 612 270
NP-EP/RFD200/1650AF56DSL
ME727259
GOVERNOR
105490-5610



Mitsubishi

105490-5620

105490-5621

ME730235
GOVERNOR
105490-5621
F 019 Z5E 105
NP-EP/RFD200/1450AF23CBL
ME738557
GOVERNOR
105490-5630
9 420 614 270
NP-EP/RFD200/1650AF25CCL

GOVERNOR
105490-5640



Mitsubishi

105490-5650
9 420 613 557
NP-EP/RFD200/1450AF80CSL
ME756605
GOVERNOR
105490-5660



Mitsubishi

105490-5670
9 420 613 558
NP-EP/RFD200/1650AF56DSL
ME730804
GOVERNOR
105490-5680
9 420 612 271
NP-EP/RFD200/1650AF56DSL
ME730868
GOVERNOR
105490-5690

105490-5691
9 420 611 615
ME730913
GOVERNOR
105490-5691
9 420 611 019
NP-EP/RFD200/1650AF56DSL
ME731658
GOVERNOR
